Plan 290101IY Spacious 4-Bedroom Modern Home Plan with Lower Level Expansion

4,856 3-4 2.5 - 3.5 2 5
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Spacious 4-Bedroom Modern Home Plan with Lower Level Expansion

Plan 290101IY

  • 4,856

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 5

    Cars

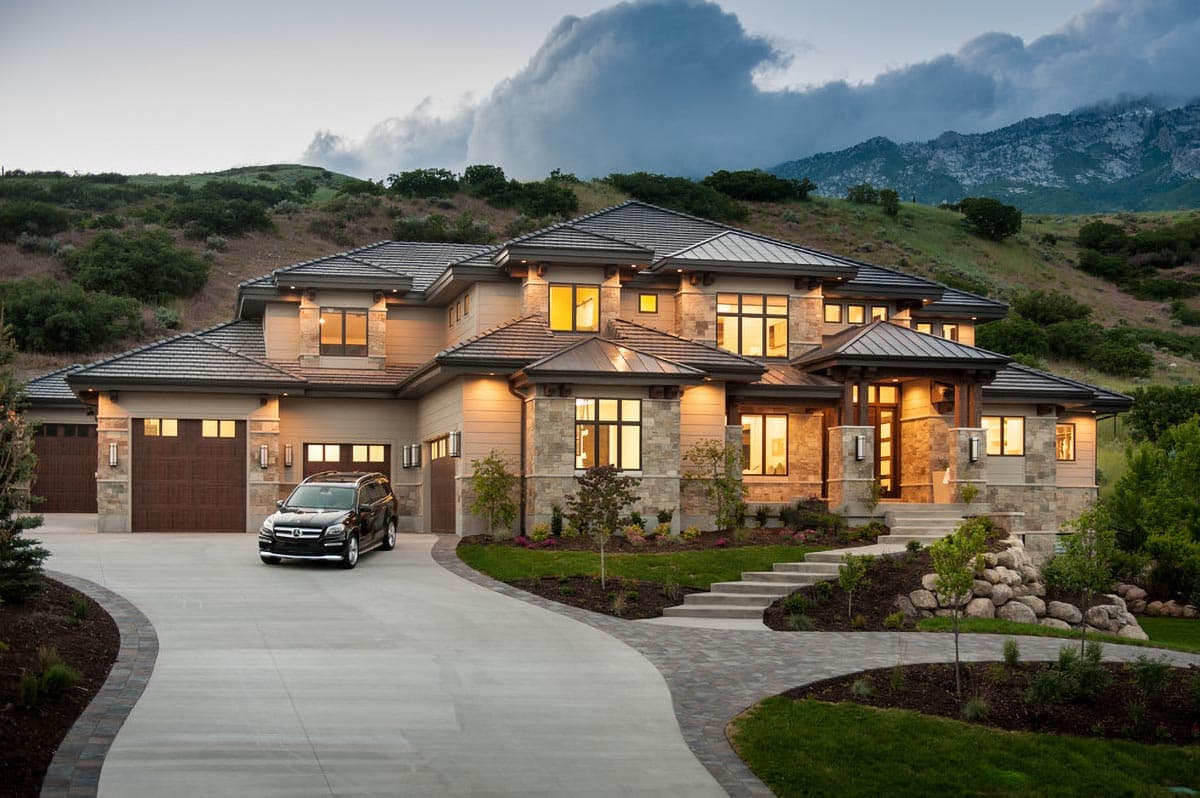

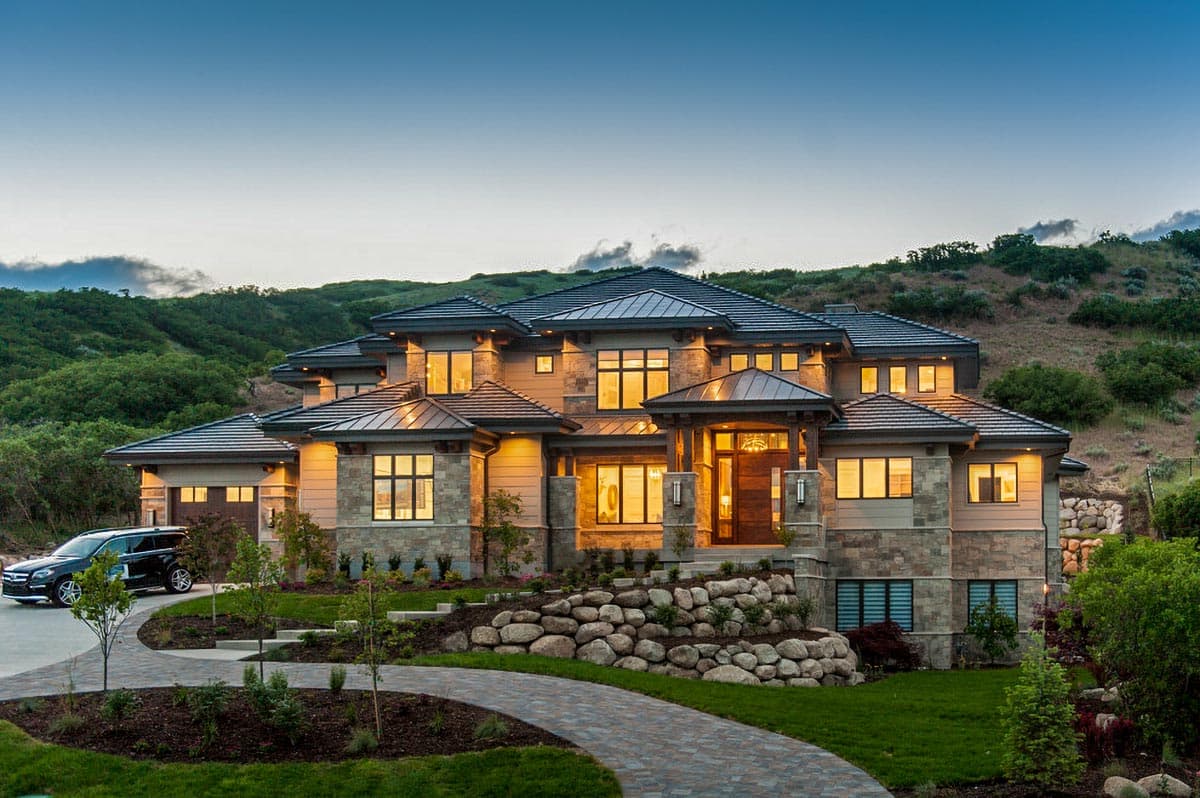

  • This spacious 3-level home plan truly has it all, including a 5-car garage.

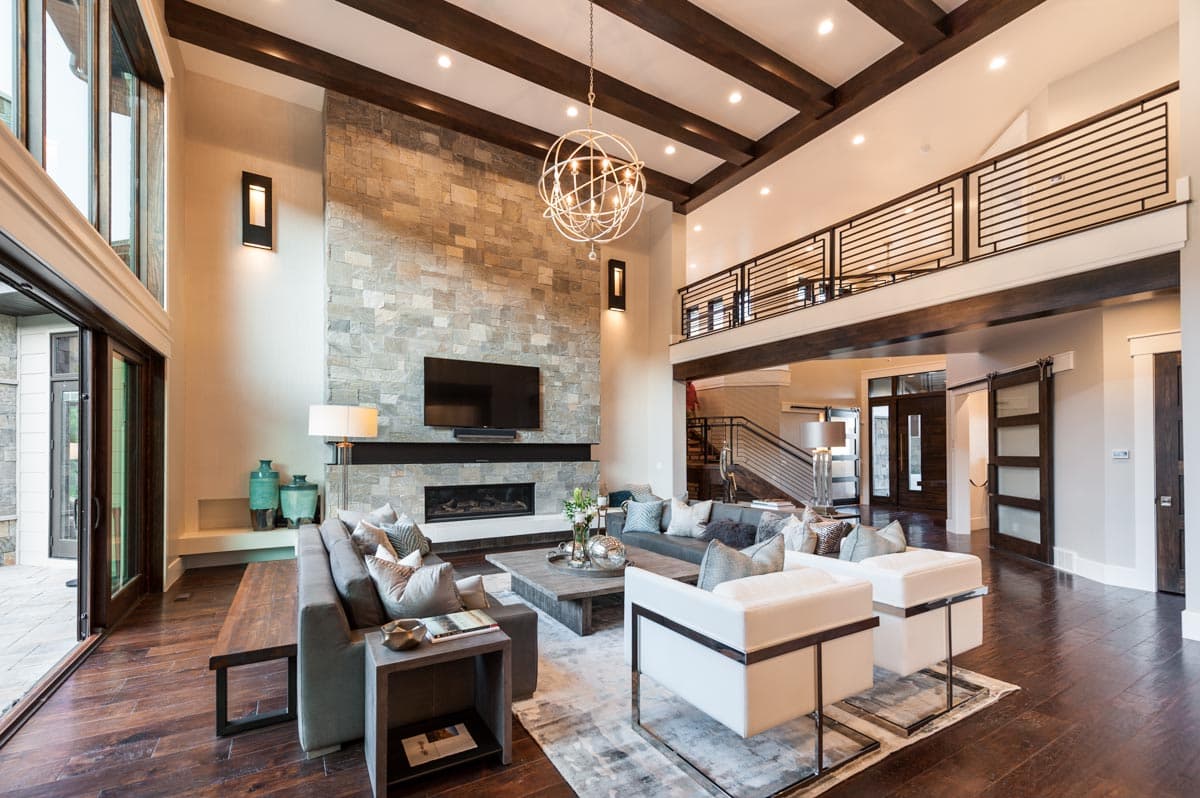

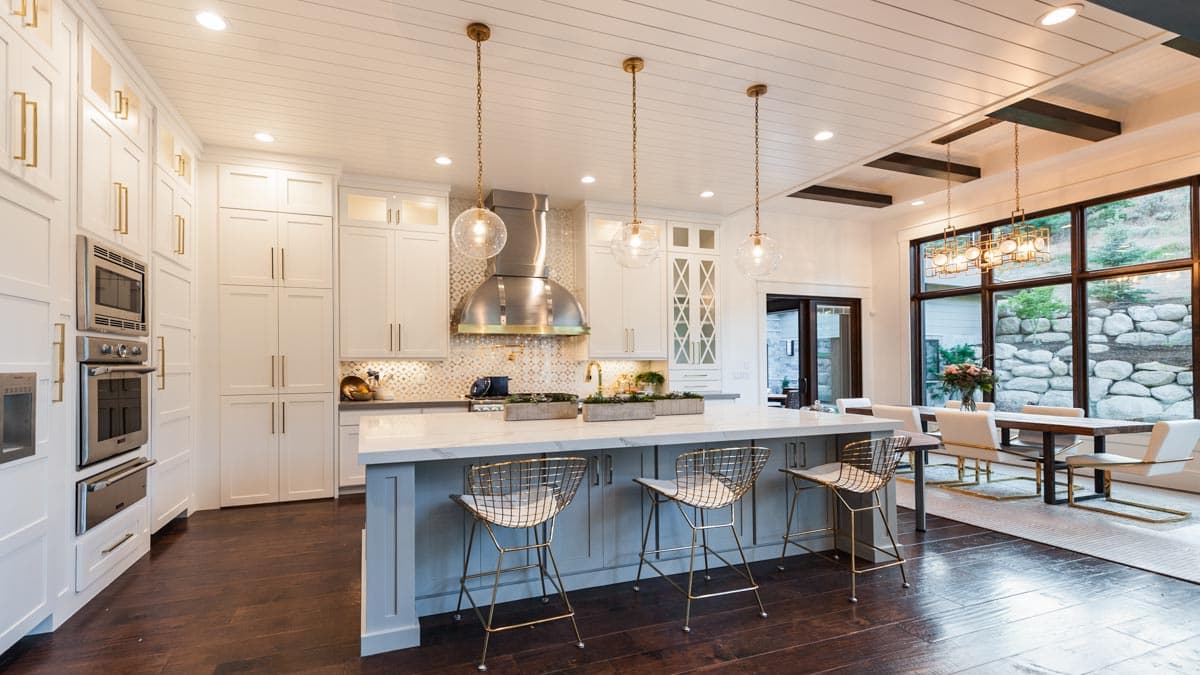

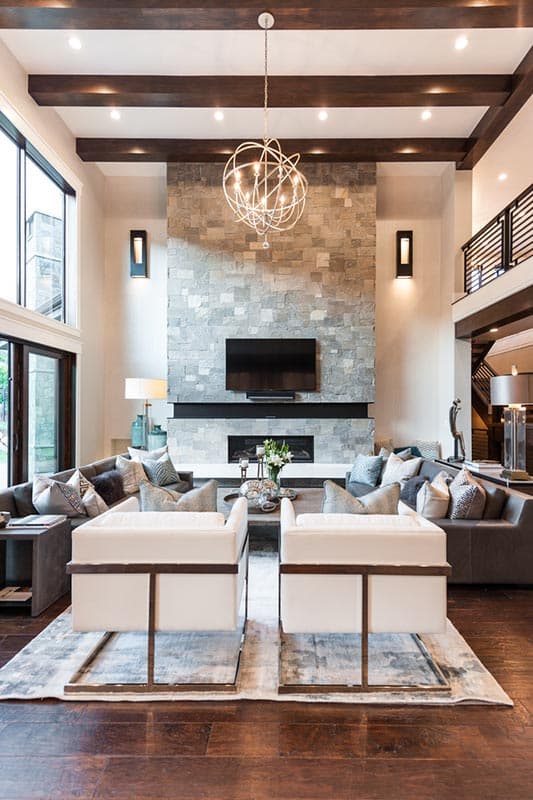

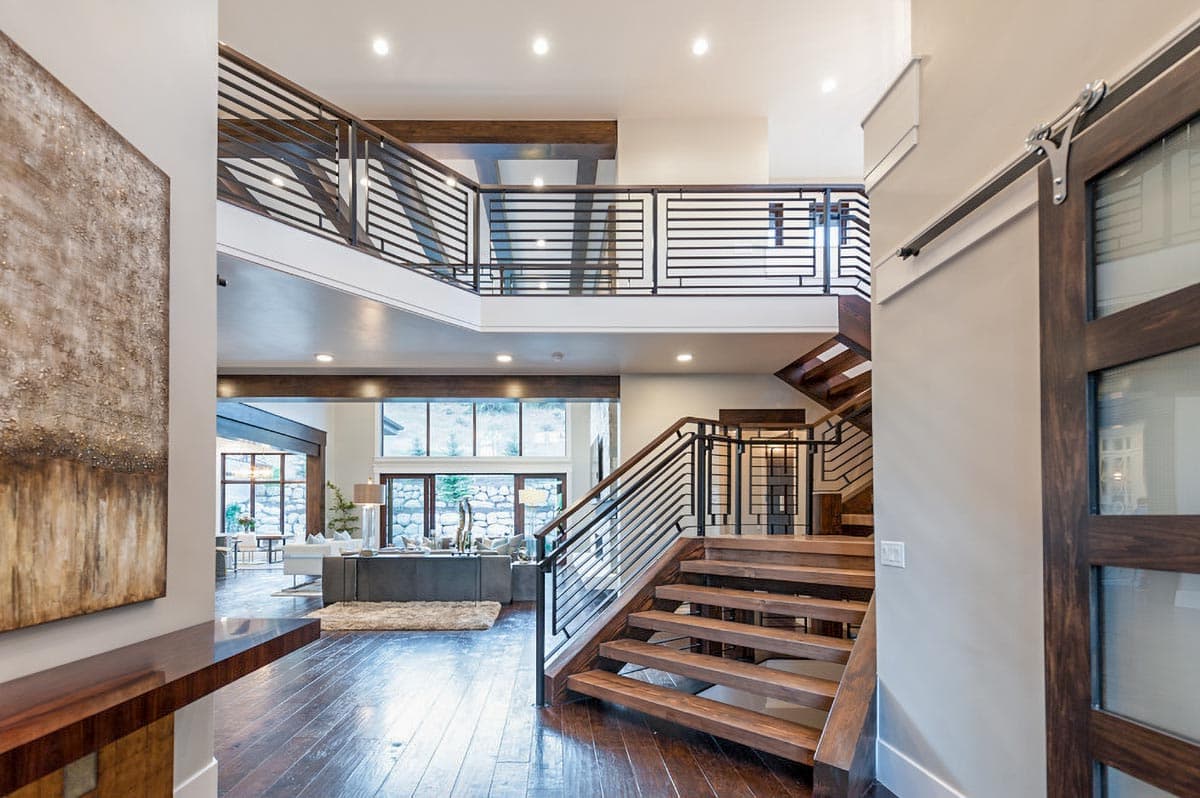

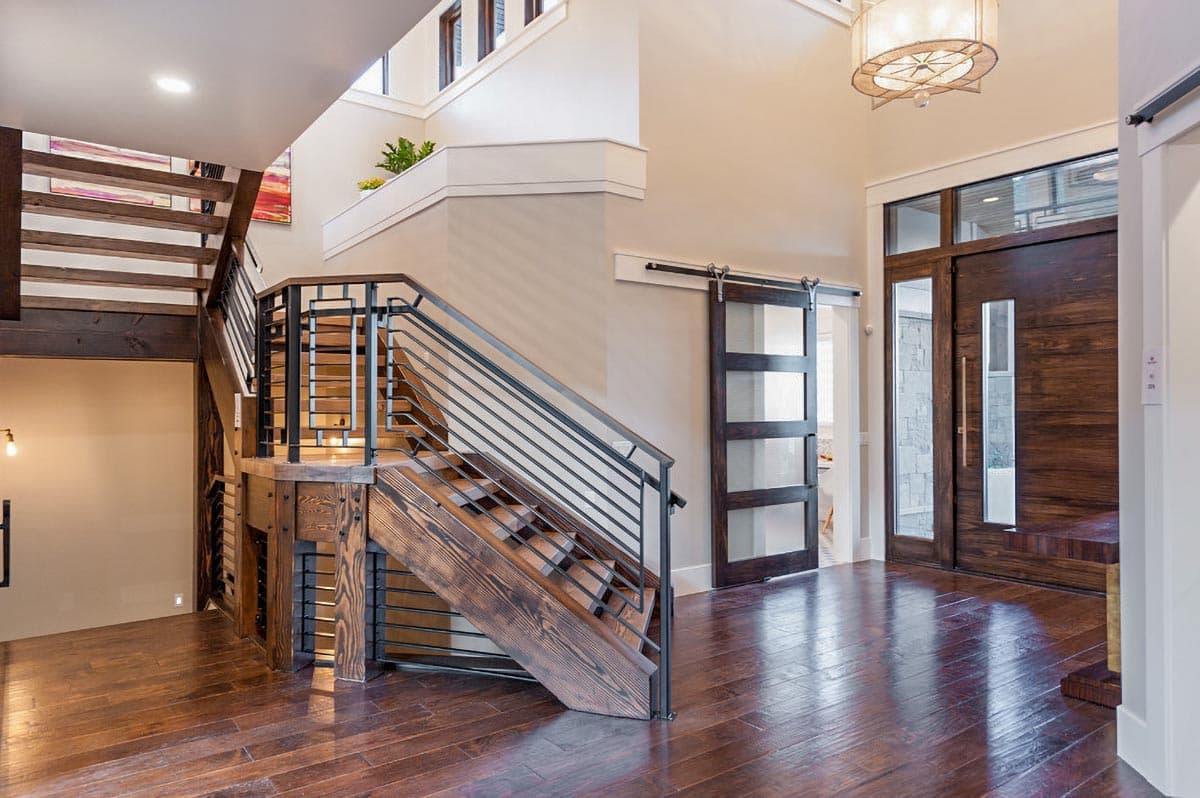

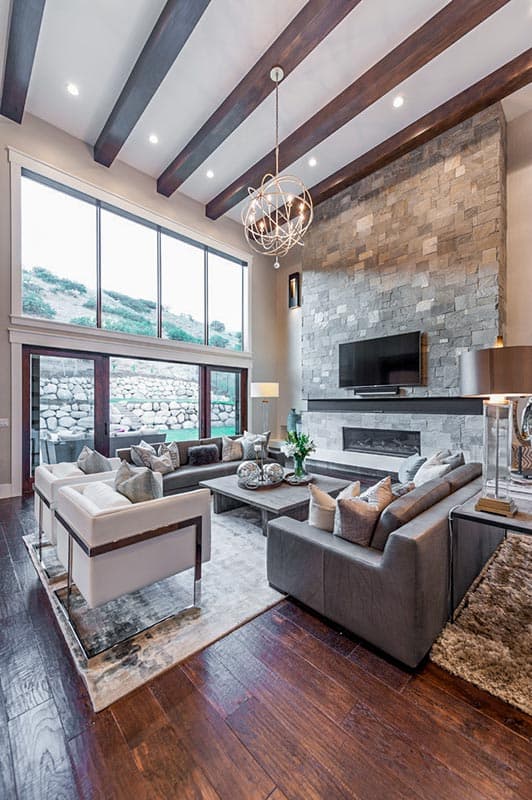

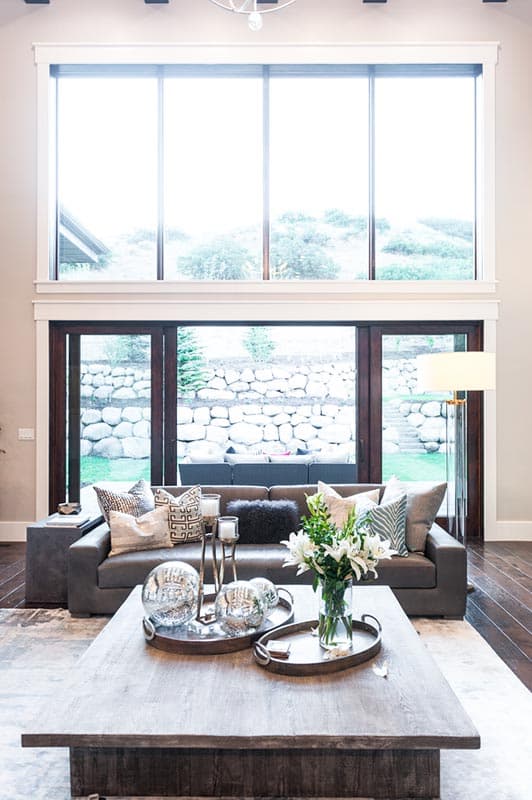

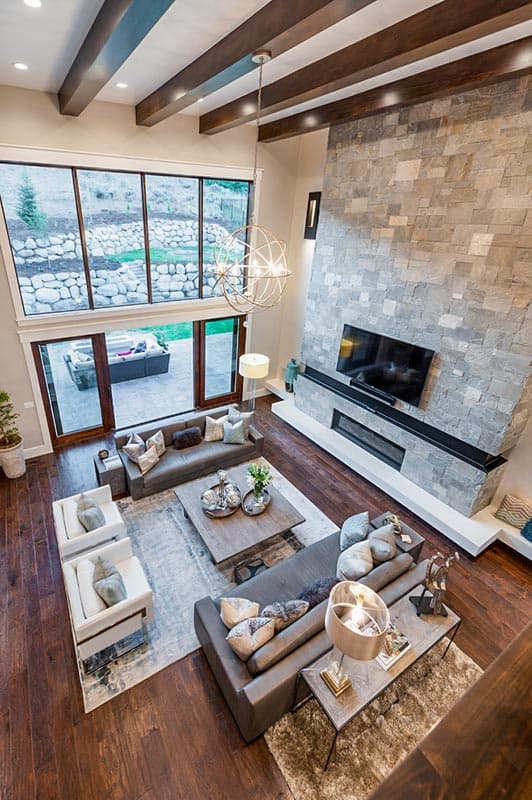

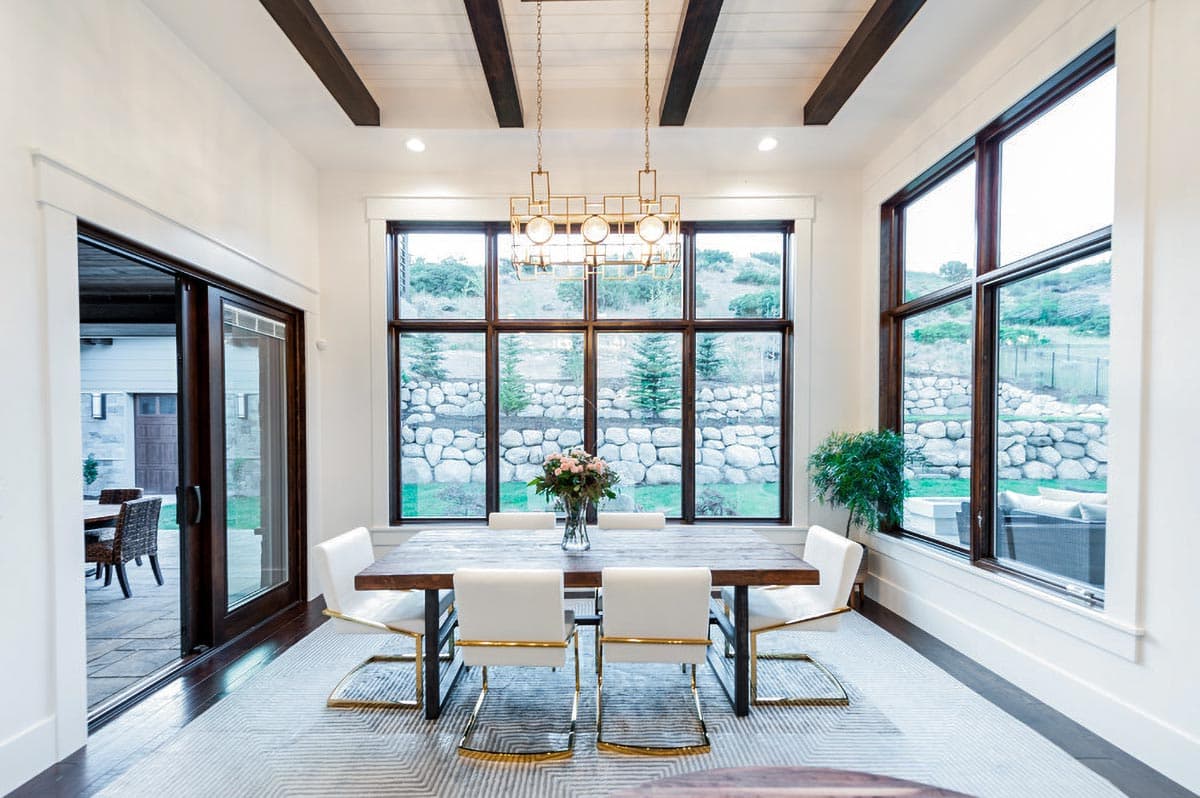

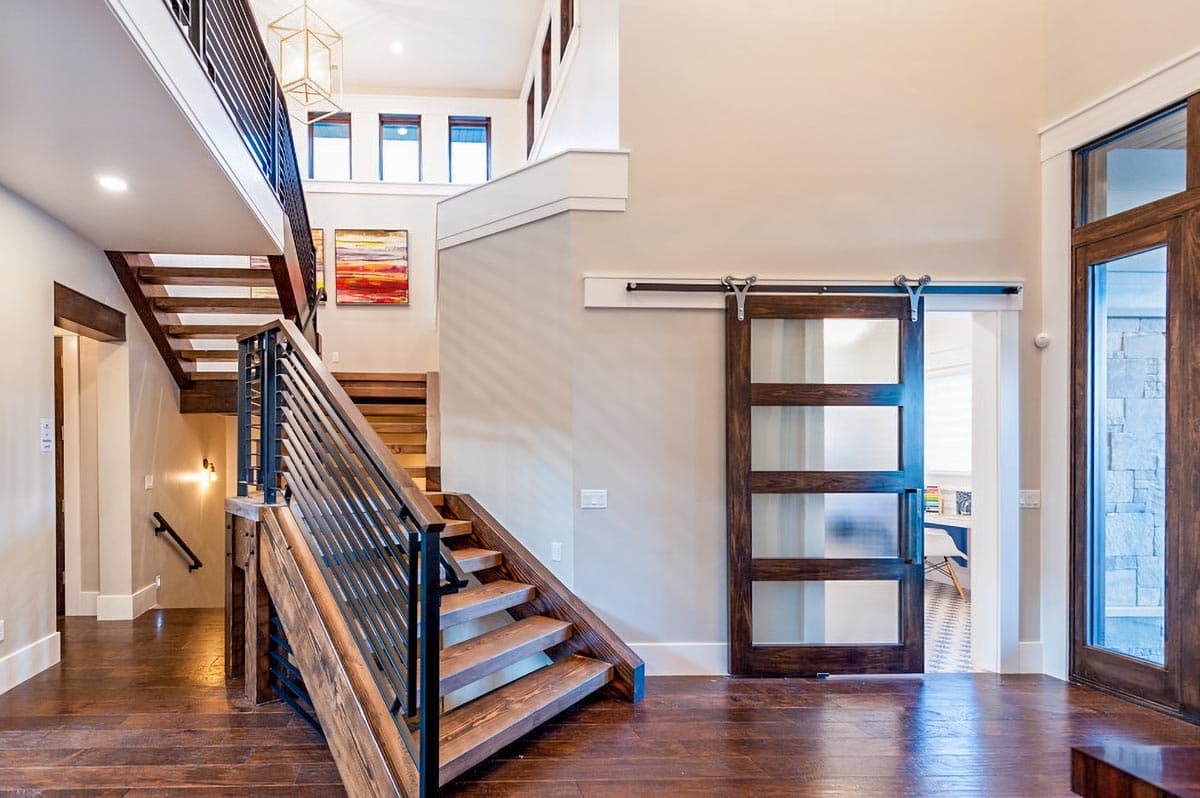

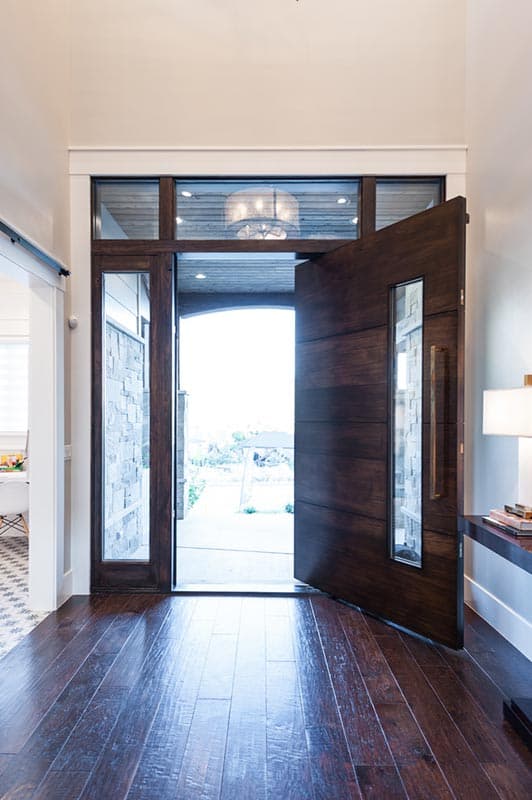

  • At the heart of the home, an open-concept great room (with 20'-high ceiling), dining area, and kitchen (12' ceiling) allow for maximum versatility and efficiency. Off the foyer, you’ll find a quiet den with a closet. Extras like a mud room and an oversized walk-in pantry lend convenience and a luxury feel.

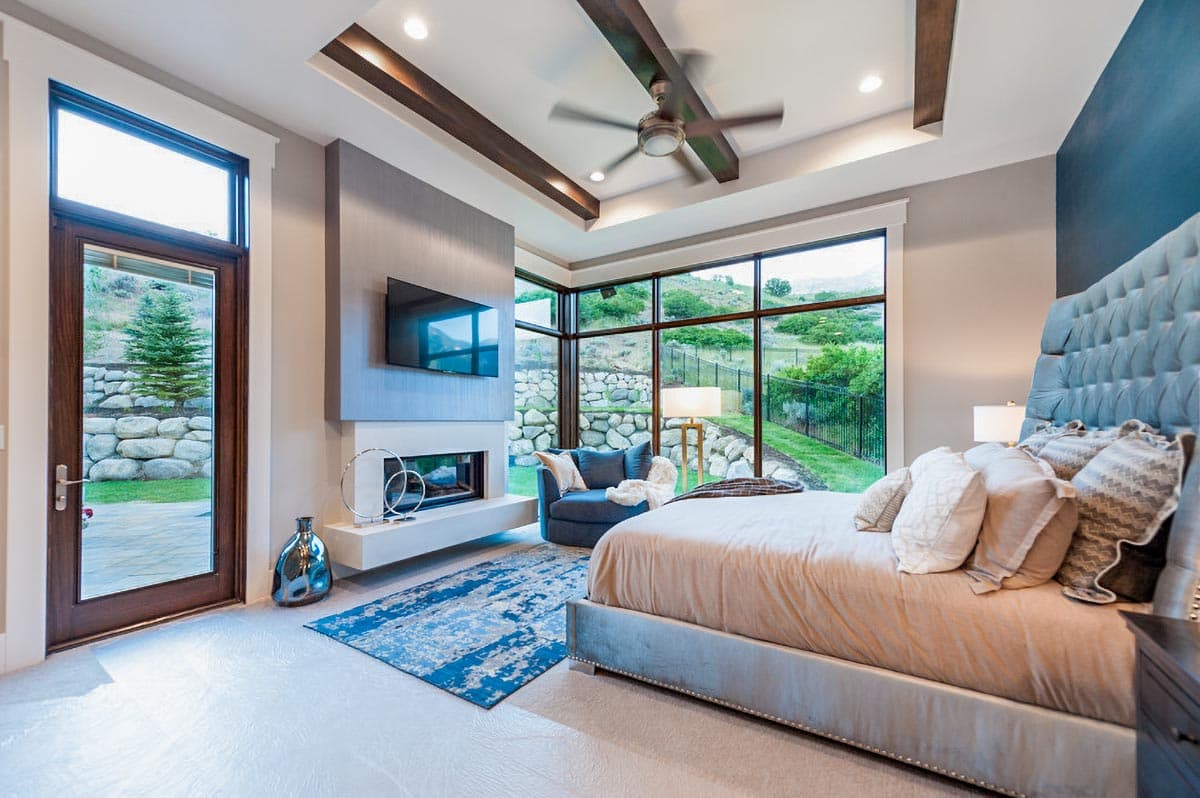

  • Retreat to the inviting main-floor master suite, which boasts a fireplace, elegant tray ceiling, 5-piece bath, and roomy walk-in closet.

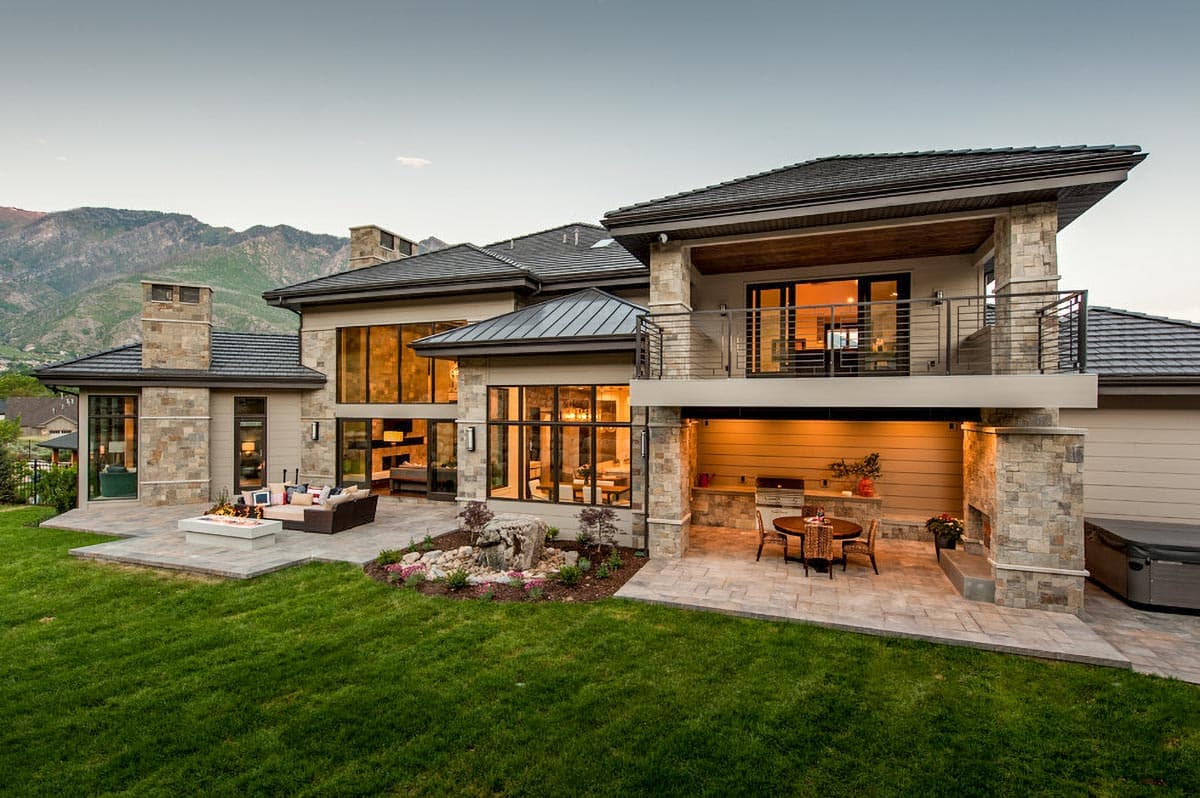

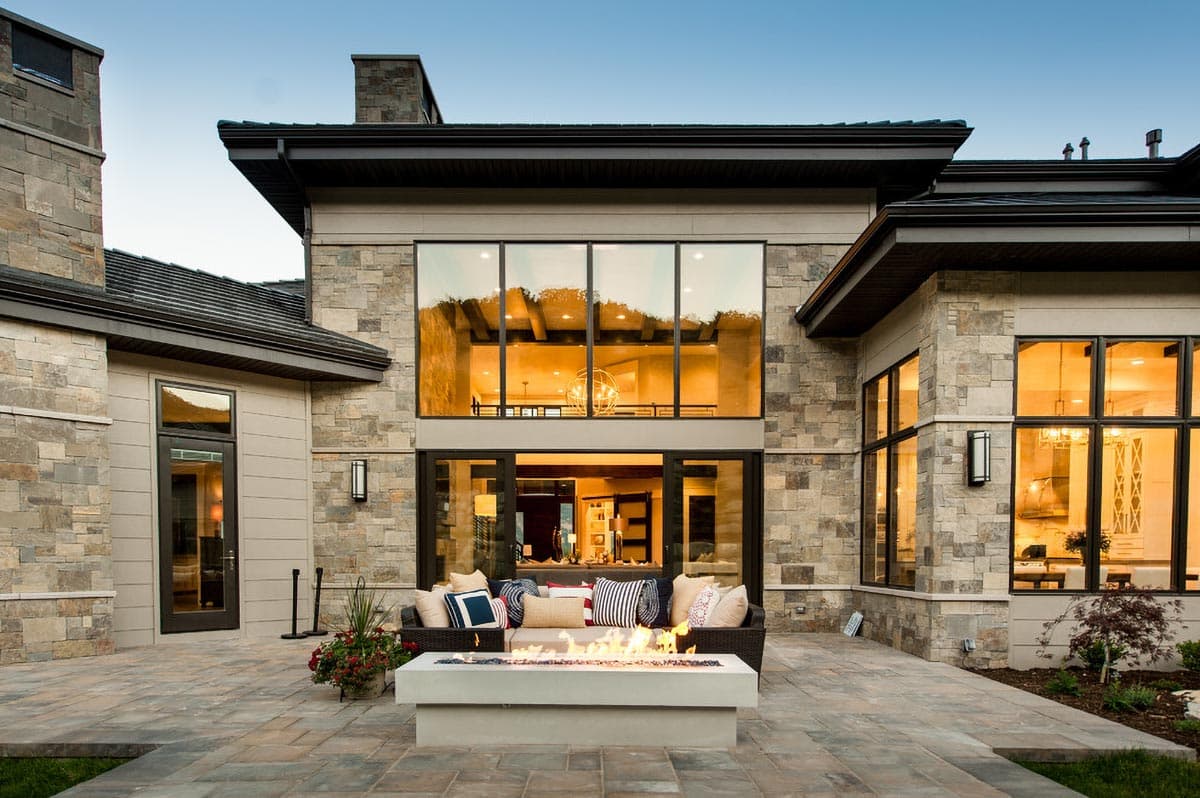

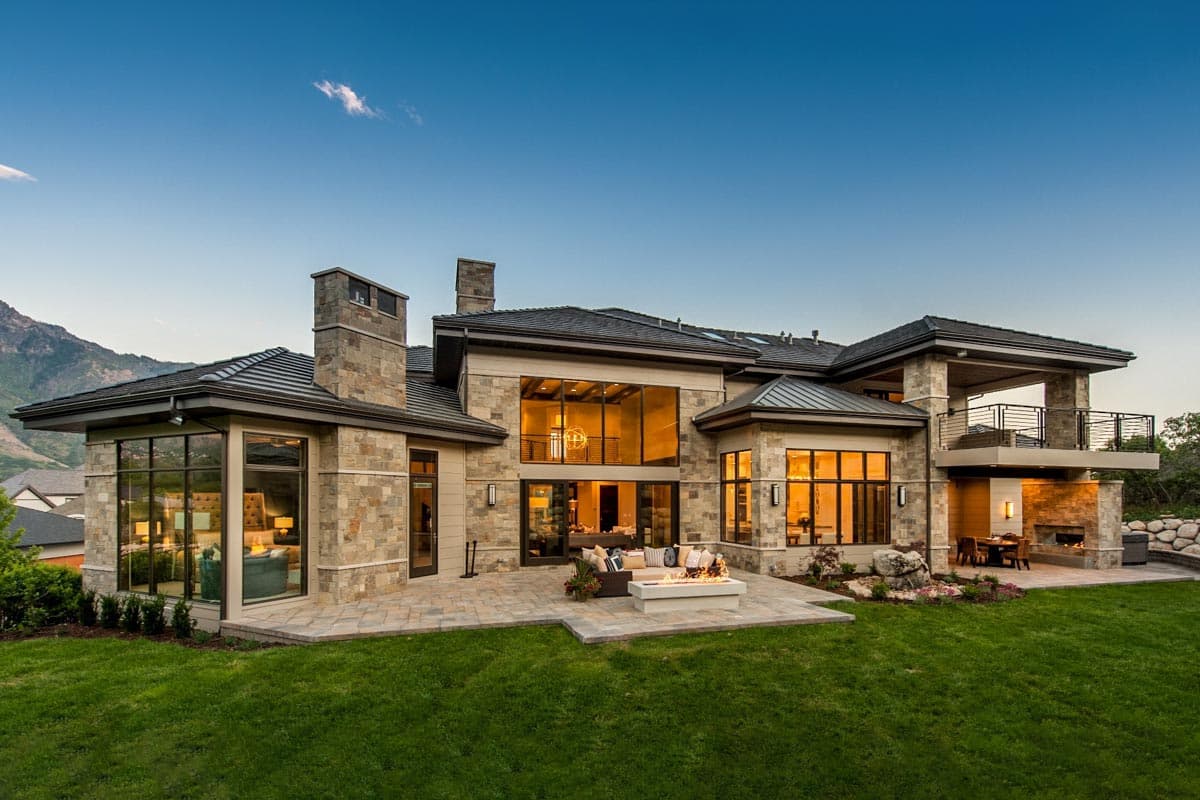

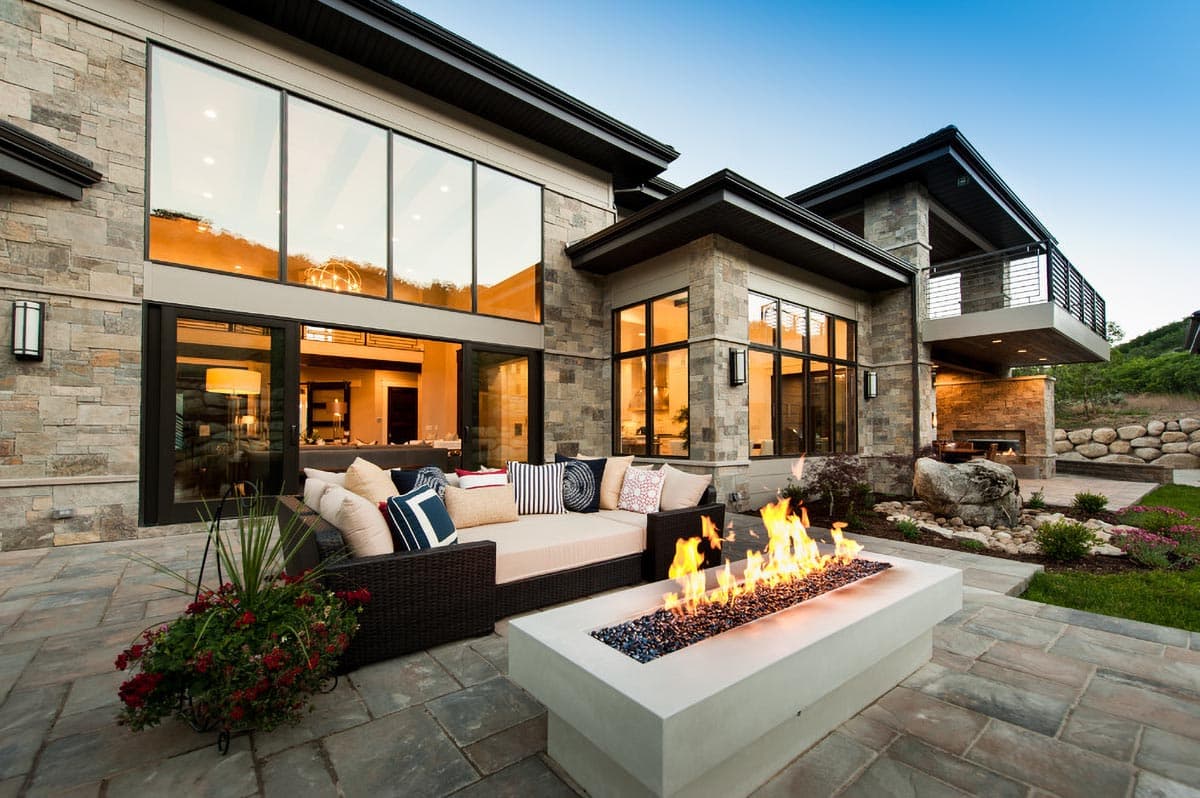

  • Enjoy outdoor living at its finest on the expansive patio and covered porch with a fireplace and barbecue.
  • Upstairs, two bedrooms share a Jack-and-Jill bath, and a vaulted bonus room (11'6" ceiling) with a covered deck is filled with possibilities.

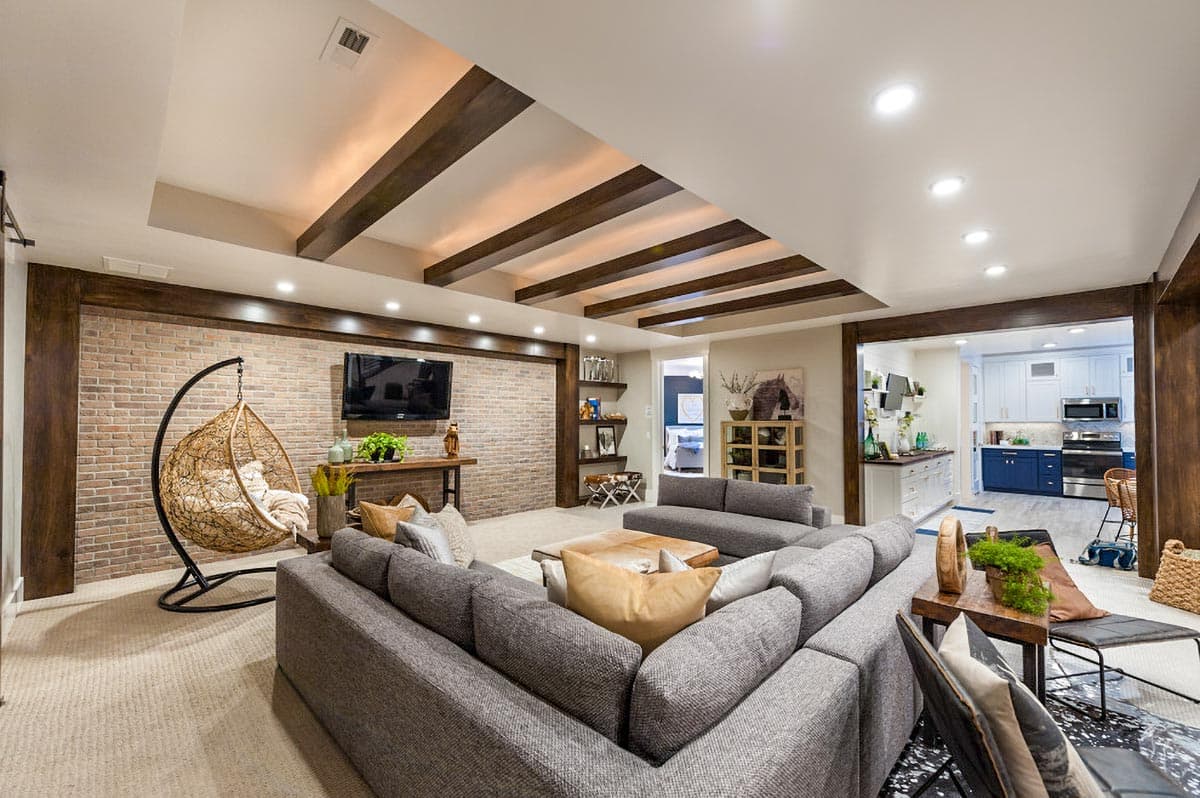

  • The lower level offers a secluded guest or in-law suite with a full bath, walk-in closet, and kitchen. A rec room, large family room, and exercise room on the lower level add function and convenience.

This house plan set has 26 pages as follows:

  1. Cover sheet and index
  2. Project notes
  3. Complete schedules
  4. Terrace level floor plan
  5. Terrace level dimension plan
  6. Main level floor plan
  7. Main level dimension plan
  8. Upper level floor plan
  9. Upper level dimension plan
  10. Terrace level flooring floor plan
  11. Main level flooring floor plan
  12. Second level flooring floor plan

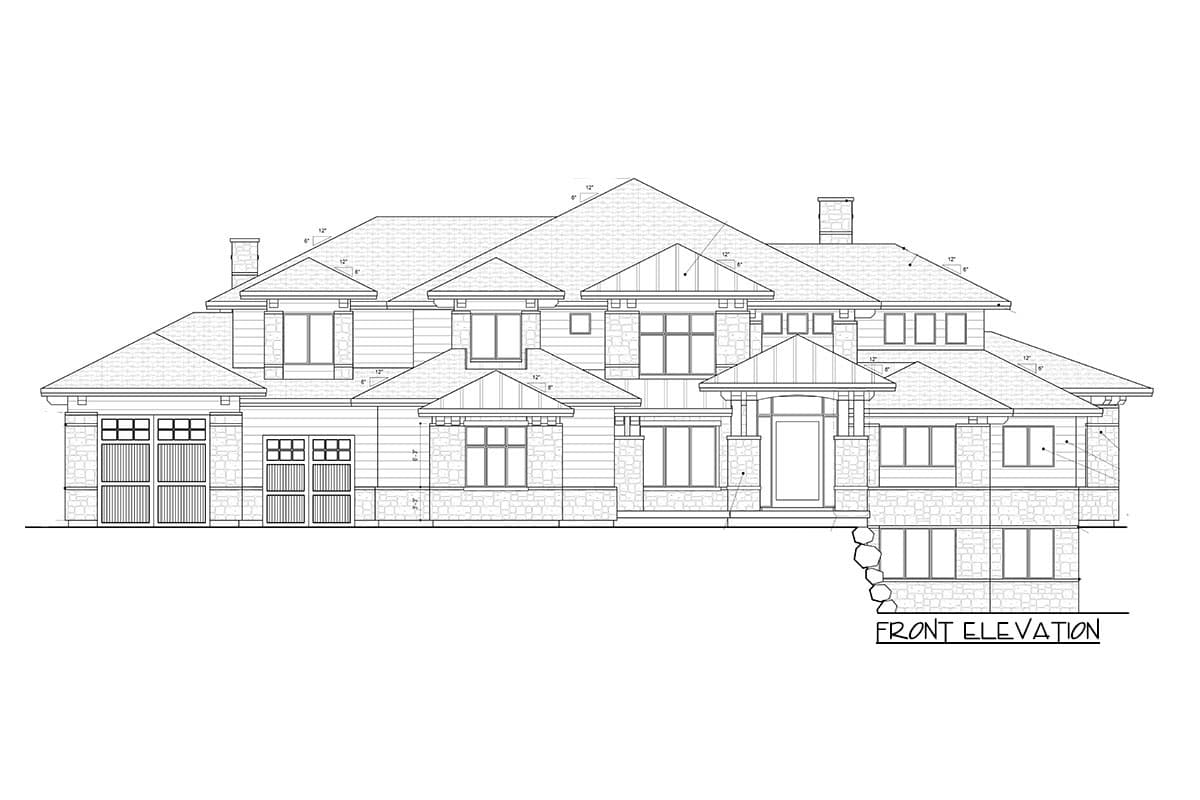

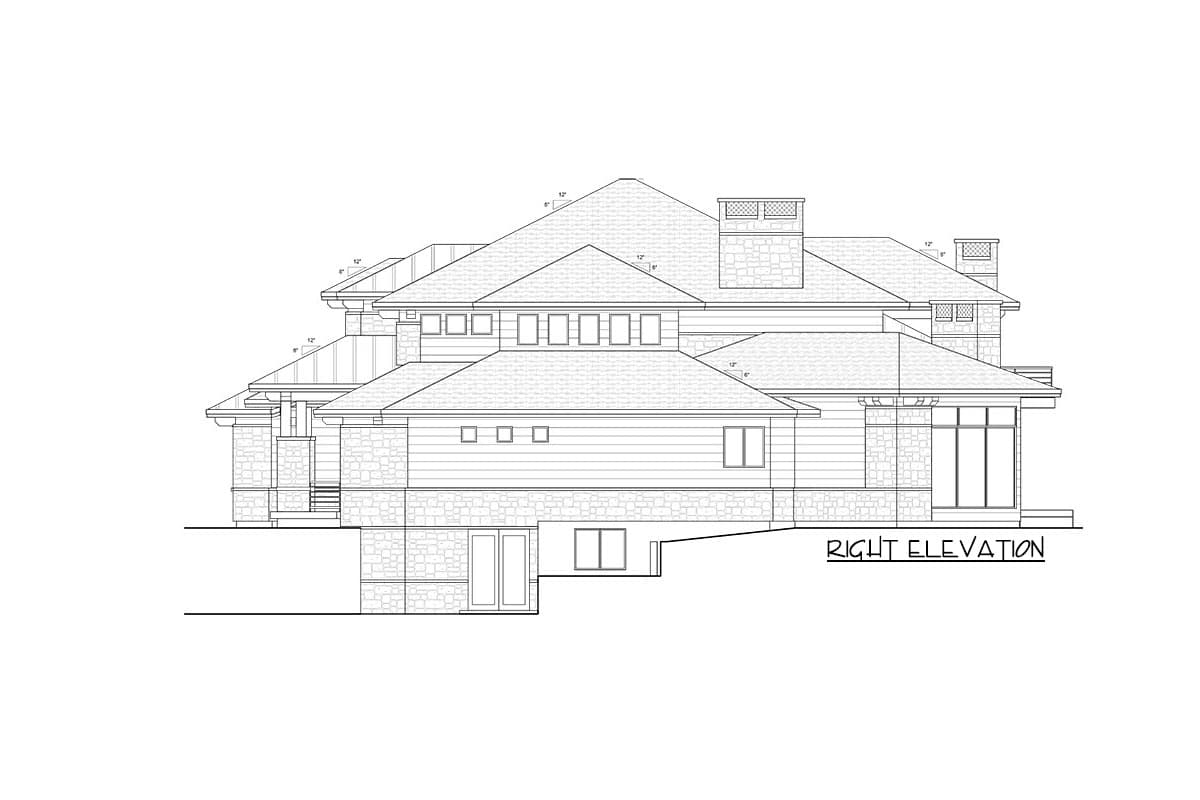

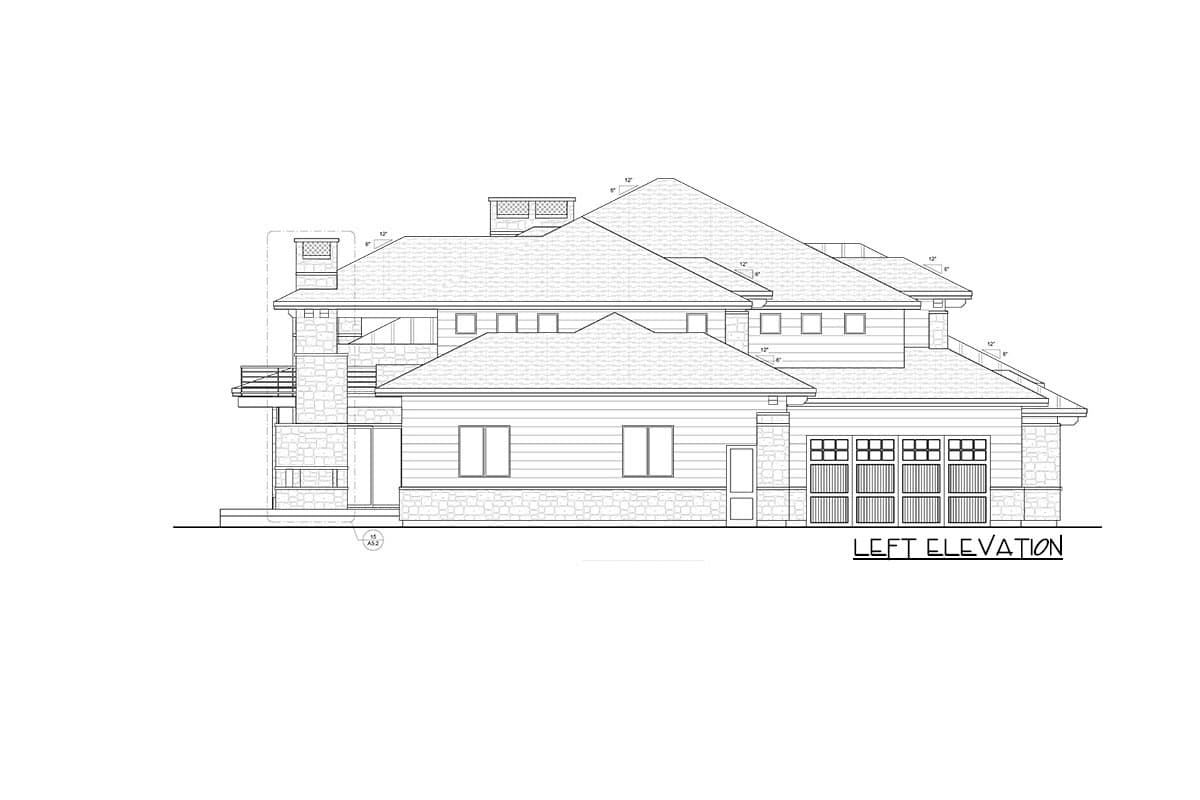

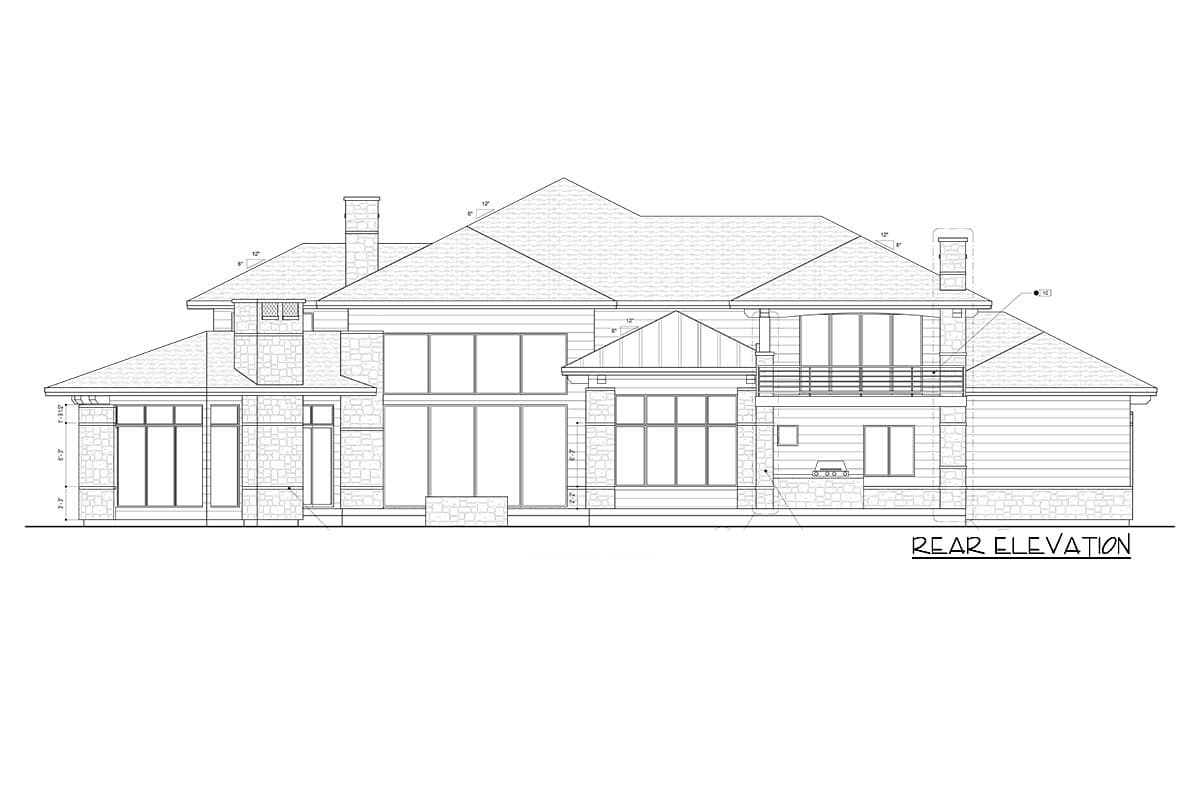

  13. Exterior elevations
  14. Exterior elevations

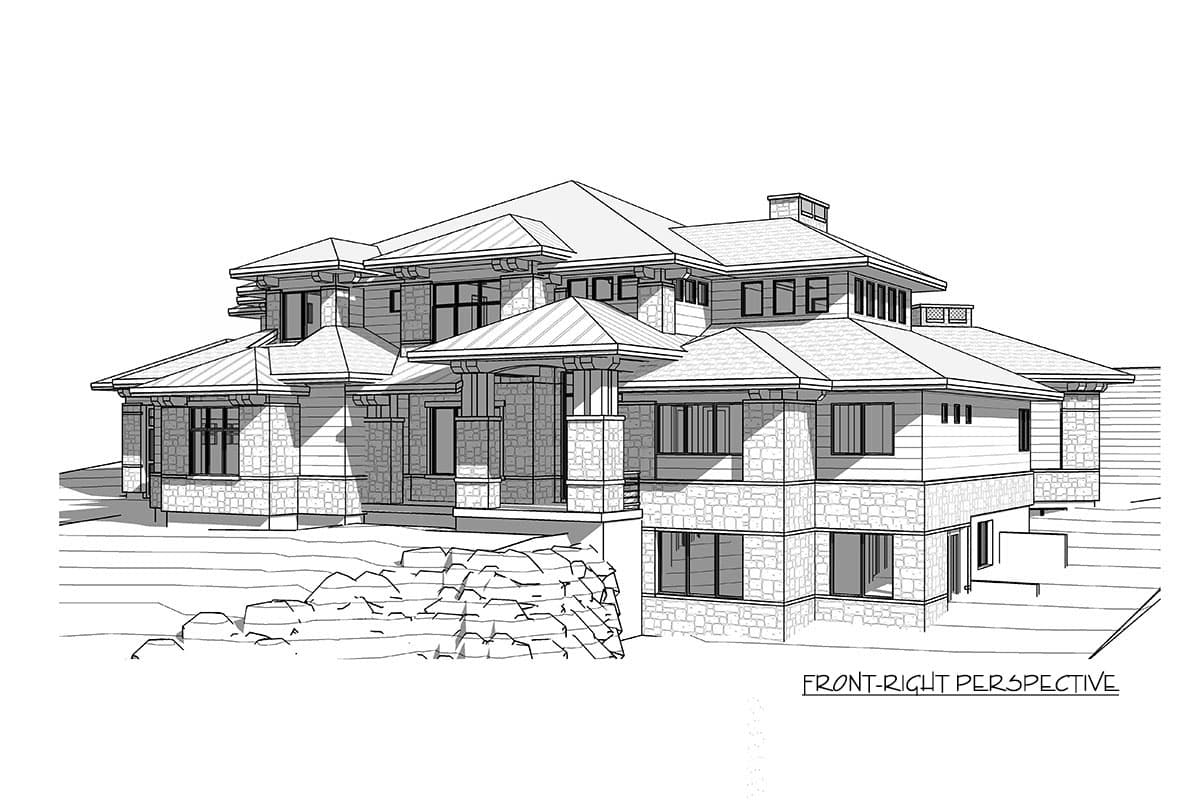

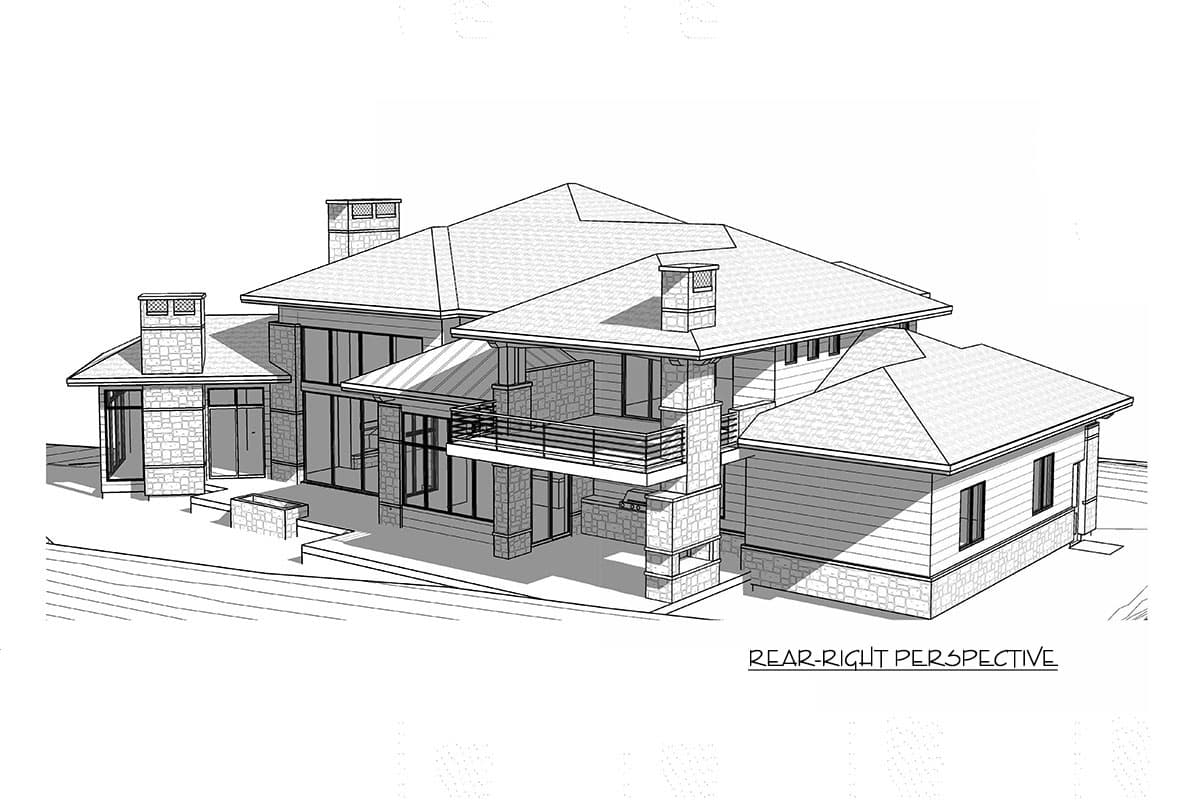

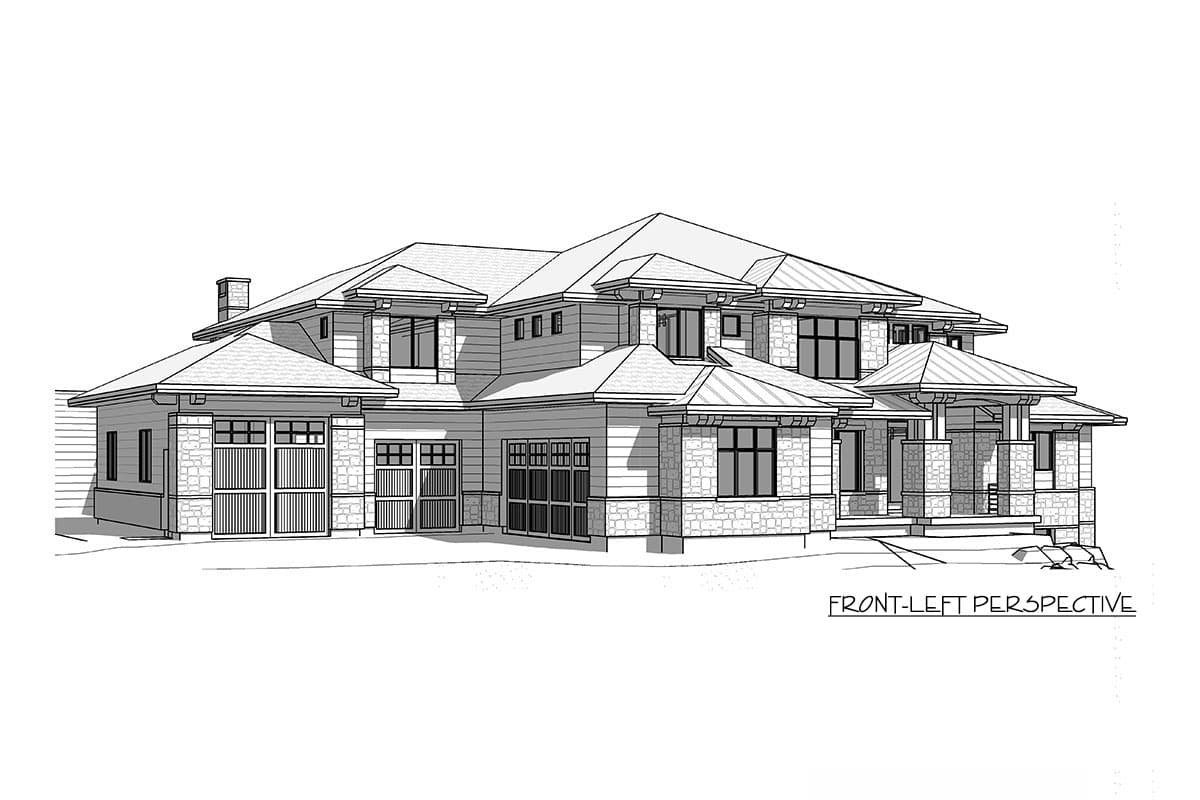

  15. Perspective views
  16. Building section 'A' and 'B'
  17. Building section 'C' and 'D'
  18. Architectural Details
  19. Architectural Details
  20. Roof plan
  21. Terrace level power plan
  22. Terrace level lighting plan
  23. Main level power plan
  24. Main level lighting plan
  25. Upper level power plan
  26. Upper level lighting plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

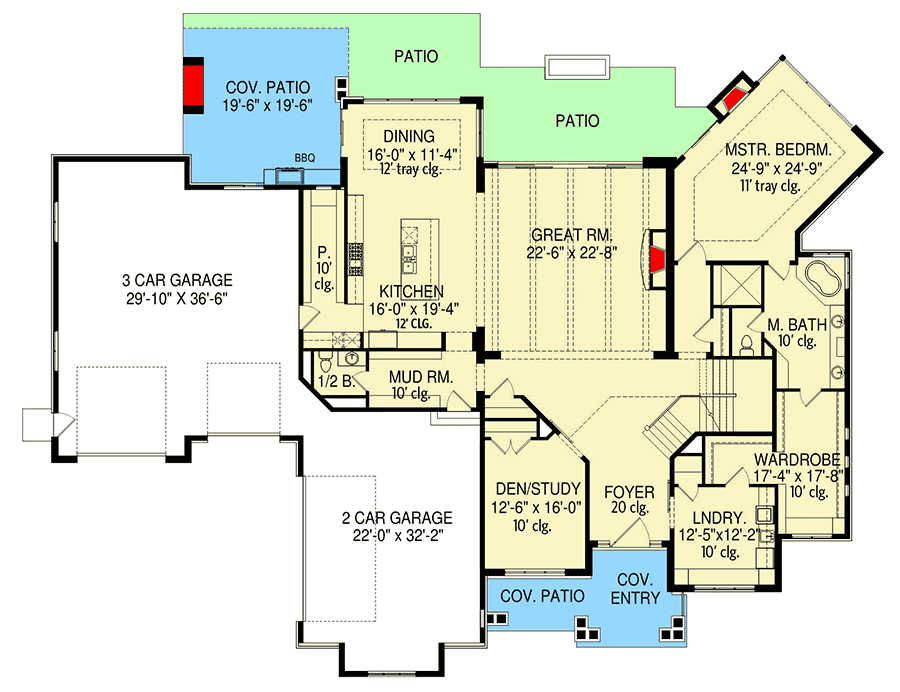

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Spacious 4-Bedroom Modern Home Plan with Lower Level Expansion - 290101IY floor plan - Main Level

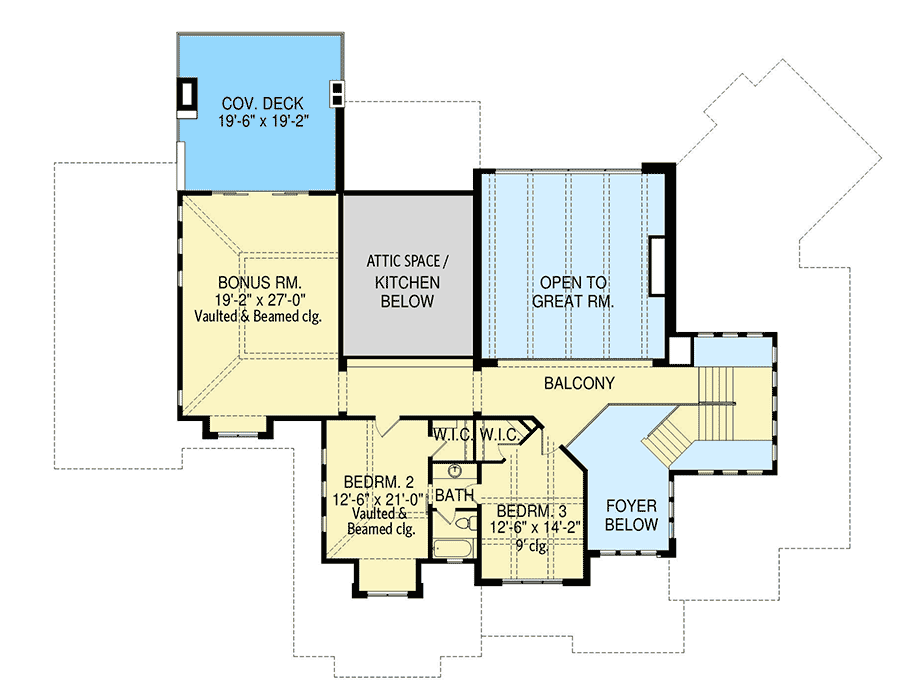

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Spacious 4-Bedroom Modern Home Plan with Lower Level Expansion - 290101IY floor plan - 2nd Floor

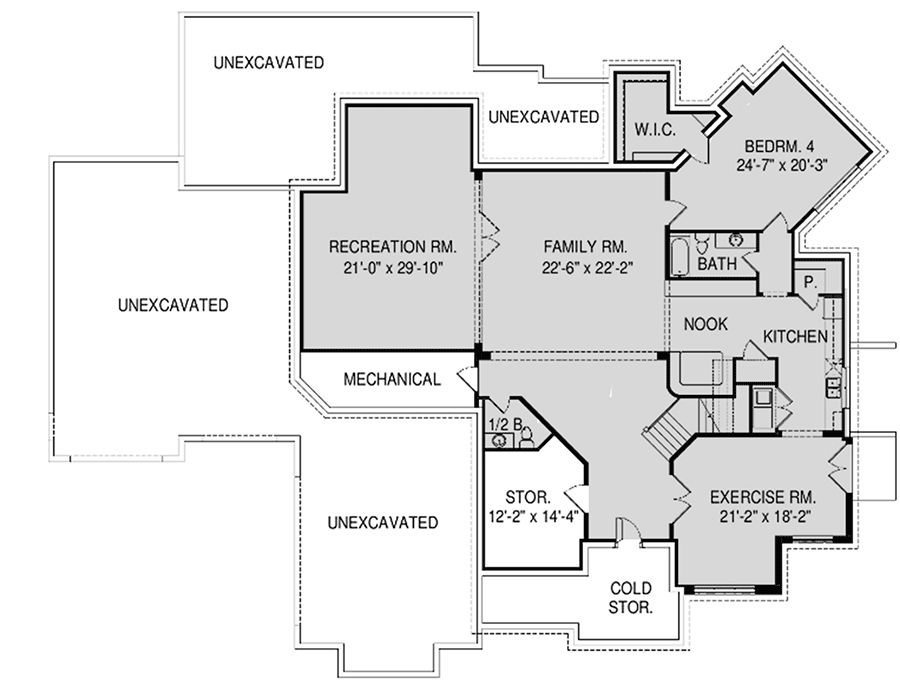

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Spacious 4-Bedroom Modern Home Plan with Lower Level Expansion - 290101IY floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,856 sq. ft.
  • 1st Floor: 3,225 sq. ft.
  • 2nd Floor: 1,631 sq. ft.
  • Optional Lower Level: 2,799 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 102' 3"
  • Depth: 81' 10"
  • Max ridge height: 34' 2"

Garage

  • Type: Attached
  • Area: 1762 sq. ft.
  • Count: 5 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Kitchen 12' 0"

Architectural Style

Special features

Plan Collections

Spacious 4-Bedroom Modern Home Plan with Lower Level Expansion

  • 4,856

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 5

    Car garage

Buy This Plan
  • PDF - Single-Build $4,856
  • CAD - Single-Build $7,284
  • View all purchase option online

About This Plan

  • This spacious 3-level home plan truly has it all, including a 5-car garage.
  • At the heart of the home, an open-concept great room (with 20'-high ceiling), dining area, and kitchen (12' ceiling) allow for maximum versatility and efficiency. Off the foyer, you’ll find a quiet den with a closet. Extras like a mud room and an oversized walk-in pantry lend convenience and a luxury feel.
  • Retreat to the inviting main-floor master suite, which boasts a fireplace, elegant tray ceiling, 5-piece bath, and roomy walk-in closet.
  • Enjoy outdoor living at its finest on the expansive patio and covered porch with a fireplace and barbecue.
  • Upstairs, two bedrooms share a Jack-and-Jill bath, and a vaulted bonus room (11'6" ceiling) with a covered deck is filled with possibilities.
  • The lower level offers a secluded guest or in-law suite with a full bath, walk-in closet, and kitchen. A rec room, large family room, and exercise room on the lower level add function and convenience.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,856 sq. ft.
  • 1st Floor: 3,225 sq. ft.
  • 2nd Floor: 1,631 sq. ft.
  • Optional Lower Level: 2,799 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 102' 3"
  • Depth: 81' 10"
  • Max ridge height: 34' 2"

Garage

  • Type: Attached
  • Area: 1762 sq. ft.
  • Count: 5 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 10' 0"
Plan 290101IY
View this and more for this plan by visiting www.architechtecturaldesigns.com/290101IY
|
