Spacious Acadian House Plan with Bonus Space

Heated S.F.
3,000
Beds
4 - 5
Baths
4 - 5
Stories
1
Cars
3

Floor Plan

Plan 510012WDY

Main Level
Main Level
Bonus
Bonus

Plan 510012WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

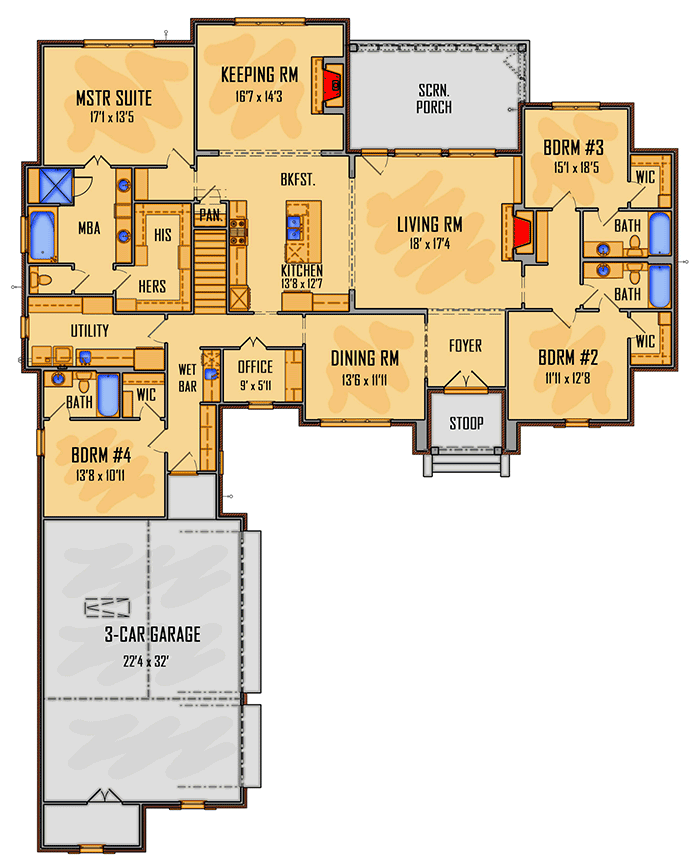

Plan 510012WDY: Spacious Acadian House Plan with Bonus Space - Floor Plan - Main Level - Acadian, Louisiana-Style, Southern, Traditional

Bonus

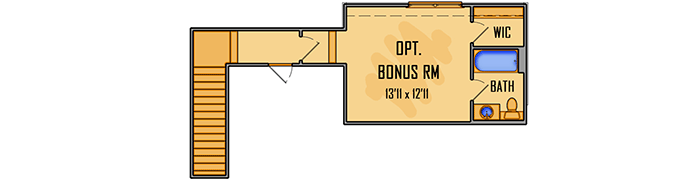

Plan 510012WDY: Spacious Acadian House Plan with Bonus Space - Floor Plan - Bonus - Acadian, Louisiana-Style, Southern, Traditional

Plan Details

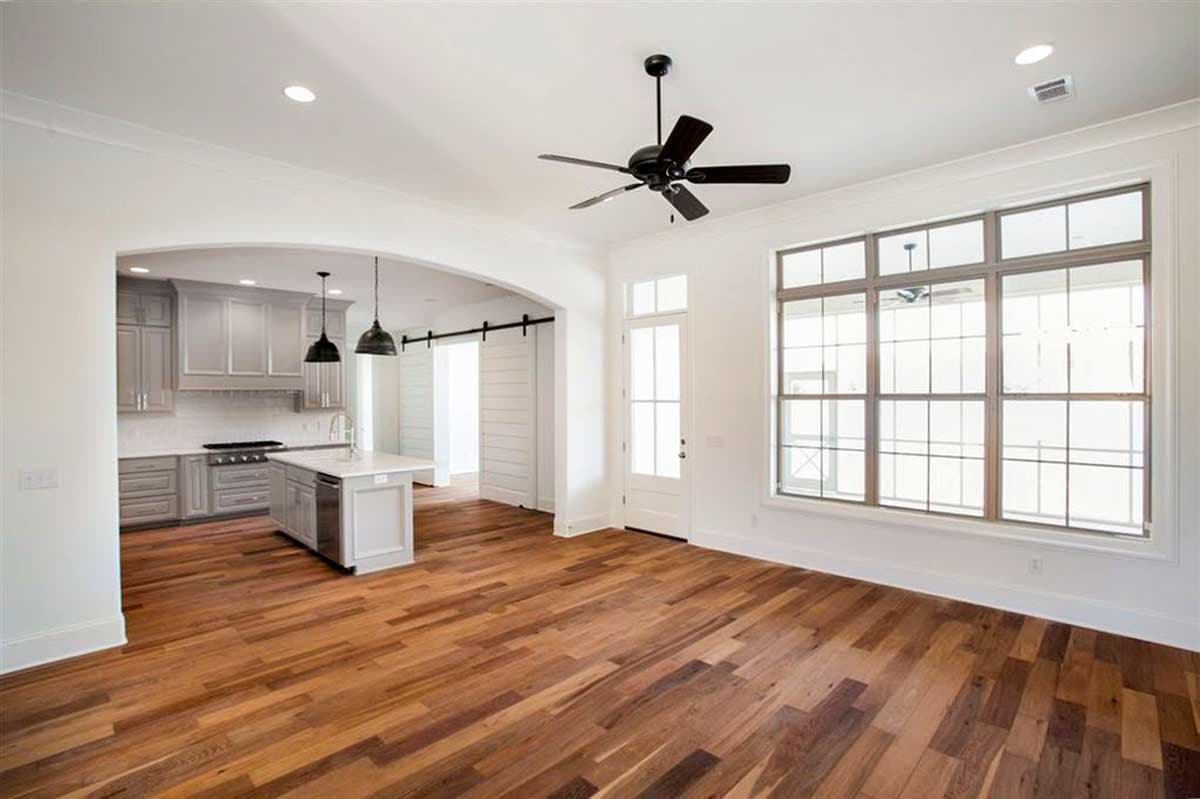

  • Spend time with your family in the big living room of this Acadian house plan or relax in the informal keeping room, both open to the kitchen and both with a fireplace.
  • A pocket home office has a window to the front and built-in desk.
  • Step out onto the rear screened porch where you can dine outside without mosquitoes.
  • A quiet master suite lies ready for homeowners with a big his and her walk-in clothes closet.
  • Bedroom 4 is an ideal guest suite, off by itself and two family bedrooms on the other side of the home each have walk-in closets.
  • Finish the bonus space upstairs and gain an extra 354 square feet.

What's Included

This plan has 10 pages as follows:

  1. Coversheet Color Rendering
  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. 2nd Floor and Roof Plan

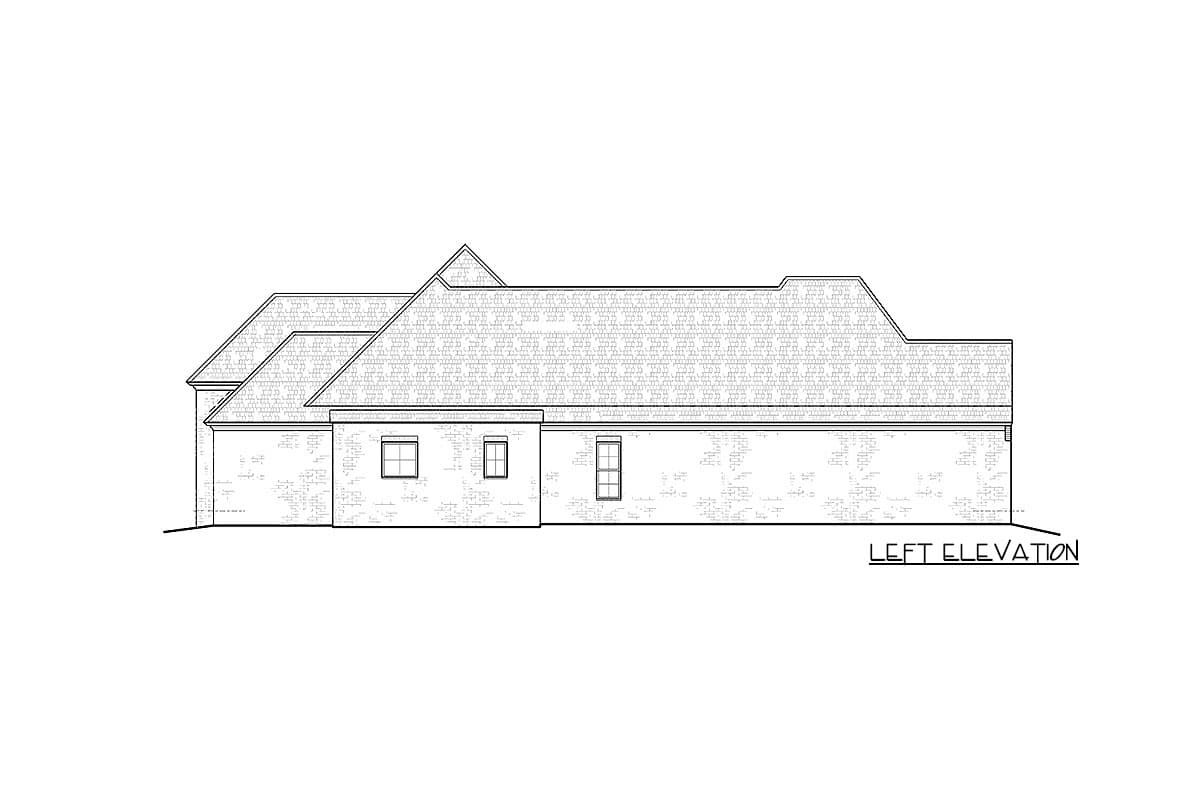

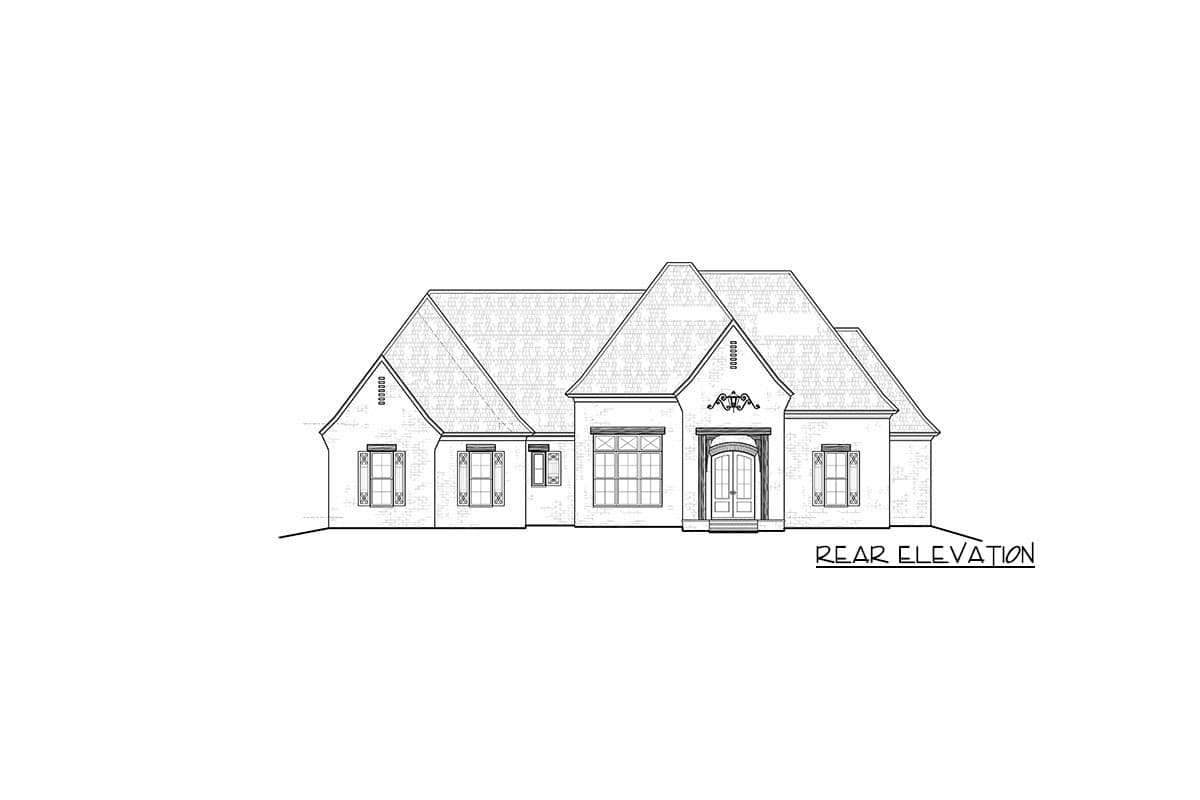

  4. Front and Leftside Elevation and Details
  5. Rear and Rightside Elevation and Details
  6. Sections / Roof Plans/ Details
  7. Details and Rafter Schedule
  8. Electrical Plans
  9. Slab Foundation Plan
  10. Slab Footing Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,000 sq. ft.

1st Floor

3,000 sq. ft.

Bonus

354 sq. ft.

Porch, Front

70 sq. ft.

Porch, Rear

247 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4 or 5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 8"

Depth

94' 9"

Max Ridge Height

30' 10"

Garage

Type

Attached

Area

833 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Great Room

Raised

11' 0''

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

Louisiana-Style

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Home Office

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Wet Bar

Plan Collections

Home Office

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,000 sq. ft.

1st Floor

3,000 sq. ft.

Bonus

354 sq. ft.

Porch, Front

70 sq. ft.

Porch, Rear

247 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4 or 5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 8"

Depth

94' 9"

Max Ridge Height

30' 10"

Garage

Type

Attached

Area

833 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Great Room

Raised

11' 0''

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

Louisiana-Style

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Home Office

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Wet Bar

Plan Collections

Home Office

Photo Gallery
