Spacious and Stylish Florida House Plan

Plan 65618BS

  • 4,271

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • With its graceful good looks and decorative shutters, this Florida house plan gives you a stylish home.
  • Most of the home has that very popular open layout for beautiful sight lines but you can always retreat to the quiet study for alone time.
  • The large covered lanai in back extends the living spaces to the outdoors where you get an outdoor fireplace and grilling station.
  • The simply stunning master suite is set off by itself and boasts a gorgeous vaulted ceiling, double doors to the lanai and an opulent master bathroom that would rival any spa.
  • Using the split bedroom configuration, the other three bedrooms are on the opposite side of the home.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

Plans include the following:


Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

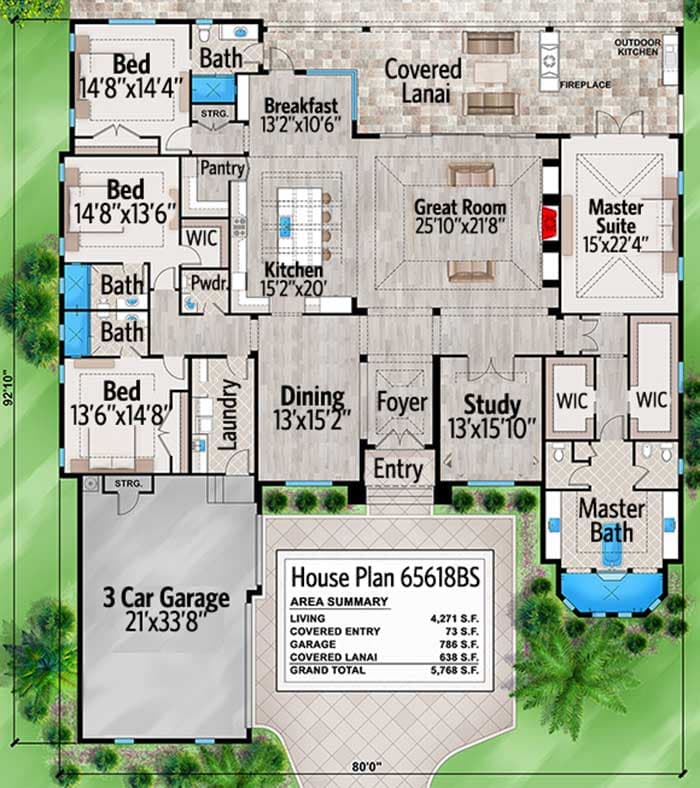

Spacious and Stylish Florida House Plan - 65618BS floor plan - Main Level

Spacious and Stylish Florida House Plan

  • 4,271

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 4,271 sq. ft.
  • 1st Floor: 4,271 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 92' 10"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 786 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
