Plan 20149GA

Spacious and Versatile Carriage House Plan

Heated S.F.
562
Beds
0
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 20149GA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 20149GA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

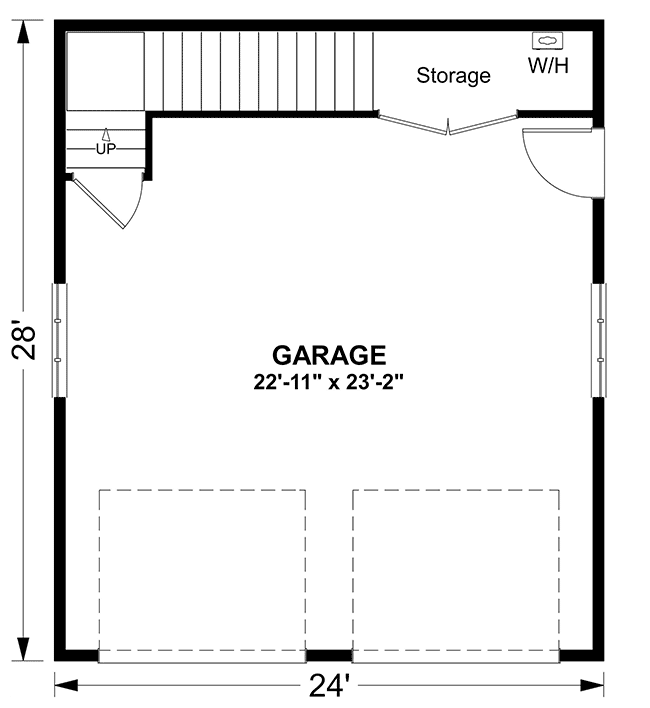

Plan 20149GA: Spacious and Versatile Carriage House Plan - Floor Plan - Main Level - Carriage

2nd Floor

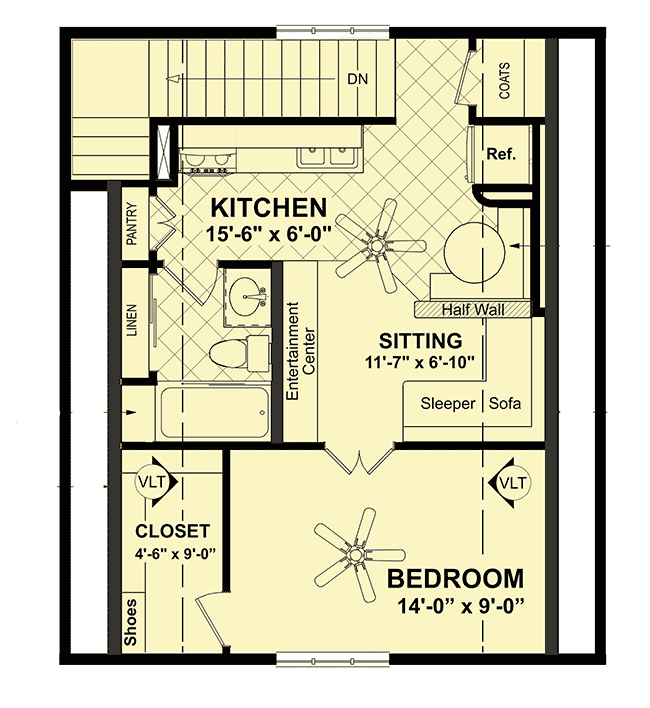

Plan 20149GA: Spacious and Versatile Carriage House Plan - Floor Plan - 2nd Floor - Carriage

Plan Details

  • This detached garage plan gives you parking for your vehicles on the main floor and living space above.
  • The main level with its 24' x 28' footprint, provides lots of garage space as well as storage beneath the stairs.
  • Upstairs, the living area is surprisingly spacious with vaulted ceilings, a thoughtfully designed sitting area with built-ins, and a full bath.

What's Included

  • Digital exterior rendering cover page
  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

562 sq. ft.

2nd Floor

562 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

28' 0"

Max Ridge Height

23' 0"

Garage

Type

Detached

Area

562 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Carriage

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

562 sq. ft.

2nd Floor

562 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

28' 0"

Max Ridge Height

23' 0"

Garage

Type

Detached

Area

562 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Carriage

Special Features

Master Suite - Upstairs
