Plan 666092RAF

Spacious Contemporary House Plan with Wood Workshop

Heated S.F.
7,075
Beds
5
Baths
4.5+
Stories
1
Cars
3

Floor Plan

Plan 666092RAF

Main Level
Main Level
Lower Level
Lower Level

Plan 666092RAF

M-F 9am-5pm EST |

1-203-761-8500

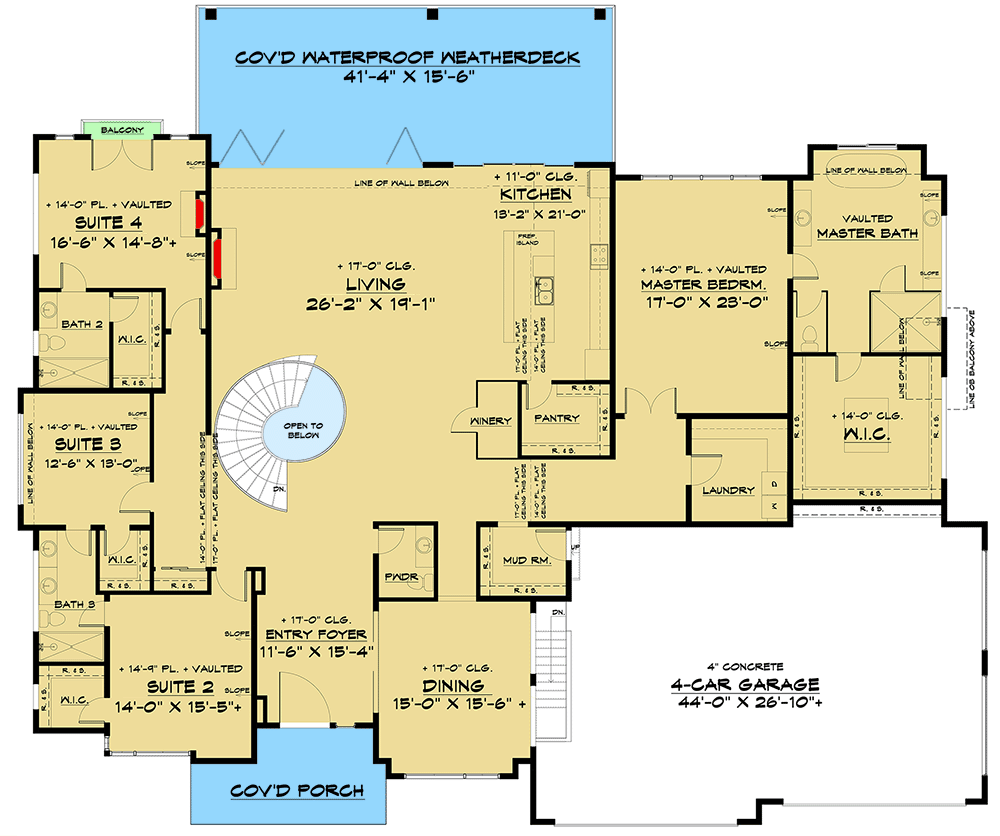

Main Level

Plan 666092RAF: Spacious Contemporary House Plan with Wood Workshop - Floor Plan - Main Level - Contemporary, Modern, Northwest

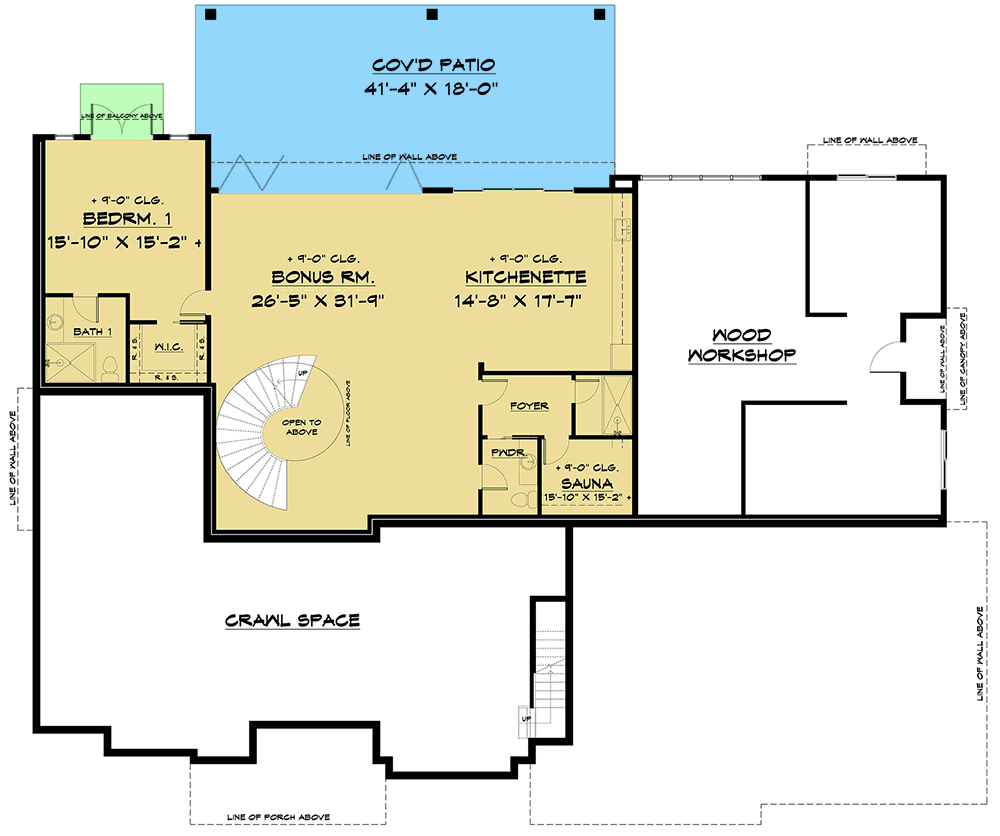

Lower Level

Plan 666092RAF: Spacious Contemporary House Plan with Wood Workshop - Floor Plan - Lower Level - Contemporary, Modern, Northwest

Plan Details

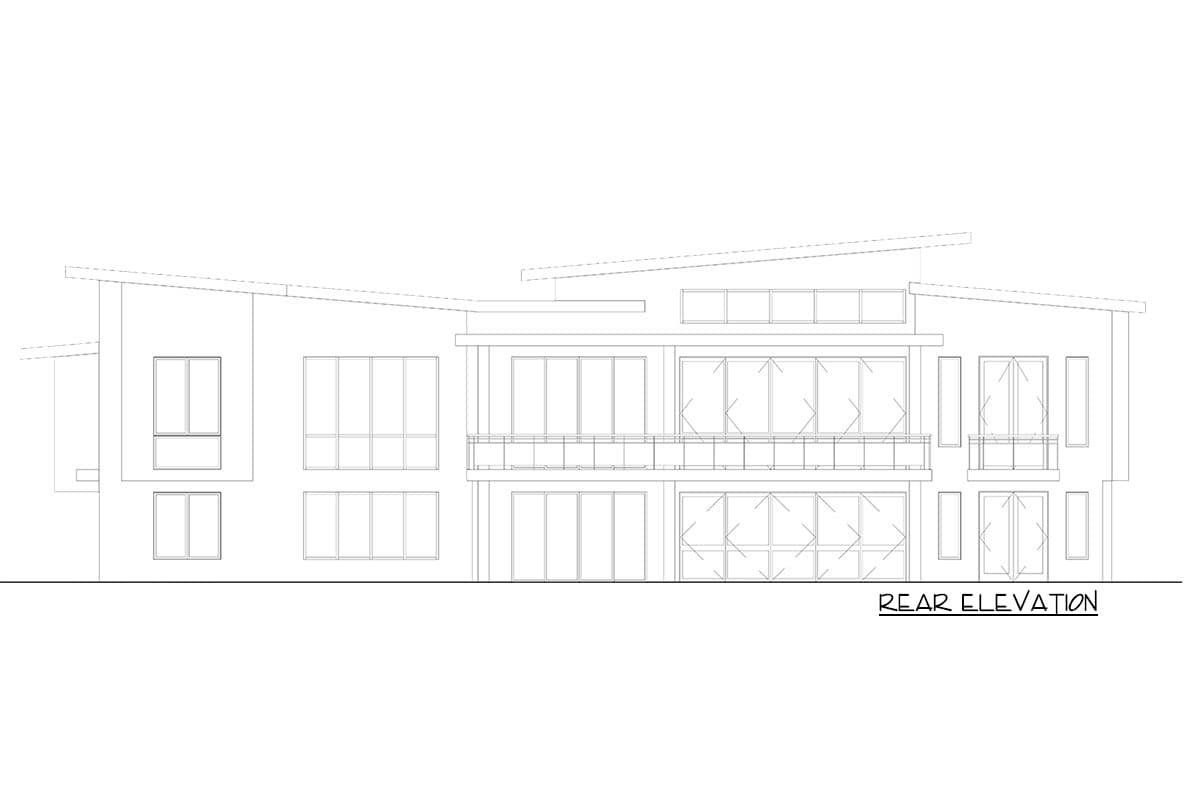

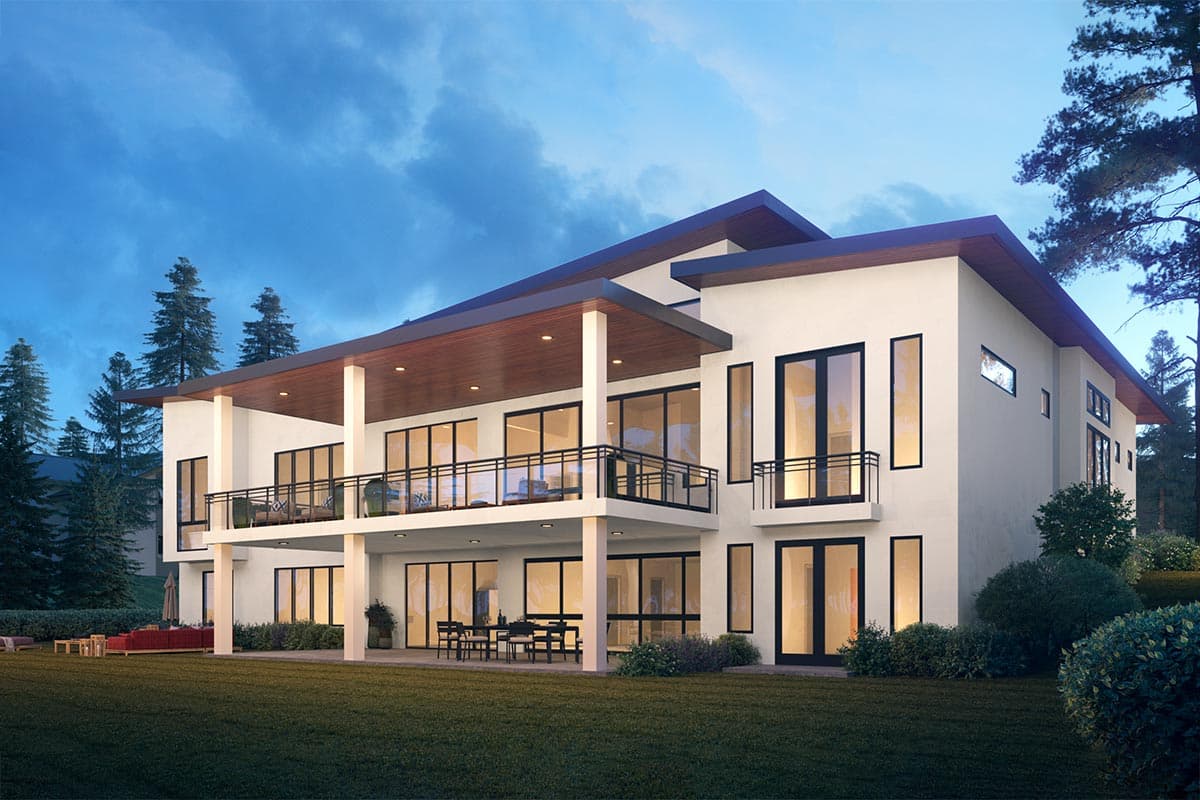

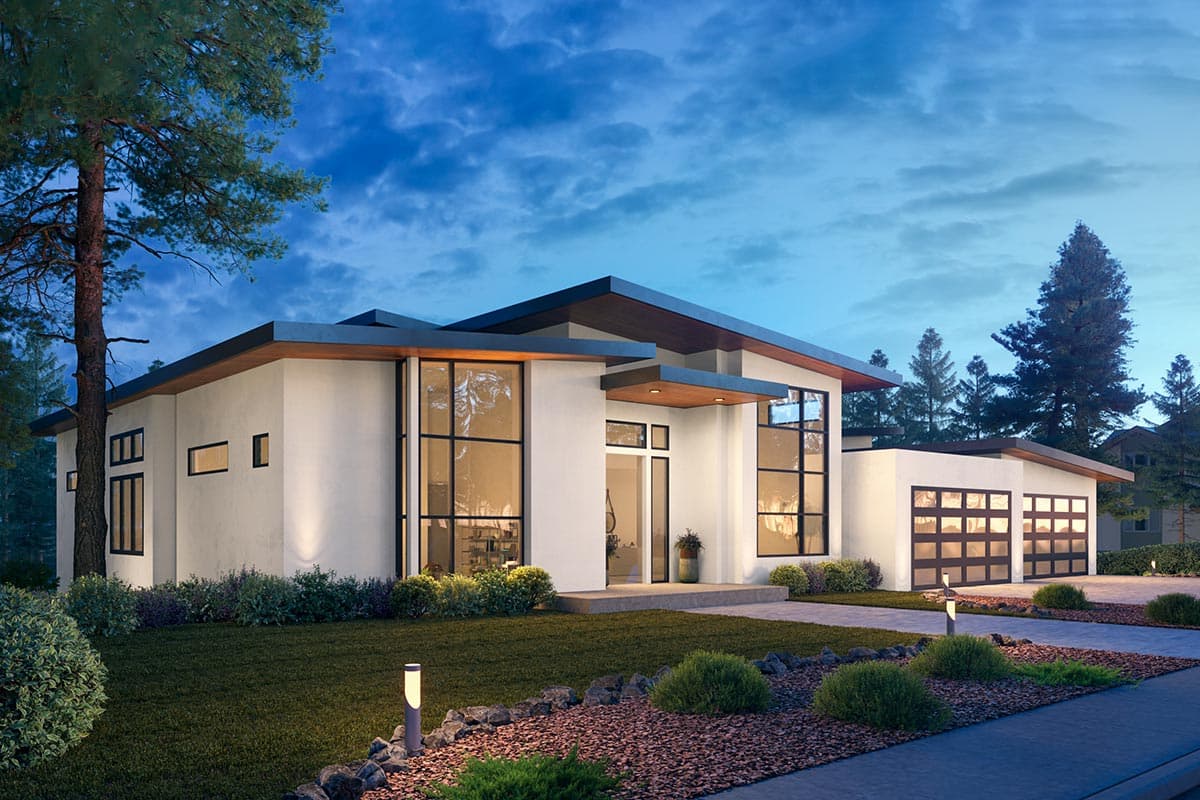

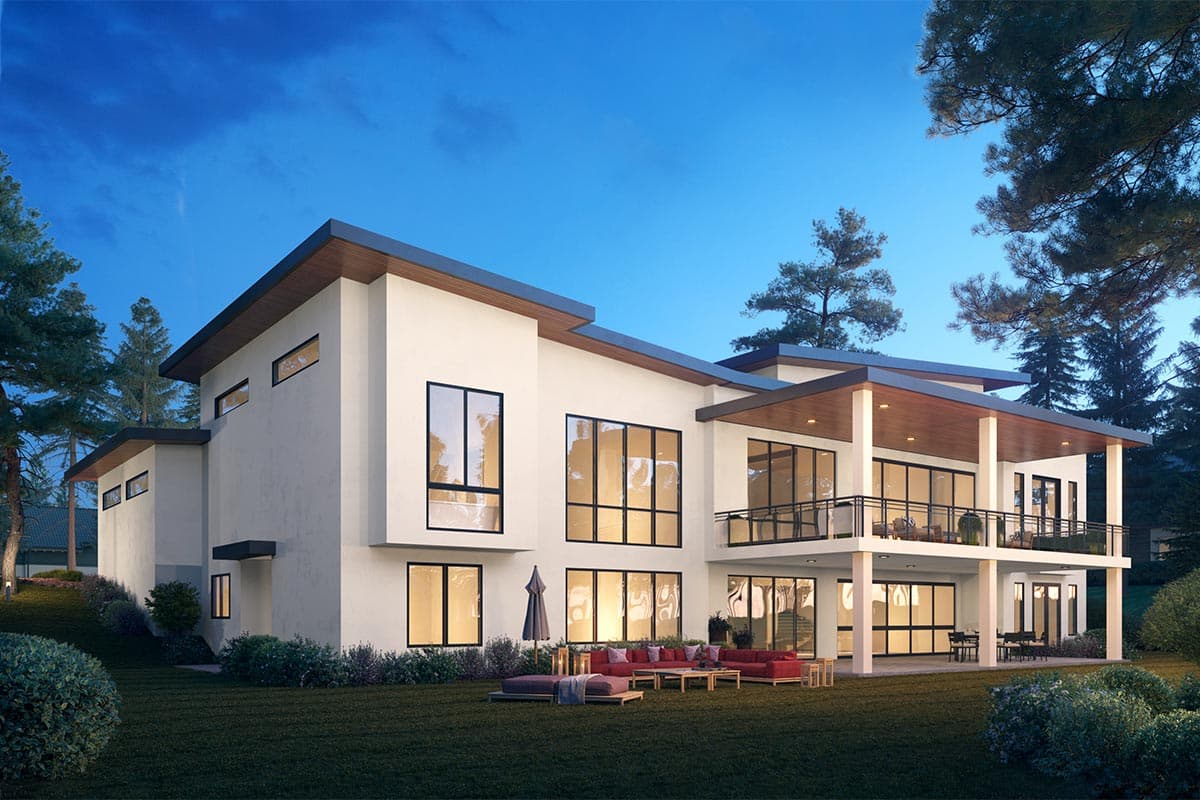

  • Slanted shed roofs offer interesting angles, while adding to the contemporary look of this spacious house plan. The majority of the rear elevation is comprised of oversized windows, allowing nature to serve as the art.
  • From the foyer, discover a dining room to the right, along with views straight ahead into the generous living room. A spiral staircase leads to the lower level, and a multi-fold glass door invites you to spend time on the covered deck.
  • The well-appointed master bedroom is located on the main level, behind the 4-car garage. The vaulted master bath provides a spa-like experience, and the attached closet includes a dresser island.
  • Three additional suites are set apart from the master bedroom; two share a Jack-and-Jill bath, and one includes a full bath and private balcony.
  • Wind down the stairs to find a sizable bonus room and attached kitchenette, along with a bedroom suite and sauna. The retractable glass door brings the outdoors inside and the hobbyist in the family will appreciate the wood workshop (995 sq. ft.; factored into the total living area figure).

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

7,075 sq. ft.

Lower Level

1,807 sq. ft.

1st Floor

4,273 sq. ft.

Porch, Front

197 sq. ft.

Deck

637 sq. ft.

Covered Patio

736 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

95' 0"

Depth

68' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

1273 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

14'

Roof Details

Primary Pitch

0.25 on 12

Secondary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Northwest

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Optionally Finished Bonus Room

Workshop
