Spacious Contemporary Northwest Home Plan with Den and Two Master Suites
Heated S.F.
5,382
Beds
5
Baths
5.5
Stories
2
Cars
4
What's Included
Plan Details
  • A low-pitched roof and modern siding materials serve as the fabric for this spacious, Contemporary Northwest home plan, while the stone trim offers an earthly element to anchor the home.
  •  A quiet den and formal dining room frame the foyer, which includes a custom curved staircase that takes you to the second level. Straight ahead, the two-story great room hosts a grand fireplace surrounded by builtins and a trio of picture windows offering rearward views.
  • The great room flows into the kitchen where you'll find an eating bar at the prep island and access to a covered deck. The adjacent laundry room includes a utility sink and leads to the 3-car garage.
  • Enjoy the convenience of a main-level master suite, complete with a private deck, 4-fixture bathroom, and 2 walk-in closets.
  • A second master suite is located upstairs, and a bridge-style hallway guides you to bedrooms 3 and 4.
  • Continue downstairs for an additional recreation room that includes a kitchenette, fireplace, and walk-out patio. A guest suite and home gym can also be found on the lower level.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

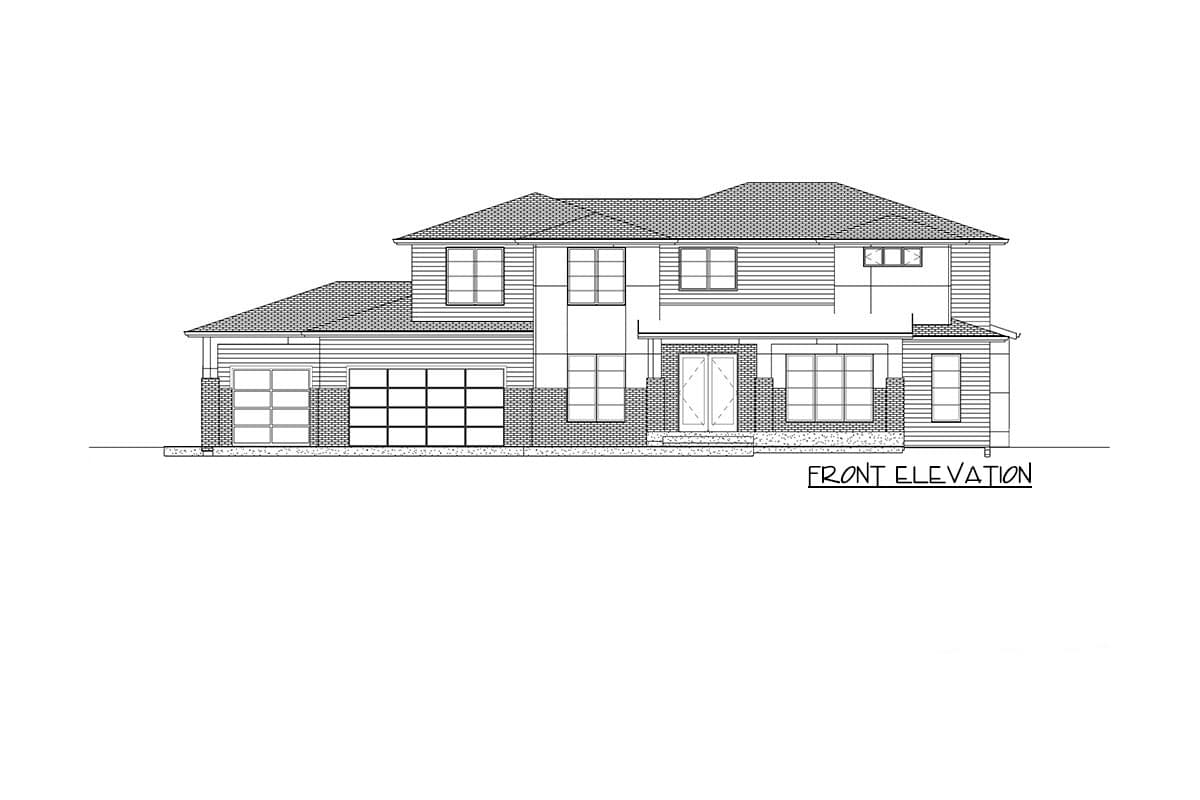

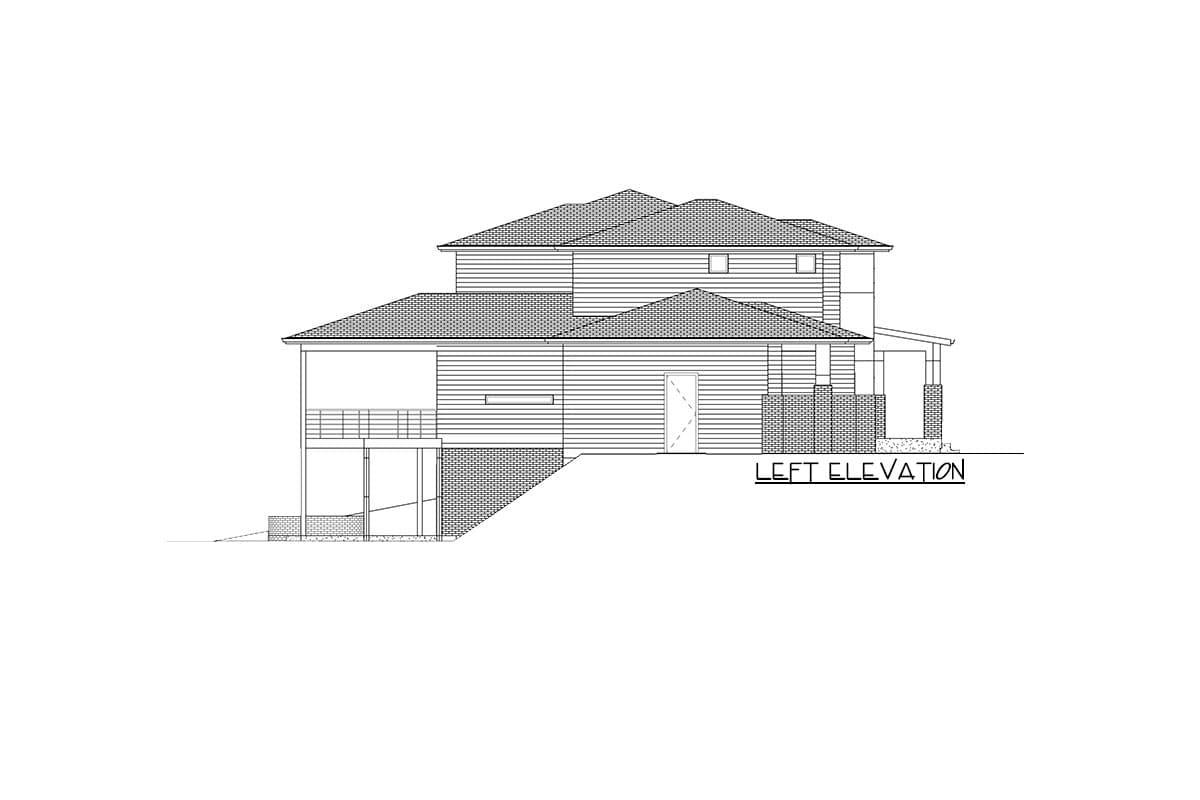

  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Contemporary Northwest Home Plan with Den and Two Master Suites

  • 5,382

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

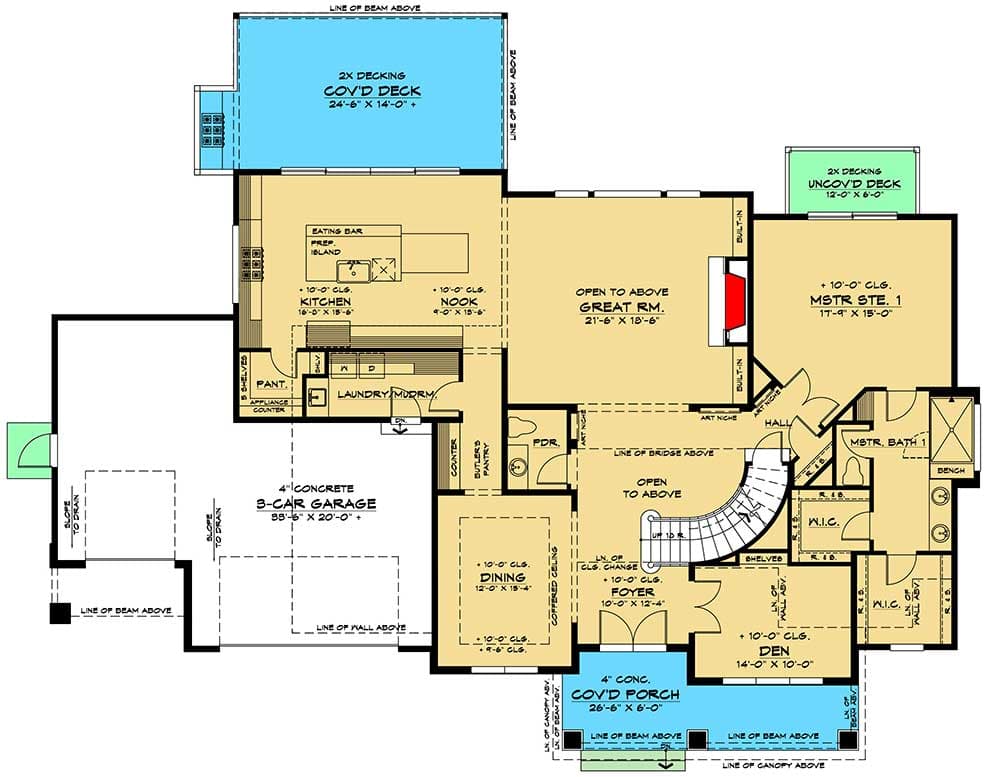

  • Main Level

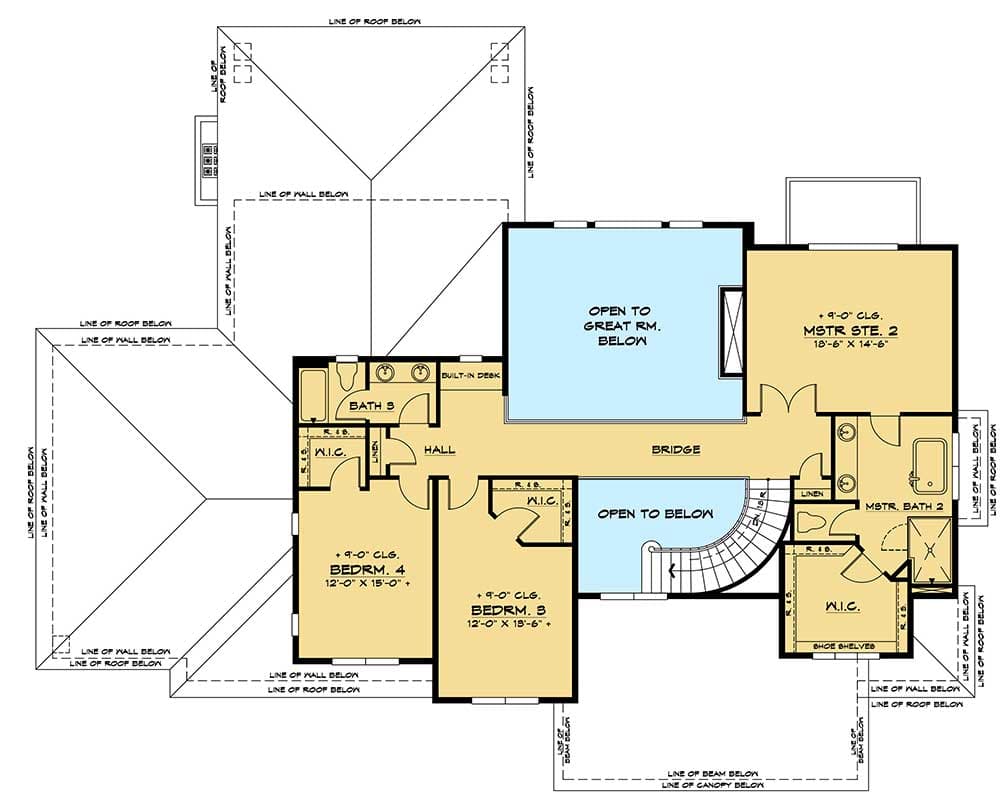

  • 2nd Floor

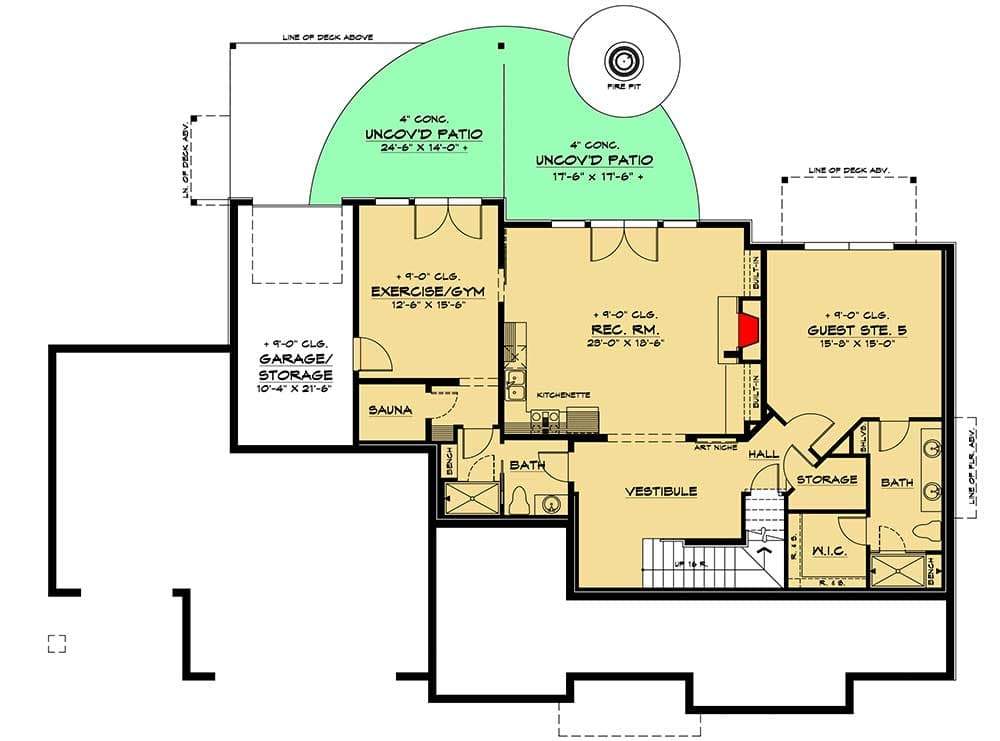

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 5,382 sq. ft.
  • Lower Level: 1,562 sq. ft.
  • 1st Floor: 2,395 sq. ft.
  • 2nd Floor: 1,425 sq. ft.

Dimensions

  • Width: 66' 0"
  • Depth: 83' 0"
  • Max ridge height: 35' 8"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Drive Under, Attached
  • Area: 758 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear, Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Garage 11' 5"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss
