Spacious Contemporary Northwest Home Plan with Glass-enclosed Great Room

Plan 54243HU

  • 4,756

    Heated s.f.

  • 5-6

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The glass-enclosed great room eliminates the barrier between nature and the interior spaces in this Contemporary Northwest home plan.
  • The 3-car garage projects from the left side of the home, across the parking courtyard from a flex room with a private terrace.
  • A galley-style foyer is open to the combined great room, dining, and kitchen areas. The gourmet kitchen features an eating bar at the island, plenty of workspace, and easy access to a builtin grill on the patio.
  • On one side of the shared living space, discover the primary master bedroom, complete with a walk-in closet in the 5-fixture ensuite, and next door to a quiet den.
  • Two additional bedroom suites are located on the opposite side of the main level, while the remaining two bedrooms share the second level with a game room.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

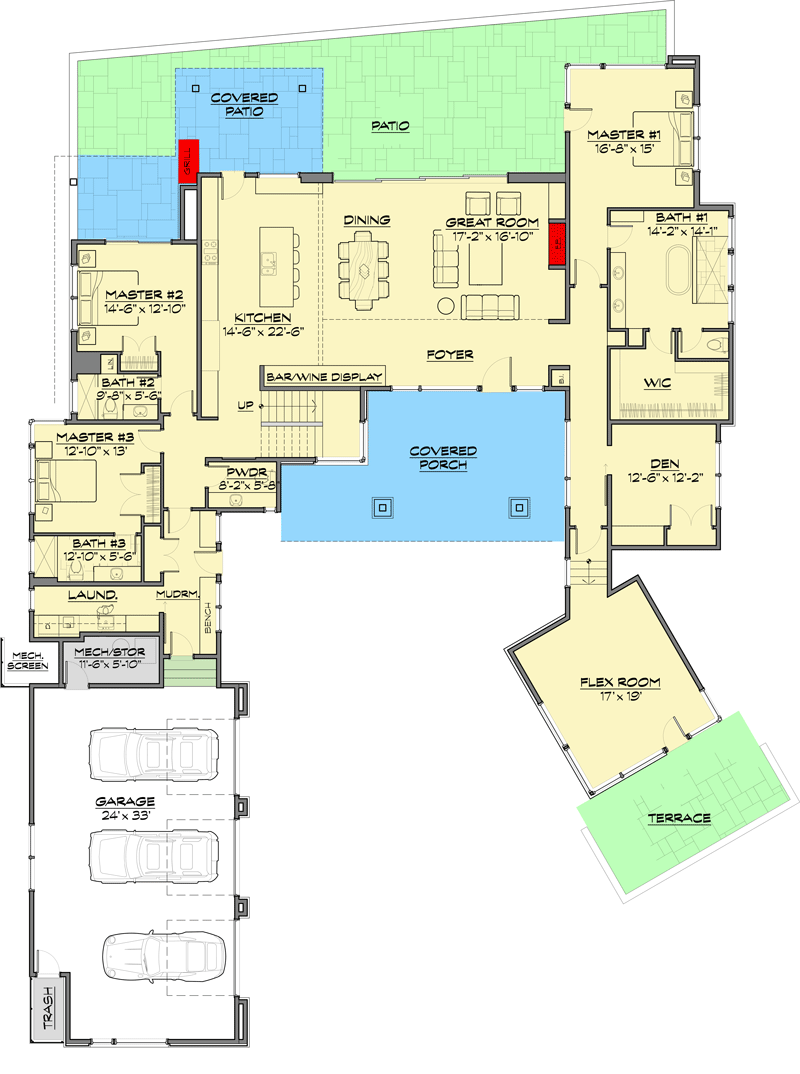

Spacious Contemporary Northwest Home Plan with Glass-enclosed Great Room - 54243HU floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

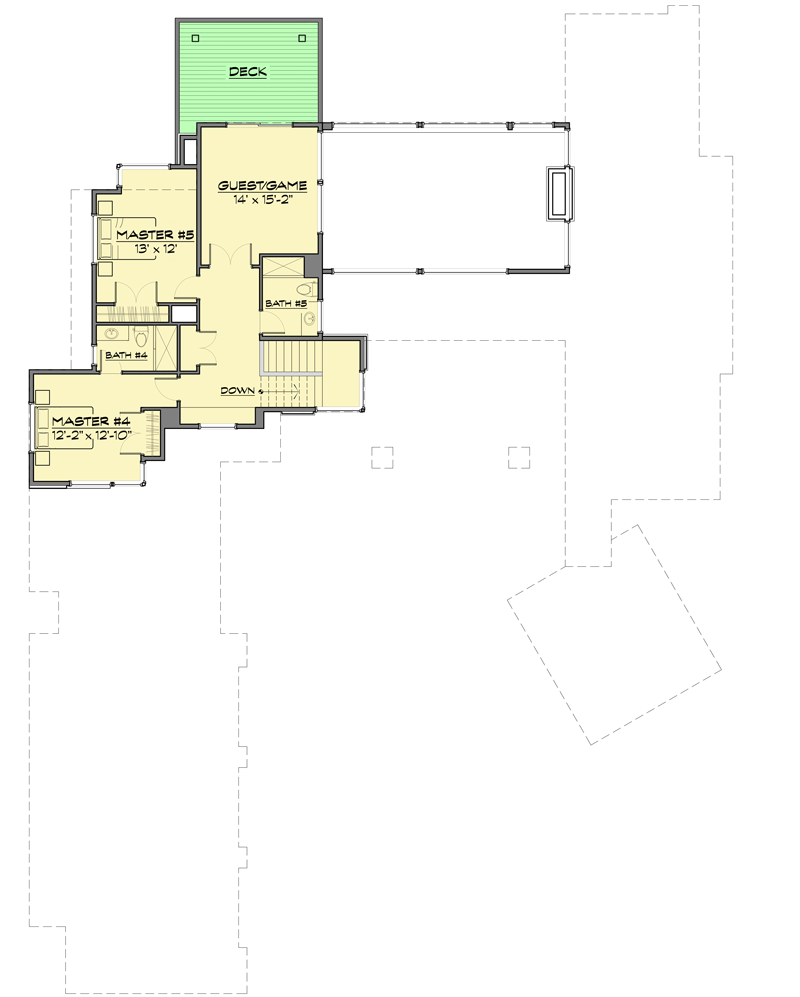

Spacious Contemporary Northwest Home Plan with Glass-enclosed Great Room - 54243HU floor plan - 2nd Floor
