Spacious Craftsman for a Large Family

Plan 64451SC

  • 4,602

    Heated s.f.

  • 5-6

    Beds

  • 5 - 6

    Baths

  • 2

    Stories

  • 4

    Cars

  • Plenty of bedrooms, patios, decks, recreation and great rooms have been designed into this multi-floor home.
  • There are also two double car garages, one on either end of the home, both with extra storage space.
  • But the best place to get away or enjoy the outdoors, is the large back covered patio, with built in grill and a spot all ready for a spa.
  • There's even a wonderful front-facing courtyard with a trellis overhead to keep some of the heat of the day off.
  • Or spend time with family and friends in the huge great room that is open to the high-end kitchen with its giant island.
  • The first floor master bedroom is a true retreat with its sitting area, fireplace and private deck.
  • A huge second floor laundry room serves all the upstairs bedrooms include master bedroom 2 that mirrors the one below.
  • Finish the lower level to add extra square footage and gain an enormous rec room with wet bar, games room and an extra bedroom.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

1.       Cover Sheet- project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.

2.       Foundation/basement plan-showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.

3.       Main Level Plan-floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.

4.       Upper Level Plan-(if needed)-same information as Main Level.

5.       Roof Plan-layout with pitch markers, dimensions and notes.

6.       Main Level Electrical Plan- electrical outlets, switches and light locations shown.

7.       Upper Level Electrical Plan-(if needed) electrical outlets, switches and light locations shown.

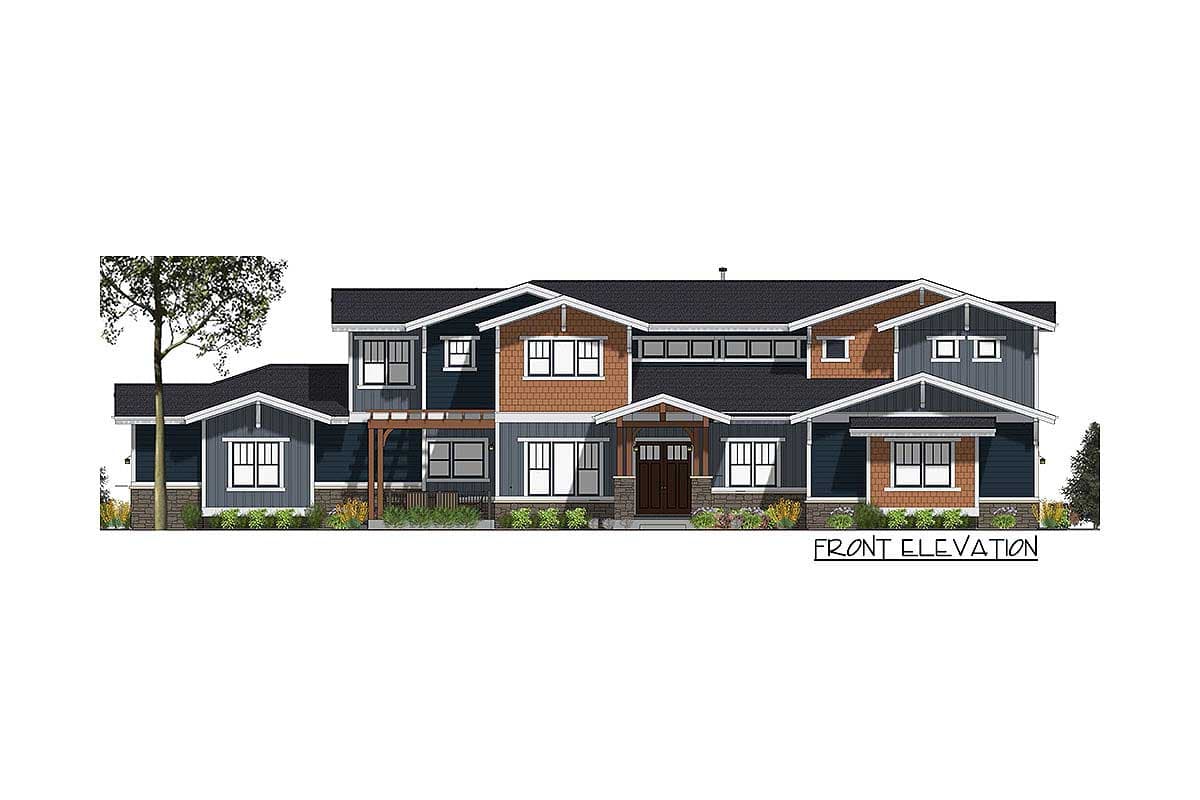

8.       Exterior Elevations-Elevations of the Front and Right side with notes, dimensions and material designations.

9.       Exterior Elevations-Elevations of the Back and Left side with notes, dimensions and material designations.

10.   Sections and details-One or more building sections to show vertical relationships and construction plate heights, details as needed.

11.   Interior Elevations and Details-mostly millwork, fireplace and other items that need additional explanation, details as needed.

Plan details



Spacious Craftsman for a Large Family

  • 4,602

    Heated s.f.

  • 5 - 6

    Beds

  • 5 +

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $2,450
  • CAD $2,650
  • PDF - multi-use $2,850
  • CAD - multi-use $3,350
  • View all purchase option online

About This Plan

  • Plenty of bedrooms, patios, decks, recreation and great rooms have been designed into this multi-floor home.
  • There are also two double car garages, one on either end of the home, both with extra storage space.
  • But the best place to get away or enjoy the outdoors, is the large back covered patio, with built in grill and a spot all ready for a spa.
  • There's even a wonderful front-facing courtyard with a trellis overhead to keep some of the heat of the day off.
  • Or spend time with family and friends in the huge great room that is open to the high-end kitchen with its giant island.
  • The first floor master bedroom is a true retreat with its sitting area, fireplace and private deck.
  • A huge second floor laundry room serves all the upstairs bedrooms include master bedroom 2 that mirrors the one below.
  • Finish the lower level to add extra square footage and gain an enormous rec room with wet bar, games room and an extra bedroom.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

Floor Plans

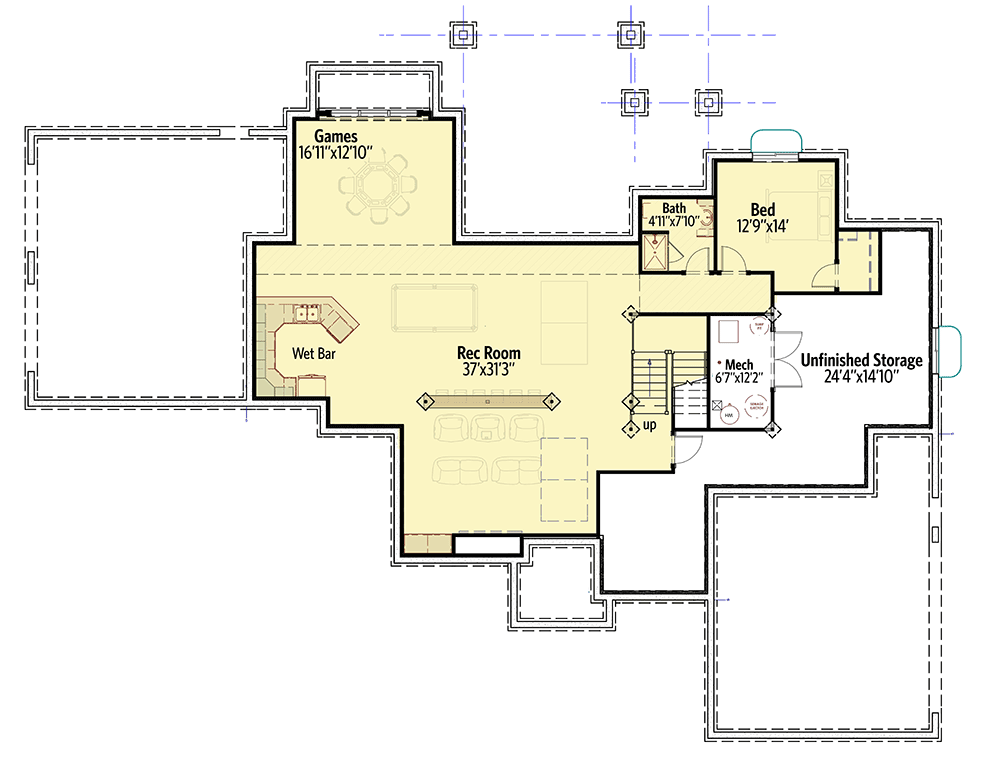

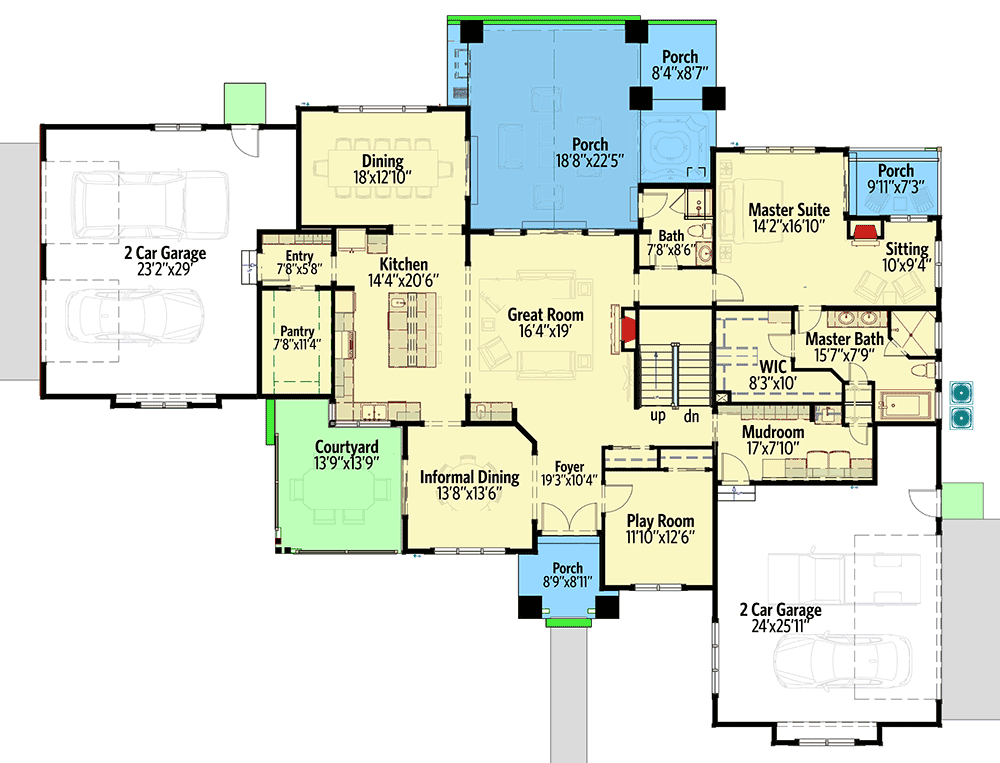

  • Main Level

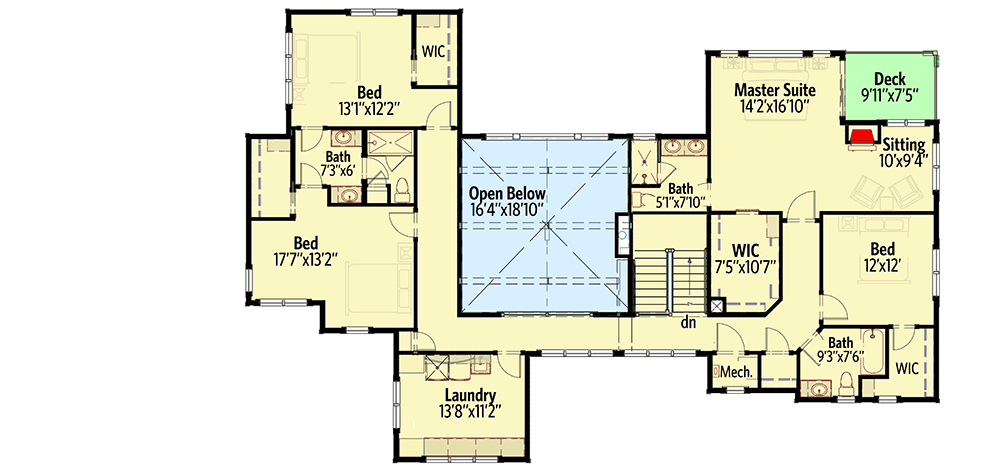

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,602 sq. ft.
  • 1st Floor: 2,624 sq. ft.
  • 2nd Floor: 1,978 sq. ft.
  • Courtyard: 207 sq. ft.
  • Covered Patio: 405 sq. ft.
  • Deck: 580 sq. ft.
  • Porch, Front: 64 sq. ft.
  • Basement Unfinished: 970 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 5 or 6

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 99' 0"
  • Depth: 80' 0"
  • Max ridge height: 25' 9"

Garage

  • Type: Attached
  • Area: 1499 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick And Truss
