Plan 666022RAF
Spacious Craftsman Style House Plan
Heated S.F.
5,045
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • A fanned staircase separates the wide foyer from the great room of this stylish Craftsman house plan.
  • Designed for a large family, you can all gather together in the huge great room or find seclusion in the den, bonus room or second floor lounge with its wet bar.
  • Every bedroom is a generous size with walk-in closets for one and all.
  • There is no formal dining room in this home, just a casual eating area with double doors to one of the two side patios.
  • Homeowners get a first floor master suite with no stairs to climb.
  • On the second floor a balcony bridge with open railing separates the bedrooms.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Craftsman Style House Plan

  • 5,045

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

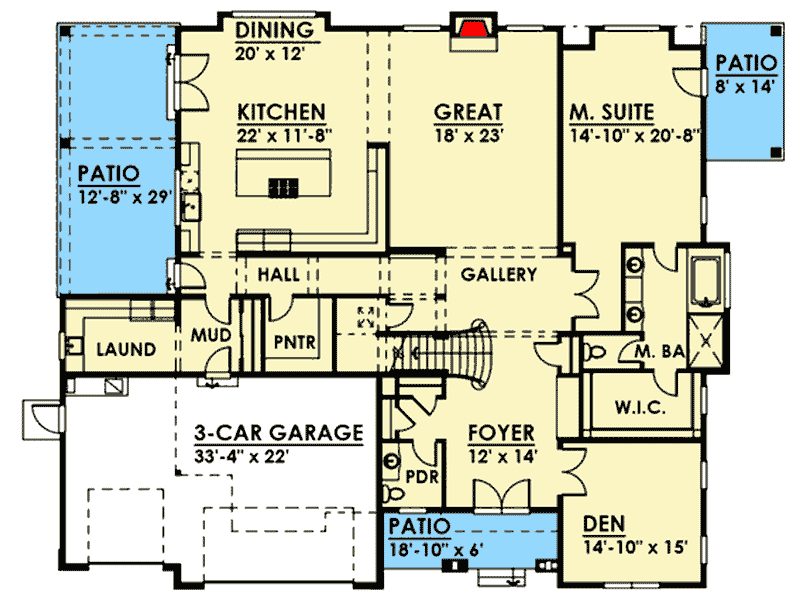

  • Main Level

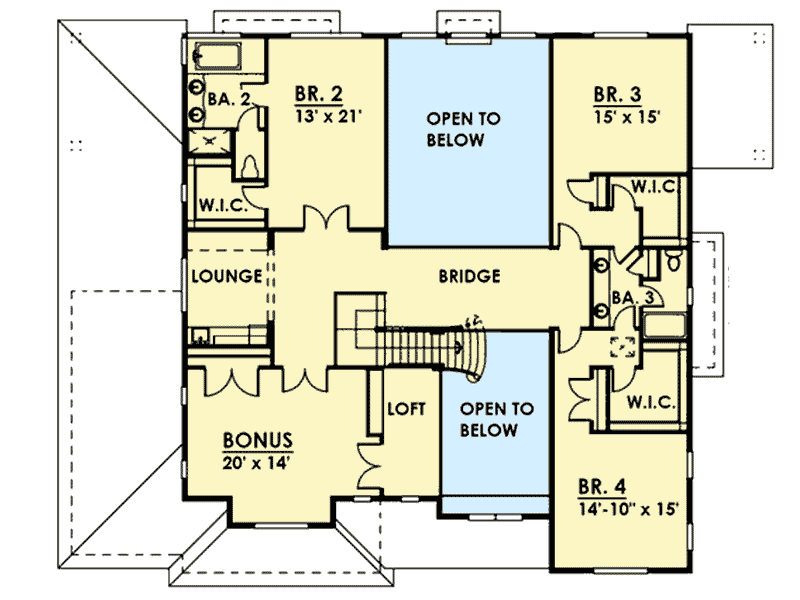

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,045 sq. ft.
  • 1st Floor: 2,776 sq. ft.
  • 2nd Floor: 2,269 sq. ft.

Dimensions

  • Width: 77' 0"
  • Depth: 60' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 709 sq. ft.
  • Count: 3 Cars

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5.5 on 12
  • Framing Type: Truss
