Plan 60549ND

Spacious Duplex Home Plan

Heated S.F.
4,940
Units
2
Width
Depth

Floor Plan

Plan 60549ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60549ND

M-F 9am-5pm EST |

1-203-761-8500

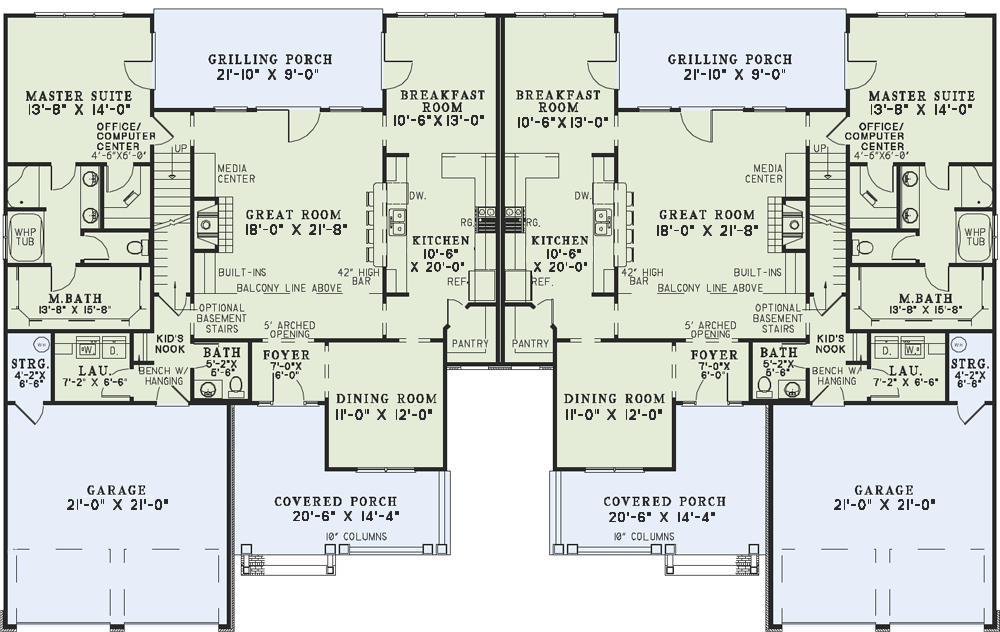

Main Level

Plan 60549ND: Spacious Duplex Home Plan - Floor Plan - Main Level - Southern, Traditional

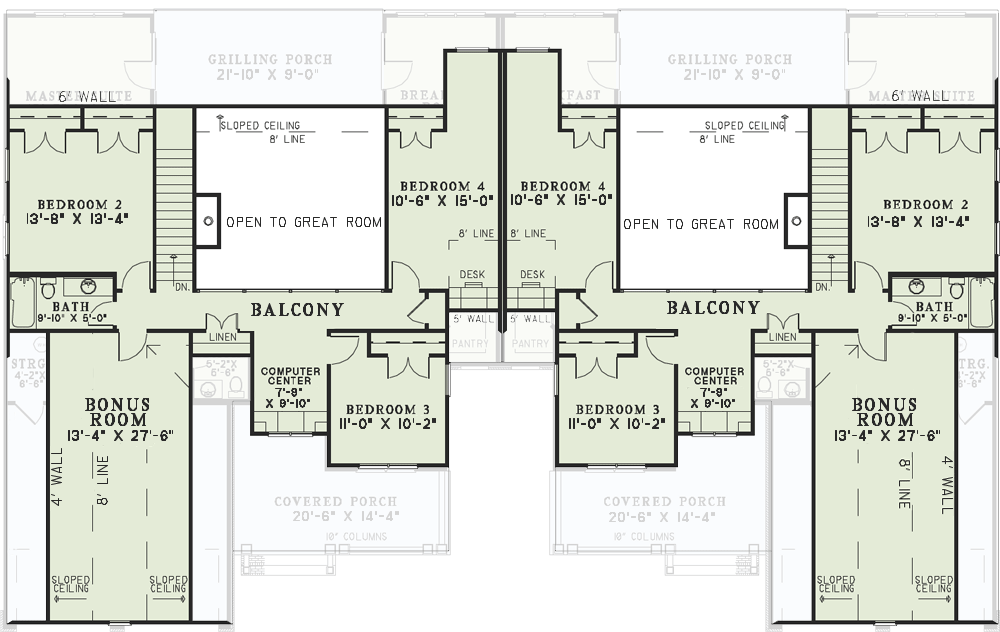

2nd Floor

Plan 60549ND: Spacious Duplex Home Plan - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • Plenty of room for one and all in this spacious multi-family home with two units each with four large bedrooms and a bonus room.
  • Each unit has 1,595 sq. ft. on the main floor and 995 sq. ft. on the second floor.
  • The great room soars up for two stories and opens to the eating bar of the gourmet kitchen.
  • Windows on two sides brighten the breakfast room with its door to the rear grilling porch.
  • A second floor balcony overlooks the great room below.
  • Note the handy computer center with a view of the front.
Unit A
Heated Area
2,470Sq. Ft.
1595 Sq. Ft. 1st
875 Sq. Ft. 2nd
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
492 Sq. Ft.
Dimensions
47' 5"width
58' 8"depth
28'height
Unfinished Areas
492 Sq. Ft. Garage
389 Sq. Ft. Bonus
Unit B
Heated Area
2,470Sq. Ft.
1595 Sq. Ft. 1st
875 Sq. Ft. 2nd
Beds
4Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
492 Sq. Ft.
Dimensions
47' 5"width
58' 8"depth
28'height
Unfinished Areas
389 Sq. Ft. Bonus
492 Sq. Ft. Garage

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,940 sq. ft.

1st Floor

3,190 sq. ft.

2nd Floor

1,750 sq. ft.

Bonus

778 sq. ft.

Porch, Combined

840 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

94' 10"

Depth

58' 8"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

984 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

4,940 sq. ft.

1st Floor

3,190 sq. ft.

2nd Floor

1,750 sq. ft.

Bonus

778 sq. ft.

Porch, Combined

840 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

94' 10"

Depth

58' 8"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

984 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry
