Plan 36615TX Spacious European House Plan with Two-Story Family Room

4,958 6 6 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Spacious European House Plan with Two-Story Family Room

Plan 36615TX

  • 4,958

    Heated s.f.

  • 6

    Beds

  • 6

    Baths

  • 2

    Stories

  • 3

    Cars

  • Spiral columns support the stunning arched entryway on this spacious, European house plan, clad in stone and stucco.
  • The heart of the home is located in the center of the design with an open-concept living space that extends onto a large covered porch, complete with an outdoor kitchen.
  • The chef's kitchen is sure to inspire creativity when cooking, and a built-in bench in the attached breakfast nook adds character.
  • The master suite is situated apart from the other family bedrooms for privacy, and includes a deluxe bathroom with a two-person shower, toilet room, and wardrobe with secret access to the study.
  • Bedrooms 2 and 3 supply their own full bathroom, and reside near the generously-sized laundry room.
  • Three family bedrooms are located on the second level, along with a game room and library, each with a Juliet balcony that overlooks the family room below.
  • A parking courtyard is created by three garage bays; a double garage that attaches to the rear, and a single garage bay attached by a portico.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

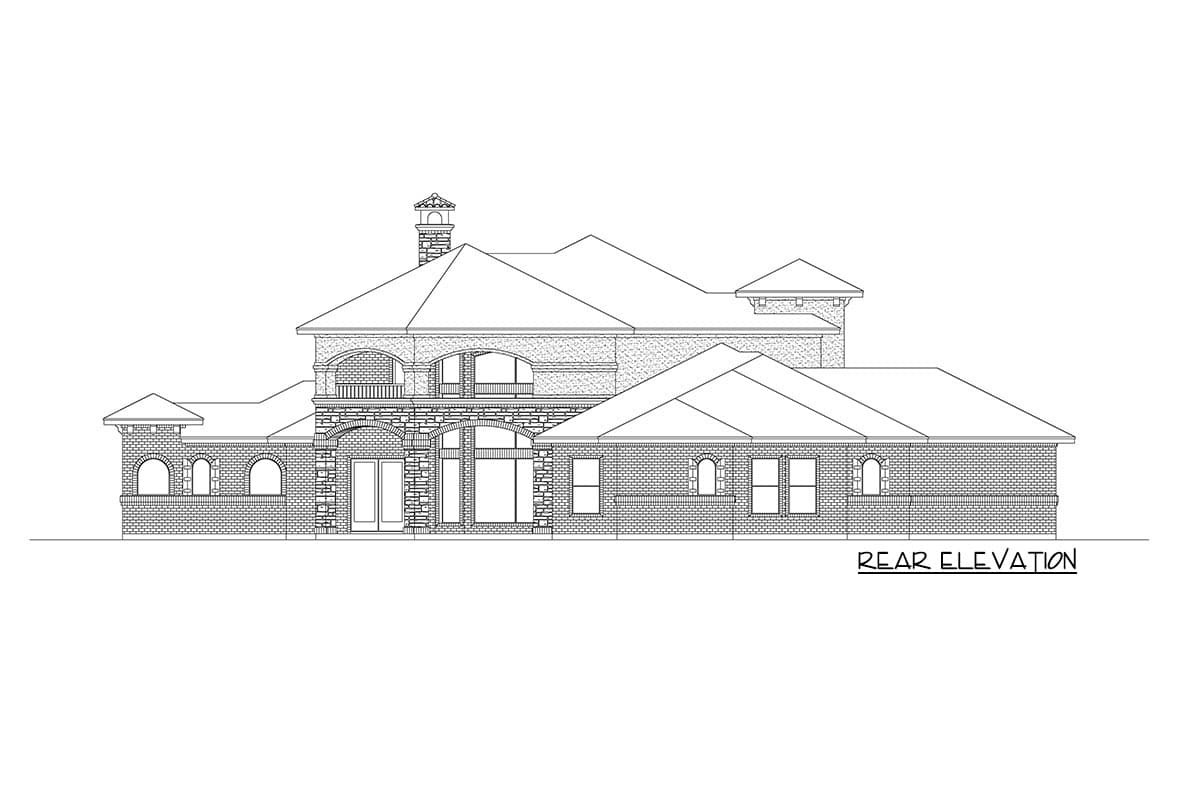

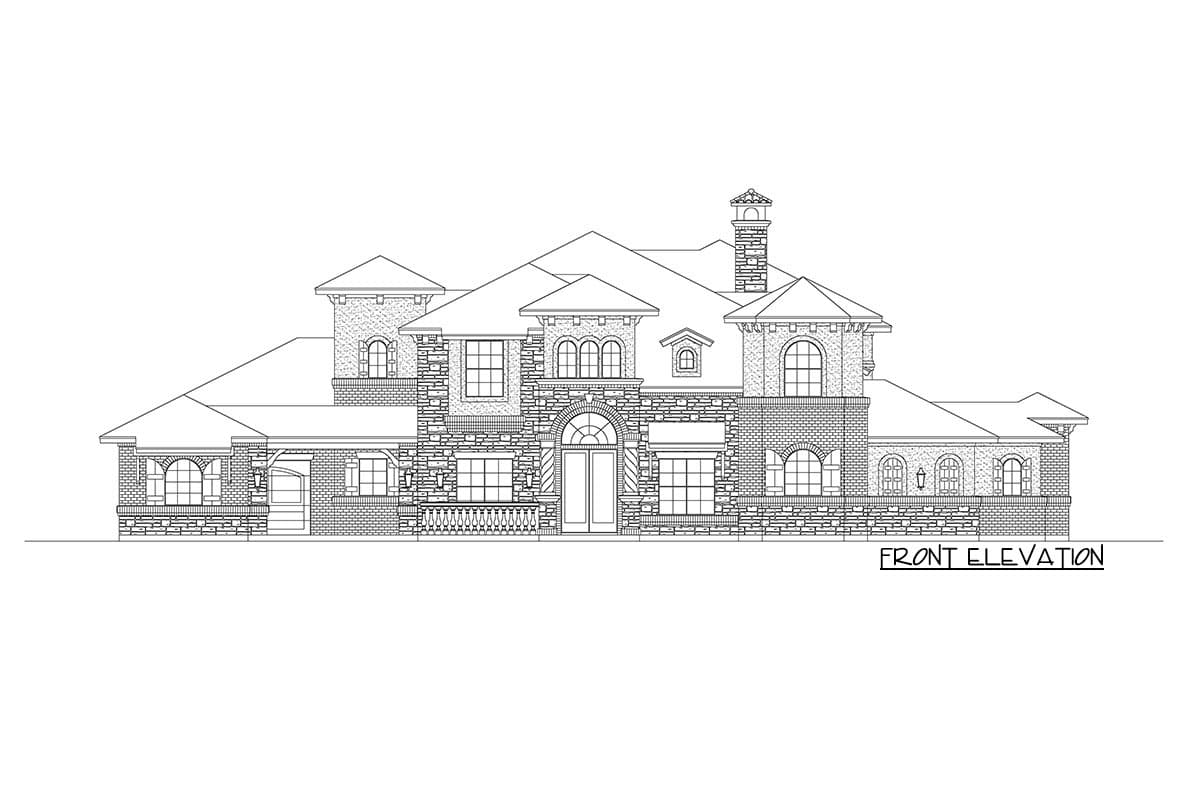

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

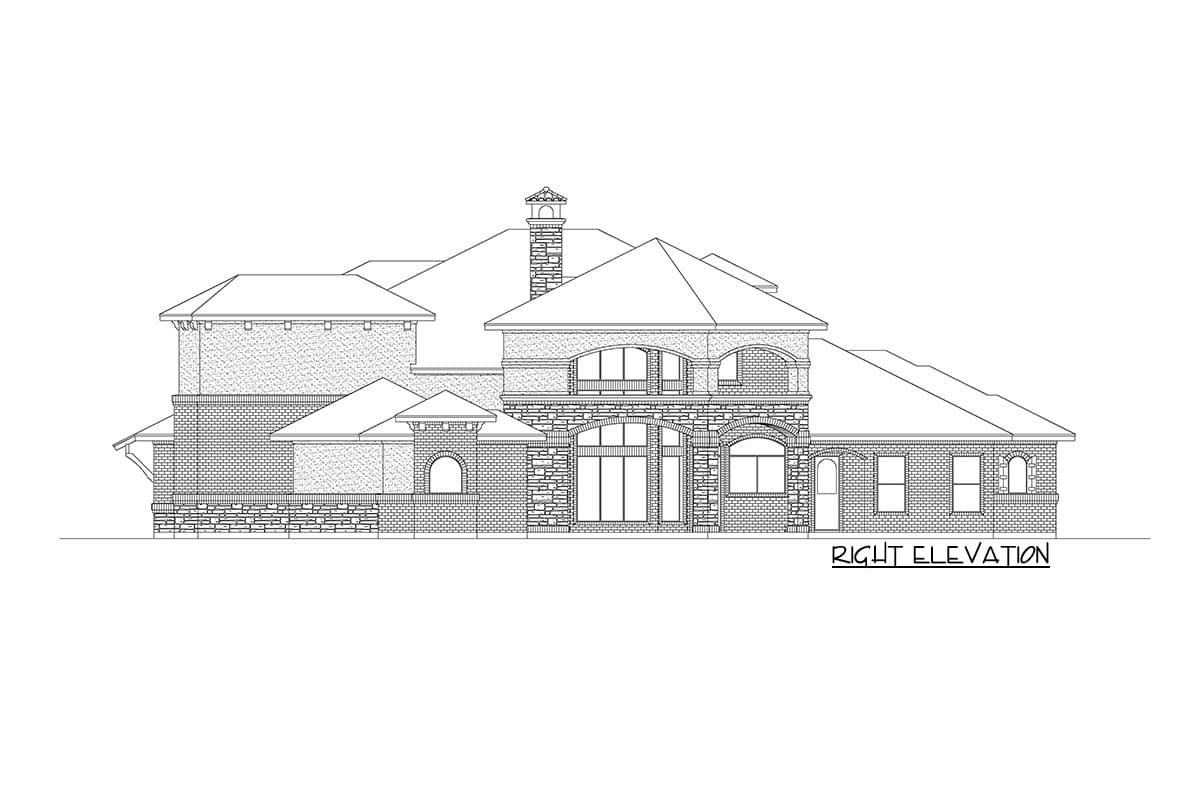

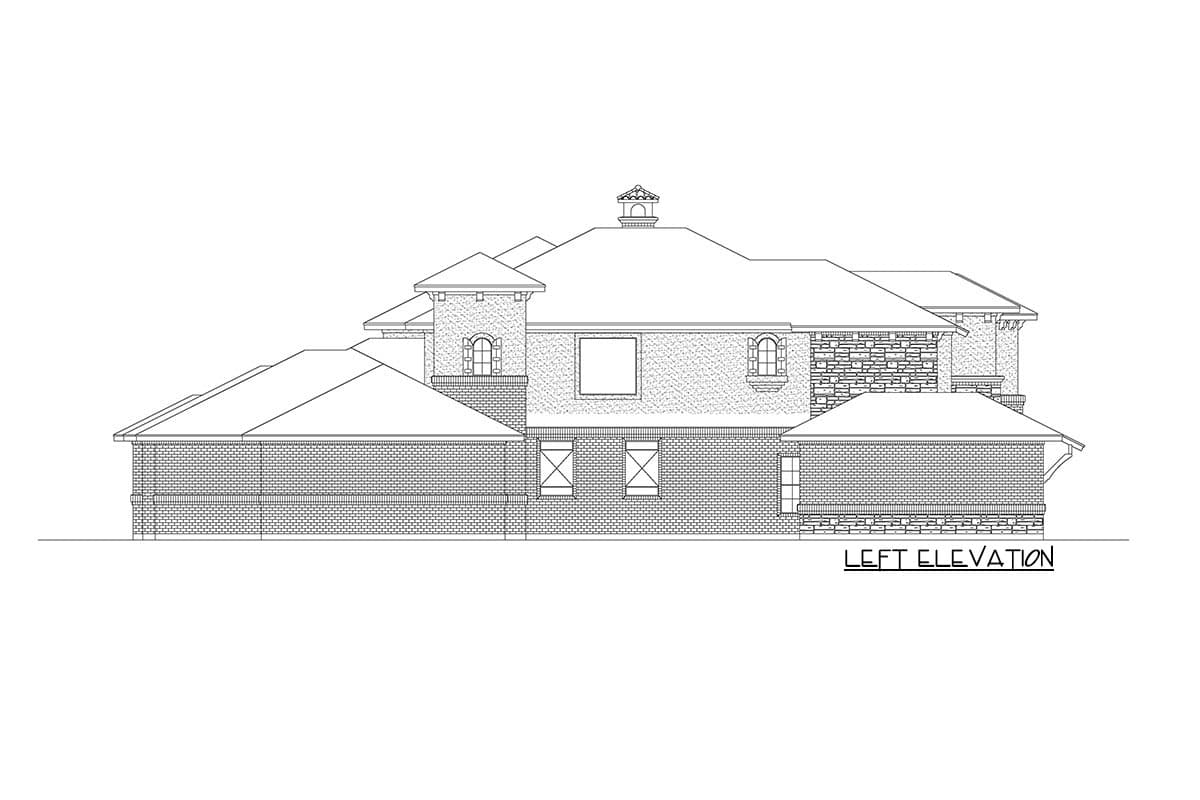

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

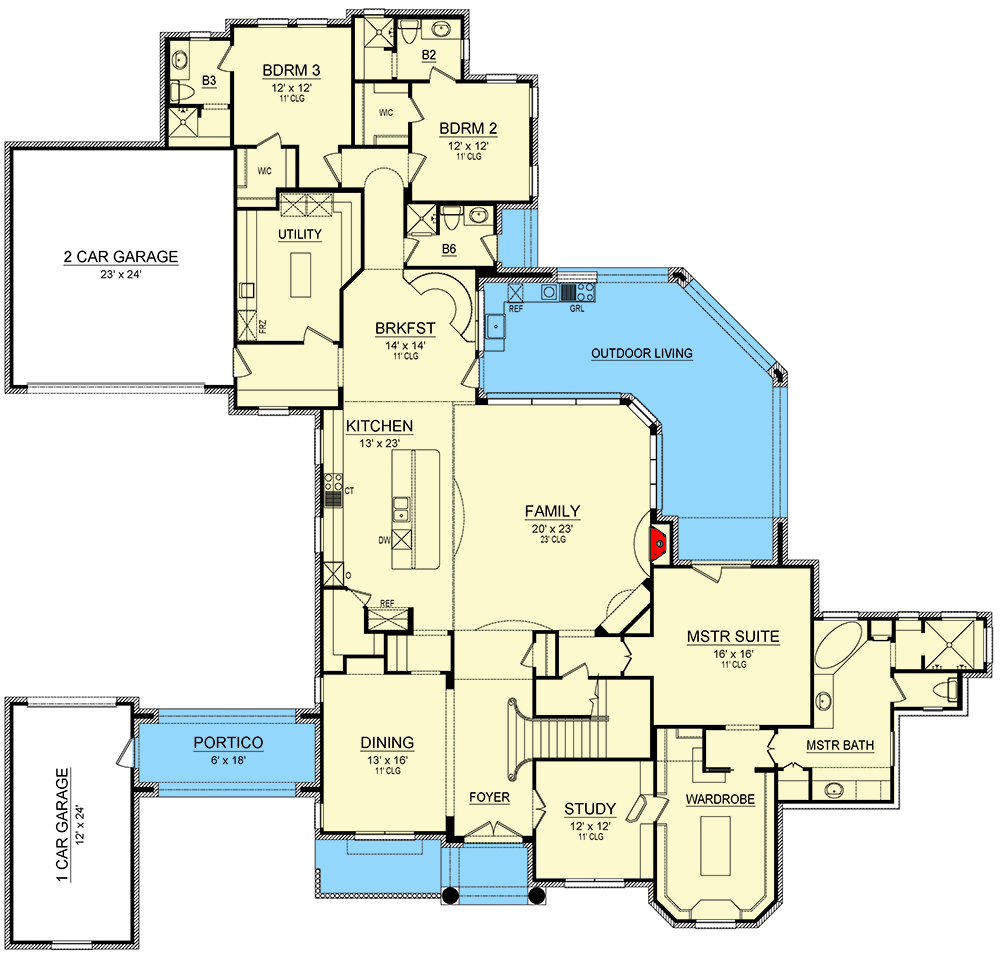

Spacious European House Plan with Two-Story Family Room - 36615TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

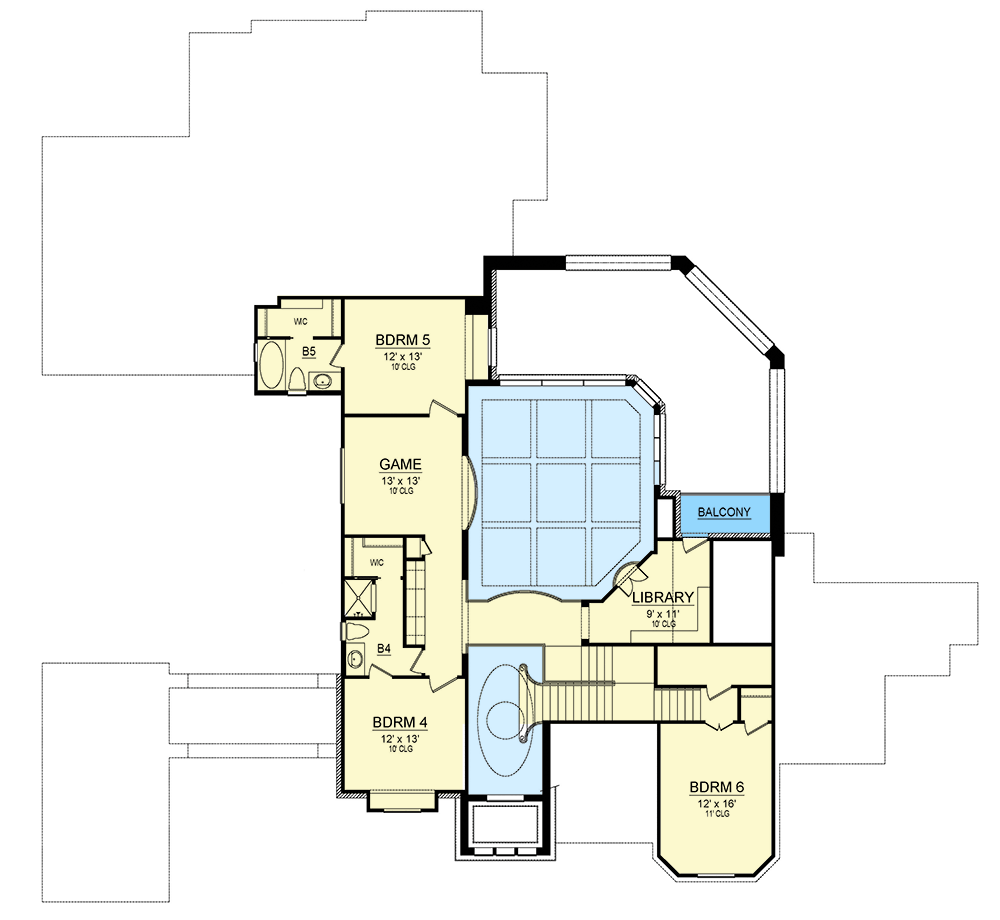

Spacious European House Plan with Two-Story Family Room - 36615TX floor plan - 2nd Floor
