Plan 42466DB

Spacious Garage Apartment with Workshop and Home Office

Heated S.F.
1,628
Beds
1
Baths
2
Stories
2
Cars
4

Floor Plan

Plan 42466DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42466DB

M-F 9am-5pm EST |

1-203-761-8500

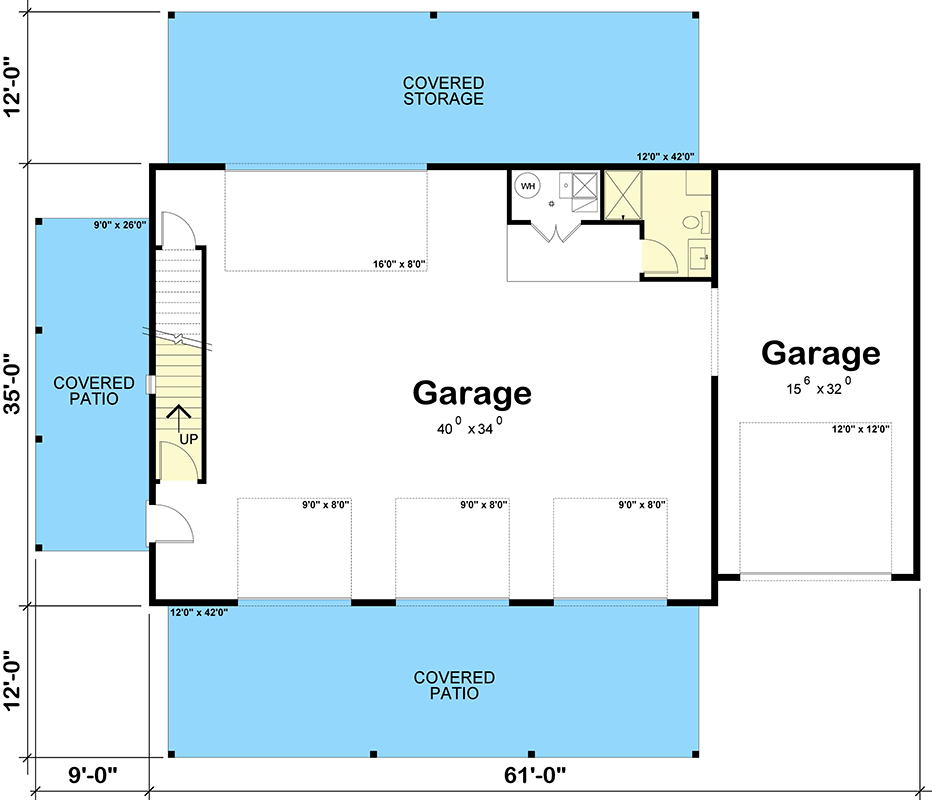

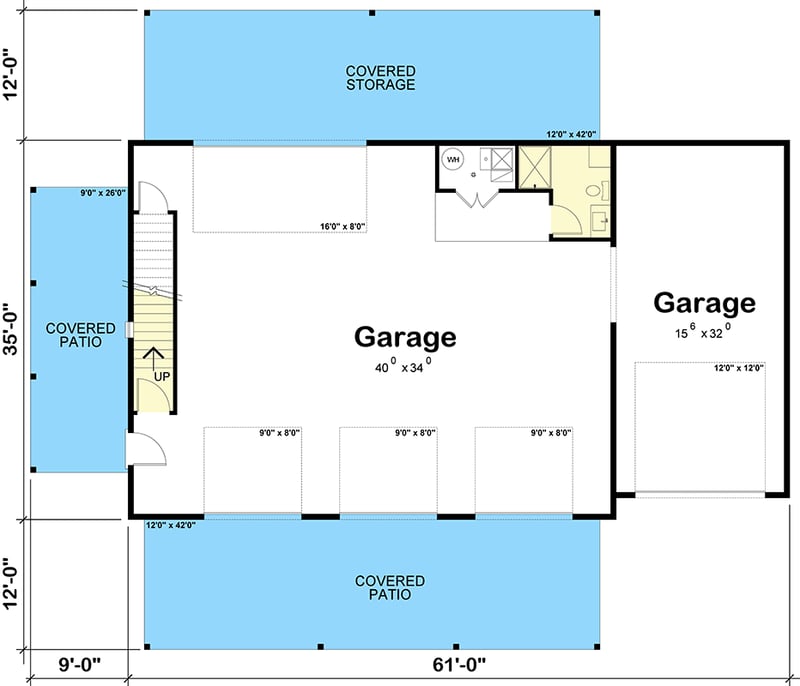

Main Level

Plan 42466DB: Spacious Garage Apartment with Workshop and Home Office - Floor Plan - Main Level - Barndominium, Carriage, Country, Craftsman, Mountain, New American, Rustic

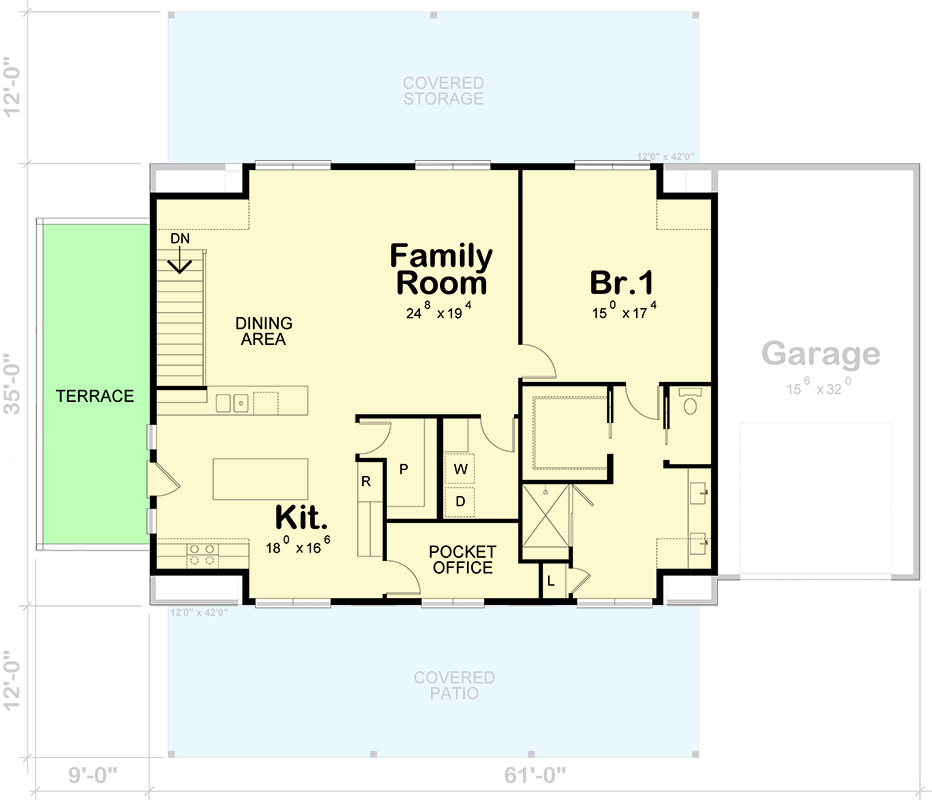

2nd Floor

Plan 42466DB: Spacious Garage Apartment with Workshop and Home Office - Floor Plan - 2nd Floor - Barndominium, Carriage, Country, Craftsman, Mountain, New American, Rustic

Plan Details

  • This stylish detached garage apartment spans 1,628 sq. ft., featuring 1 bedroom and 2 full bathrooms. It boasts a 1,995 sq. ft. 4-car garage, perfect for car enthusiasts or additional storage.
  • Enter through a welcoming foyer that leads to a versatile workshop space, ideal for projects or hobbies.
  • Upstairs, the open-concept living area includes a well-appointed kitchen, dining area, and a spacious family room, promoting seamless flow and ample natural light.
  • The upstairs master suite offers privacy with an en-suite bathroom while the cleverly designed home office provides a quiet workspace.
  • Enjoy outdoor living with the expansive 741 sq. ft. rear porch, perfect for relaxation or entertaining guests.

What's Included

  • General Notes

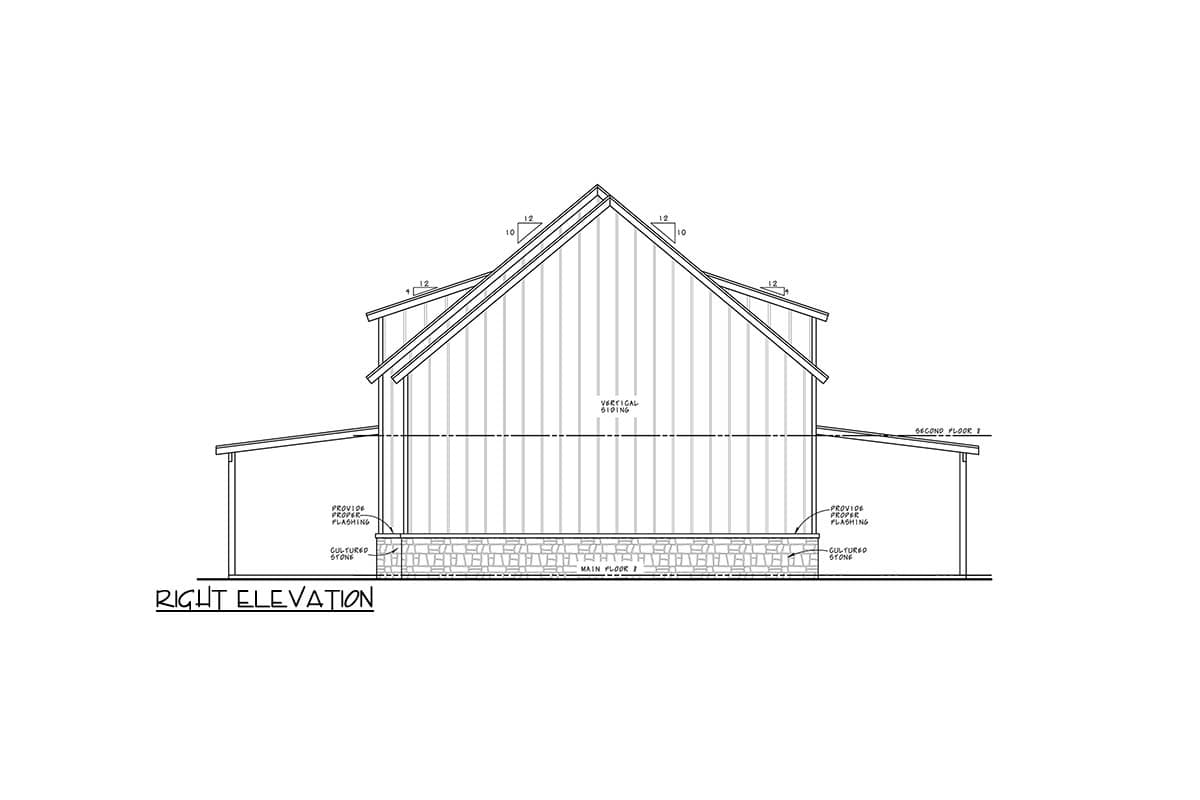

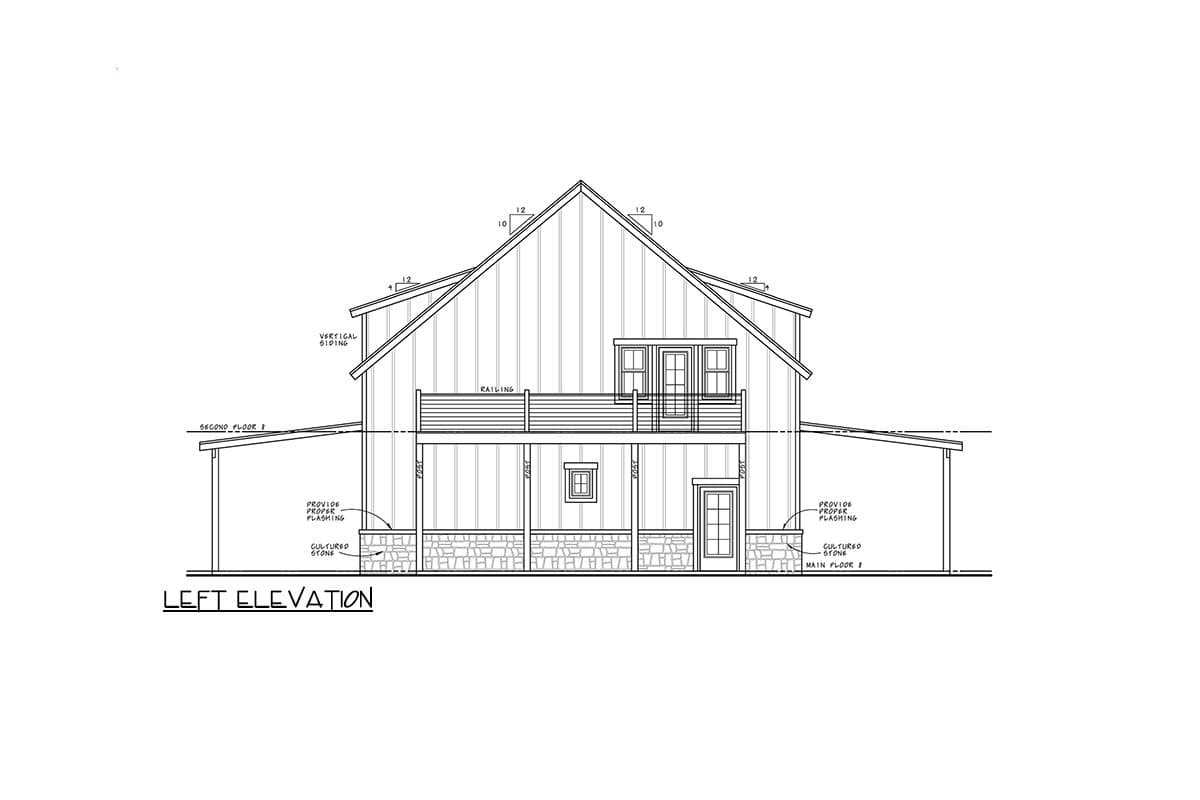

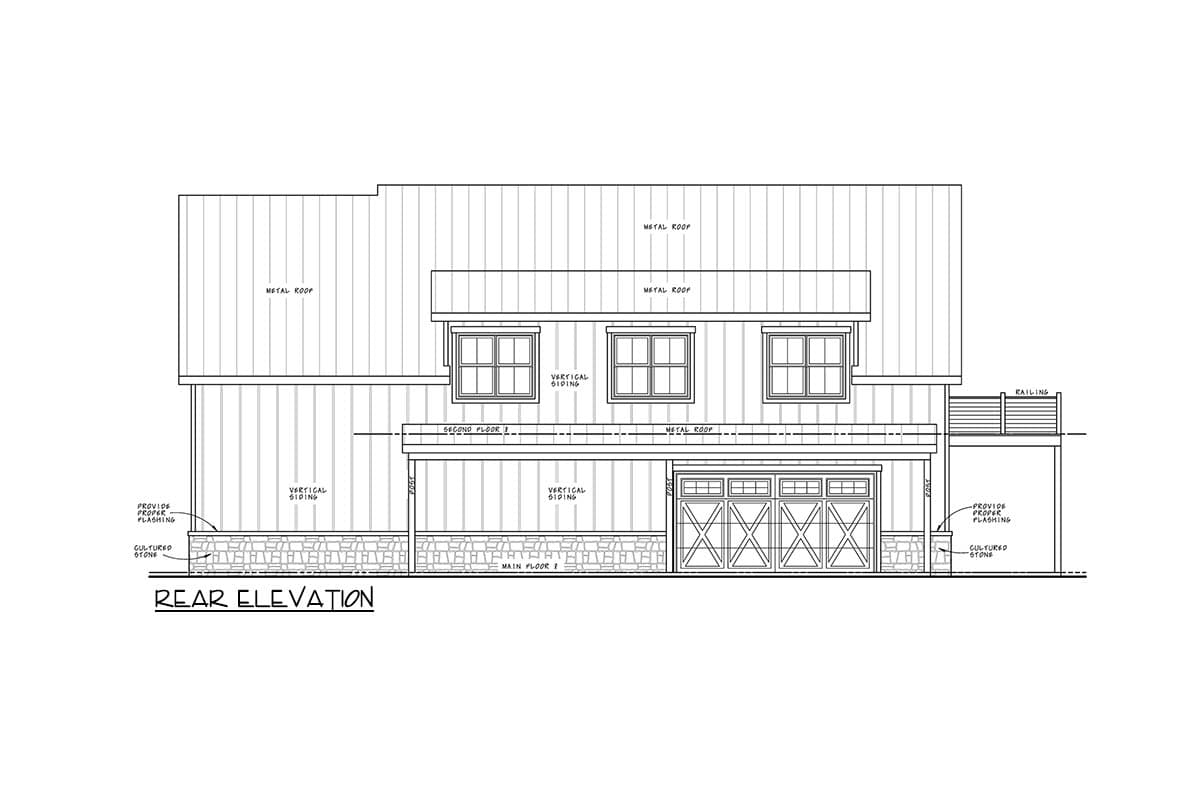

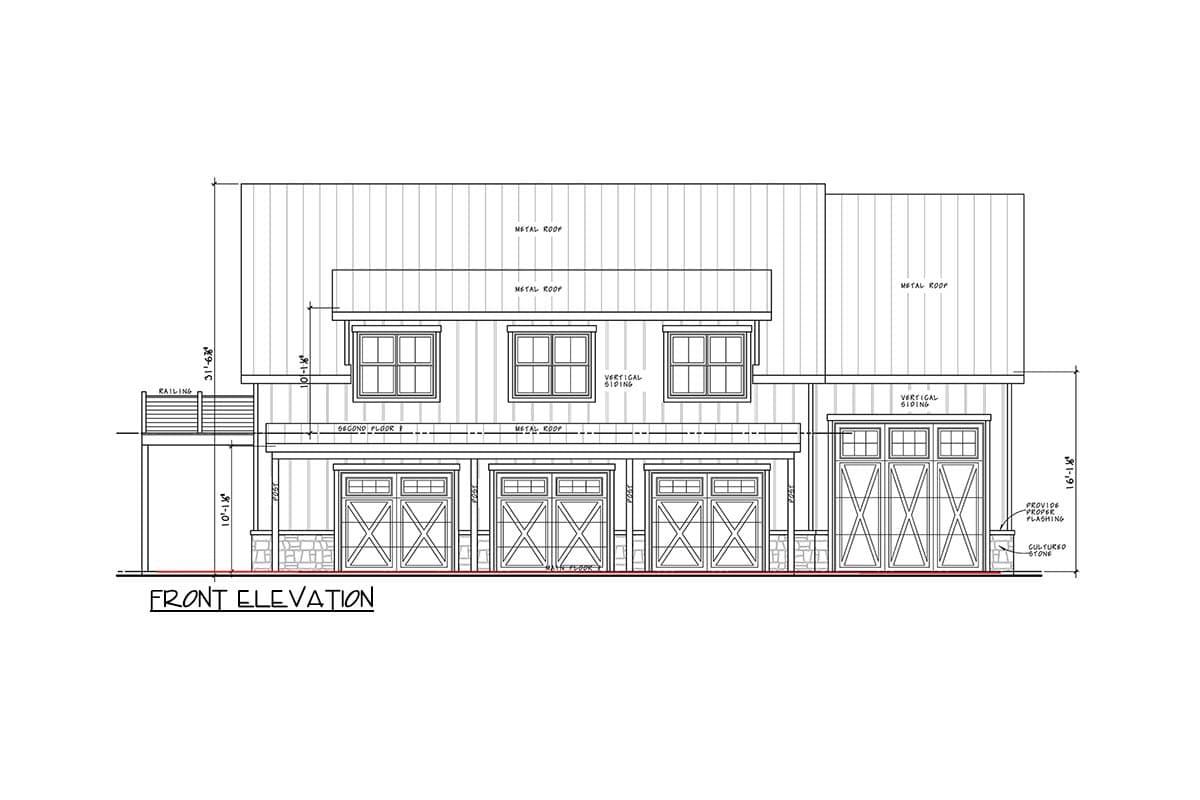

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,628 sq. ft.

1st Floor

108 sq. ft.

2nd Floor

1,520 sq. ft.

Porch, Rear

741 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

59' 0"

Max Ridge Height

31' 7"

Garage

Type

Detached

Area

1995 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Barndominium

Carriage

Country

Craftsman

Mountain

New American

Rustic

Special Features

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Workshop

Square Footage Breakdown

Total Heated Area

1,628 sq. ft.

1st Floor

108 sq. ft.

2nd Floor

1,520 sq. ft.

Porch, Rear

741 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

59' 0"

Max Ridge Height

31' 7"

Garage

Type

Detached

Area

1995 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Barndominium

Carriage

Country

Craftsman

Mountain

New American

Rustic

Special Features

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Workshop
