Plan 59099ND

Spacious Great Room

Heated S.F.
1,452
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59099ND

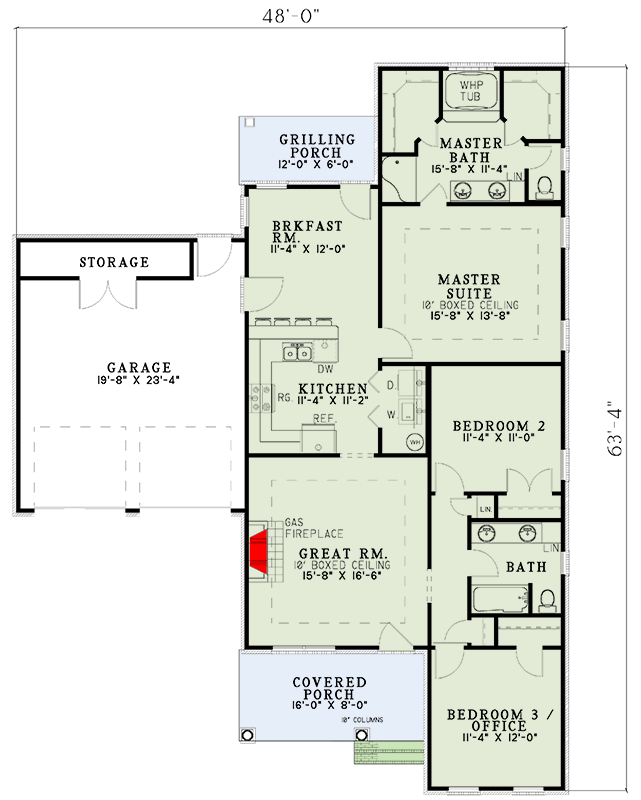

Main Level
Main Level

Plan 59099ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59099ND: Spacious Great Room - Floor Plan - Main Level - Ranch, Southern, Traditional

Plan Details

  • If you can picture yourself hosting an elegant dinner party surrounded by friends and family, then step into this traditional home design.
  • After greeting guests on the covered porch, guide them into the spacious great room. Here, mingling can begin and maybe drinks around the romantic gas fireplace. Conveniently accessible to the kitchen with eat-in bar, you can slip away to check on the excellent cuisine you are preparing.
  • A connecting breakfast room can serve as more space for guests or a quiet place just for you. A door opening to a grilling porch allows you to even prepare grilled meats with ease.
  • When all the excitement is over, enjoy the privacy of the master suite with 10-foot boxed ceiling or relax in a step-up whirlpool bath.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,452 sq. ft.

1st Floor

1,452 sq. ft.

Porch, Front

69 sq. ft.

Porch, Rear

128 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 0"

Depth

63' 4"

Max Ridge Height

23' 6"

Garage

Type

Attached

Area

480 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Closed Floor Plans

Home Office
