Spacious Home Plan with Ample Storage

Plan 69003AM

  • 2,591

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • If you live in an area of the country where basements are not built, then peruse this house plan for great storage possibilities. An upper-level storage room offers 396 square feet of space for seasonal decorations and other items. In addition, the third stall of the garage provides extra storage space. Encompassing the home's wealth of storage is a charming facade. Three types of siding materials: shake shingles, stone, and lap siding, combine to accentuate the country-style exterior. A front porch and a pair of dormers accompany the portico with triangular braces in heralding a cheery neighborhood welcome.
  • The split-bedroom floor plan speaks to homeowners who desire privacy. The master suite and an office line up on the left end of the plan. Separate corridor entrances lead to the office and master suite ensuring adequate separation. A triangular vault above the bedroom window displays the rear view in grand style. A spa tub, large shower, and spacious walk-in closet outfit the bath. Two other bedrooms are at the opposite end of the plan along with a bath that has a double-sink vanity and an enclosed toilet and tub compartment.
  • The living spaces in the center of the floor plan flow together easily and are bright and open. The kitchen is tucked into a corner of the open area and has views of the great-room's fireplace and built-ins, as well as the backyard. Windows line the breakfast nook and great-room.
  • The formal dining room also is steps away, next to the foyer. It includes space for a hutch and a pair of built-in display shelves.
  • The basement stairs run under the stairs leading to the second floor storage space.
  • Related Plans: Get alternate exteriors with house plans 69434AM and 69004AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

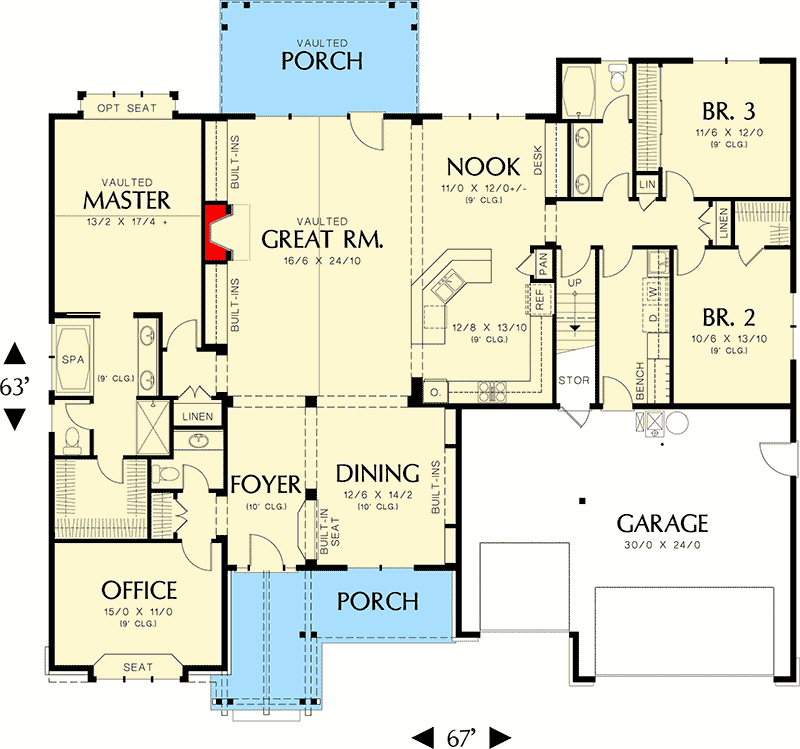

Floor Plan

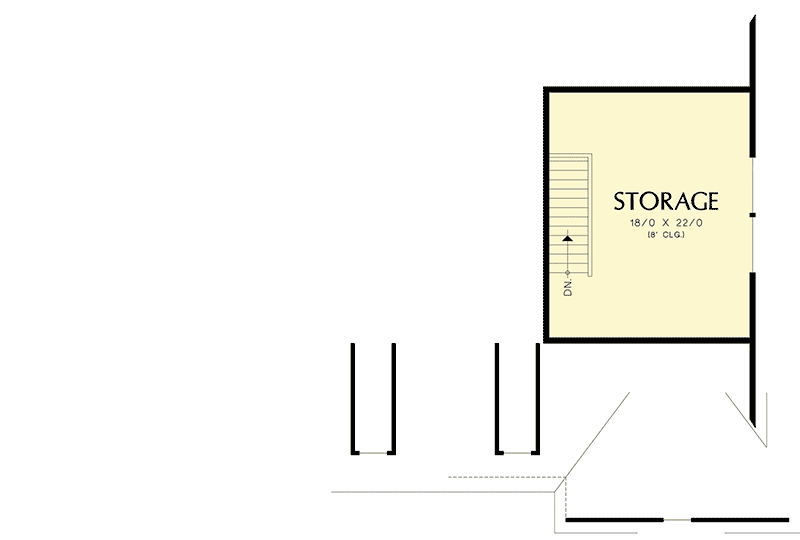

Storage over garage

Pinit white
Spacious Home Plan with Ample Storage - 69003AM floor plan - Storage over garage

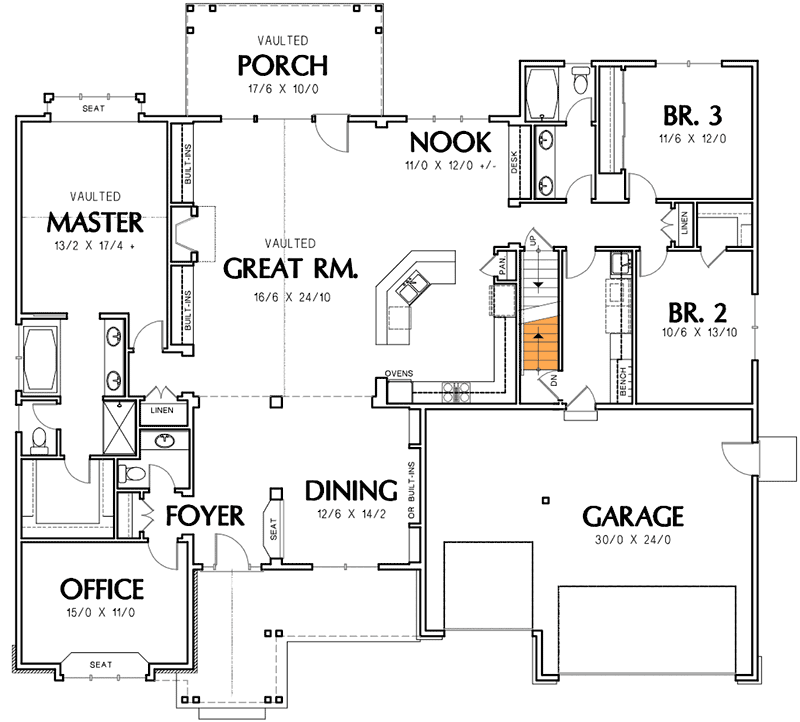

Basement stair location

Pinit white
Spacious Home Plan with Ample Storage - 69003AM floor plan - Basement stair location

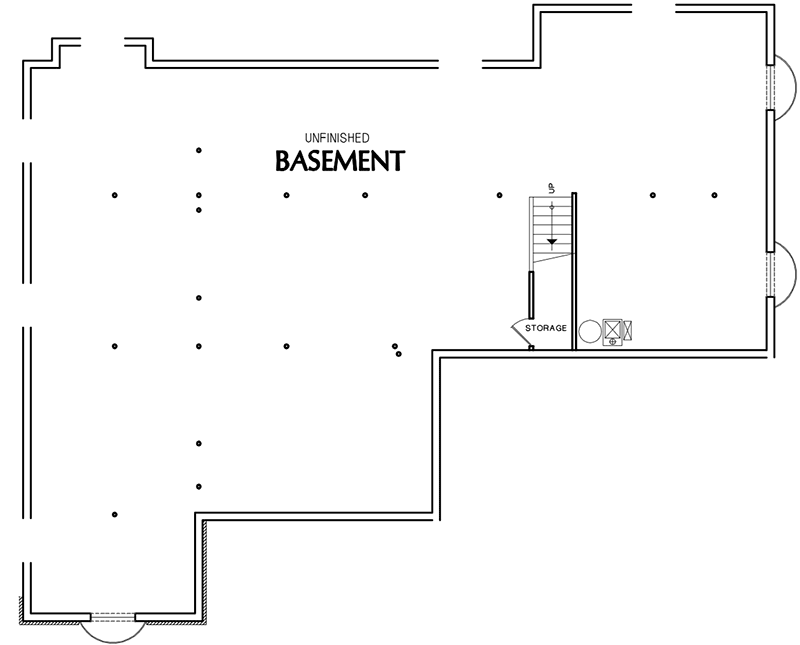

Unfinished Basement

Pinit white
Spacious Home Plan with Ample Storage - 69003AM floor plan - Unfinished Basement

Plan details



Spacious Home Plan with Ample Storage

  • 2,591

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,017
  • PDF - single-use $1,367
  • 5 Sets $1,517
  • 5 Sets PLUS $1,567
  • CAD - multi-use $2,734
  • View all purchase option online

About This Plan

  • If you live in an area of the country where basements are not built, then peruse this house plan for great storage possibilities. An upper-level storage room offers 396 square feet of space for seasonal decorations and other items. In addition, the third stall of the garage provides extra storage space. Encompassing the home's wealth of storage is a charming facade. Three types of siding materials: shake shingles, stone, and lap siding, combine to accentuate the country-style exterior. A front porch and a pair of dormers accompany the portico with triangular braces in heralding a cheery neighborhood welcome.
  • The split-bedroom floor plan speaks to homeowners who desire privacy. The master suite and an office line up on the left end of the plan. Separate corridor entrances lead to the office and master suite ensuring adequate separation. A triangular vault above the bedroom window displays the rear view in grand style. A spa tub, large shower, and spacious walk-in closet outfit the bath. Two other bedrooms are at the opposite end of the plan along with a bath that has a double-sink vanity and an enclosed toilet and tub compartment.
  • The living spaces in the center of the floor plan flow together easily and are bright and open. The kitchen is tucked into a corner of the open area and has views of the great-room's fireplace and built-ins, as well as the backyard. Windows line the breakfast nook and great-room.
  • The formal dining room also is steps away, next to the foyer. It includes space for a hutch and a pair of built-in display shelves.
  • The basement stairs run under the stairs leading to the second floor storage space.
  • Related Plans: Get alternate exteriors with house plans 69434AM and 69004AM.

Floor Plans

  • First Floor

  • Storage over garage

  • Basement stair location

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,591 sq. ft.
  • 1st Floor: 2,591 sq. ft.
  • Storage: 396 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 63' 0"
  • Max ridge height: 27' 3"

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss
