Plan 61334UT Spacious House Plan with Walk-out Lower Level

Spacious House Plan with Walk-out Lower Level

Plan 61334UT

  • 5,212

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

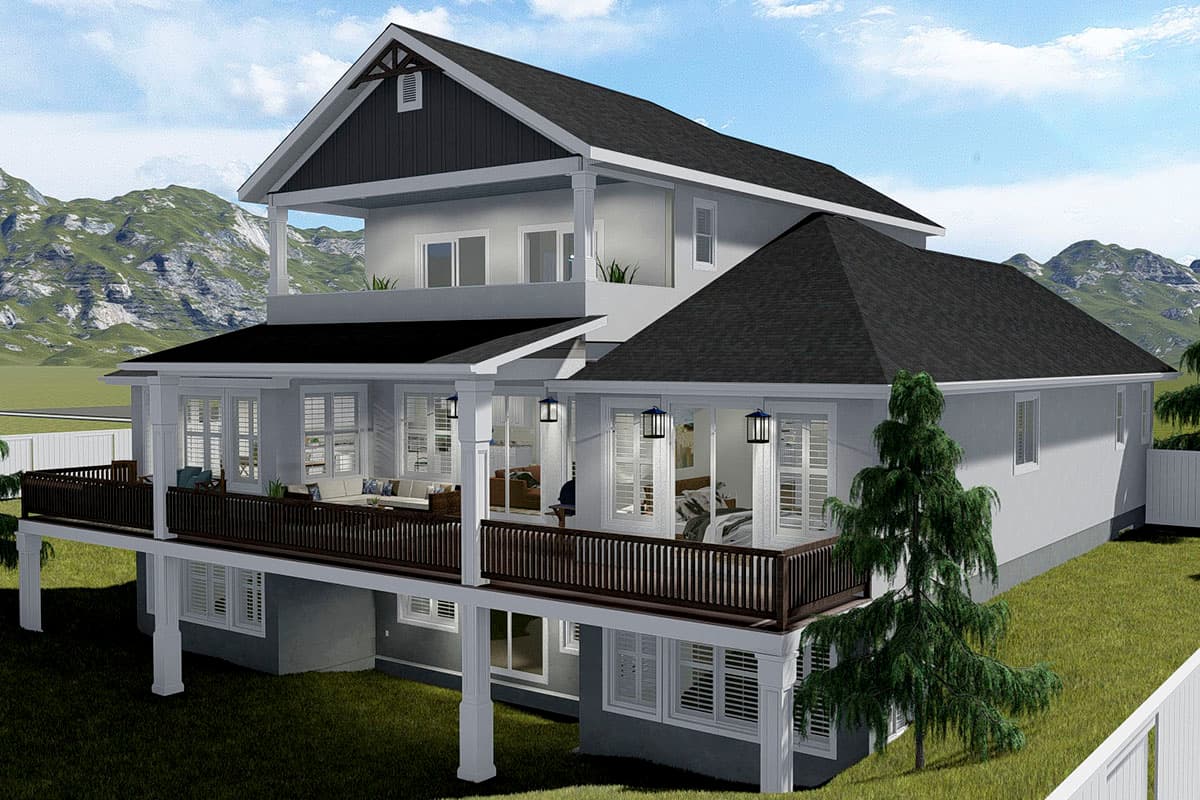

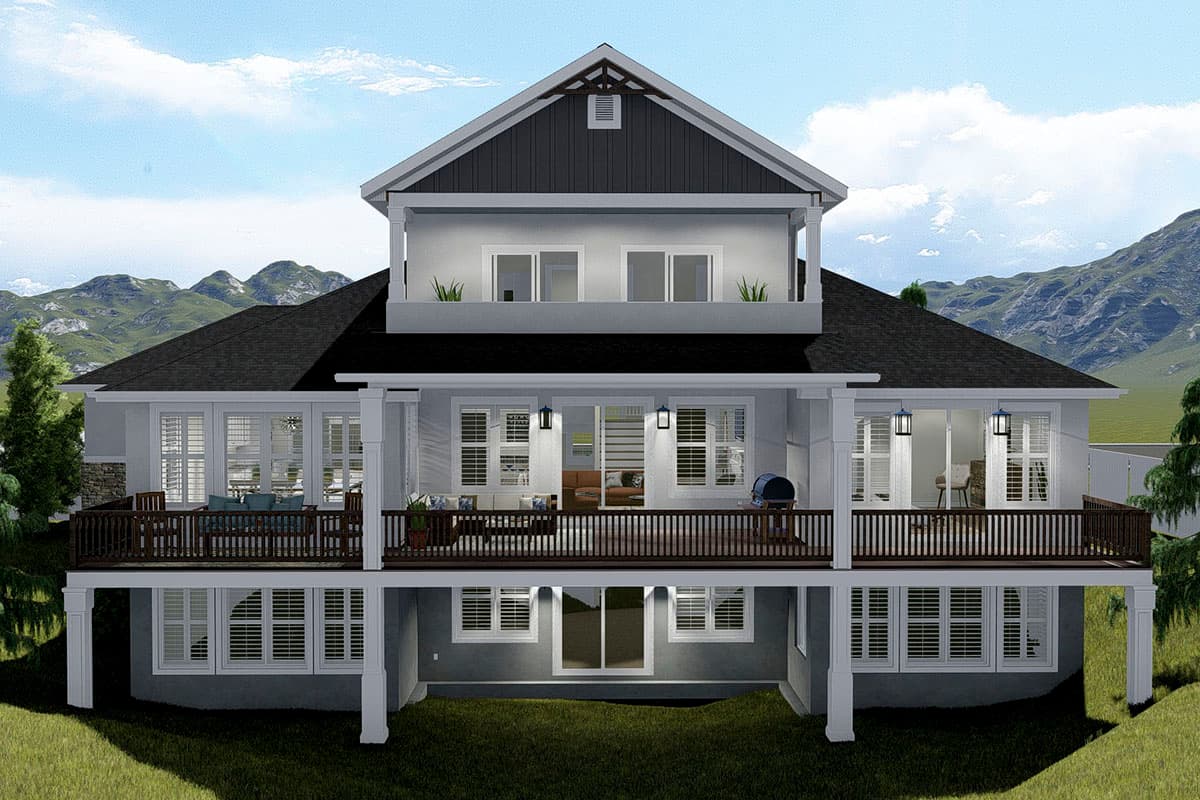

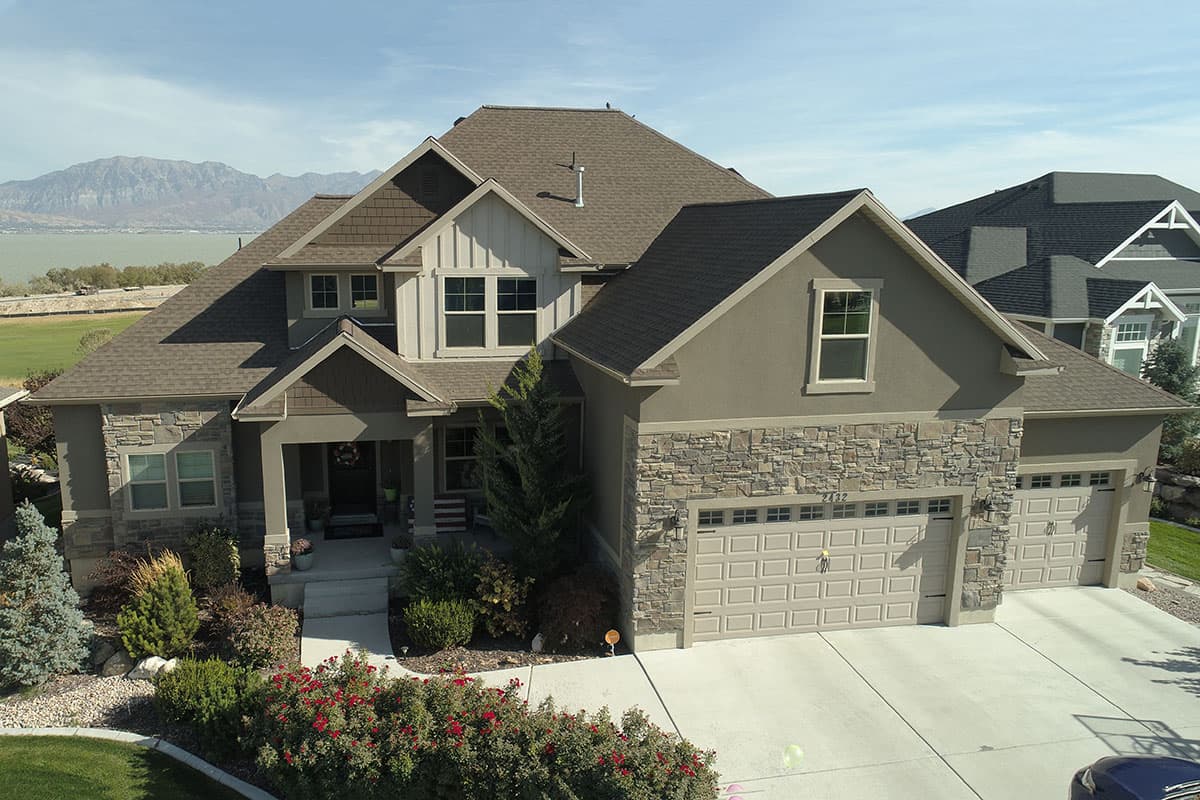

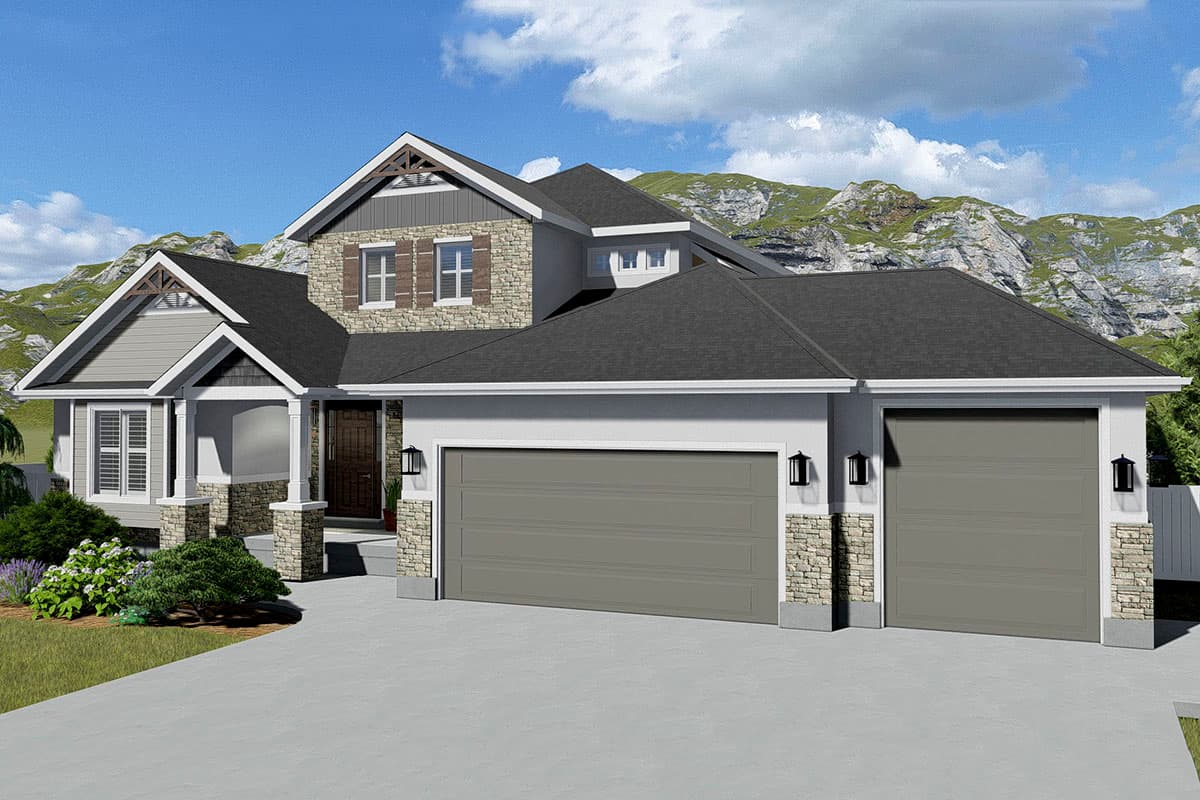

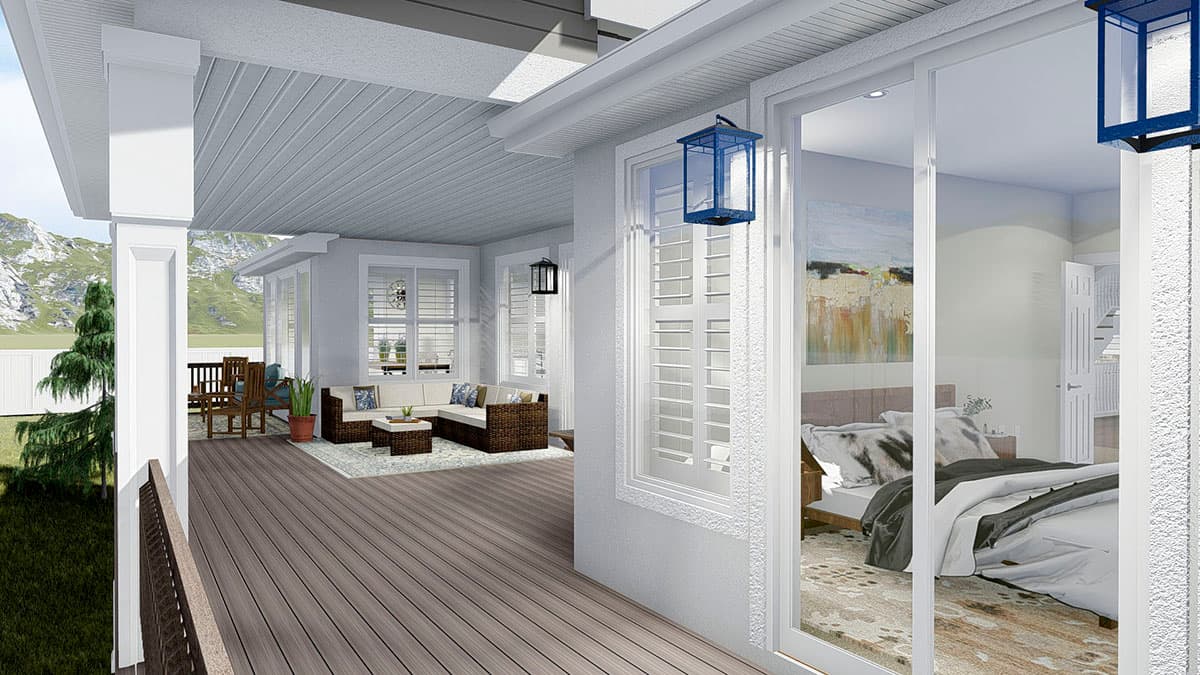

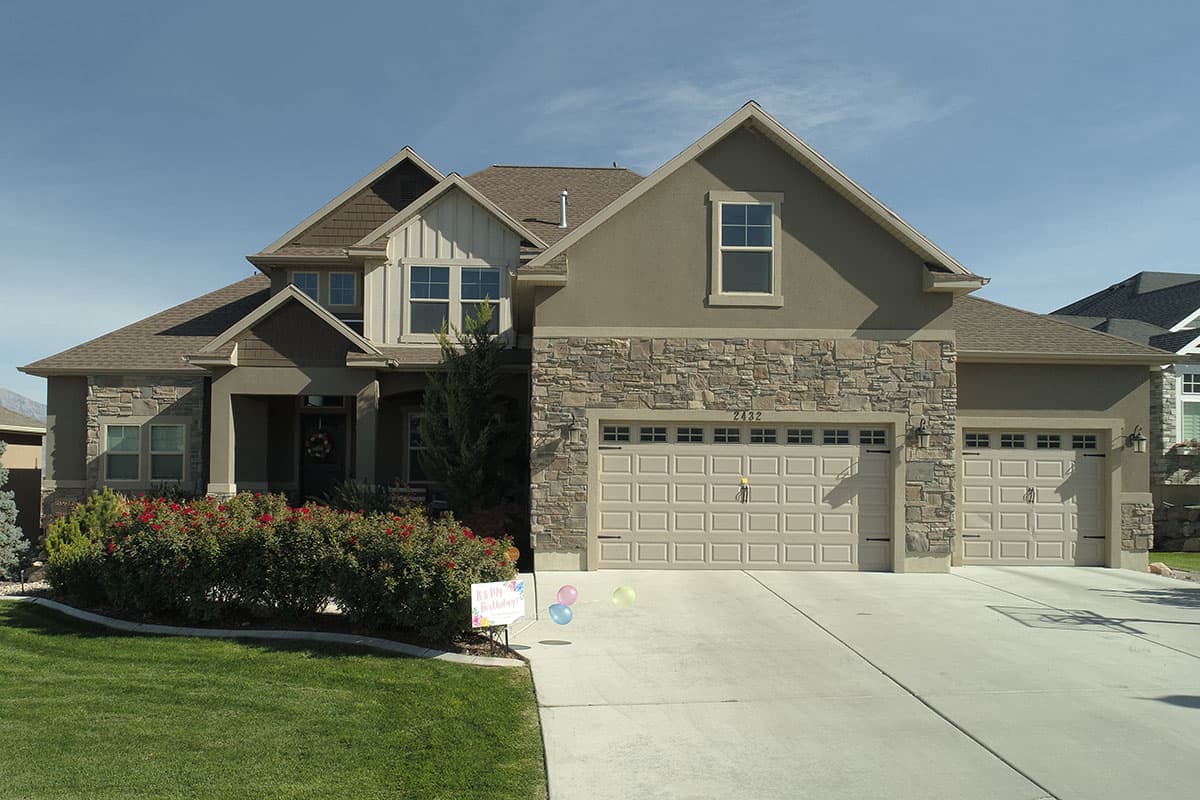

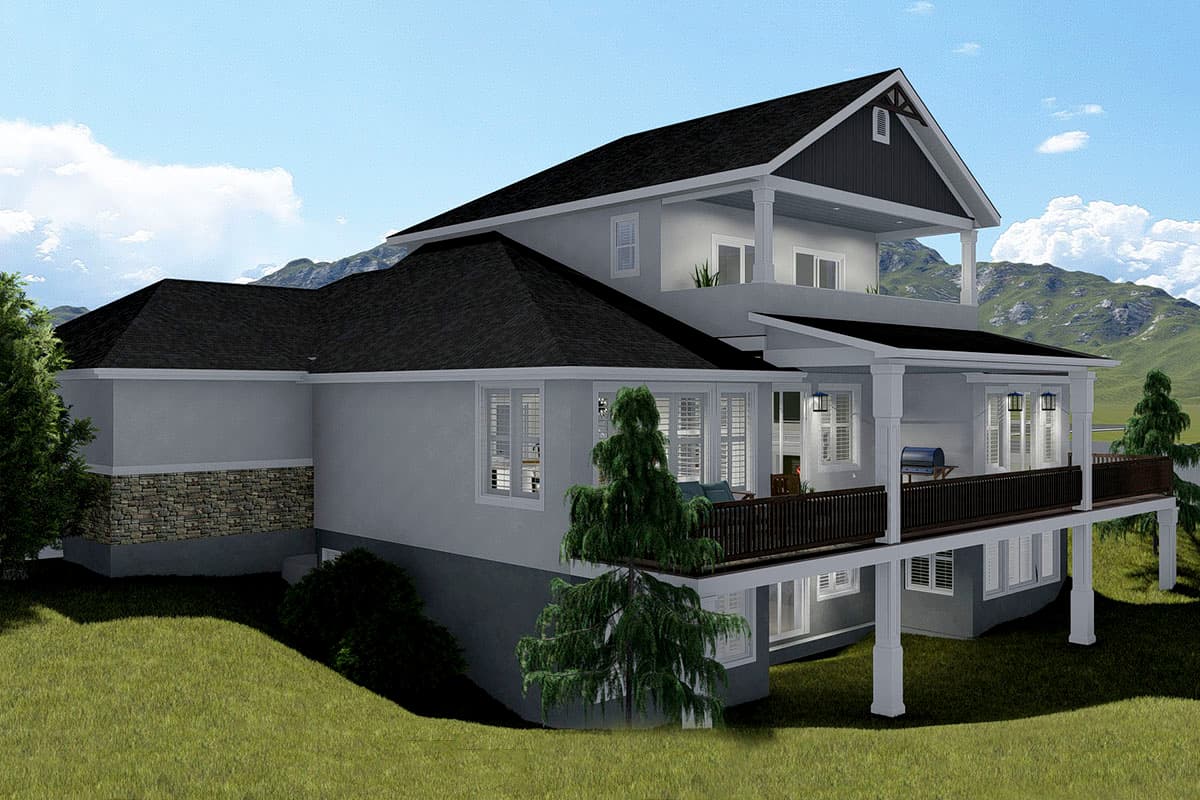

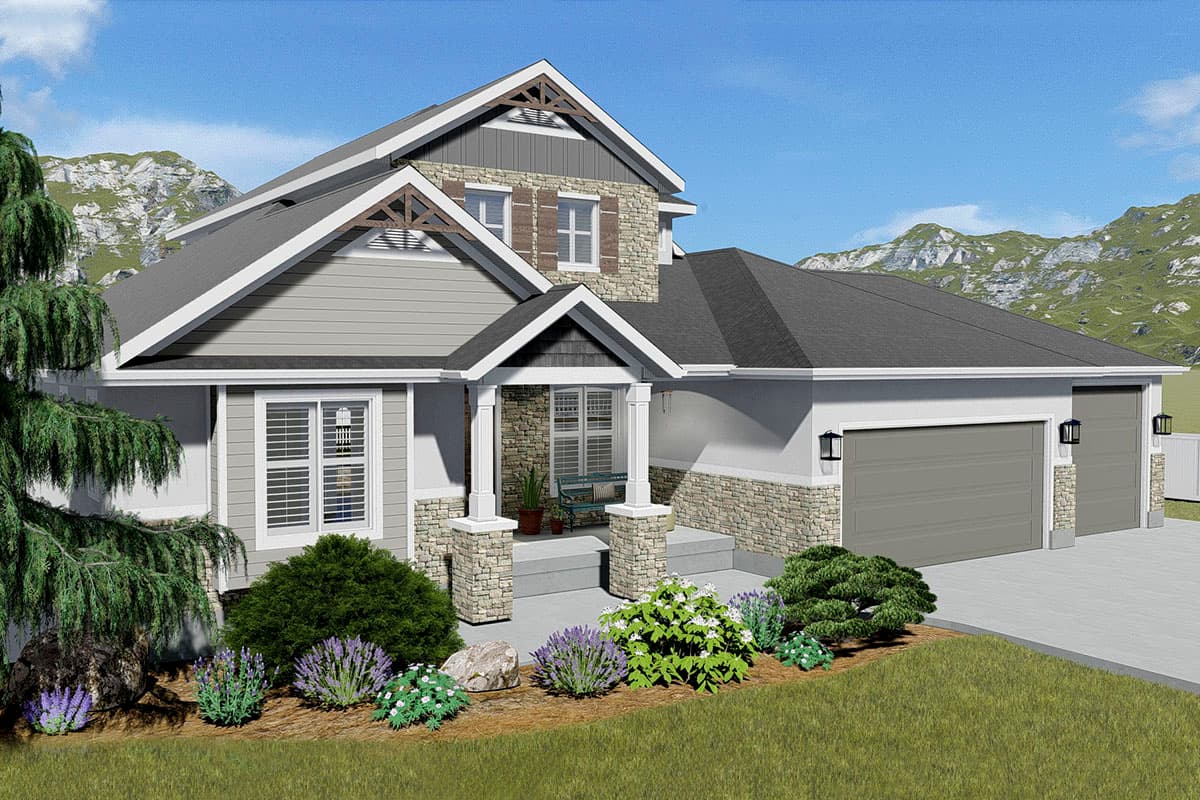

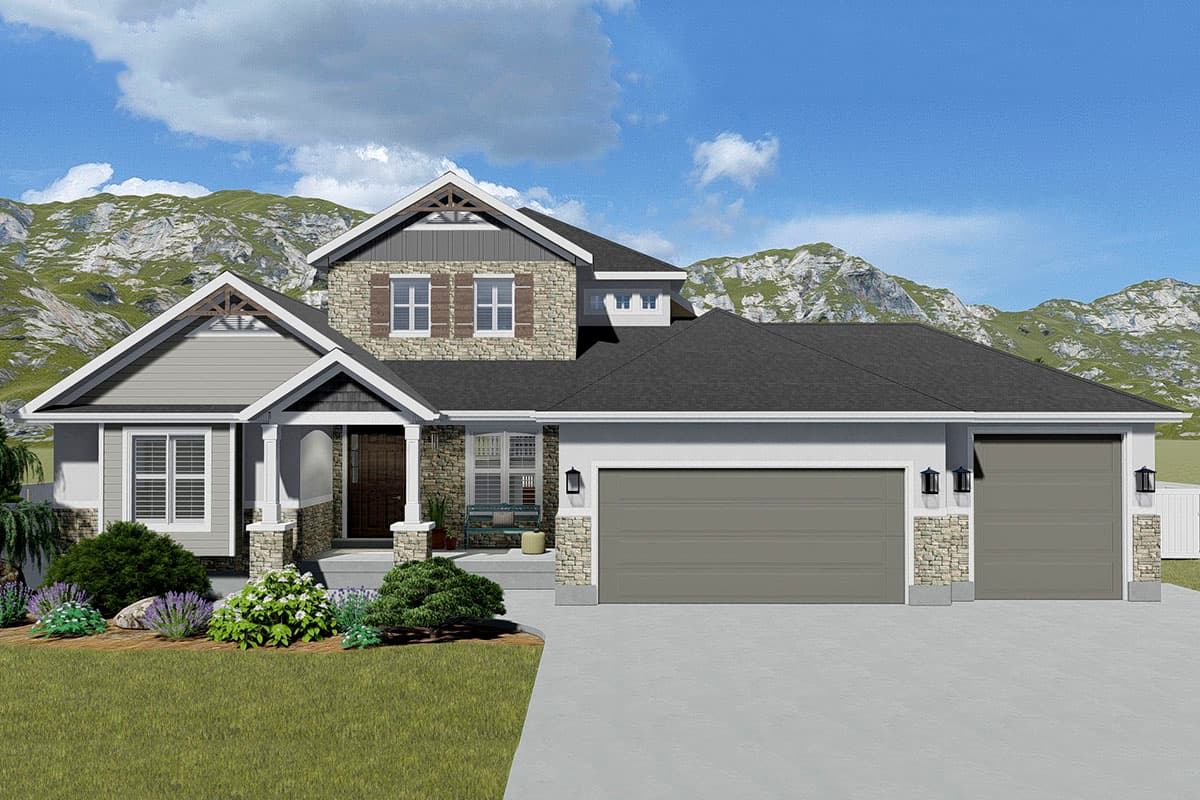

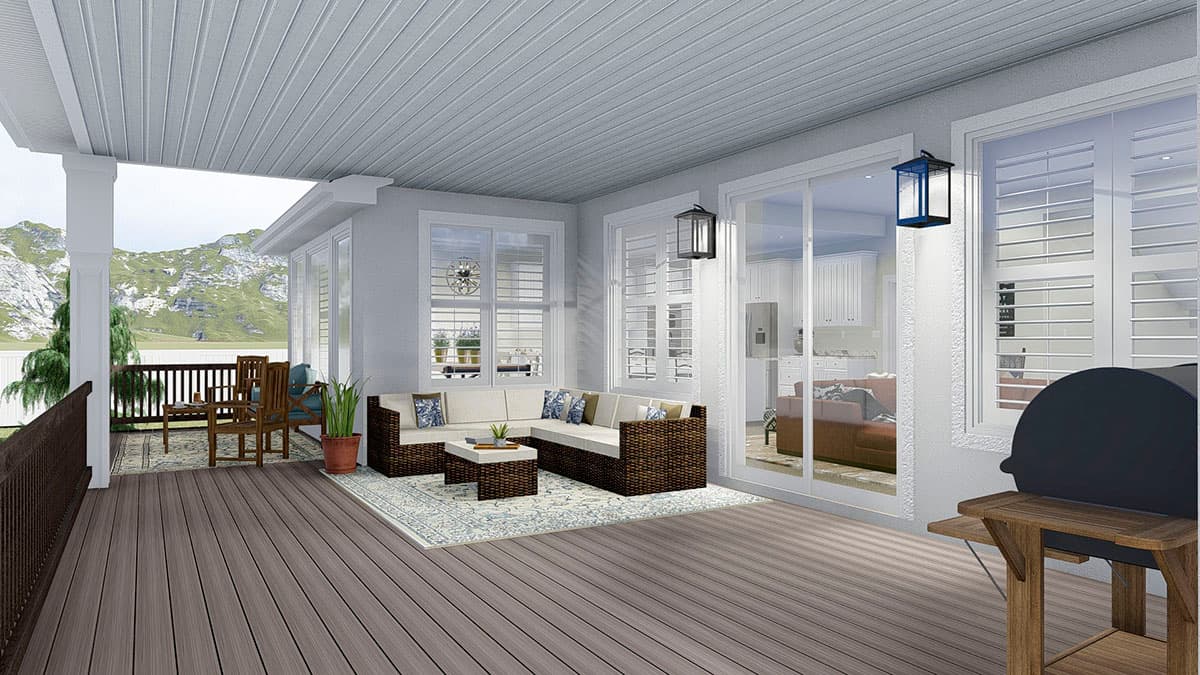

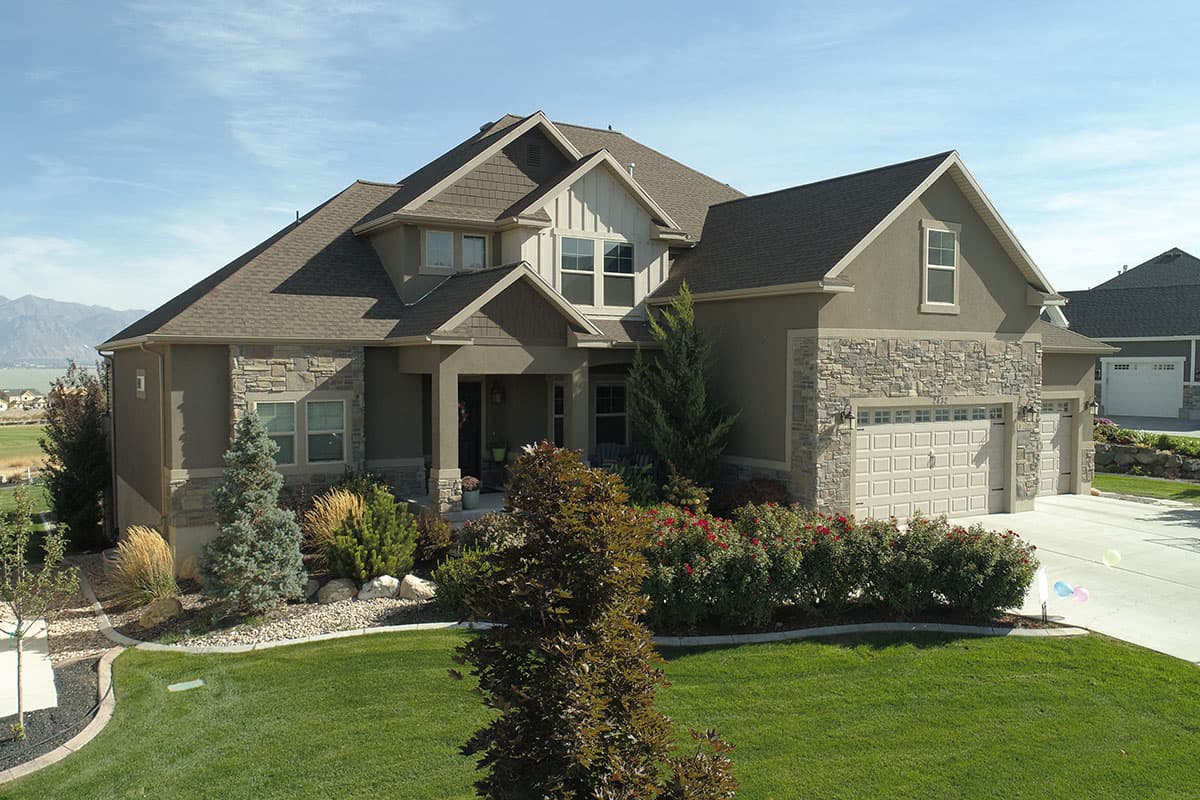

  • A blend of siding materials add texture to the exterior of this spacious, house plan. The interior is oriented to take advantage of any rearward views with three levels of extended living space outdoors.

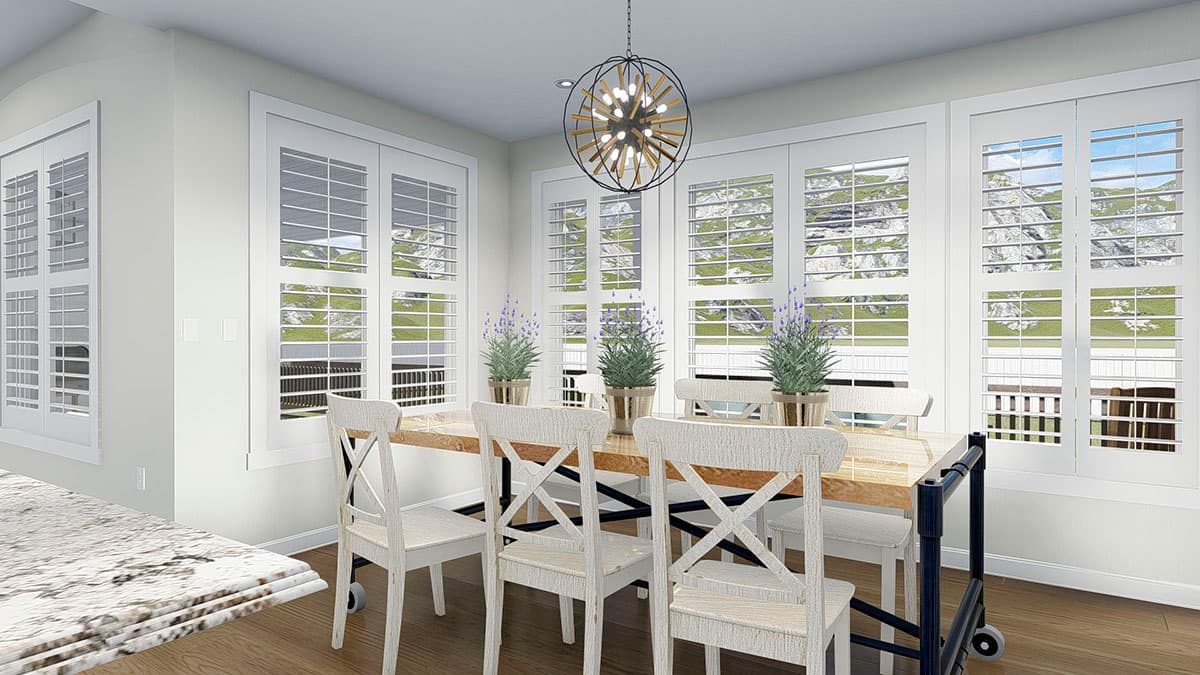

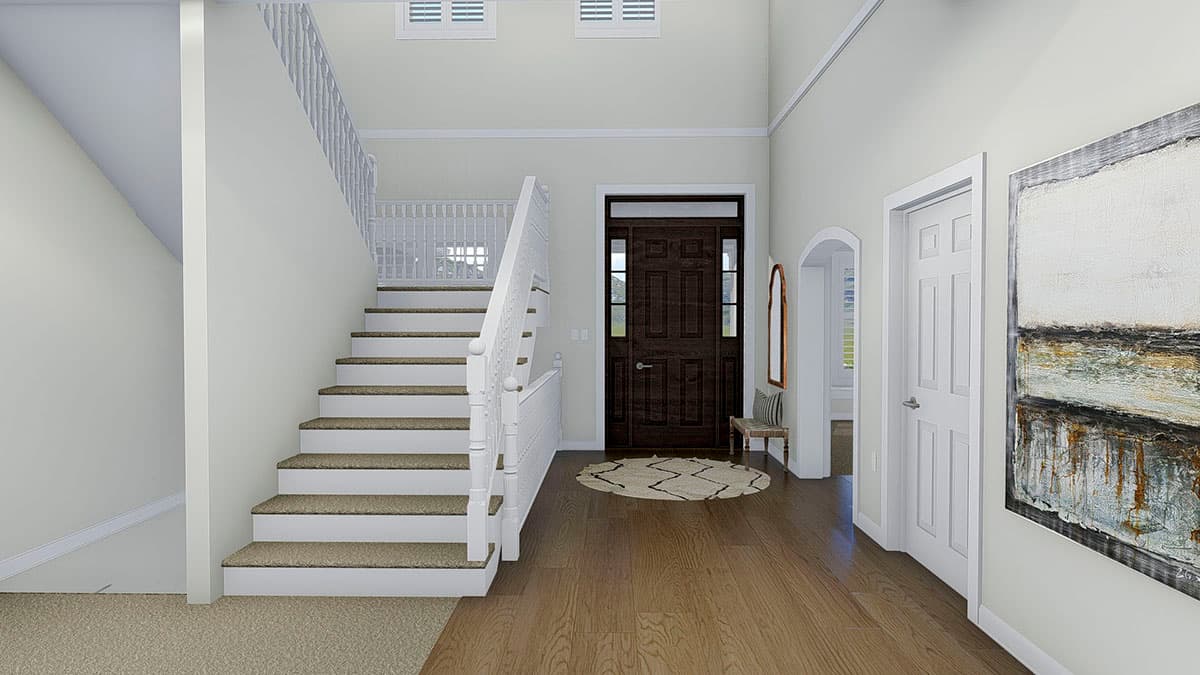

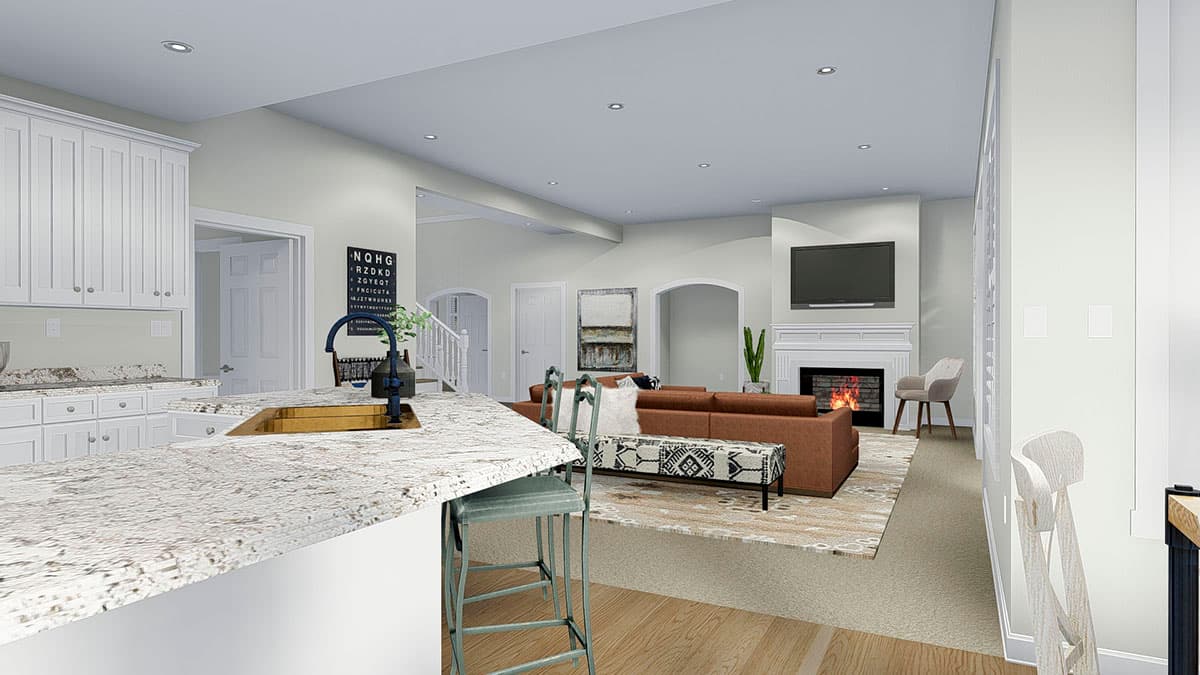

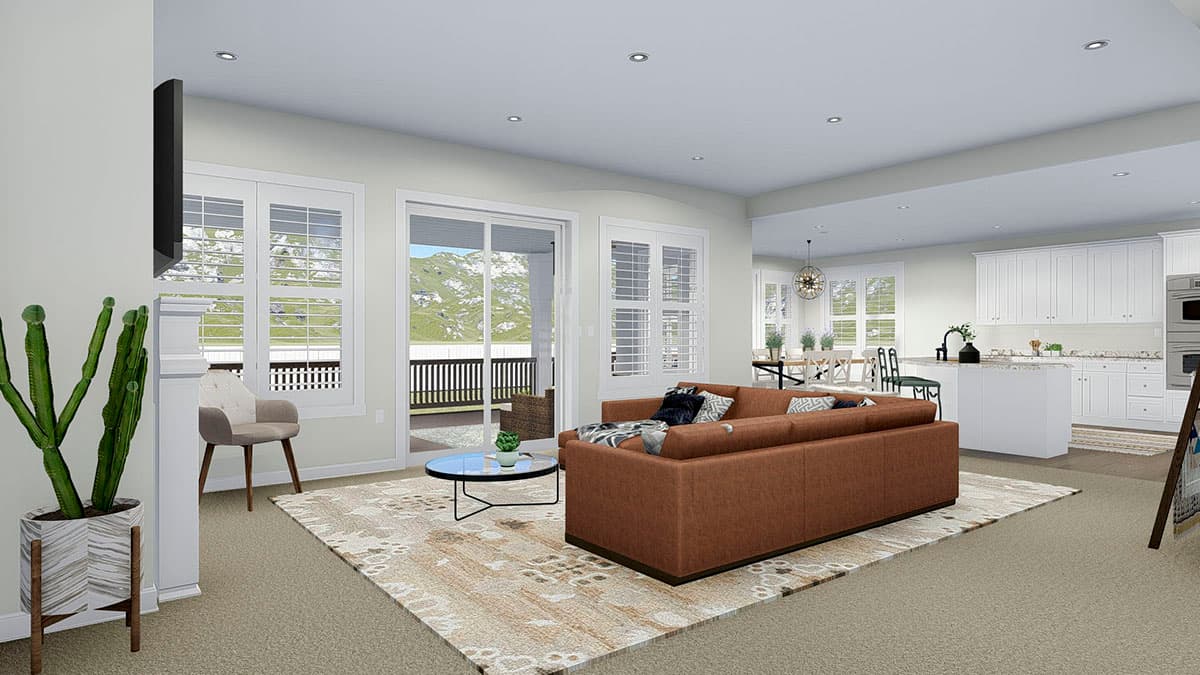

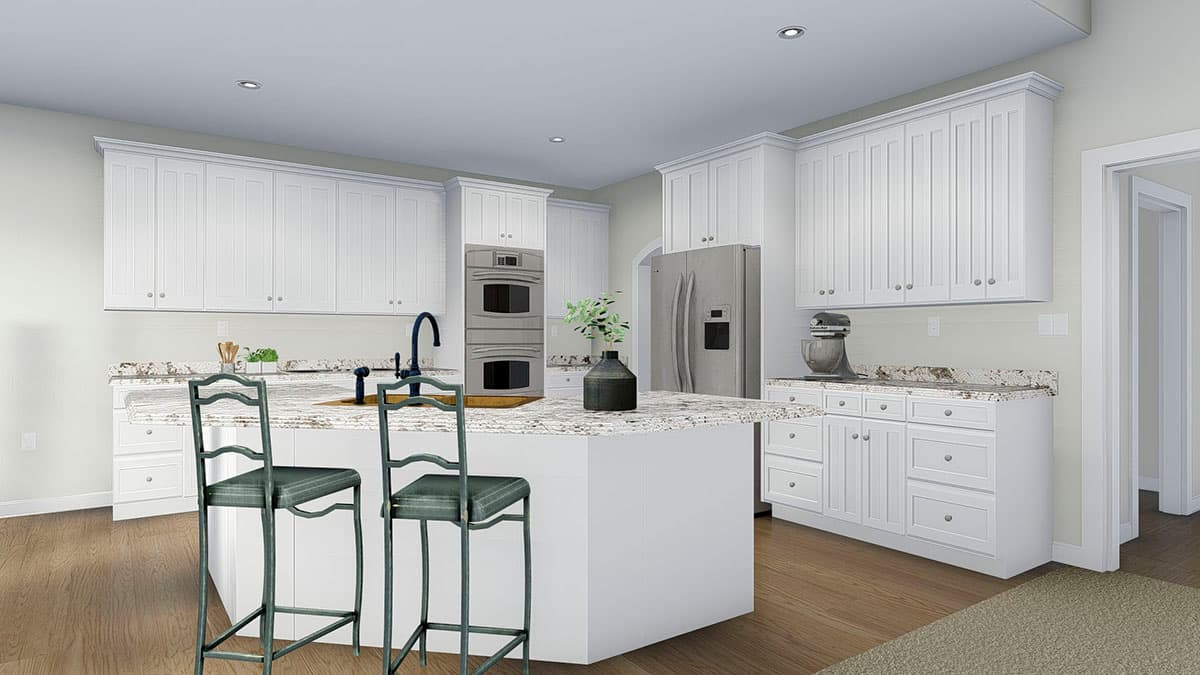

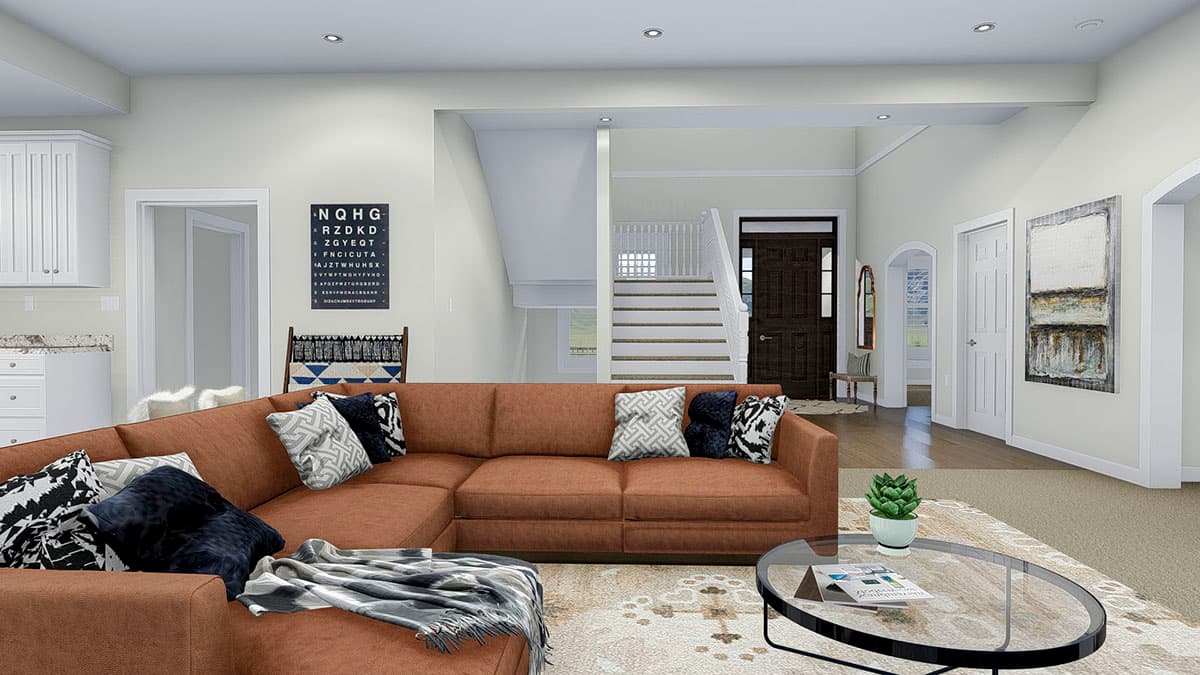

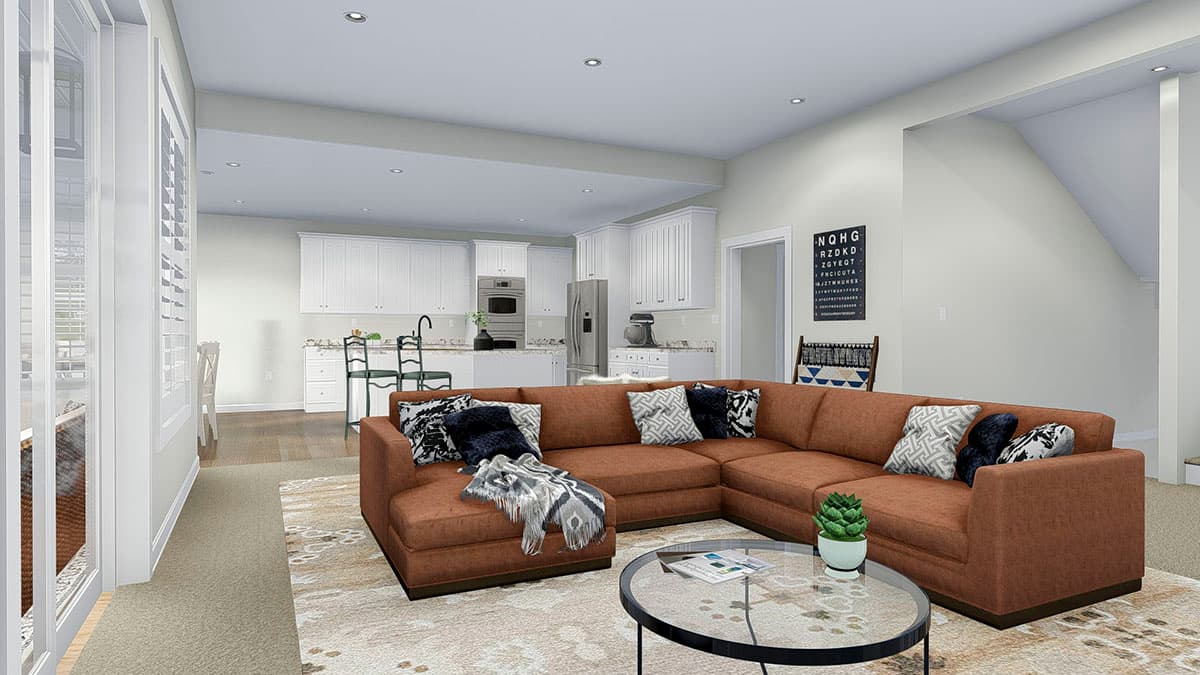

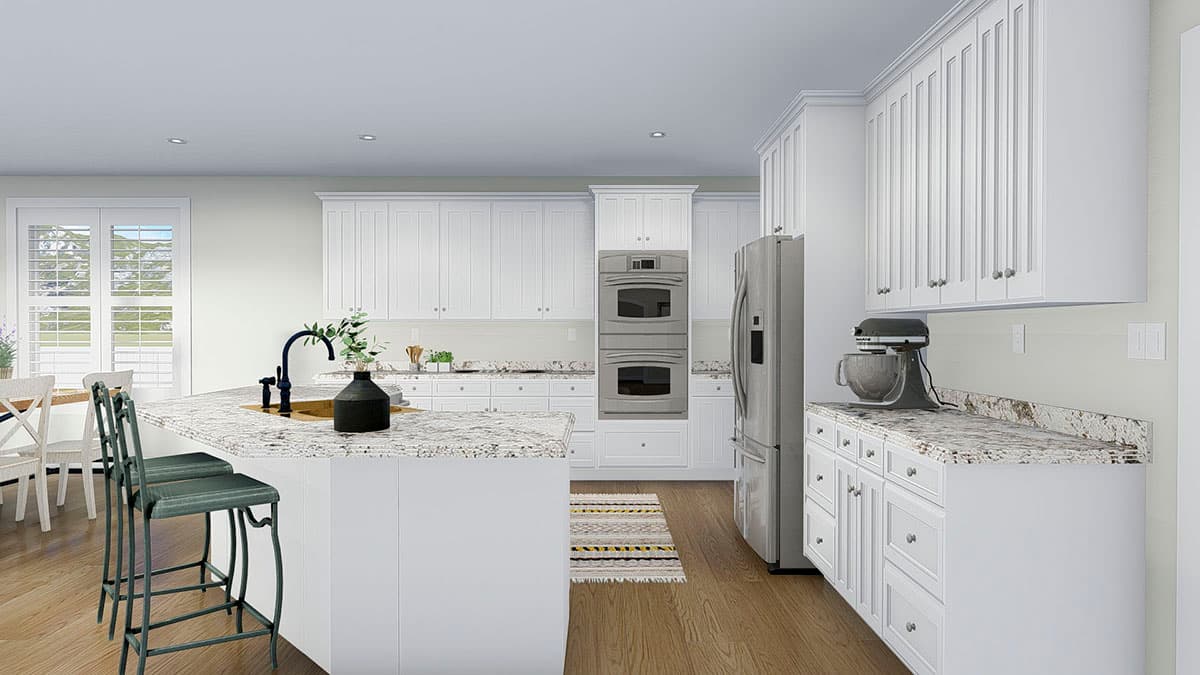

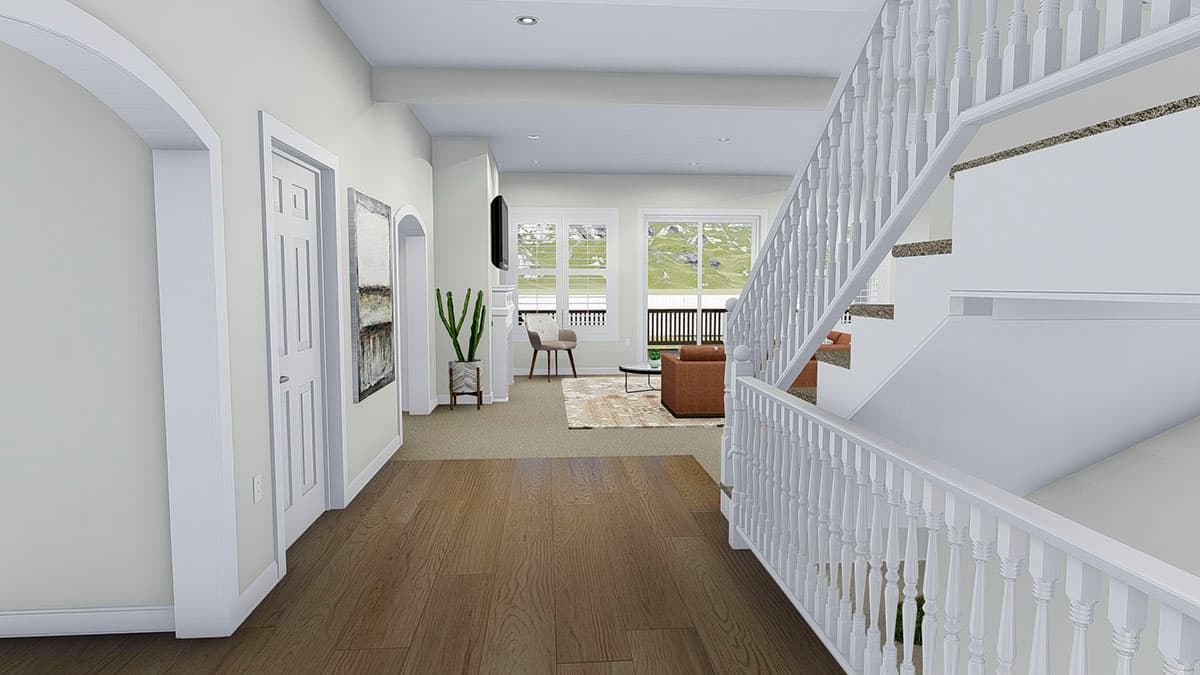

  • Tall ceilings in the foyer provide a feeling of grandeur immediately upon entering. The family room opens to the kitchen and dining area, where an angled island includes a snack bar while defining the kitchen space.

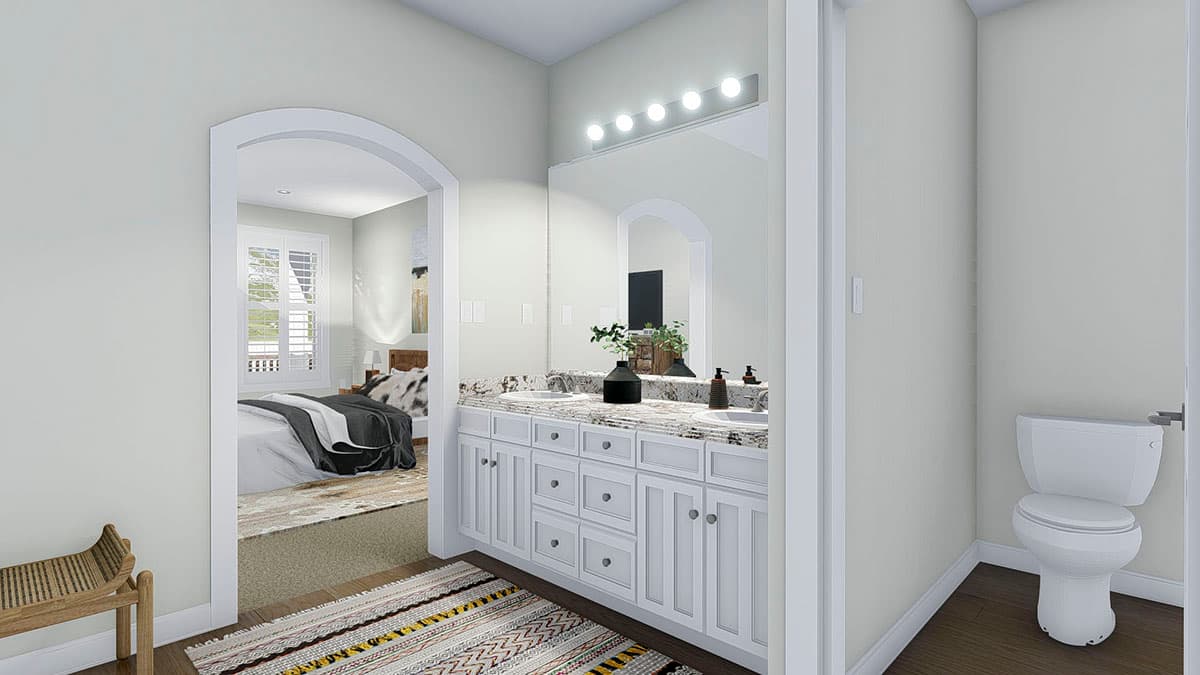

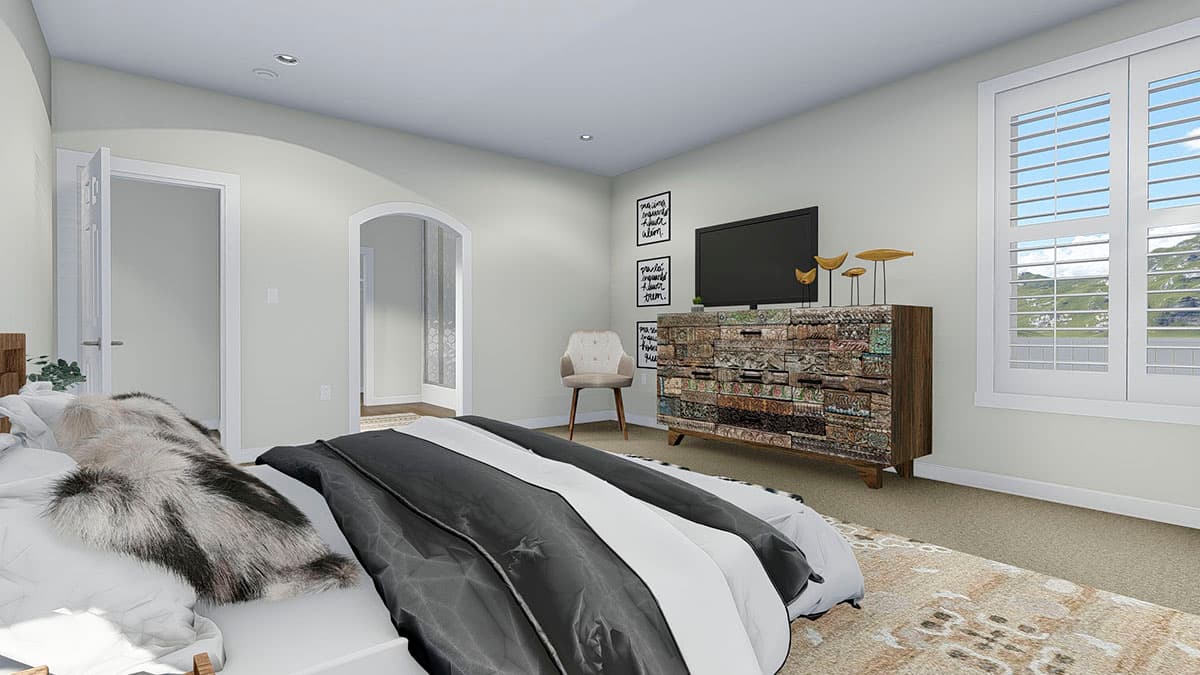

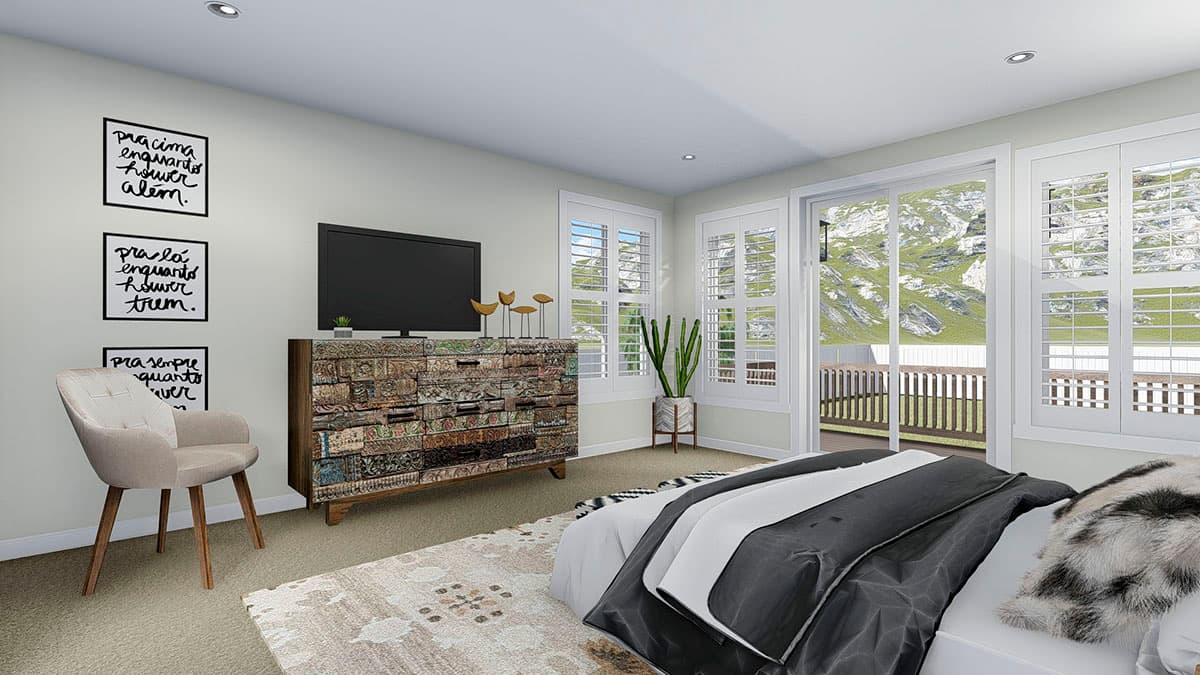

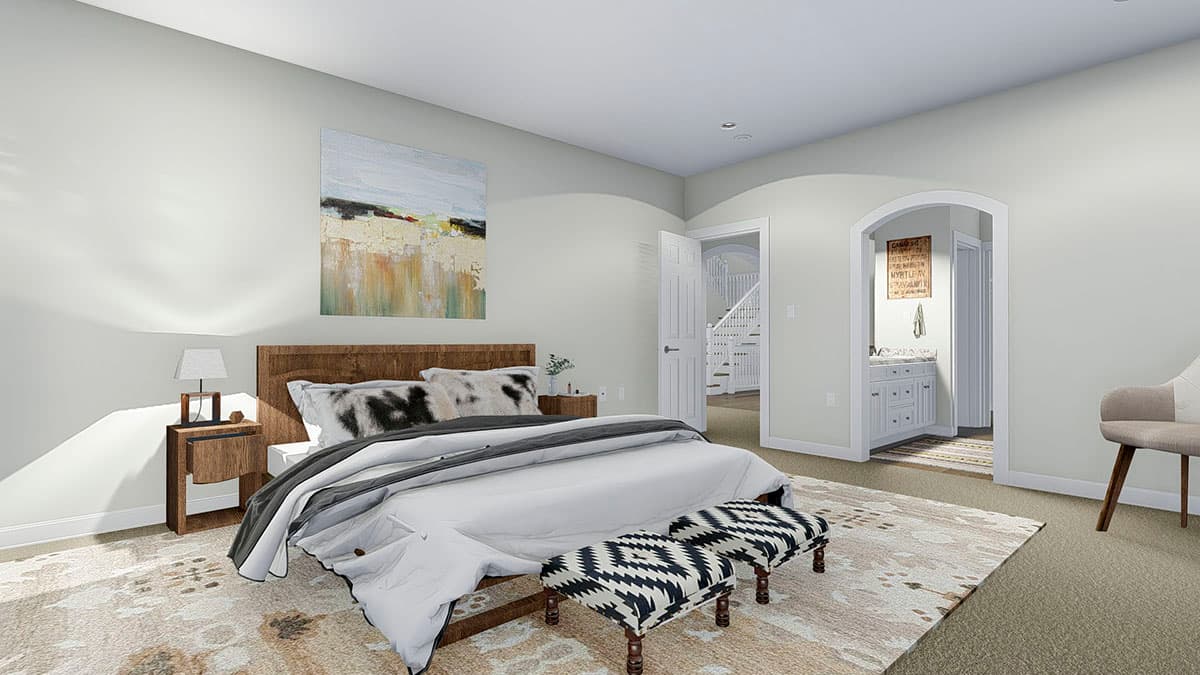

  • Two masters on the main level occupy the left side of the home; each suite includes their own bath that connects to a shared walk-in closet.
  • Upstairs, the family room includes a private deck, and provides a flexible space for the family to enjoy.

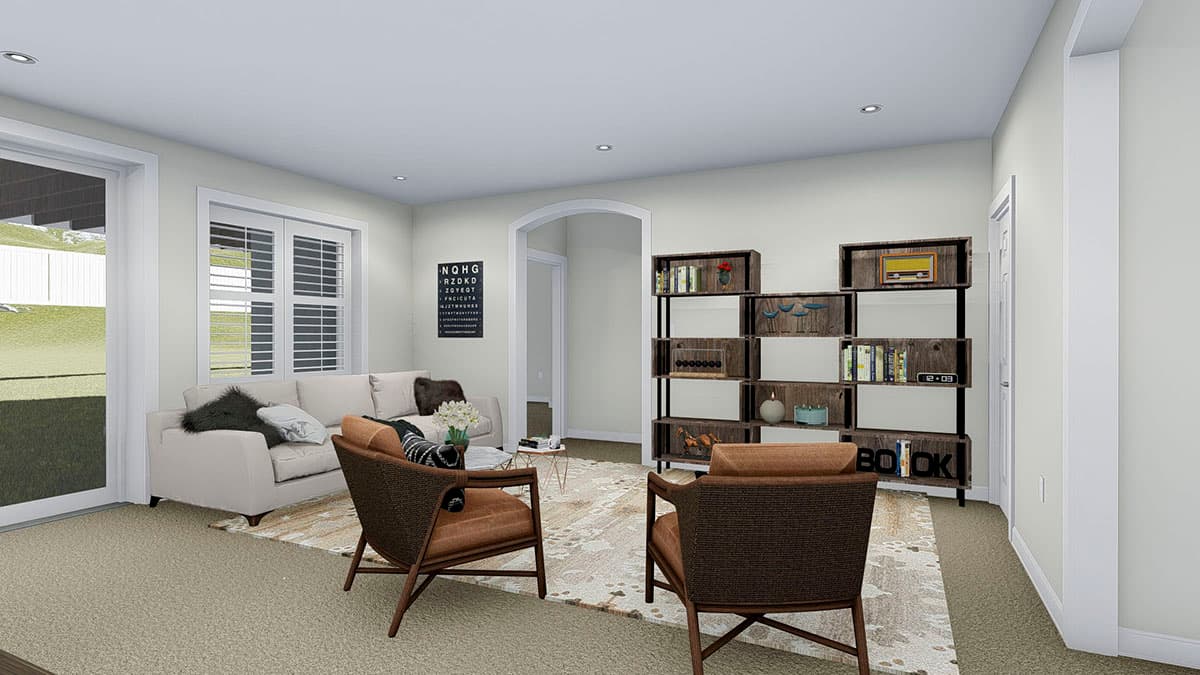

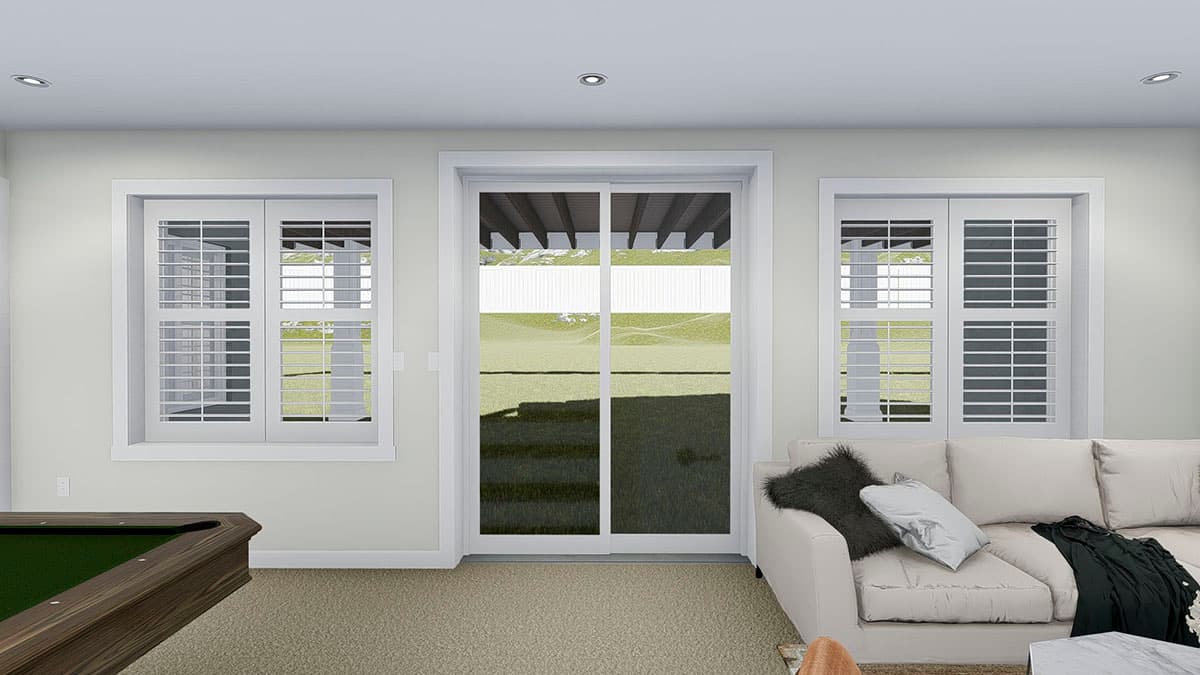

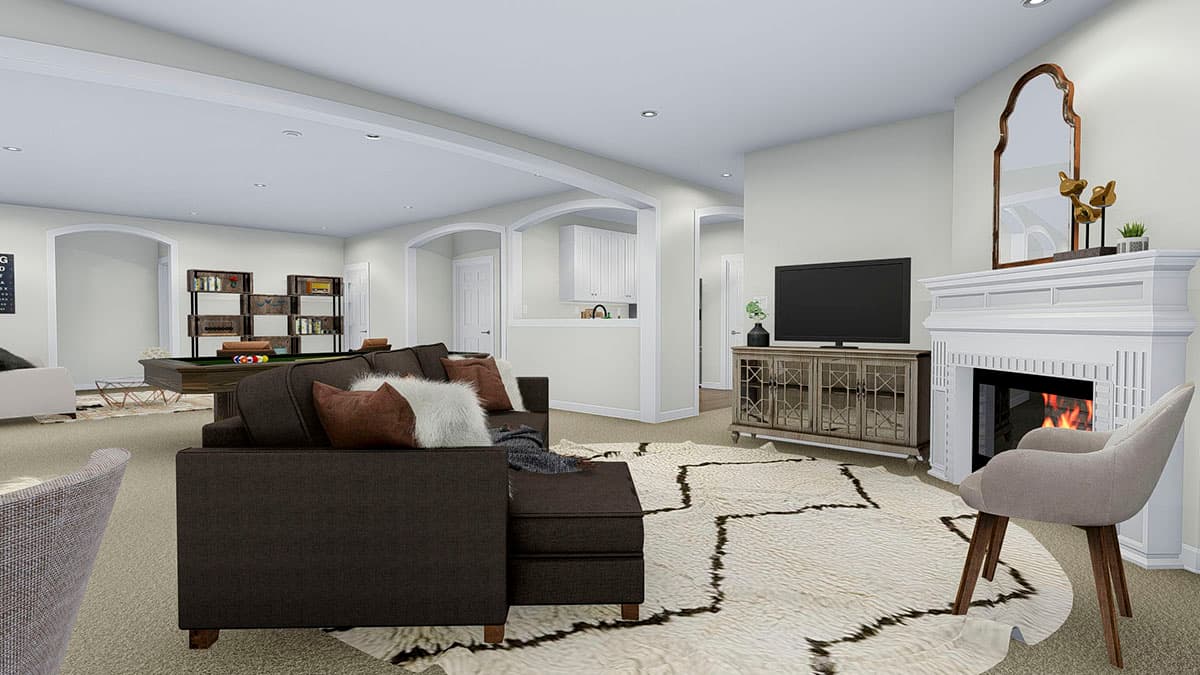

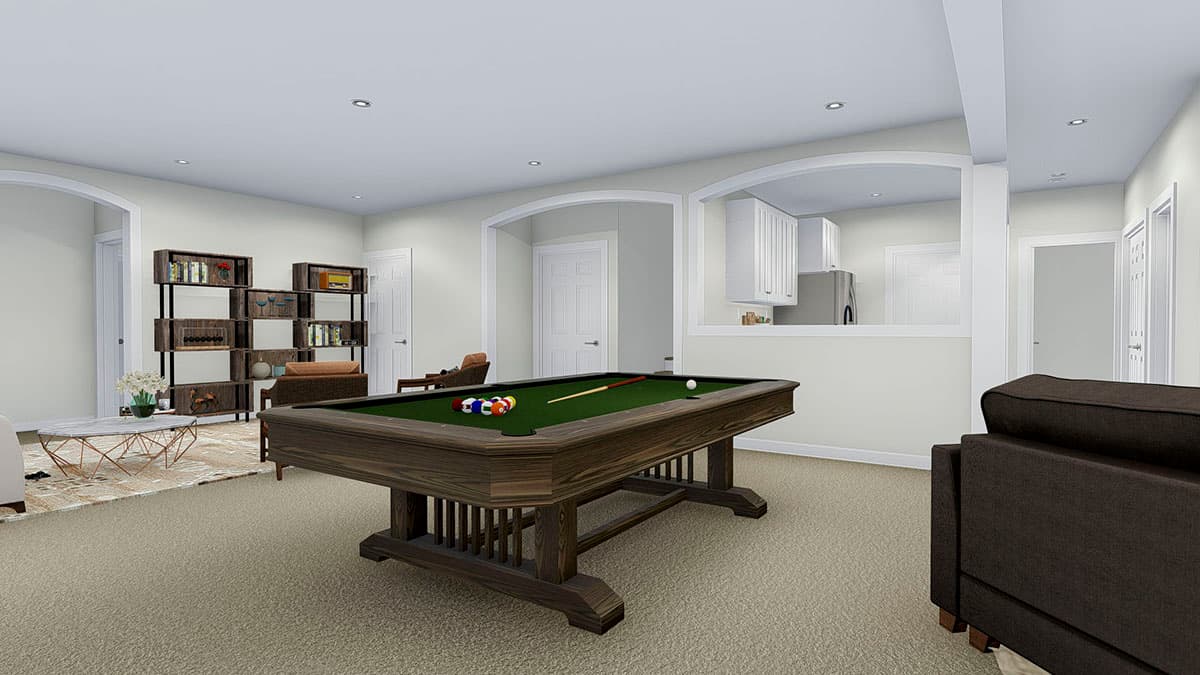

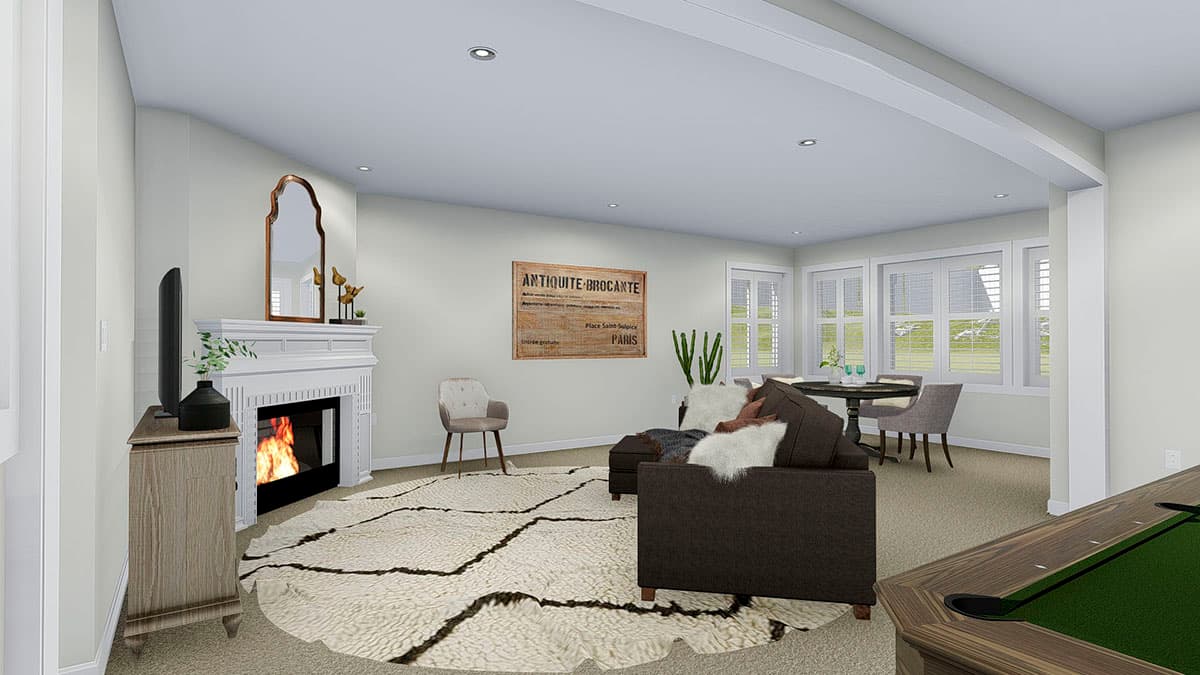

  • The walk-out, lower level boasts a sprawling family / media room and a kitchenette. Three secondary bedrooms also reside downstairs; two share a Jack-and-Jill bath, and one neighbors a full bath.

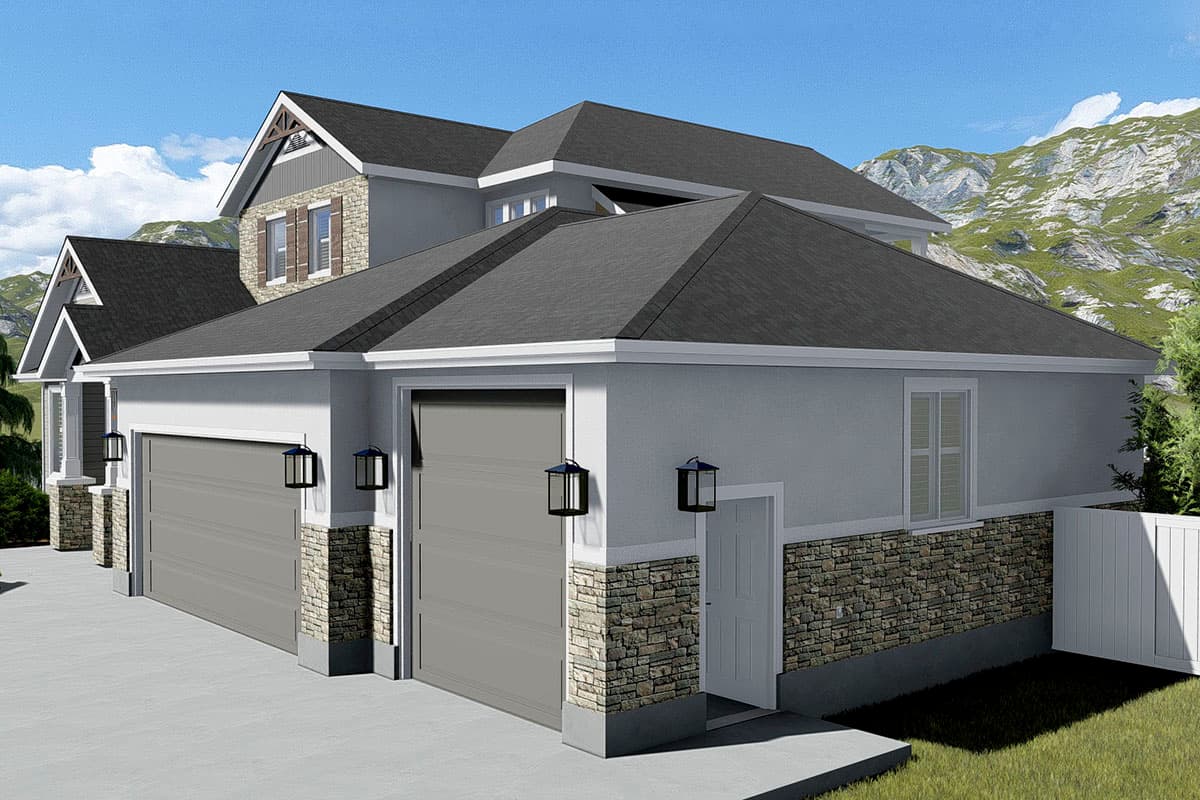

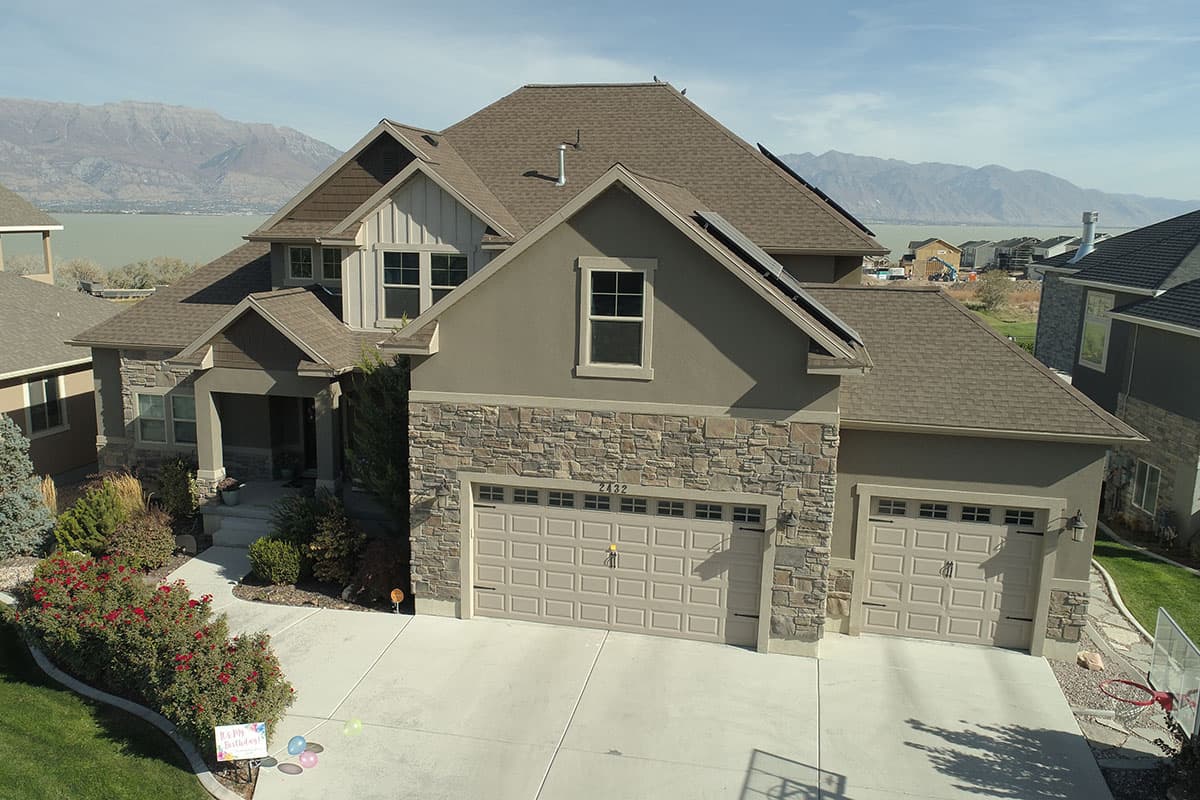

  • Entry from the 3-car garage leads to a mudroom with a powder bath, across from the laundry room.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

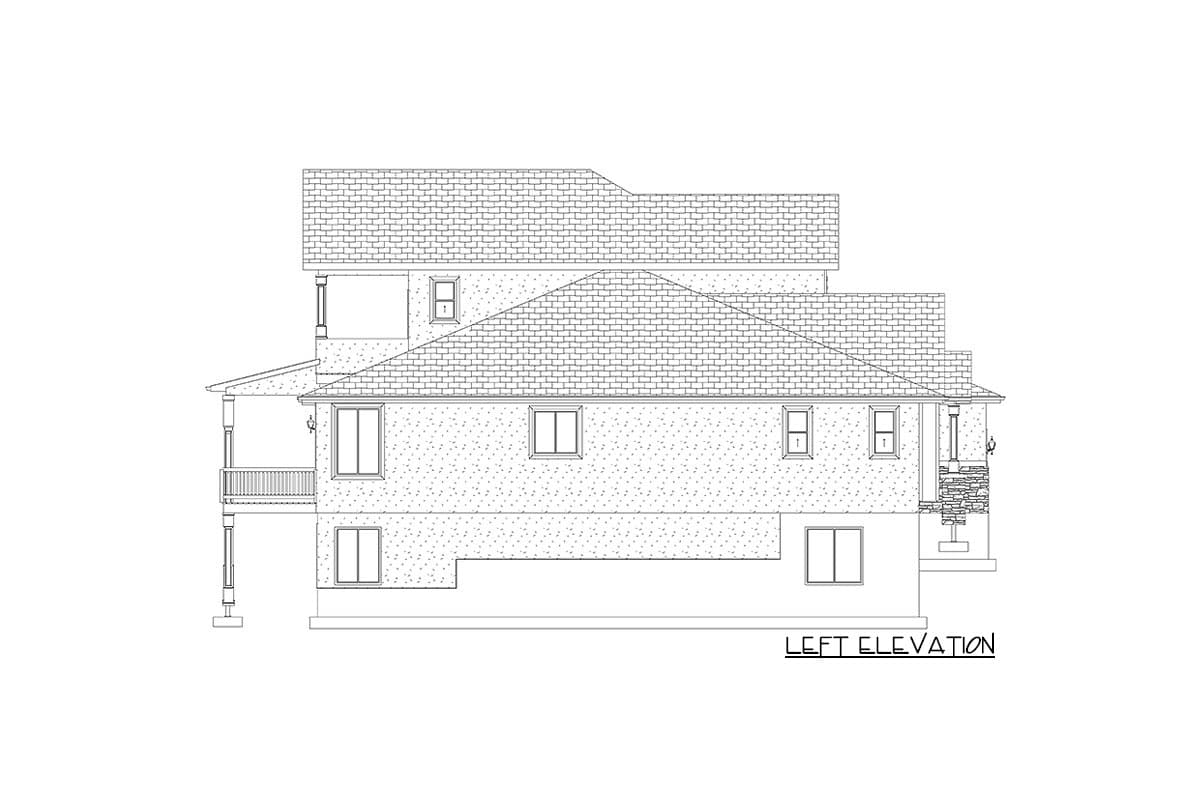

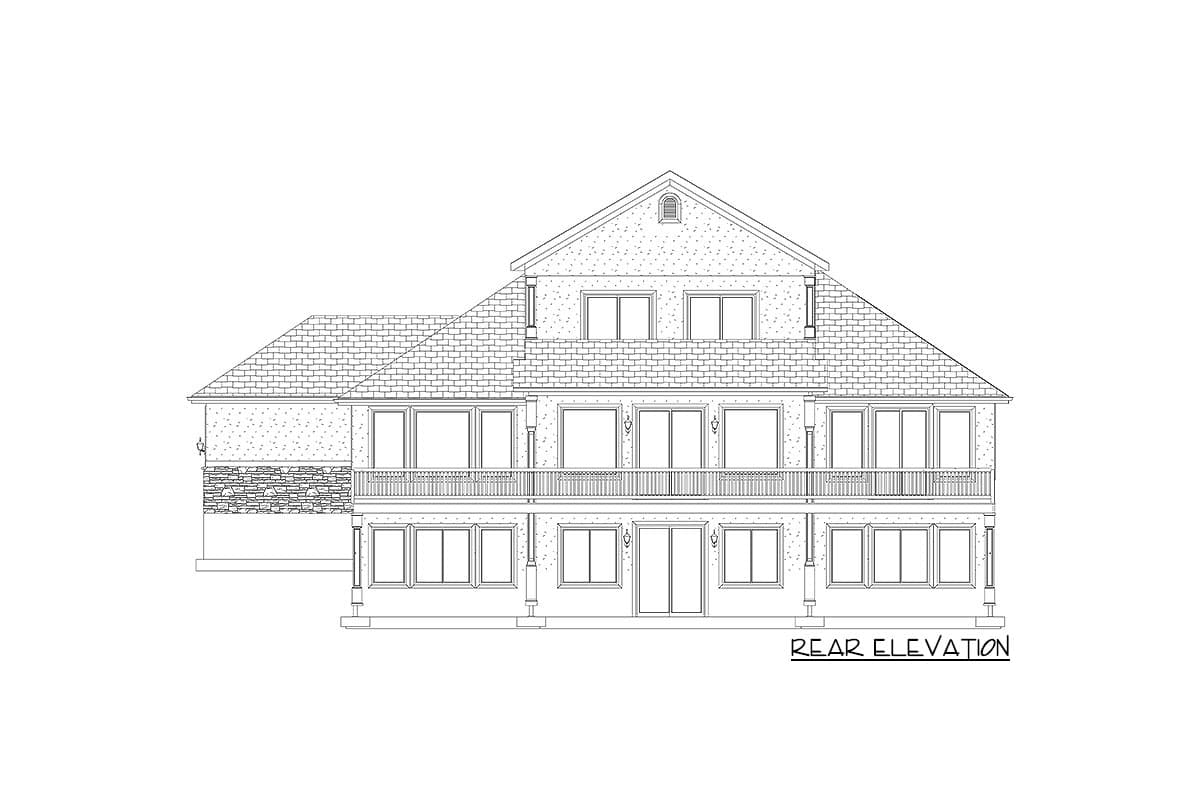

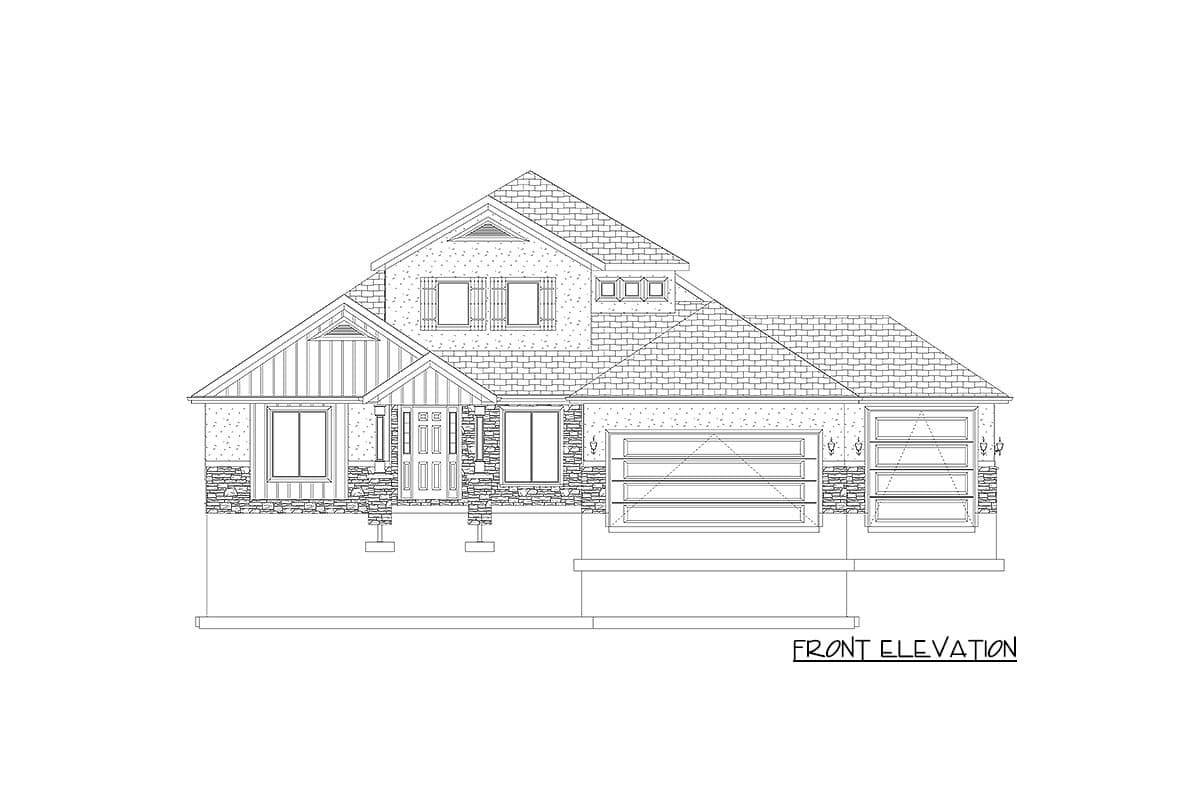

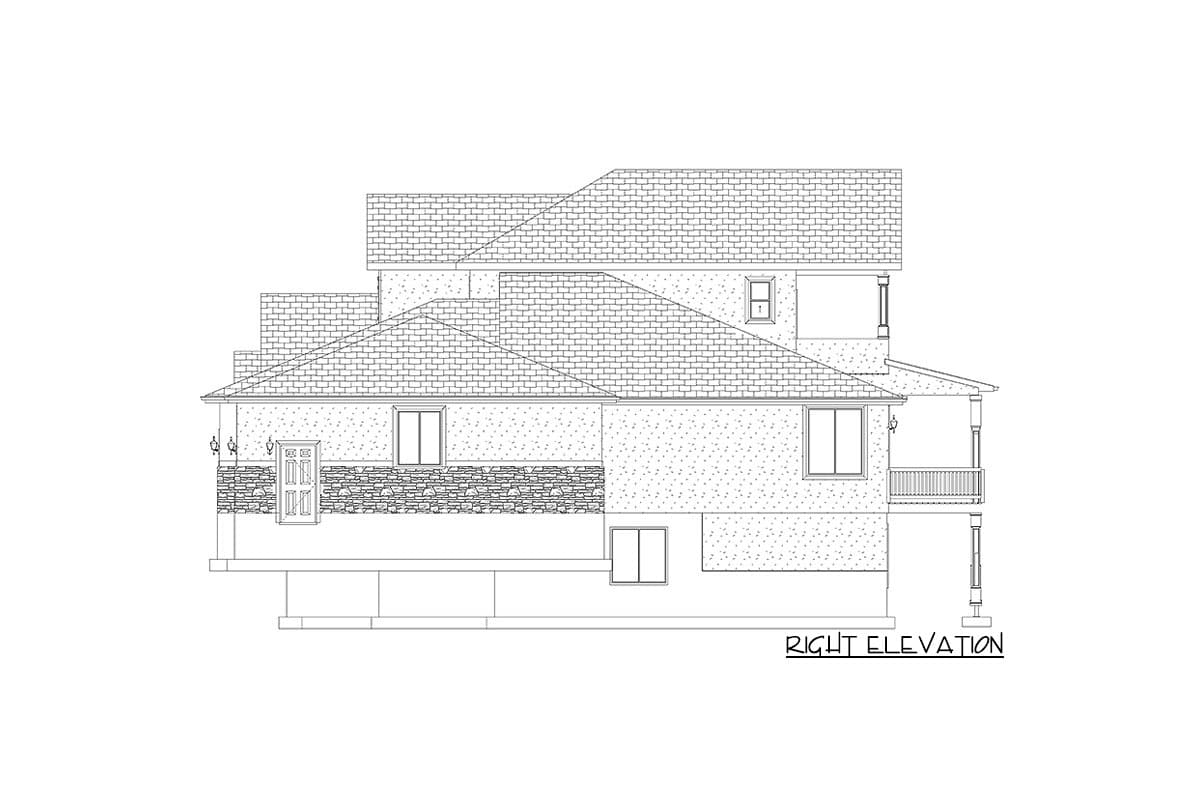

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

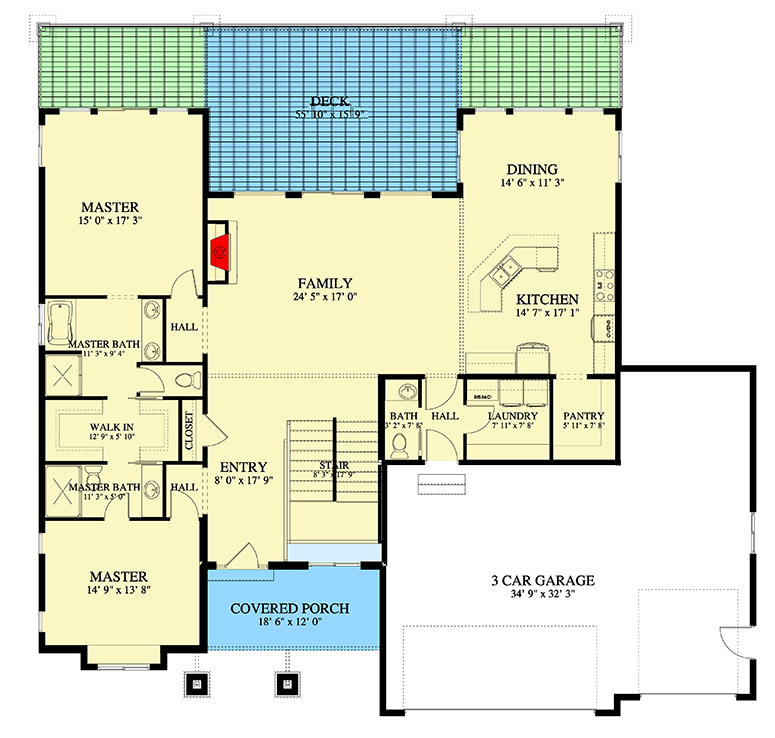

Spacious House Plan with Walk-out Lower Level - 61334UT floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

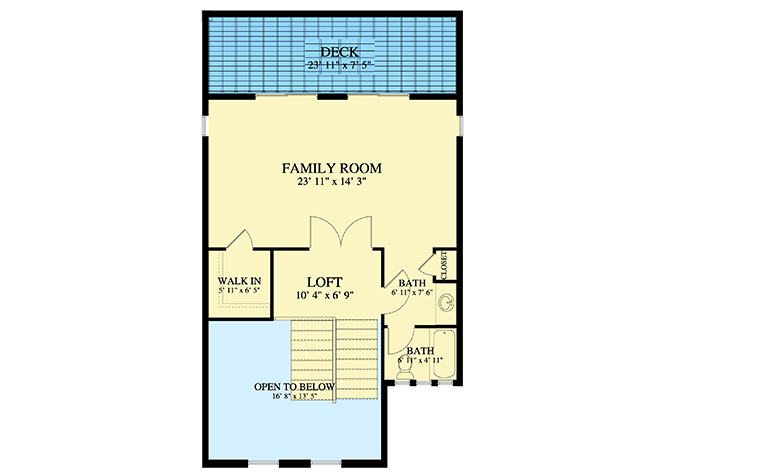

Spacious House Plan with Walk-out Lower Level - 61334UT floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

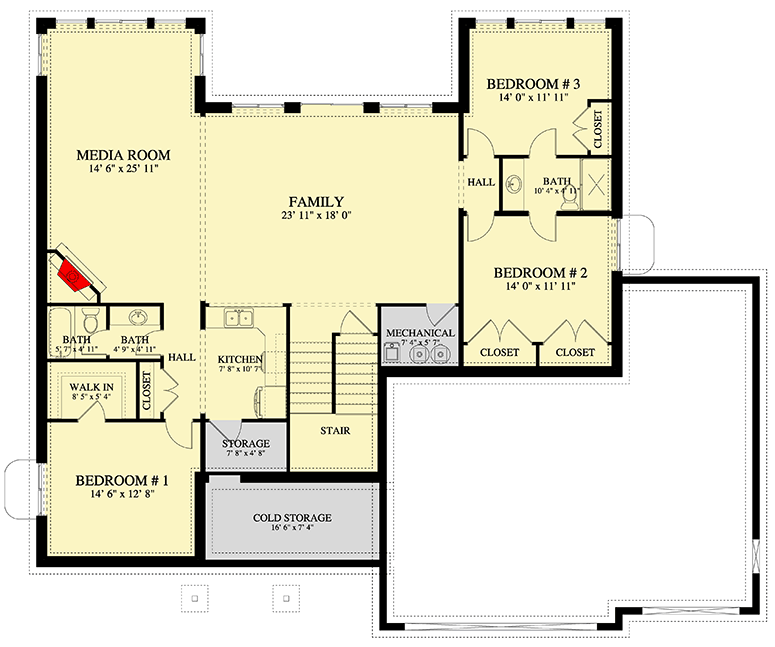

Spacious House Plan with Walk-out Lower Level - 61334UT floor plan - Lower Level

Plan details

Spacious House Plan with Walk-out Lower Level

  • 5,212

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,075
  • PDF - Unlimited Build $1,150
  • 5 Sets + PDF $1,350
  • CAD - Unlimited Build $1,995
  • View all purchase option online

About This Plan

  • A blend of siding materials add texture to the exterior of this spacious, house plan. The interior is oriented to take advantage of any rearward views with three levels of extended living space outdoors.
  • Tall ceilings in the foyer provide a feeling of grandeur immediately upon entering. The family room opens to the kitchen and dining area, where an angled island includes a snack bar while defining the kitchen space.
  • Two masters on the main level occupy the left side of the home; each suite includes their own bath that connects to a shared walk-in closet.
  • Upstairs, the family room includes a private deck, and provides a flexible space for the family to enjoy.

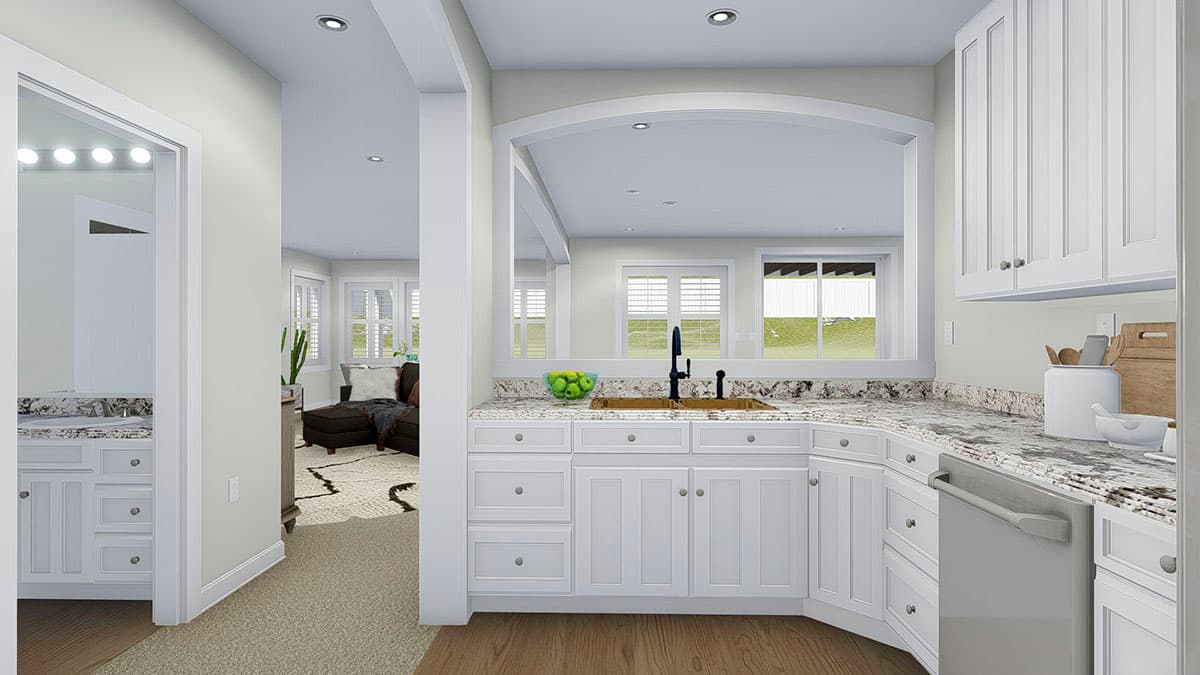

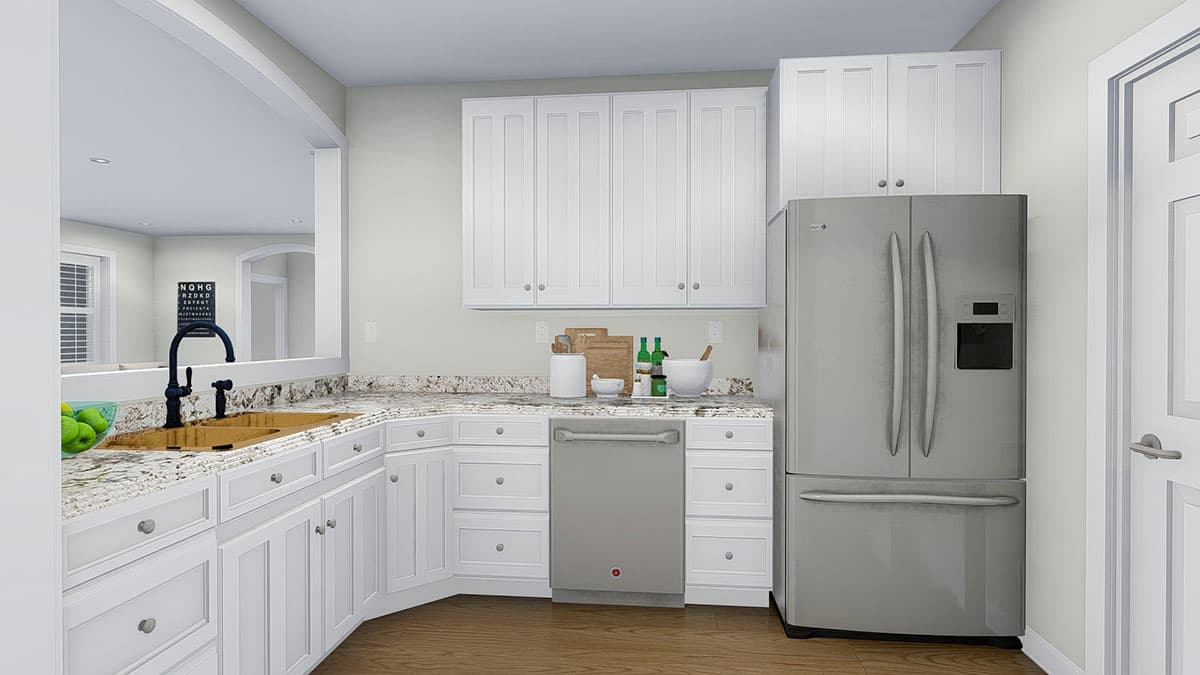

  • The walk-out, lower level boasts a sprawling family / media room and a kitchenette. Three secondary bedrooms also reside downstairs; two share a Jack-and-Jill bath, and one neighbors a full bath.
  • Entry from the 3-car garage leads to a mudroom with a powder bath, across from the laundry room.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,212 sq. ft.
  • Lower Level: 2,292 sq. ft.
  • 1st Floor: 2,188 sq. ft.
  • 2nd Floor: 732 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 6"
  • Depth: 58' 0"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
