Plan 490150NAH

Spacious Modern Farmhouse with Office or Flex Space

Name: Plan 490150NAH: Spacious Modern Farmhouse with Office or Flex Space
Brand: Architectural Designs
SKU: 490150NAH
Price: 2100.0 USD
Availability: InStock

Heated S.F.

3,043

Beds

4 - 6

Baths

3.5 - 4.5

Stories

Cars

Floor Plan

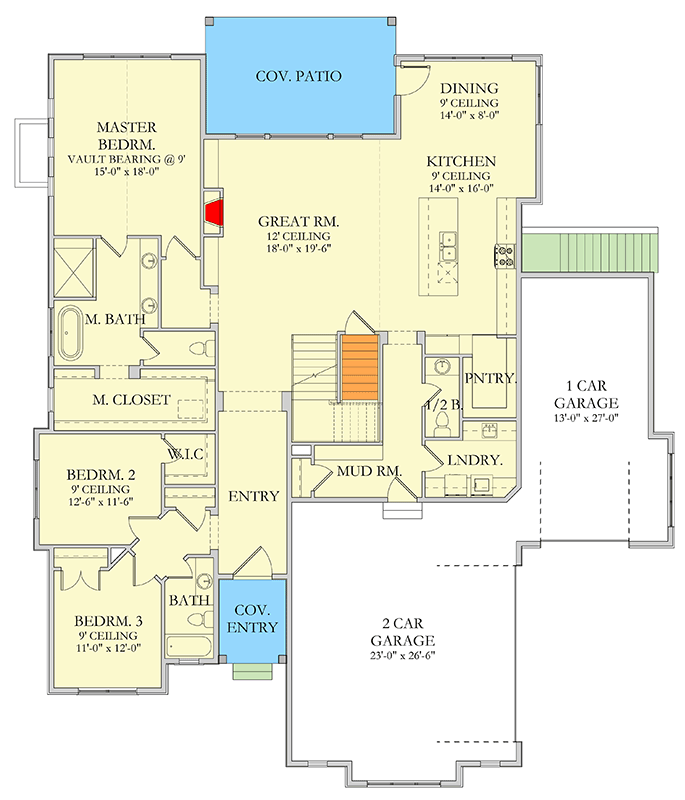

Main Level

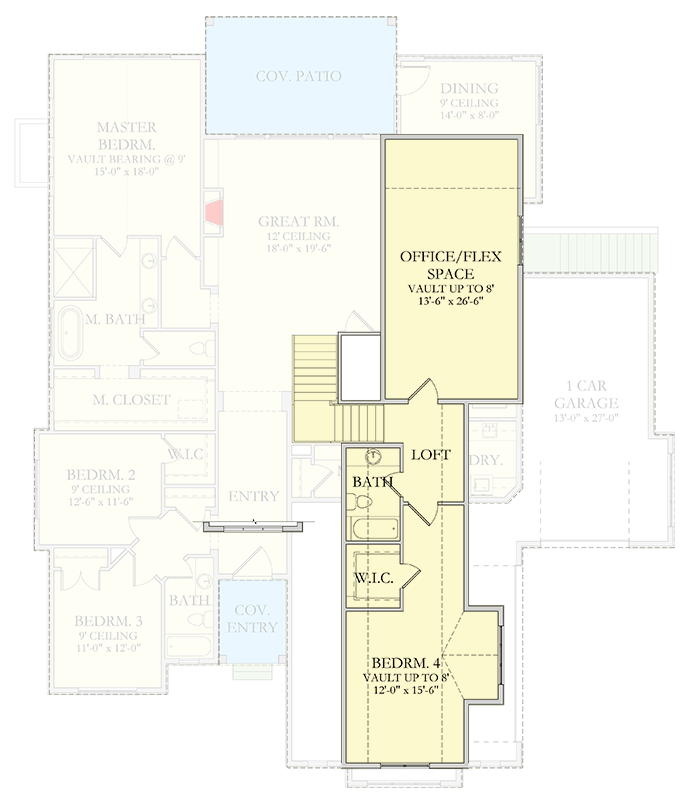

2nd Floor

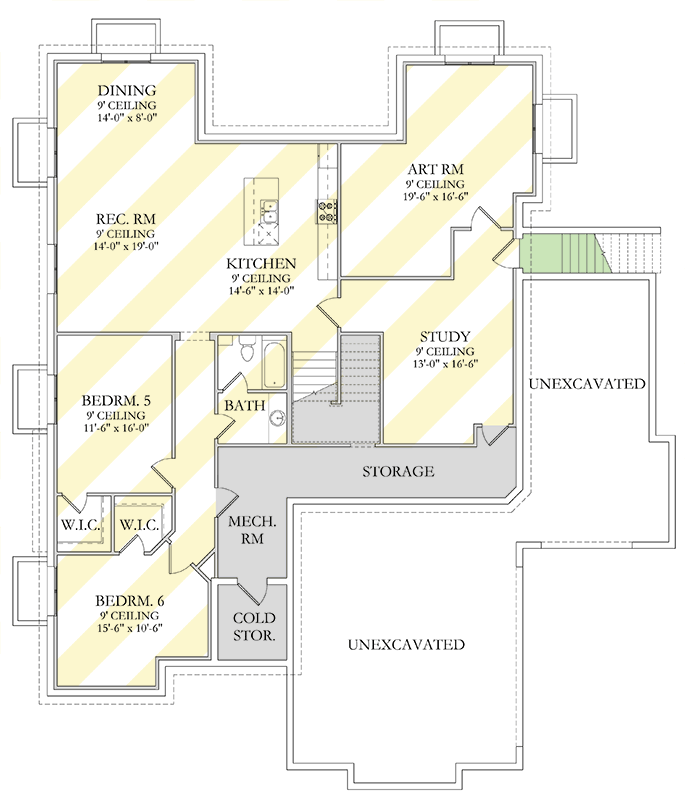

Optional Lower Level

Plan Details

This 3,043 sq. ft. Modern Farmhouse features 4 to 6 bedrooms, 3 to 4 full baths, and a half bath. The attached 3-car garage offers 1,108 sq. ft. of space.
Entering the home, you'll find a welcoming layout with a mudroom, laundry room, and a well-designed pantry near the main entry point.
The open-concept first floor includes a great room with a 12-foot ceiling, flowing into the dining and kitchen areas, which feature a butler walk-in pantry.
The first-floor master suite provides privacy, with an ample walk-in closet and a luxurious bath. Secondary bedrooms are split on the main level.
Unique spaces include a flex room for an office, an upstairs loft, and game/rec room options for versatile living styles.
Outdoor spaces are inviting with a 61 sq. ft. front porch and a 234 sq. ft. covered patio ideal for entertaining and relaxation.
An optional lower level adds 3,361 sq. ft., featuring two more bedrooms, a kitchen, rec room, art room, study, and plenty of storage, expanding the home's livability.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Building Section(s)
Typical Wall Details and Section(s)
Typical Stair Detail and Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
