Plan 666080RAF

Spacious Modern House Plan with Two-Story Foyer and Great Room

Heated S.F.
4,166
Beds
5
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 666080RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666080RAF

M-F 9am-5pm EST |

1-203-761-8500

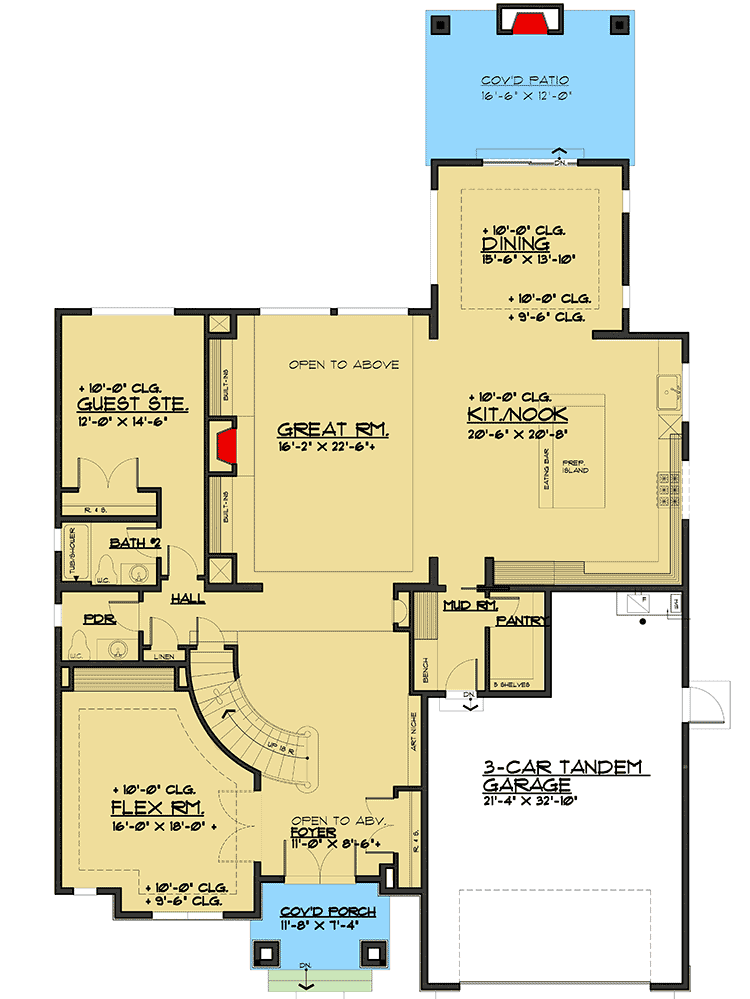

Main Level

Plan 666080RAF: Spacious Modern House Plan with Two-Story Foyer and Great Room - Floor Plan - Main Level - Modern, Northwest, Prairie

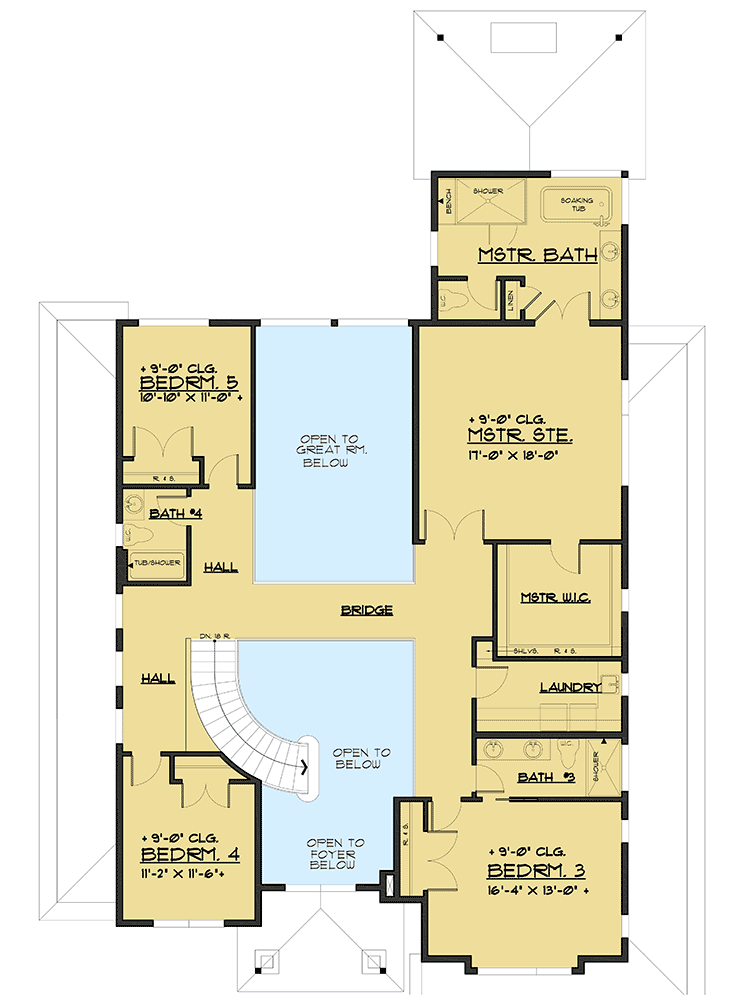

2nd Floor

Plan 666080RAF: Spacious Modern House Plan with Two-Story Foyer and Great Room - Floor Plan - 2nd Floor - Modern, Northwest, Prairie

Plan Details

  • Tall ceilings in the foyer, which continue through the great room, combine with a curved staircase to offer a grand first impression upon entering. French doors to the left of the foyer reveals a flex room.
  • A fireplace surrounded by built-ins sits next to a wall of windows in the great room, which maximizes access to natural light. The adjoining kitchen boasts an oversized prep island with an eating bar, while the pantry is located in the mudroom to ease the unloading of groceries.
  • A step ceiling in the dining room adds an elegant touch, and sliding doors lead to a covered patio, complete with a fireplace.
  • The bedroom on the main level is ideal for guests and includes a full bath.
  • Upstairs, two bedrooms to the left share a full bath, while the bridge-style hallway takes you to a third bedroom, the laundry room, and master suite. The homeowner will delight in the soaking tub in the 5-fixture bath.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,166 sq. ft.

1st Floor

2,345 sq. ft.

2nd Floor

1,821 sq. ft.

Porch, Combined

82 sq. ft.

Covered Patio

219 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 0"

Depth

81' 6"

Max Ridge Height

29' 5"

Garage

Type

Attached

Area

609 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Modern

Northwest

Prairie

Special Features

Breakfast Nook

Flex Room

Formal Dining

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Outdoor Fireplace

Two Story Great Room
