Plan 95193RW Spacious Mountain Craftsman Plan with Study and Guest Suite

5,636 5 4.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Spacious Mountain Craftsman Plan with Study and Guest Suite

Plan 95193RW

  • 5,636

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • With over 5,600 square feet of living space, this Mountain Craftsman home plan allows each resident to enjoy the spacious design and all of its amenities.
  • The car enthusiast will appreciate the 4-car garage with extra space for storage, while oversized closets, built-in cabinetry / lockers in the mudroom, and a generous pantry help minimize clutter.
  • A grand fireplace anchors the great room which freely flows into the island kitchen, and glass sliders provide access to the covered patio with a spiral staircase that connects to the second-level sun deck.
  • The master bedroom is accompanied by a spa-like ensuite and fireplace, across the hall from a quiet study. A guest suite completes the main level.
  • Upstairs, find privacy or communal spaces in the three bedrooms (two share a Jack-and-Jill bath), loft, media room, and sun room.

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

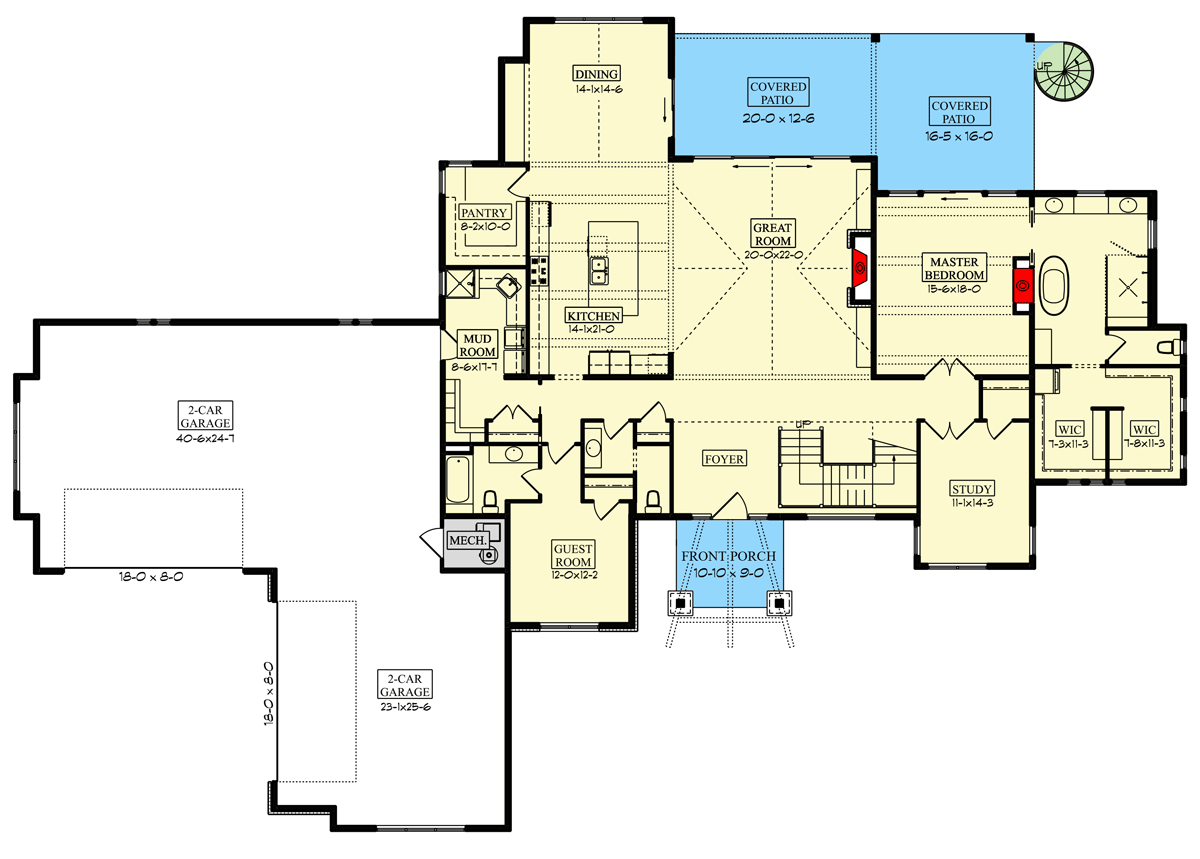

Spacious Mountain Craftsman Plan with Study and Guest Suite - 95193RW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

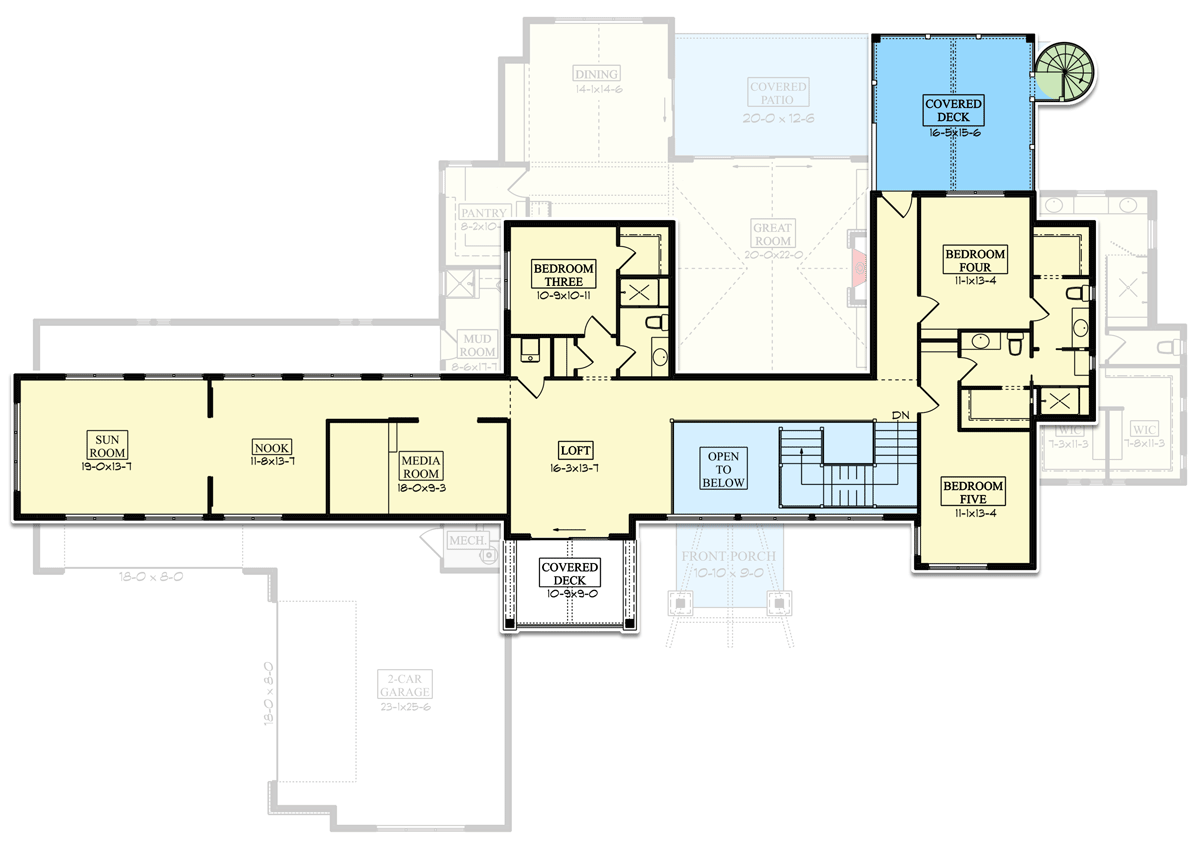

Spacious Mountain Craftsman Plan with Study and Guest Suite - 95193RW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,636 sq. ft.
  • Lower Level: 2,038 sq. ft.
  • 1st Floor: 3,598 sq. ft.
  • Porch, Combined: 990 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 118' 3"
  • Depth: 82' 0"
  • Max ridge height: 30' 3"

Garage

  • Type: Attached
  • Area: 1100 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Spacious Mountain Craftsman Plan with Study and Guest Suite

  • 5,636

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $4,100
  • CAD + PDF - Single Build $5,800
  • PDF - Unlimited Build $6,150
  • CAD - Unlimited Build $8,700
  • View all purchase option online

About This Plan

  • With over 5,600 square feet of living space, this Mountain Craftsman home plan allows each resident to enjoy the spacious design and all of its amenities.
  • The car enthusiast will appreciate the 4-car garage with extra space for storage, while oversized closets, built-in cabinetry / lockers in the mudroom, and a generous pantry help minimize clutter.
  • A grand fireplace anchors the great room which freely flows into the island kitchen, and glass sliders provide access to the covered patio with a spiral staircase that connects to the second-level sun deck.
  • The master bedroom is accompanied by a spa-like ensuite and fireplace, across the hall from a quiet study. A guest suite completes the main level.
  • Upstairs, find privacy or communal spaces in the three bedrooms (two share a Jack-and-Jill bath), loft, media room, and sun room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,636 sq. ft.
  • Lower Level: 2,038 sq. ft.
  • 1st Floor: 3,598 sq. ft.
  • Porch, Combined: 990 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 118' 3"
  • Depth: 82' 0"
  • Max ridge height: 30' 3"

Garage

  • Type: Attached
  • Area: 1100 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
Plan 95193RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/95193RW
|
Need Help? 800-854-7852
|
Plan 95193RW
