Plan 95349RW

Spacious Mountain Craftsman Ranch House Plan with 3-Car Garage

Heated S.F.
2,240
Beds
1
Baths
1.5
Stories
1
Cars
3

Floor Plan

Plan 95349RW

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 95349RW

M-F 9am-5pm EST |

1-203-761-8500

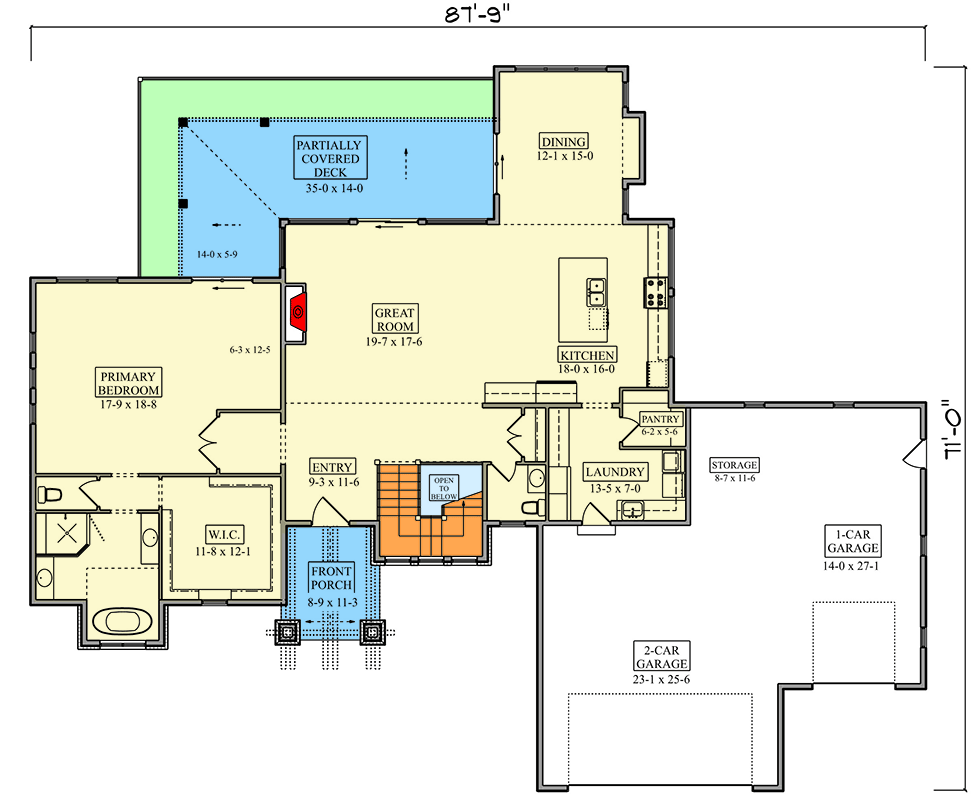

Main Level

Plan 95349RW: Spacious Mountain Craftsman Ranch House Plan with 3-Car Garage - Floor Plan - Main Level - Craftsman, Mountain, Ranch

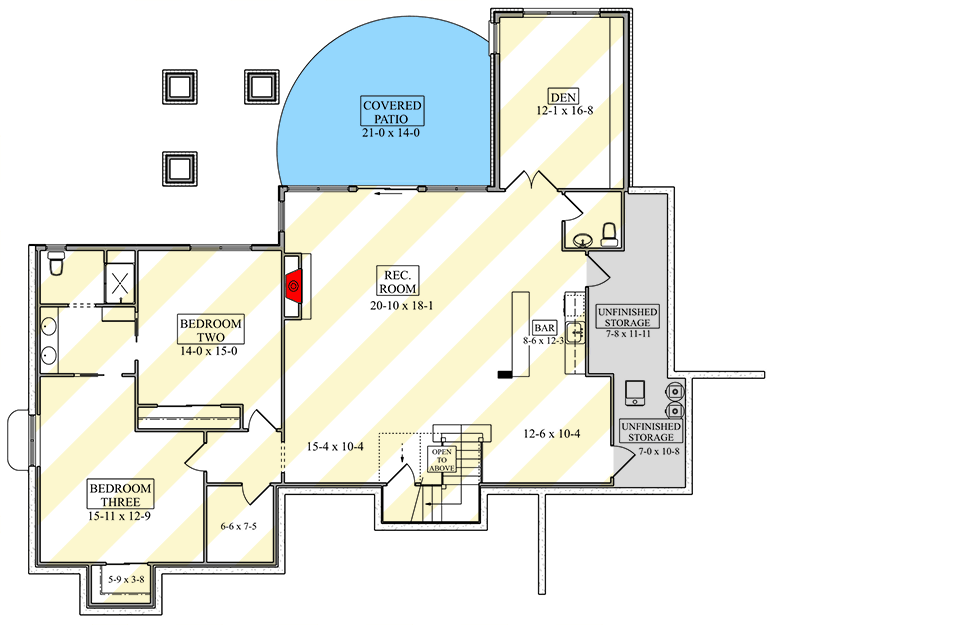

Optional Lower Level

Plan 95349RW: Spacious Mountain Craftsman Ranch House Plan with 3-Car Garage - Floor Plan - Optional Lower Level - Craftsman, Mountain, Ranch

Plan Details

  • This 2,240 sq. ft. Mountain Craftsman Ranch house plan features a single opulent bedroom, one full and one half bathroom, and an expansive 1,125 sq. ft. three-car garage, showcasing a blend of rustic charm and refined design.
  • Upon entry, the home reveals an inviting, open-concept layout with soaring 10-foot ceilings throughout the main floor, creating an immediate sense of grandeur and spaciousness, complemented by a conveniently located den ideal for a home office or quiet retreat.

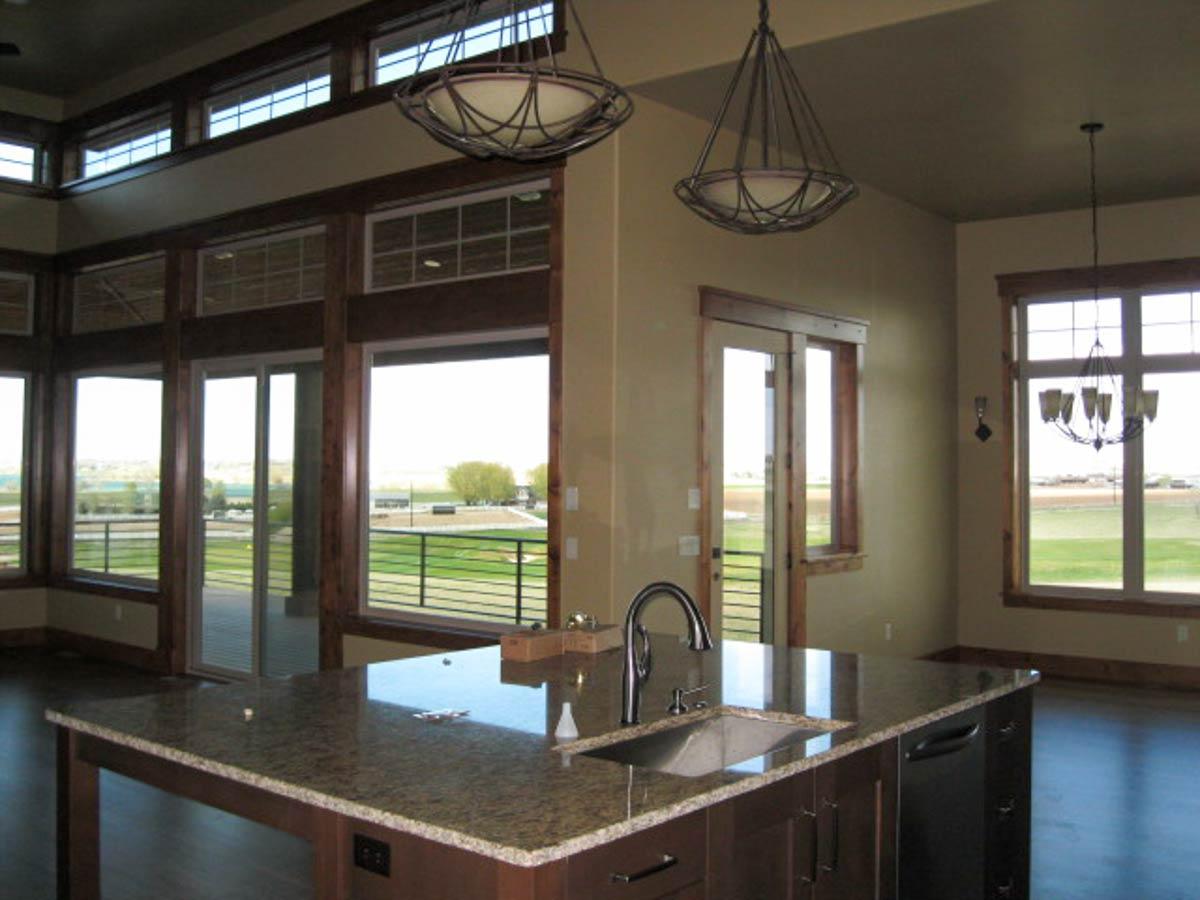

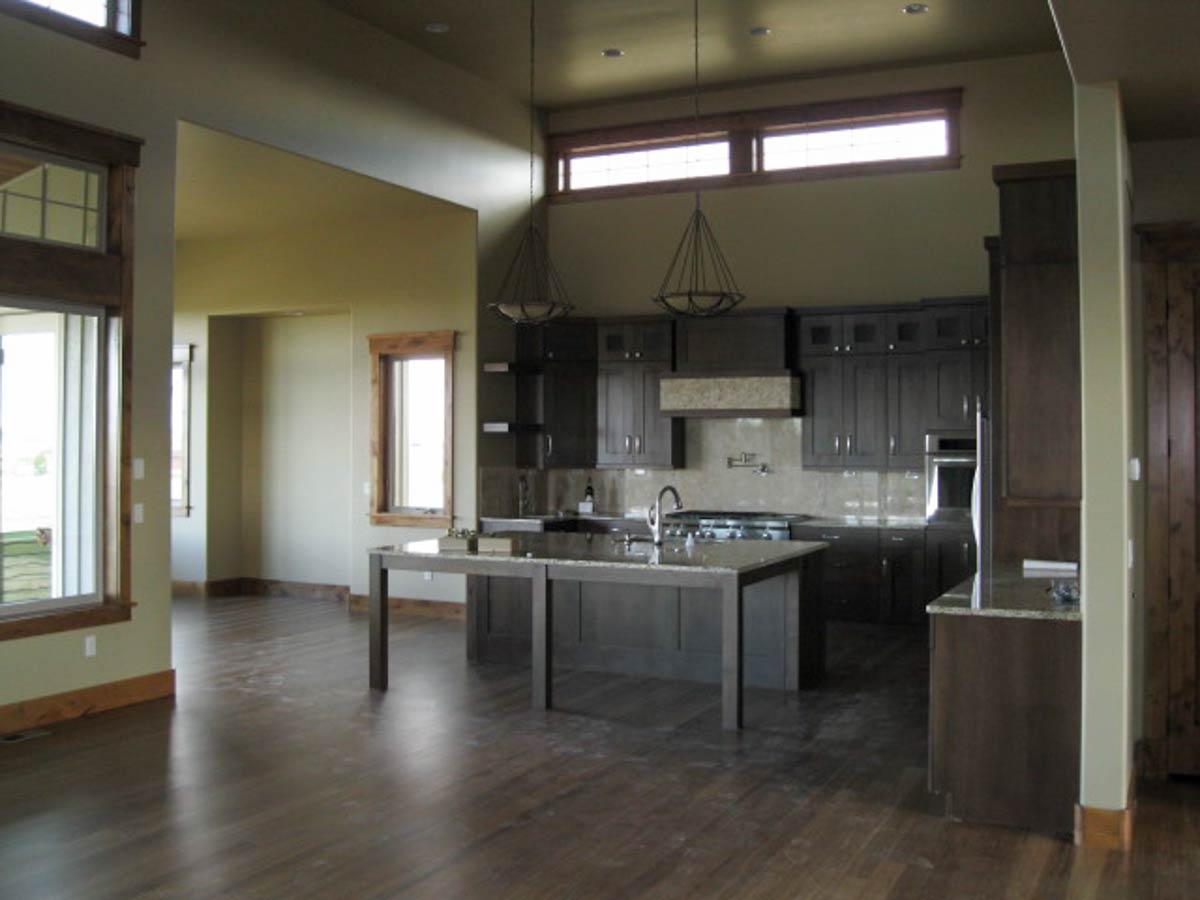

  • The heart of the home seamlessly connects the living, dining, and kitchen areas, designed for both intimate gatherings and lively entertaining, featuring a butler walk-in pantry that elevates culinary experiences and supports effortless hosting.
  • The luxurious master suite, located privately on the first floor, offers a serene sanctuary, designed as the sole bedroom to maximize comfort and amenities, ensuring an exclusive and tranquil living experience.
  • An impressive optional lower level, offering an additional 1,972 sq. ft. of finished space, includes a dedicated game/rec room and a stylish wet bar, perfect for sophisticated entertainment or a personalized retreat.
  • Seamless indoor-outdoor living is enhanced by 1,176 sq. ft. of inviting deck and porch space, offering ample opportunities for morning coffee, al fresco dining, or simply enjoying the expansive views and fresh air.

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,240 sq. ft.

1st Floor

2,240 sq. ft.

Basement Unfinished

320 sq. ft.

Optional Lower Level

1,972 sq. ft.

Deck & Porch

1,176 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 9"

Depth

71' 0"

Max Ridge Height

21' 9"

Garage

Type

Standard, Attached

Area

1125 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

Mountain

Ranch

Special Features

Den

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar
