Spacious Mountain Home Plan with Exercise Room off Primary Bedroom
Heated S.F.
7,943
Beds
3
Baths
4.5
Stories
1
Cars
4
Flyer
What's Included
Plan Details
  • This luxury design presents a stone exterior, spacious interior with a vaulted ceiling above the great room, and a walk-out lower level.

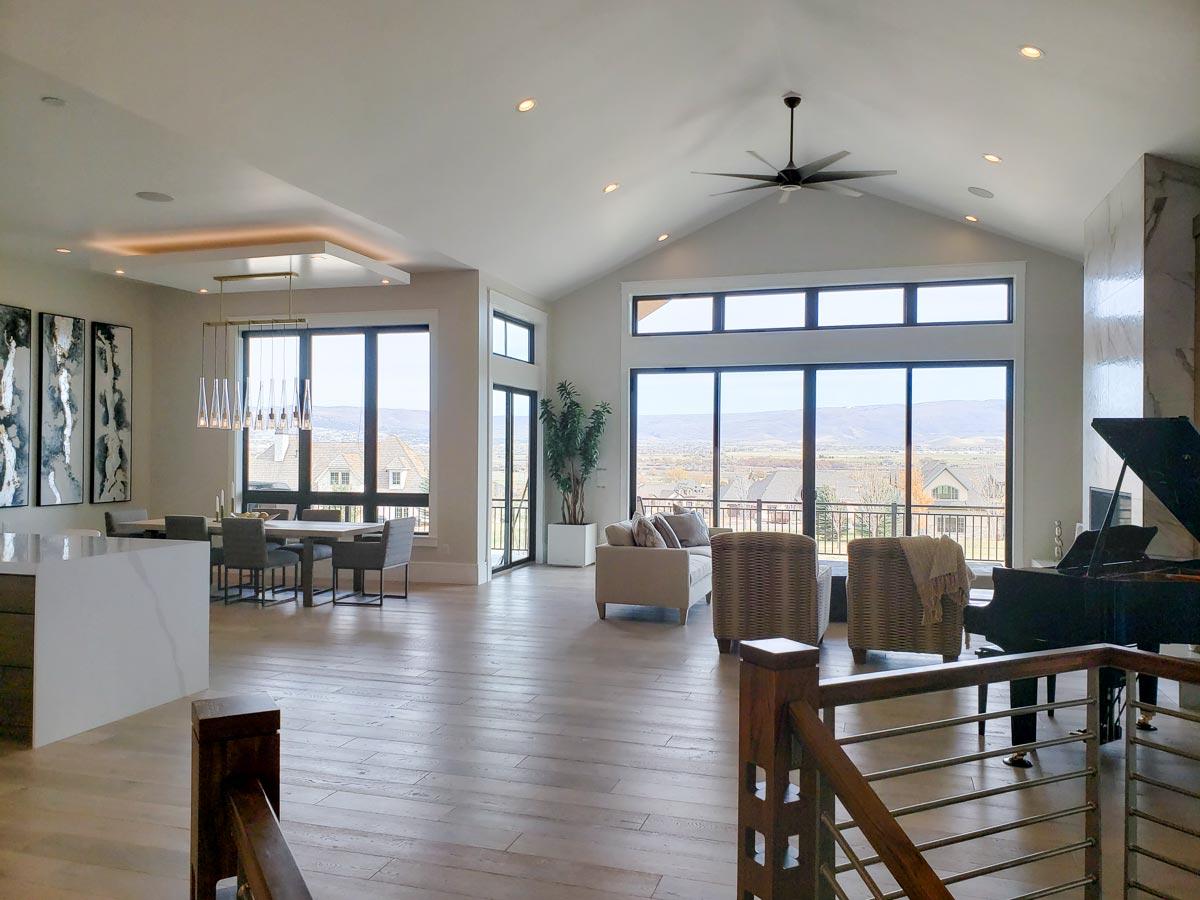

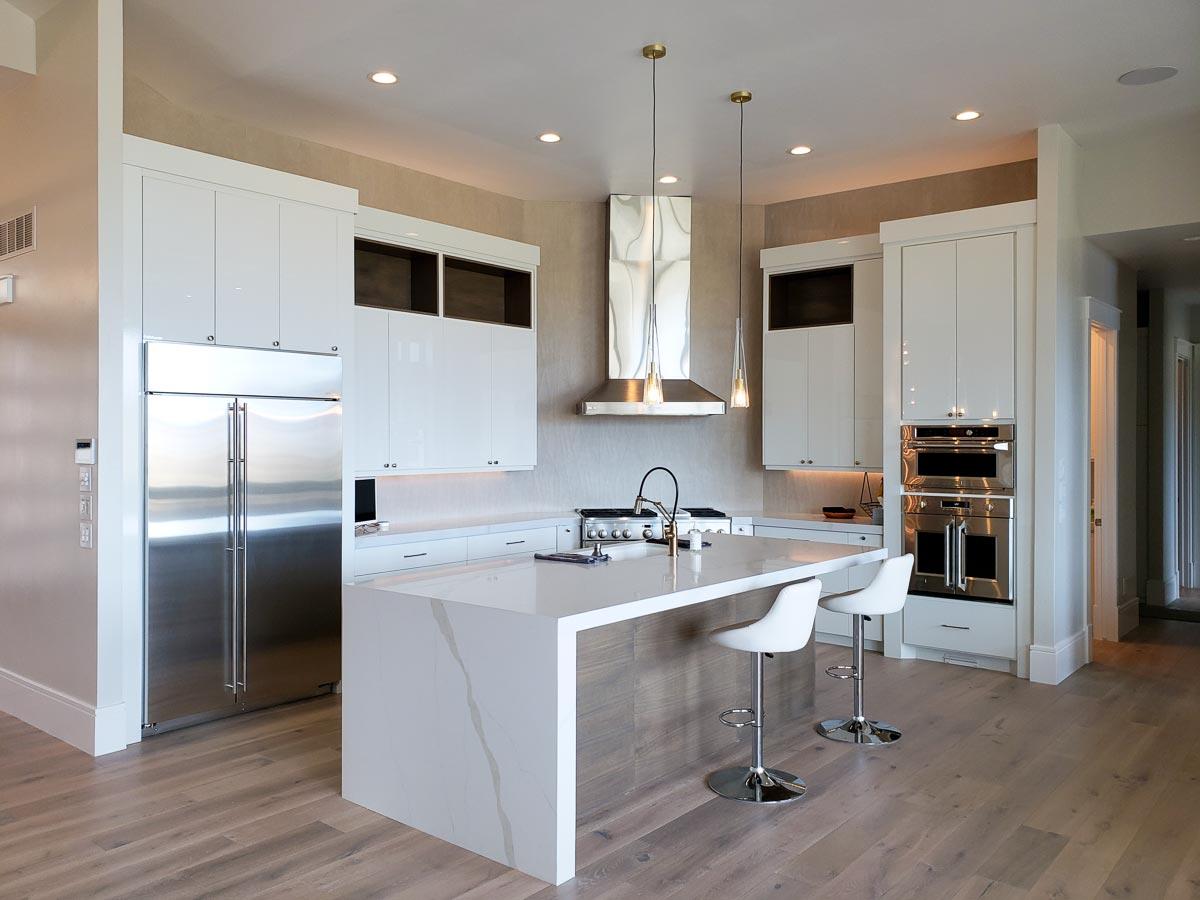

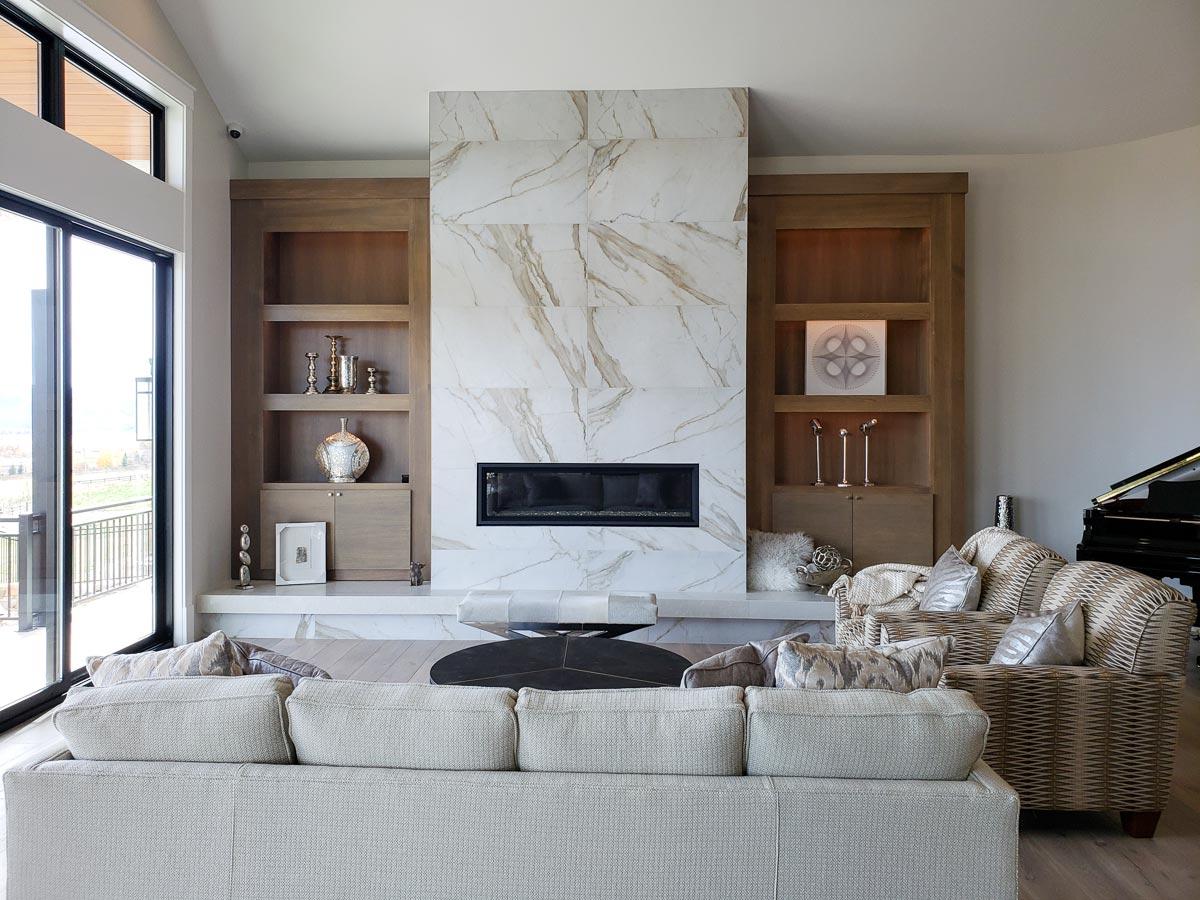

  • The rear wall is lined with windows in order for the great room, dining area, and kitchen to enjoy the views and natural lighting, while a large island anchors the space and serves as a natural gathering spot.

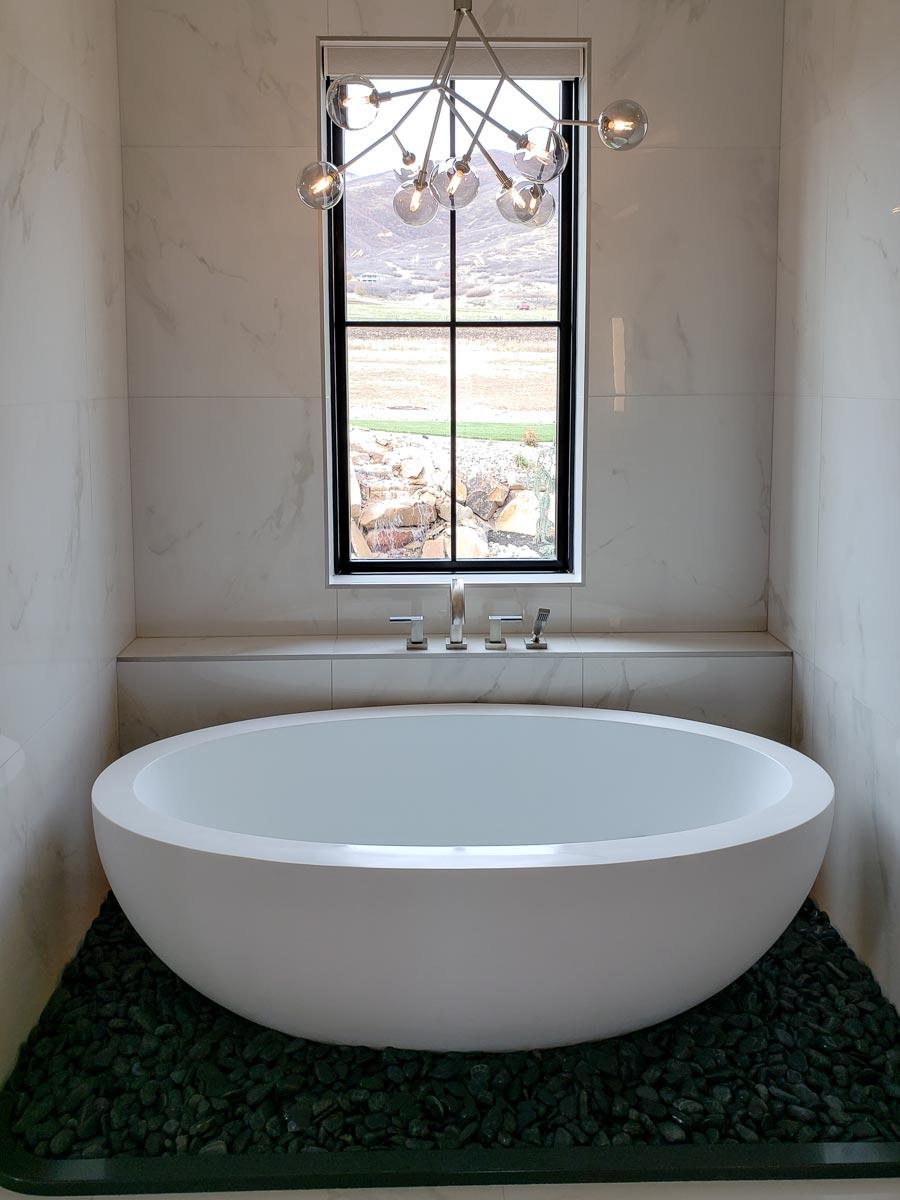

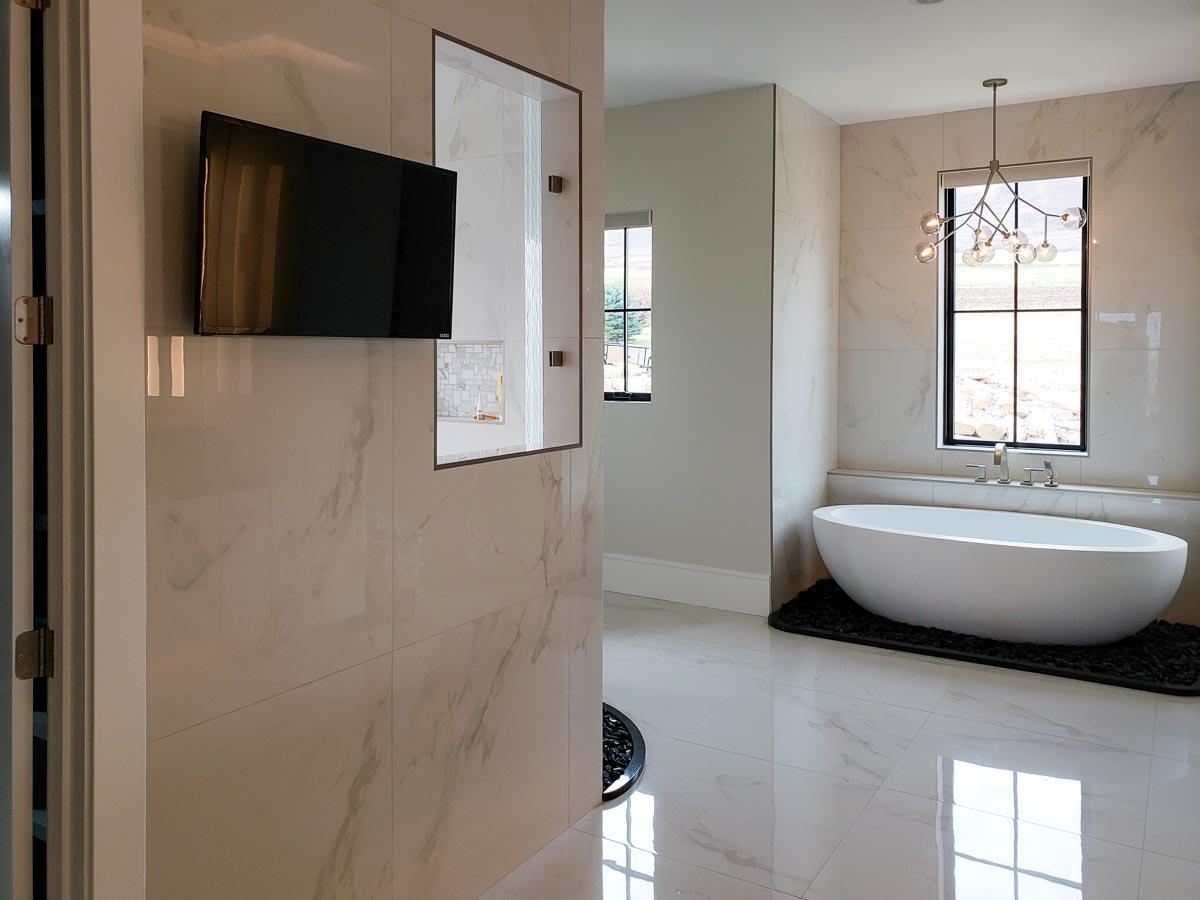

  • The primary bedroom is located on the main level and is bordered by an exercise room and deluxe master bathroom with two walk-in closets and an oversized shower.

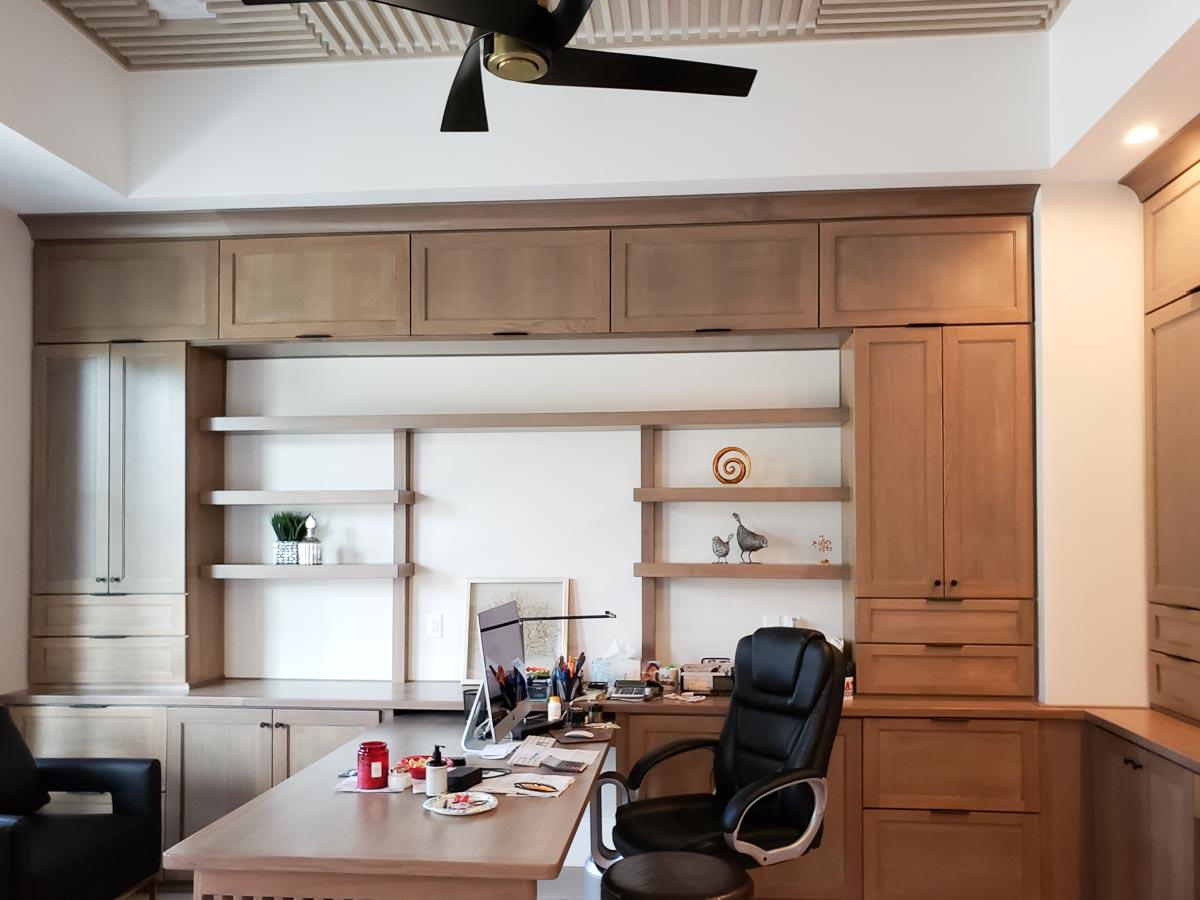

  • The work-from-home resident will appreciate the home office near the formal entry, and the loft above one of the 2-car garages lends a versatile space for all to enjoy.

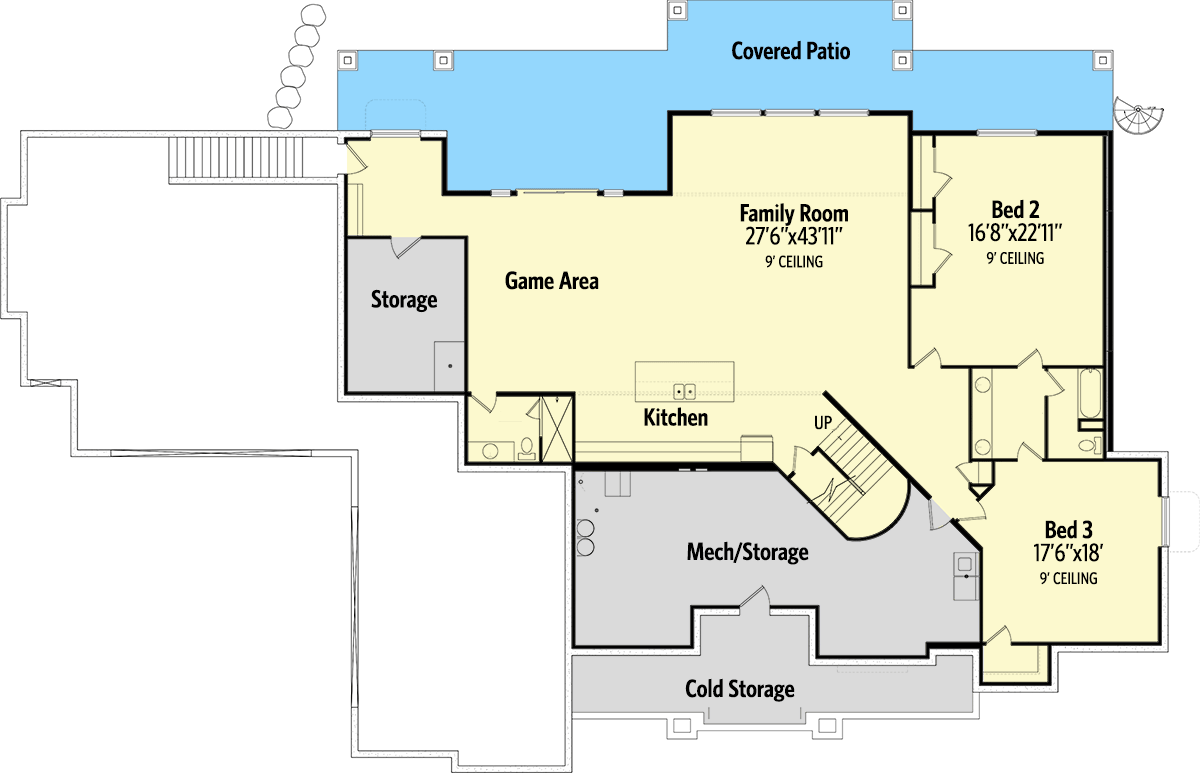

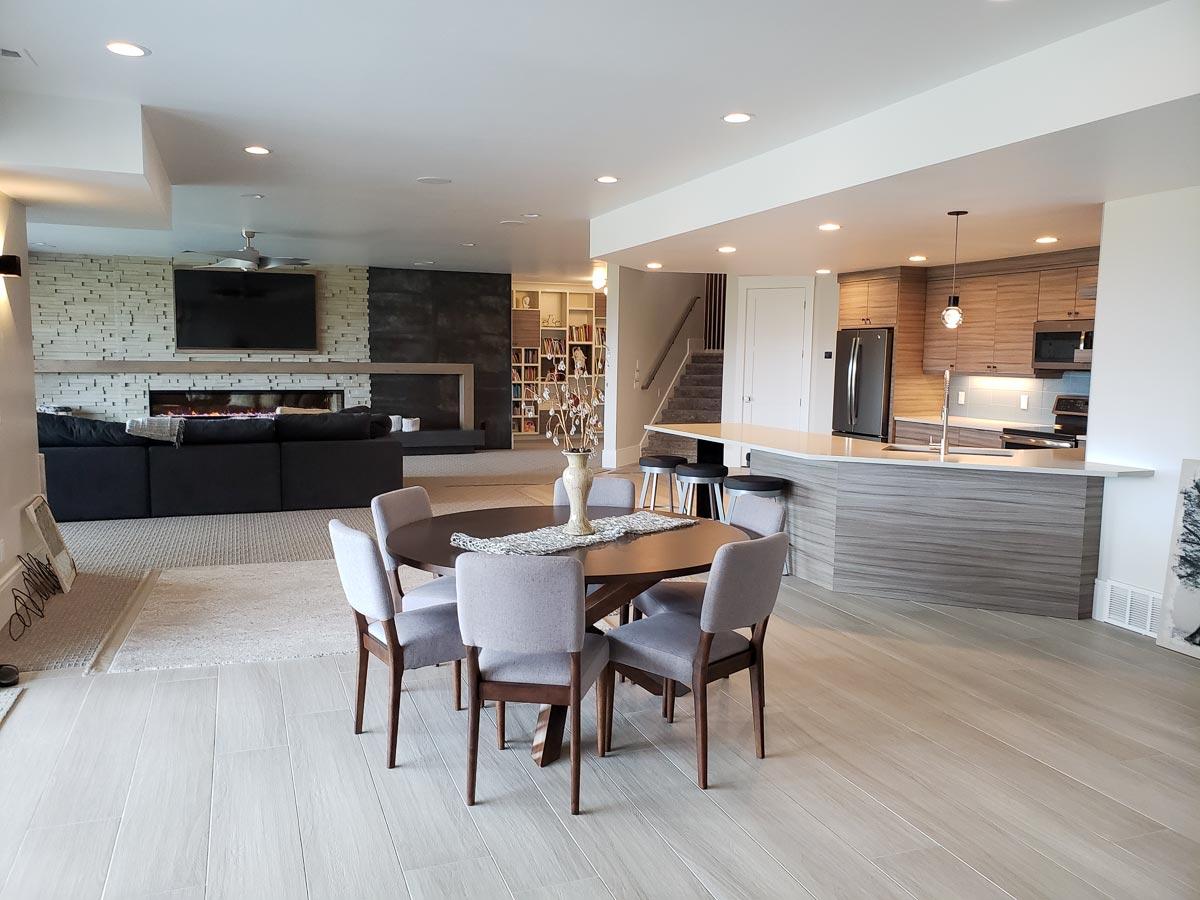

  • The fun continues downstairs, complete with a family / game room with a kitchen, two bedrooms, a covered patio, and dedicated storage space.
What's Included
  • Cover Sheet

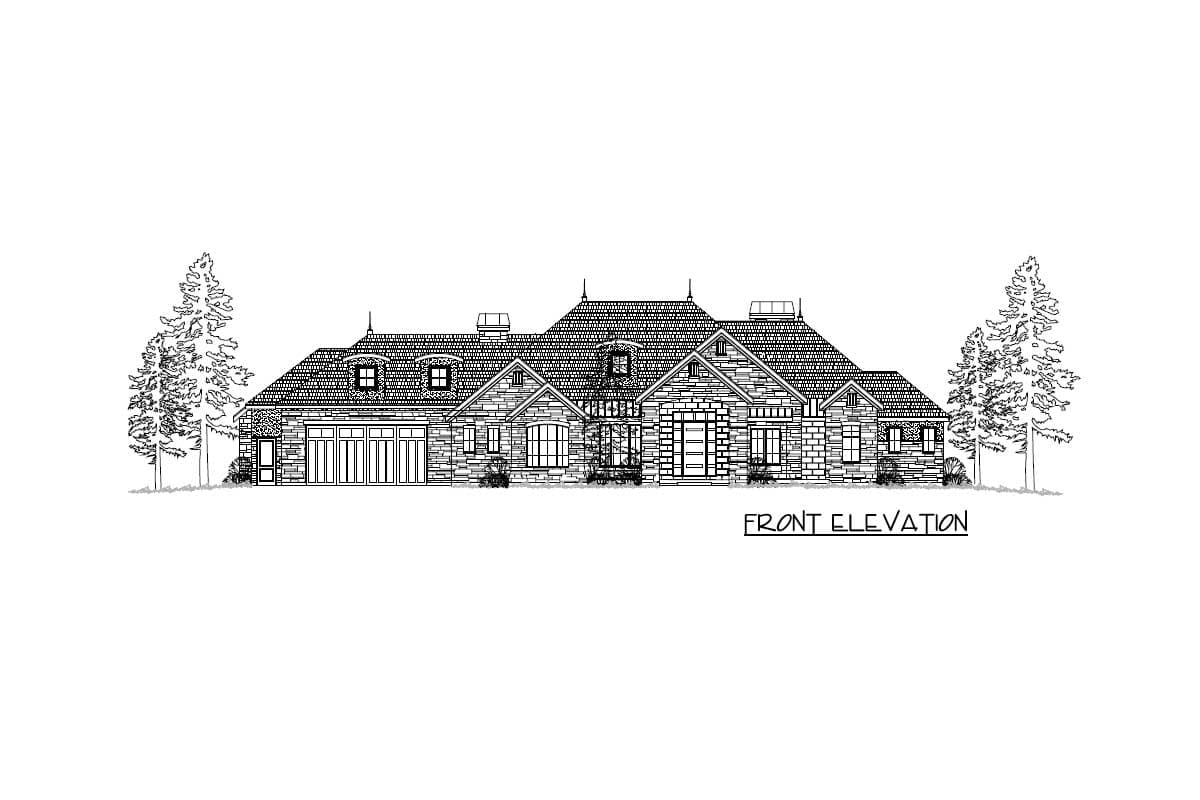

  • Elevations
  • Foundation Plan
  • Floor Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Mountain Home Plan with Exercise Room off Primary Bedroom

  • 7,943

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 4

    Car garage

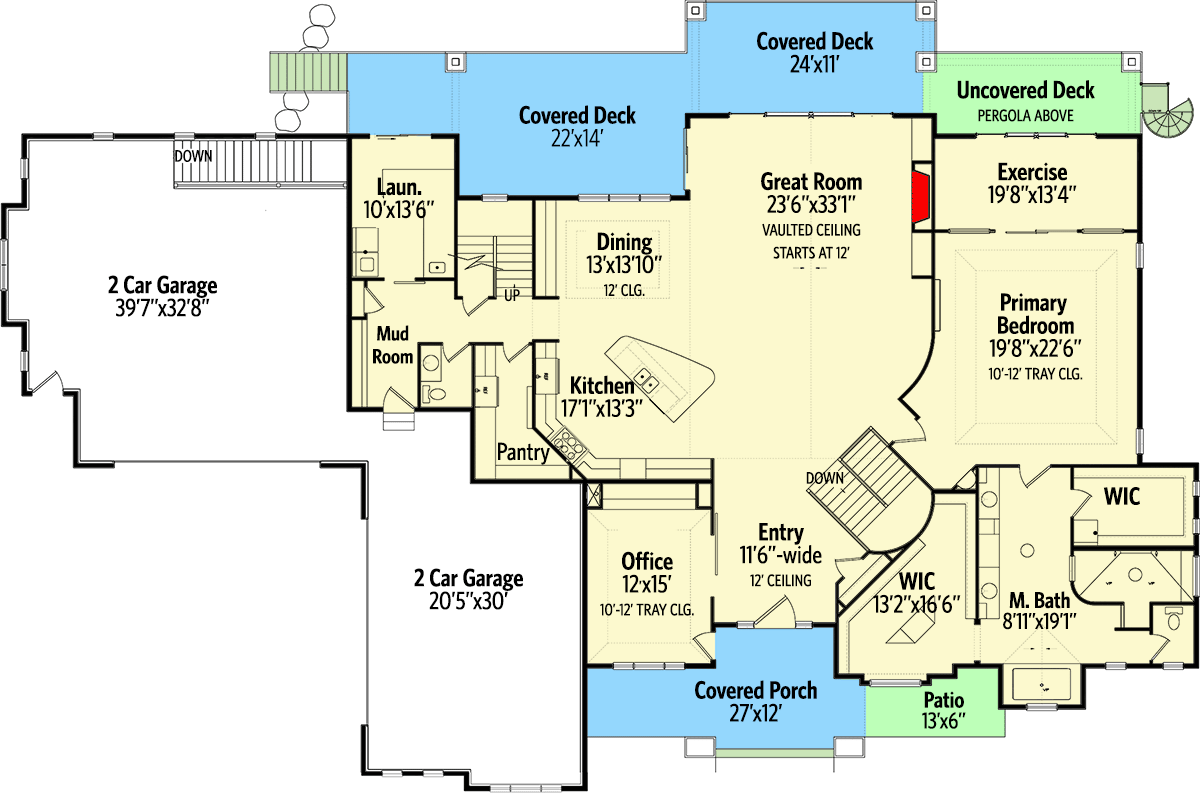

Floor Plan

  • Main Level

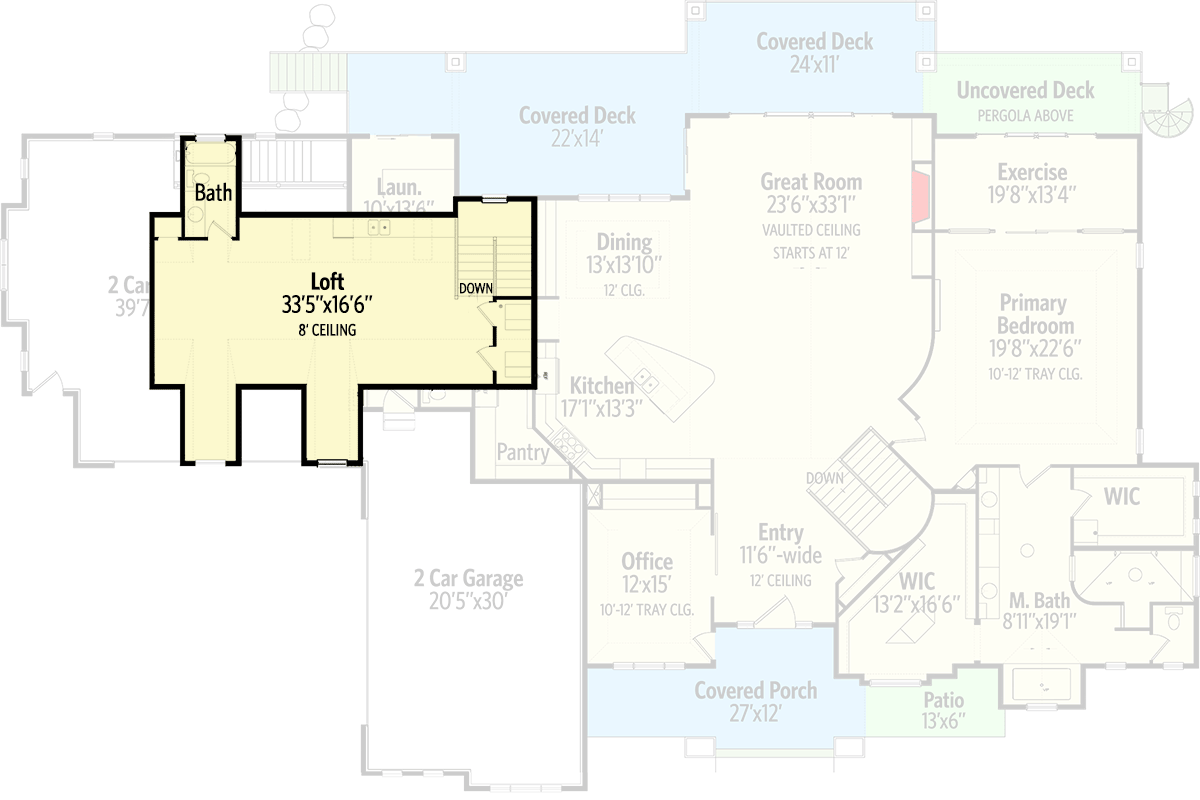

  • Upstairs Loft

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 7,943 sq. ft.
  • Lower Level: 3,644 sq. ft.
  • 1st Floor: 3,563 sq. ft.
  • 2nd Floor: 736 sq. ft.

Dimensions

  • Width: 116' 6"
  • Depth: 77' 0"
  • Max ridge height: 30' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1735 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6
