Plan 24397TW
Spacious Mountain Home Plan with Lower-level In-law Suite
Heated S.F.
5,356
Beds
4
Baths
0.5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

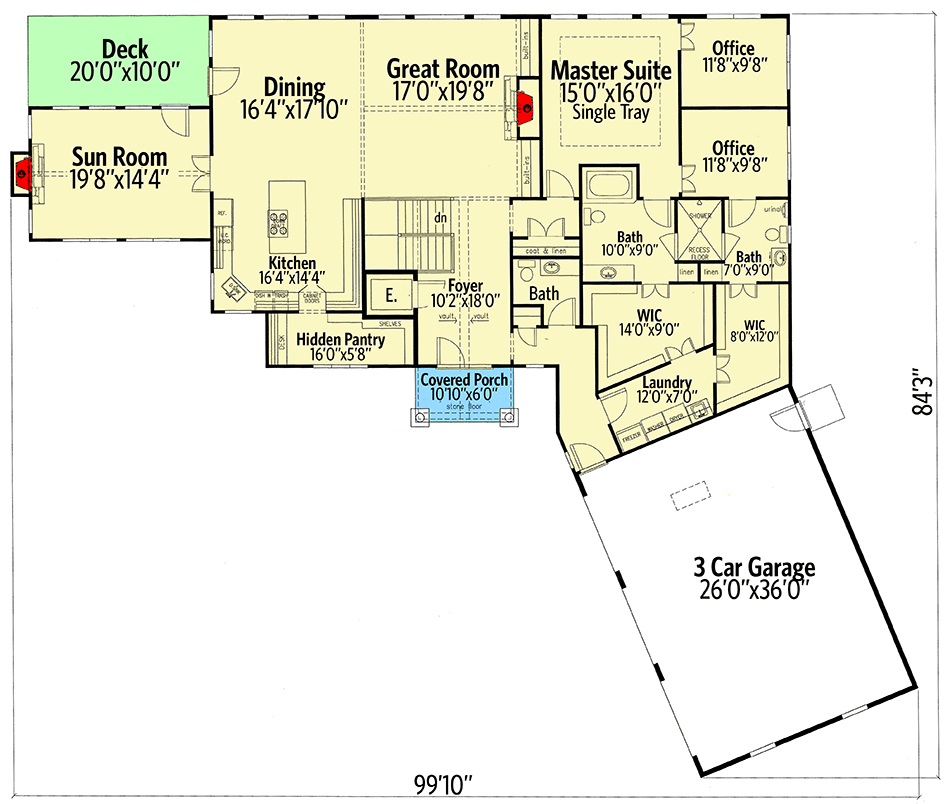

Spacious Mountain Home Plan with Lower-level In-law Suite - 24397TW floor plan - Main Level
Lower Level
Reverse Floor Plan

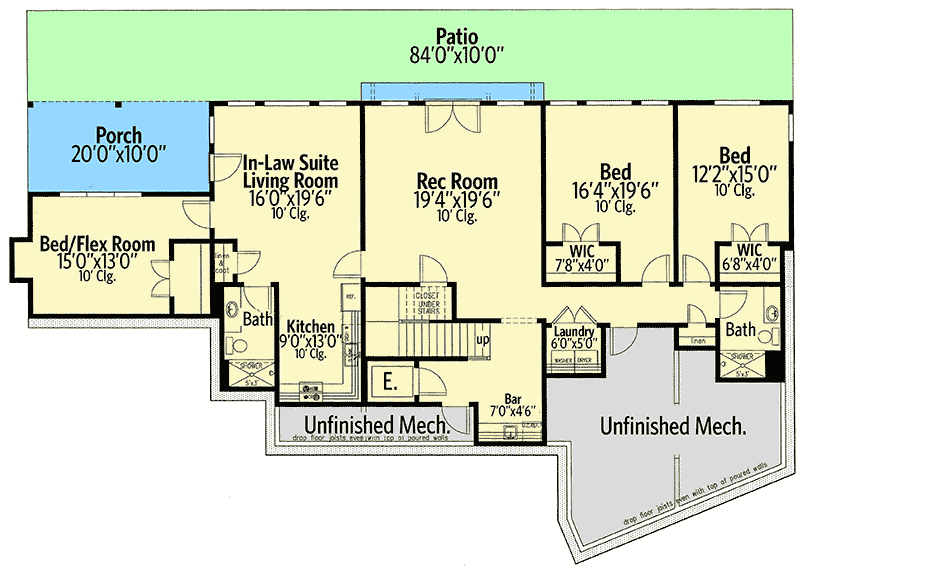

Spacious Mountain Home Plan with Lower-level In-law Suite - 24397TW floor plan - Lower Level
Optional Lower Level
Reverse Floor Plan

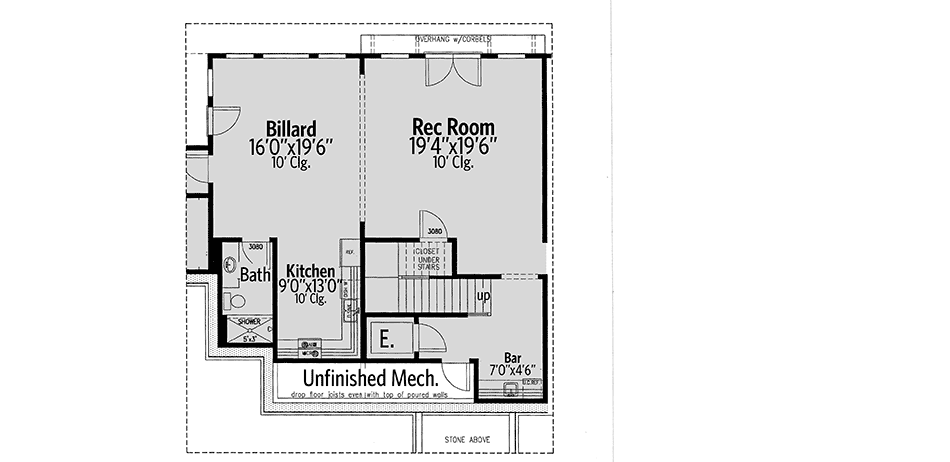

Spacious Mountain Home Plan with Lower-level In-law Suite - 24397TW floor plan - Optional Lower Level
Plan Details
  • This spacious, mountain home plan is ideal for a sloped lot with rearward views. The lower-level, in-law suite includes a living room with access to a covered porch, kitchenette, full bath, and bedroom.
  • The heart of the home combines the great room, dining area, and kitchen with a fireplace and surrounding built-ins adding warmth to the shared living space. French doors lead to a sizable sun room, which extends to a back deck.
  • The cooktop island is surrounded by U-shaped counters, while cabinet doors reveal a hidden, walk-in pantry.
  • The main-level, master suite leads to two home offices, ideal for the work-at-home residents. Two separate en suites lead to walk-in closets that connect in the laundry room.
  • Two additional bedrooms reside on the lower level, along with a large recreation room, wet bar, full bath, and the in-law suite.
What's Included
The plans include the following:

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Mountain Home Plan with Lower-level In-law Suite

  • 5,356

    Heated s.f.

  • 4

    Beds

  • 0.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Lower Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 5,356 sq. ft.
  • Lower Level: 2,309 sq. ft.
  • 1st Floor: 2,947 sq. ft.

Dimensions

  • Width: 99' 9"
  • Depth: 84' 3"
  • Max ridge height: 25' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms:
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 936 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 14' 0" First Floor / 10' 0" Garage 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick And Truss
