Plan 20036GA

Spacious Narrow Lot Design with Elevator

Heated S.F.
2,296
Beds
3
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 20036GA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 20036GA

M-F 9am-5pm EST |

1-203-761-8500

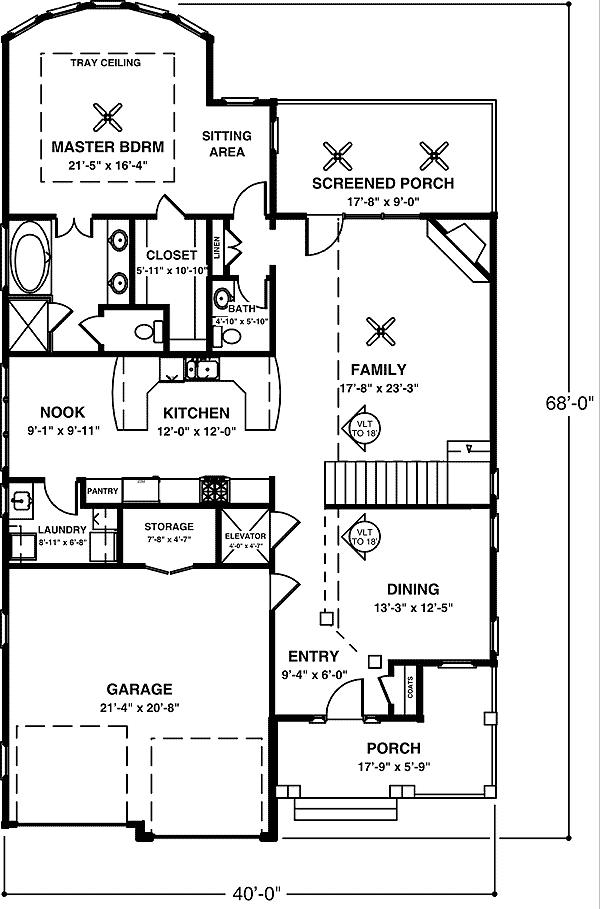

Main Level

Plan 20036GA: Spacious Narrow Lot Design with Elevator - Floor Plan - Main Level - Cottage, Country

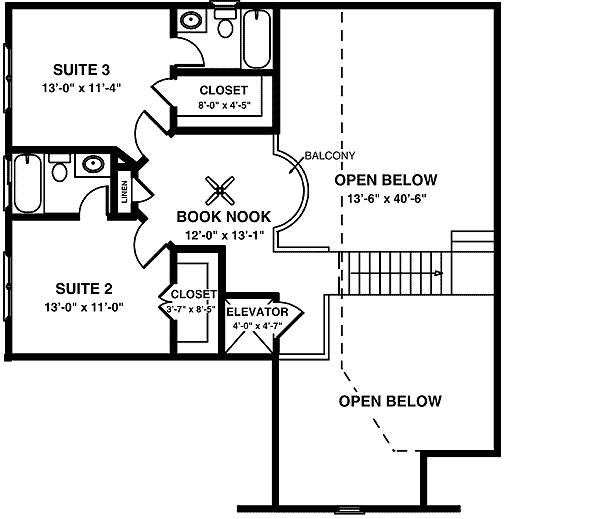

2nd Floor

Plan 20036GA: Spacious Narrow Lot Design with Elevator - Floor Plan - 2nd Floor - Cottage, Country

Plan Details

  • This surprisingly spacious 2,296 square foot narrow lot house plan is accented with stone, cedar shakes and carriage-style garage doors. An irresistible wrap-around porch makes a great first impression.
  • Just beyond the entry is a dining room with a dramatic 18' vaulted ceiling which continues to the hearth-warmed 17'8 x 23'3 family room. Across from the dining room is a feature sure to please guests of all ages - a residential elevator. There is also a traditional staircase to access the upper level. Pleasant breezes await on the large screened porch with two ceiling fans.
  • The highly functional kitchen offers double snack bars, a pantry and an adjacent breakfast nook. Located off of the breakfast nook is an oversized laundry room with plenty of space for a washer and dryer as well as a laundry sink and upright freezer.
  • Tucked away peacefully in the back corner of this main level is the spacious master suite. With its bowed window, tray ceiling, sitting area, luxurious bath and abundant closet, this suite is truly an owner's retreat. Completing this main level is a powder room and coat and linen closets.
  • The upper level features two secondary bedroom suites, each featuring a walk-in closet and private bath. A book nook with a balcony overlooks the soaring two-story family room.

What's Included

  • Digital exterior rendering cover page
  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,296 sq. ft.

1st Floor

1,636 sq. ft.

2nd Floor

660 sq. ft.

Screened Porch

159 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

68' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Breakfast Nook

Elevator

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Two Story Great Room

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

2,296 sq. ft.

1st Floor

1,636 sq. ft.

2nd Floor

660 sq. ft.

Screened Porch

159 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

68' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Breakfast Nook

Elevator

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Two Story Great Room

Wrap Around Porch
