Plan 82087KA

Spacious, Open Living Area

Heated S.F.
1,449
Beds
3
Baths
2
Stories
1
Cars
2

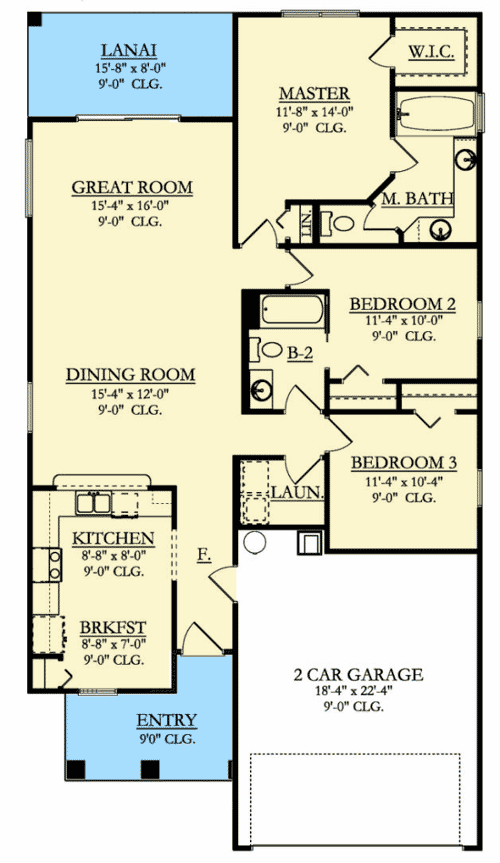

Floor Plan

Plan 82087KA

Main Level
Main Level

Plan 82087KA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 82087KA: Spacious, Open Living Area - Floor Plan - Main Level - Florida-Style, Southern

Plan Details

  • This Florida house plan gives you marvelous views from the kitchen pass-through window all the way back to the dining room and great room and the lanai beyond.
  • Dine informally in the breakfast nook that faces the front of your lot.
  • The covered entry porch has a 9' high ceiling for a splendid entrance to the home.
  • The master suite is tucked in back away from any street noise so you have a quiet retreat.

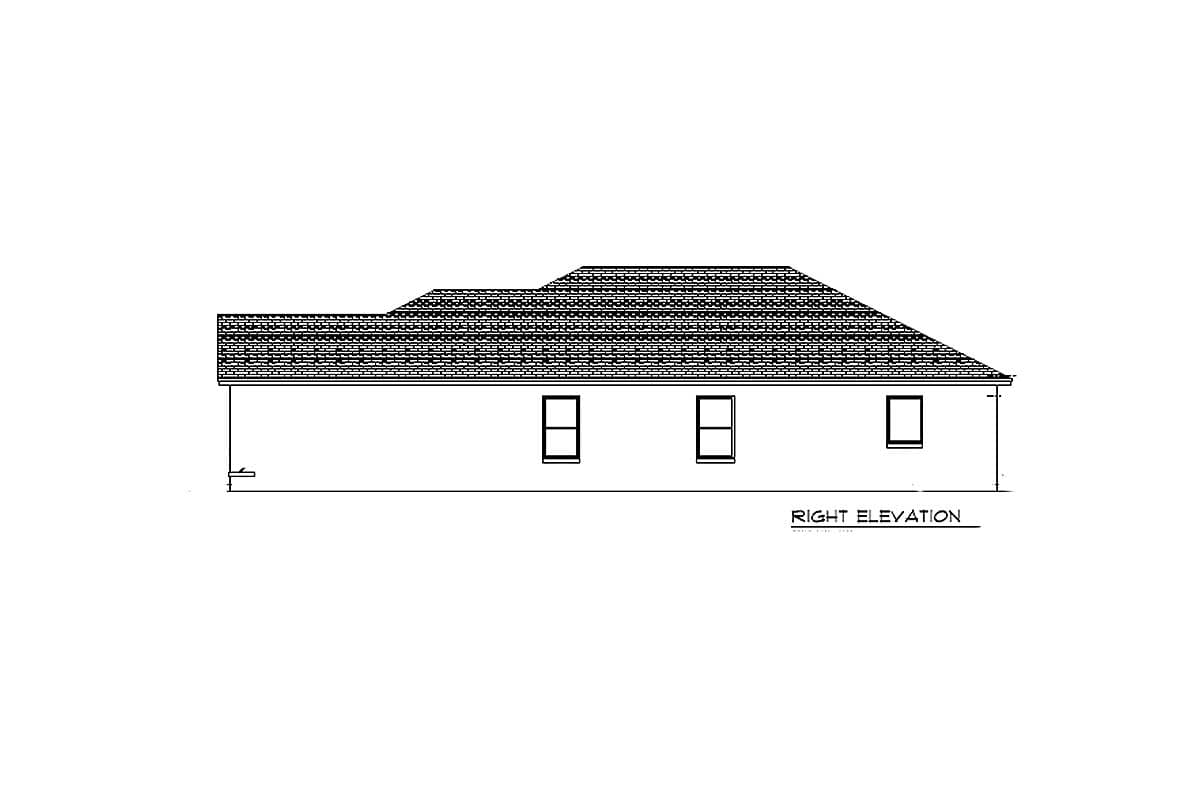

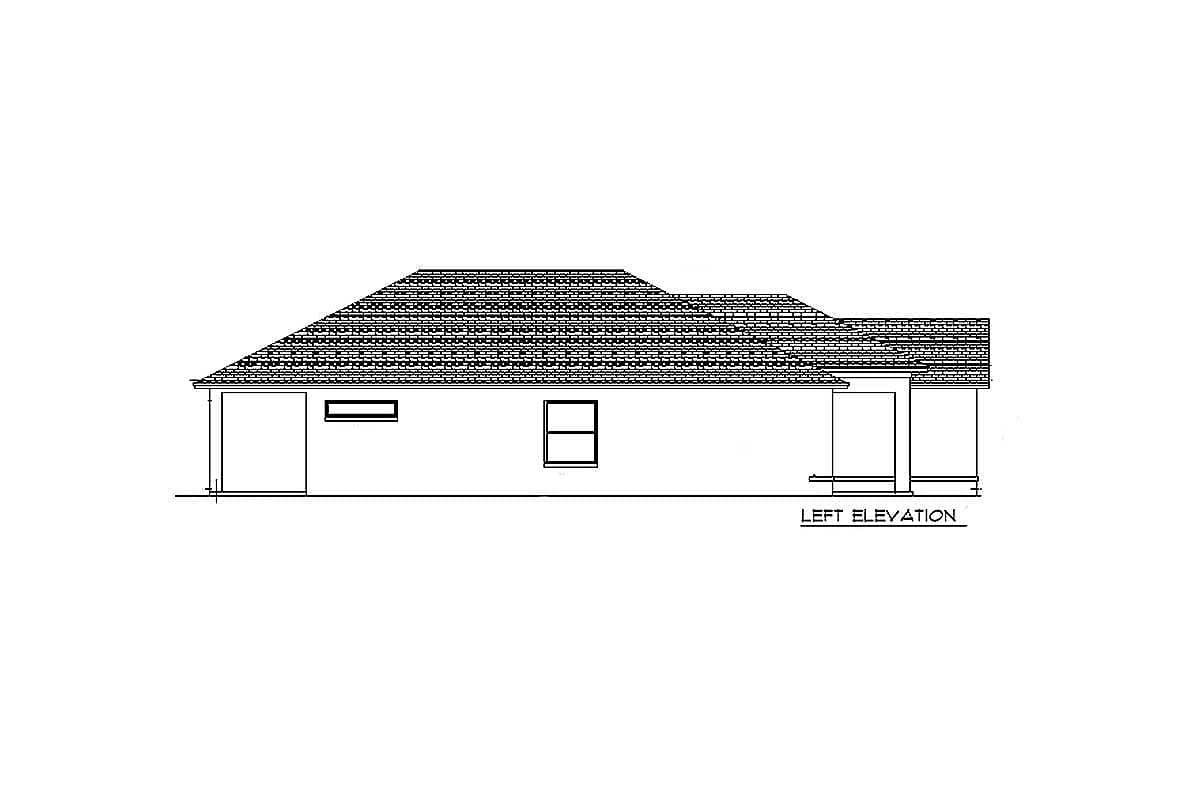

  • Related Plans: Get alternate exteriors with house plans 82085KA and 82086KA.

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

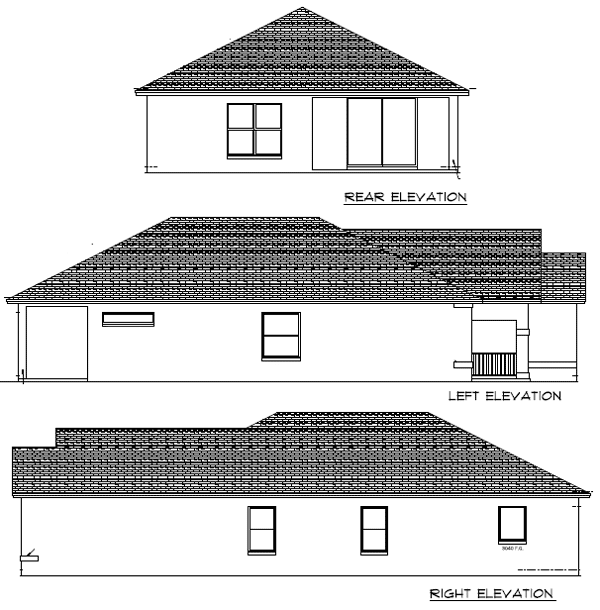

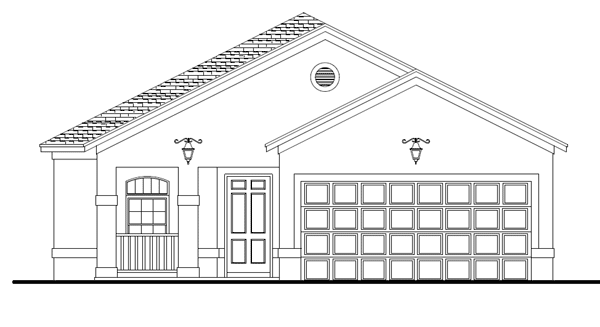

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,449 sq. ft.

1st Floor

1,449 sq. ft.

Porch, Front

59 sq. ft.

Porch, Rear

125 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

34' 8"

Depth

64' 0"

Max Ridge Height

18' 0"

Garage

Type

Attached

Area

449 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Southern

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,449 sq. ft.

1st Floor

1,449 sq. ft.

Porch, Front

59 sq. ft.

Porch, Rear

125 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

34' 8"

Depth

64' 0"

Max Ridge Height

18' 0"

Garage

Type

Attached

Area

449 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Southern

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
