Plan 490139NAH

Spacious Ranch Home with Open Layout and Butlers Pantry

Name: Plan 490139NAH: Spacious Ranch Home with Open Layout and Butlers Pantry
Brand: Architectural Designs
SKU: 490139NAH
Price: 1300.50 USD
Availability: InStock

Heated S.F.

2,721

Beds

Baths

2.5

Stories

Cars

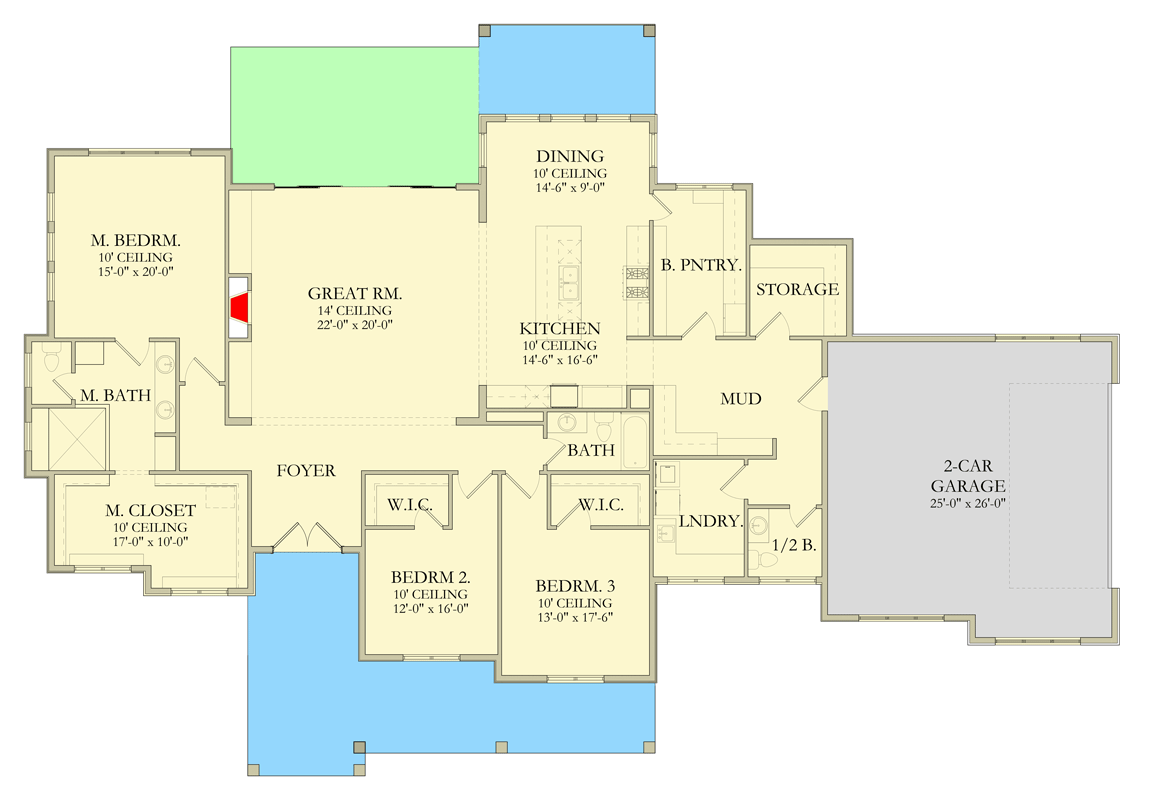

Floor Plan

Main Level

Plan Details

Experience 2,721 sq. ft. of elegant living with 3 bedrooms, 2.5 baths, and a 2-car side-entry garage in this modern ranch-style home.
Enter through a welcoming foyer that leads to an expansive great room with 14' ceilings, perfect for gatherings and relaxation.
The open-concept kitchen, equipped with a butler's pantry, flows seamlessly into the dining area, enhancing the home's welcoming ambiance.
The primary suite is tucked away for privacy, featuring a luxurious master bath and a generous walk-in closet.
Two additional clustered bedrooms with walk-in closets share a well-appointed bath, ideal for family or guests.
Enjoy the outdoors with a combined 762 sq. ft. of porch space, perfect for leisure and entertaining.
Practical features include a mudroom and main-level laundry room for everyday convenience.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Building Section(s)
Typical Wall Details and Section(s)
Typical Stair Detail and Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
