Plan 59135ND

Spacious Sleeping Loft

Heated S.F.
1,903
Beds
2
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 59135ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59135ND

M-F 9am-5pm EST |

1-203-761-8500

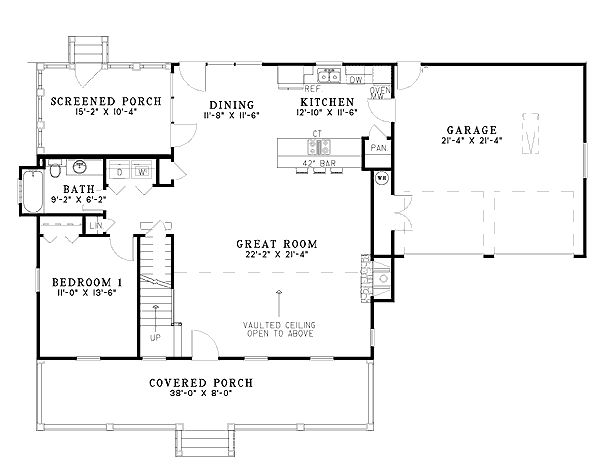

Main Level

Plan 59135ND: Spacious Sleeping Loft - Floor Plan - Main Level - Cabin, Cottage, Country, Vacation

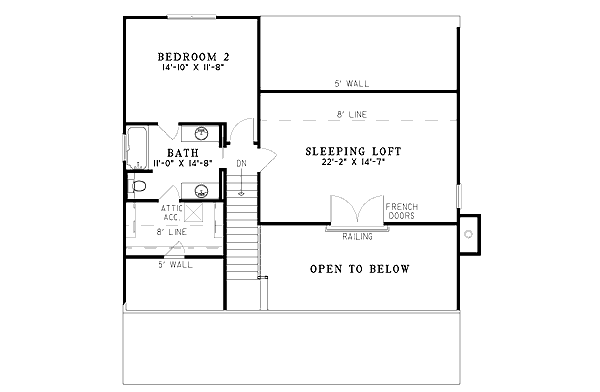

2nd Floor

Plan 59135ND: Spacious Sleeping Loft - Floor Plan - 2nd Floor - Cabin, Cottage, Country, Vacation

Plan Details

  • Boxed columns dress up the front porch of this charming design, and a seamed metal roof protects the home from the elements.
  • A vaulted ceiling adds volume to the great room, which is warmed by its fireplace and is open to the dining room and the kitchen.
  • In the kitchen, there is a walk-in pantry and peninsula eating bar. The dining room accesses a screened porch, ideal for outdoor meals.
  • A full bath serves the first-floor bedroom with a washer and dryer nearby.
  • Upstairs, both the bedroom and sleeping loft have access to the bathroom with dual vanities. A walk-in closet is found off the bath, and French doors in the loft open to allow a view of the great room below.
  • Related Plans: Get alternate versions with house plans 59156ND, 59151ND, 59152ND, 59154ND, and 59160ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,903 sq. ft.

1st Floor

1,156 sq. ft.

2nd Floor

747 sq. ft.

Porch, Front

304 sq. ft.

Porch, Rear

157 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

41' 6"

Garage

Type

Attached

Area

500 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Vacation

Special Features

Loft

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

1,903 sq. ft.

1st Floor

1,156 sq. ft.

2nd Floor

747 sq. ft.

Porch, Front

304 sq. ft.

Porch, Rear

157 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

41' 6"

Garage

Type

Attached

Area

500 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Vacation

Special Features

Loft

Plan Collections

Lake House Plans
