Plan 36620TX Spacious Southern Home Plan with In-Law Suite

4,998 4 5.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Spacious Southern Home Plan with In-Law Suite

Plan 36620TX

  • 4,998

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This estate-sized, Southern home plan, wrapped in stone, features a dramatic and luxurious interior, complete with multiple (two-story) living areas, along with quieter spaces, like the library and study.
  • Double doors, topped by an arched window, permit access inside, where an elegant curved staircase greets you in the spacious foyer.
  • An excess of counter space in the kitchen allows you to spread out when entertaining, and a formal dining room and breakfast nook provide plenty of dining options. Retreat to the covered patio for outdoor enjoyment.
  • The in-law suite is a highlight of this home plan, ideal for family members or a boomerang kid, and features a bedroom, full bath, den area, and galley-style kitchenette, as well as a private entrance from the outside.
  • The master suite is tucked away towards the rear of the home, and includes a private patio, elegant ceiling, and a fireplace. The en suite mimics your favorite spa and includes two, sizable closets; one offers access to the laundry room.
  • Bedrooms 3 and 4 can be found on the second level, each with their own full bath, and linked by a shared balcony. Everyone will enjoy the game room, and a loft above the library leads to a hidden nook, accessible behind a bookshelf.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

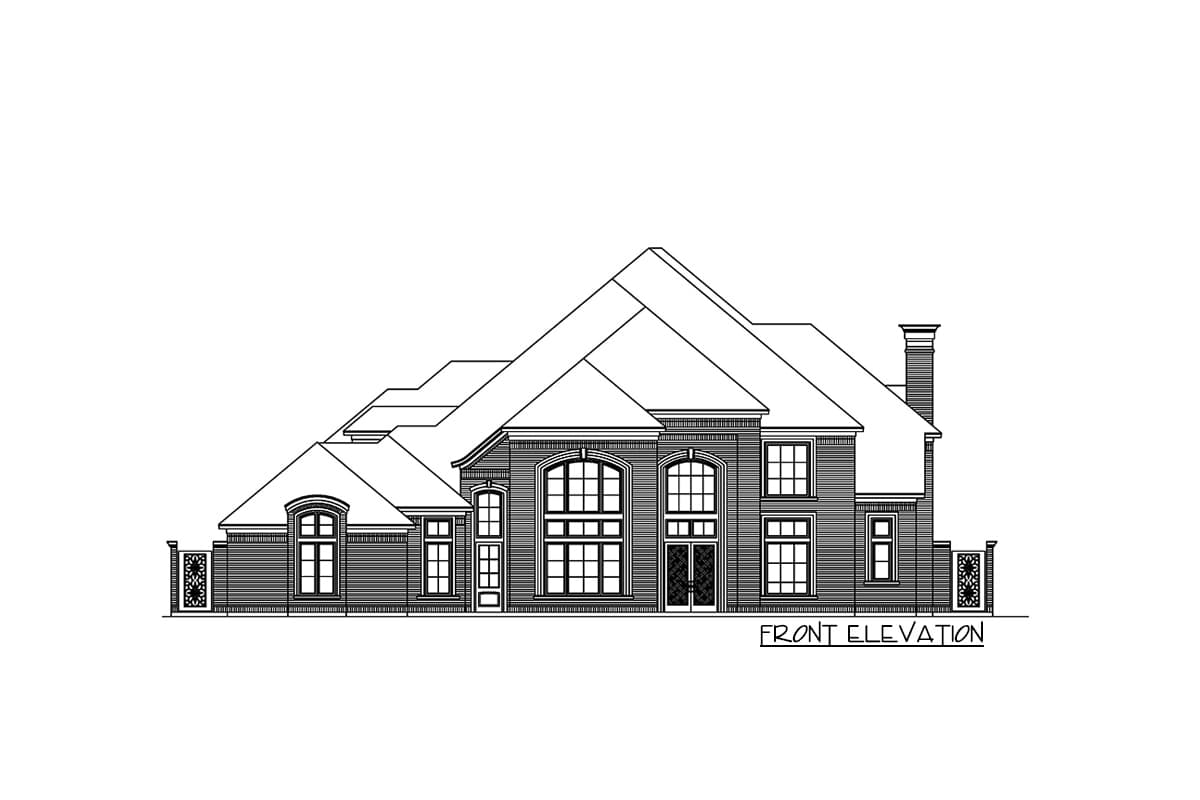

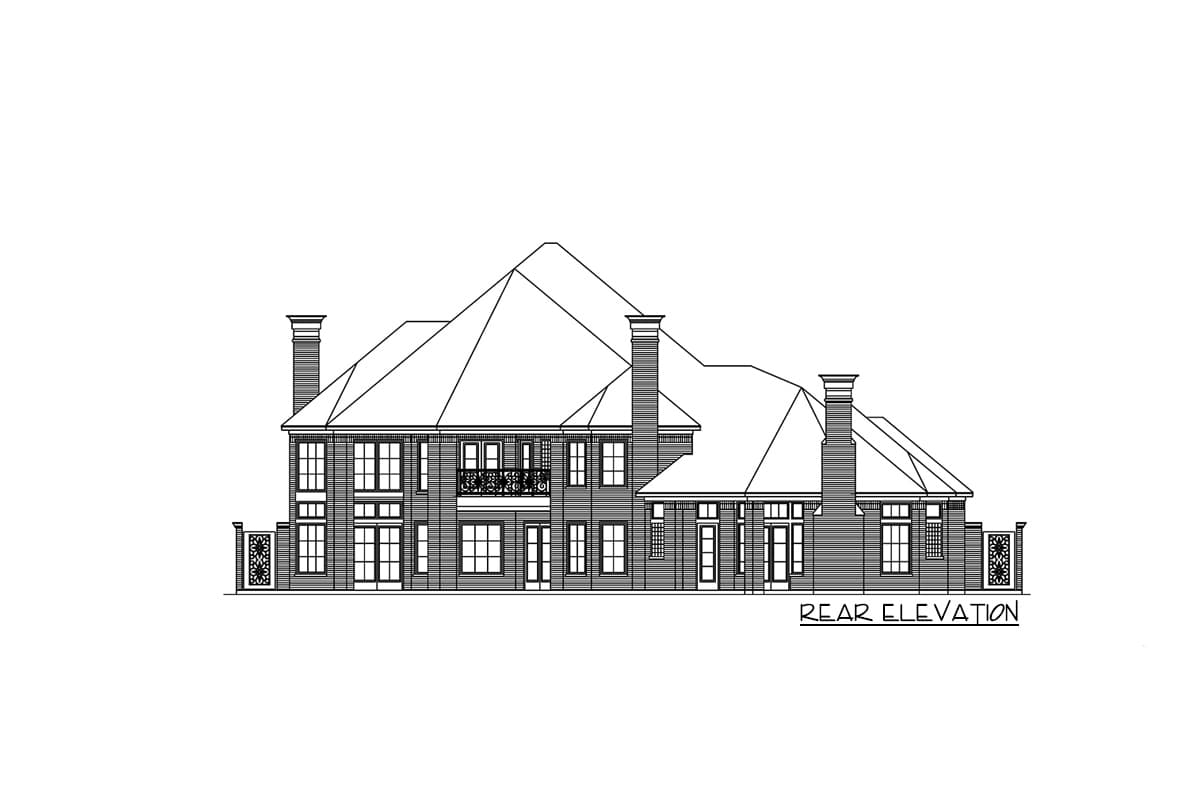

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

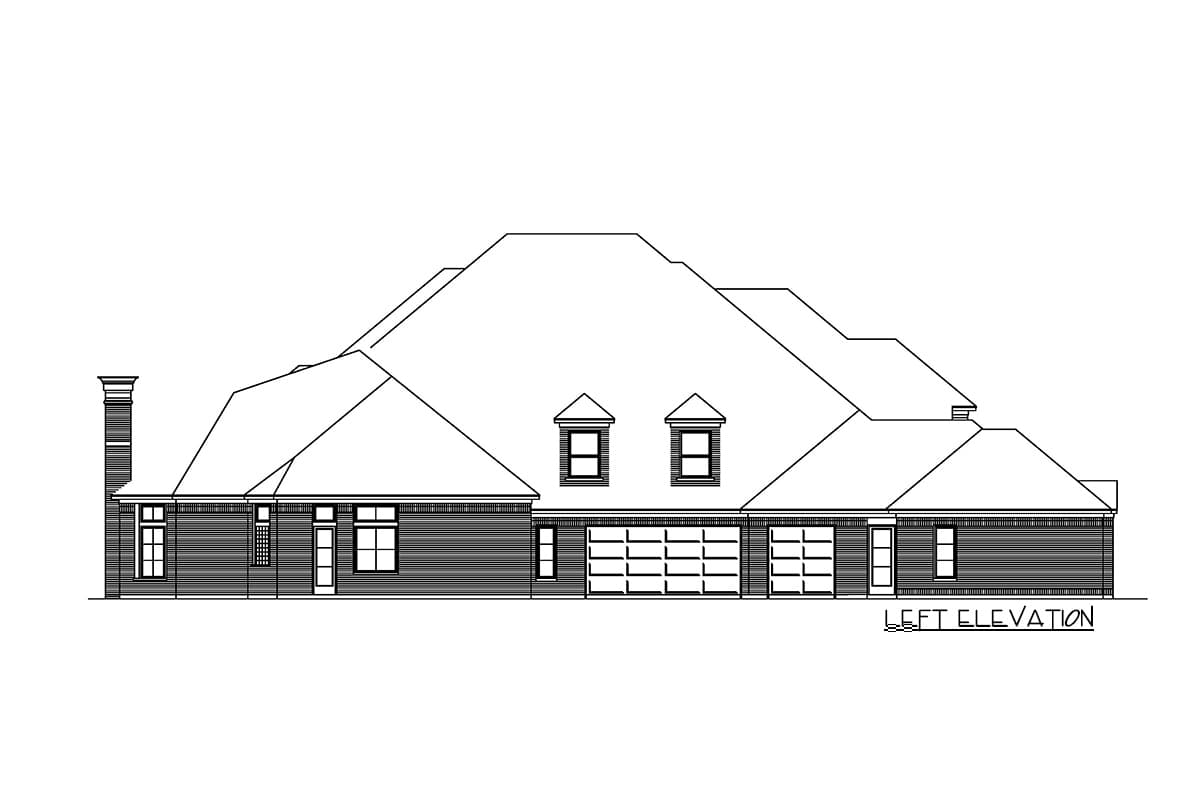

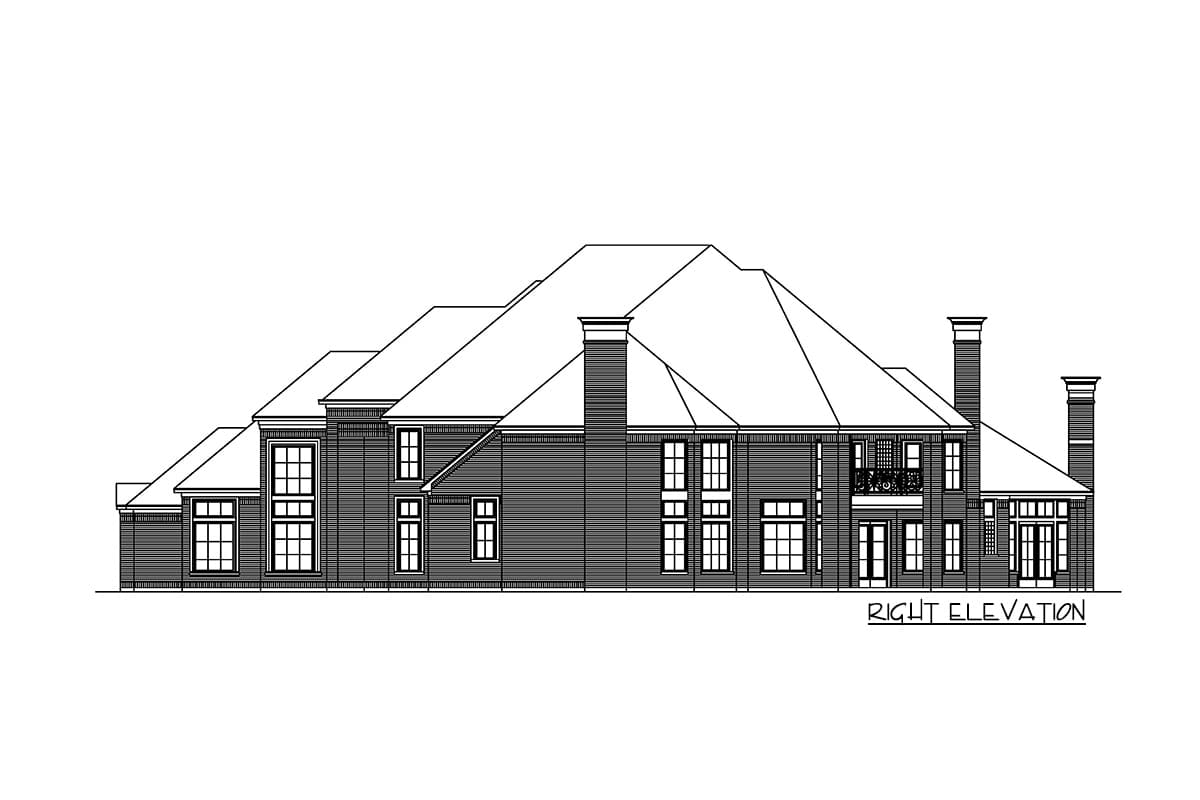

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

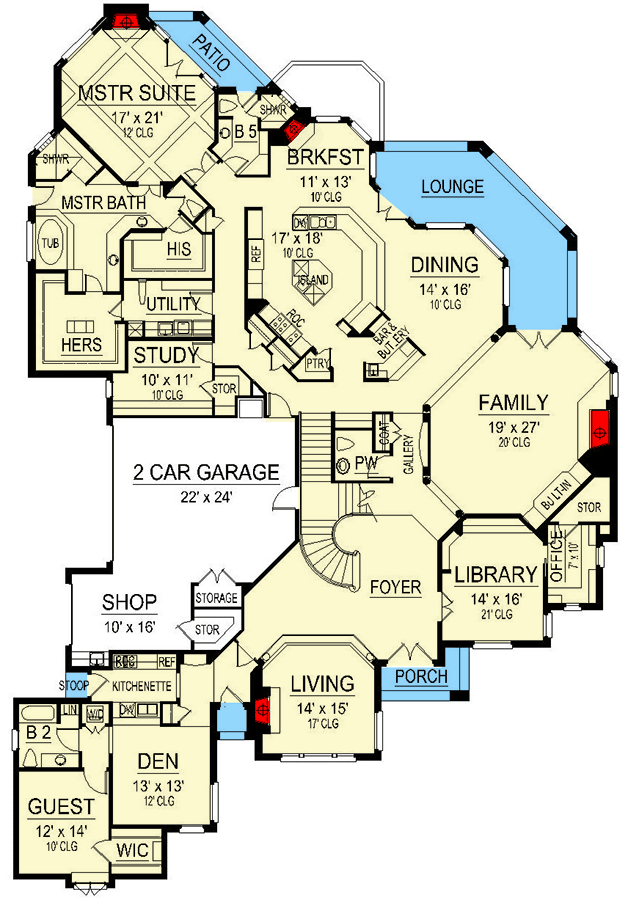

Spacious Southern Home Plan with In-Law Suite - 36620TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

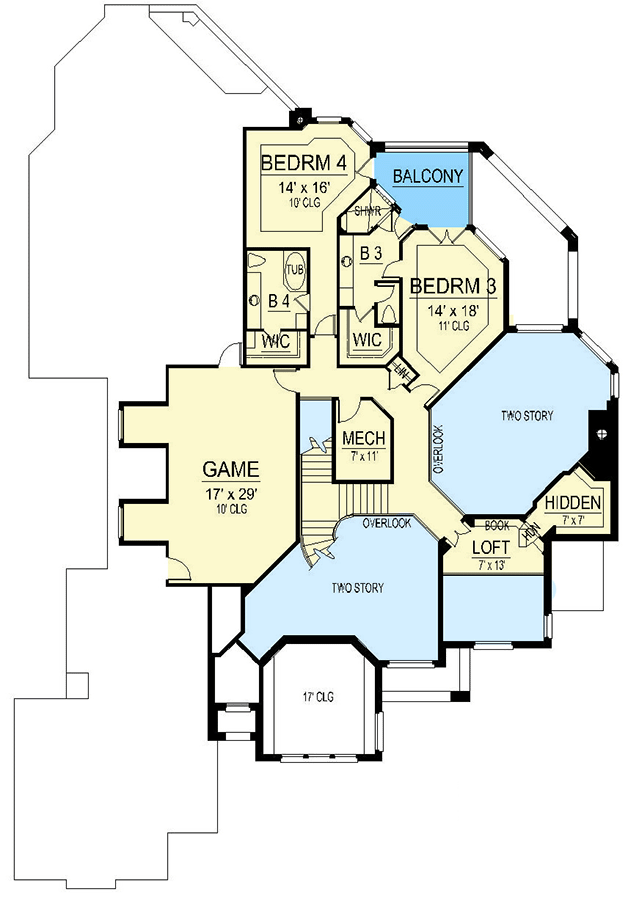

Spacious Southern Home Plan with In-Law Suite - 36620TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,998 sq. ft.
  • 1st Floor: 3,963 sq. ft.
  • 2nd Floor: 1,034 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 118' 0"
  • Max ridge height: 43' 0"

Garage

  • Type: Attached
  • Area: 896 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12

Architectural Style

Special features

Spacious Southern Home Plan with In-Law Suite

  • 4,998

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,650
  • 5 Sets $1,850
  • CAD + PDF - Single Build $2,475
  • View all purchase option online

About This Plan

  • This estate-sized, Southern home plan, wrapped in stone, features a dramatic and luxurious interior, complete with multiple (two-story) living areas, along with quieter spaces, like the library and study.
  • Double doors, topped by an arched window, permit access inside, where an elegant curved staircase greets you in the spacious foyer.
  • An excess of counter space in the kitchen allows you to spread out when entertaining, and a formal dining room and breakfast nook provide plenty of dining options. Retreat to the covered patio for outdoor enjoyment.
  • The in-law suite is a highlight of this home plan, ideal for family members or a boomerang kid, and features a bedroom, full bath, den area, and galley-style kitchenette, as well as a private entrance from the outside.
  • The master suite is tucked away towards the rear of the home, and includes a private patio, elegant ceiling, and a fireplace. The en suite mimics your favorite spa and includes two, sizable closets; one offers access to the laundry room.
  • Bedrooms 3 and 4 can be found on the second level, each with their own full bath, and linked by a shared balcony. Everyone will enjoy the game room, and a loft above the library leads to a hidden nook, accessible behind a bookshelf.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,998 sq. ft.
  • 1st Floor: 3,963 sq. ft.
  • 2nd Floor: 1,034 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 118' 0"
  • Max ridge height: 43' 0"

Garage

  • Type: Attached
  • Area: 896 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
Plan 36620TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36620TX
|
Need Help? 800-854-7852
|
Plan 36620TX
