Plan 61645UT

Spacious Traditional Home with Workshop and Large Patio

Heated S.F.
1,766
Beds
3
Baths
2.5
Stories
2
Cars
4- 5

Floor Plan

Plan 61645UT

Main Level
Main Level
2nd Floor
2nd Floor

Plan 61645UT

M-F 9am-5pm EST |

1-203-761-8500

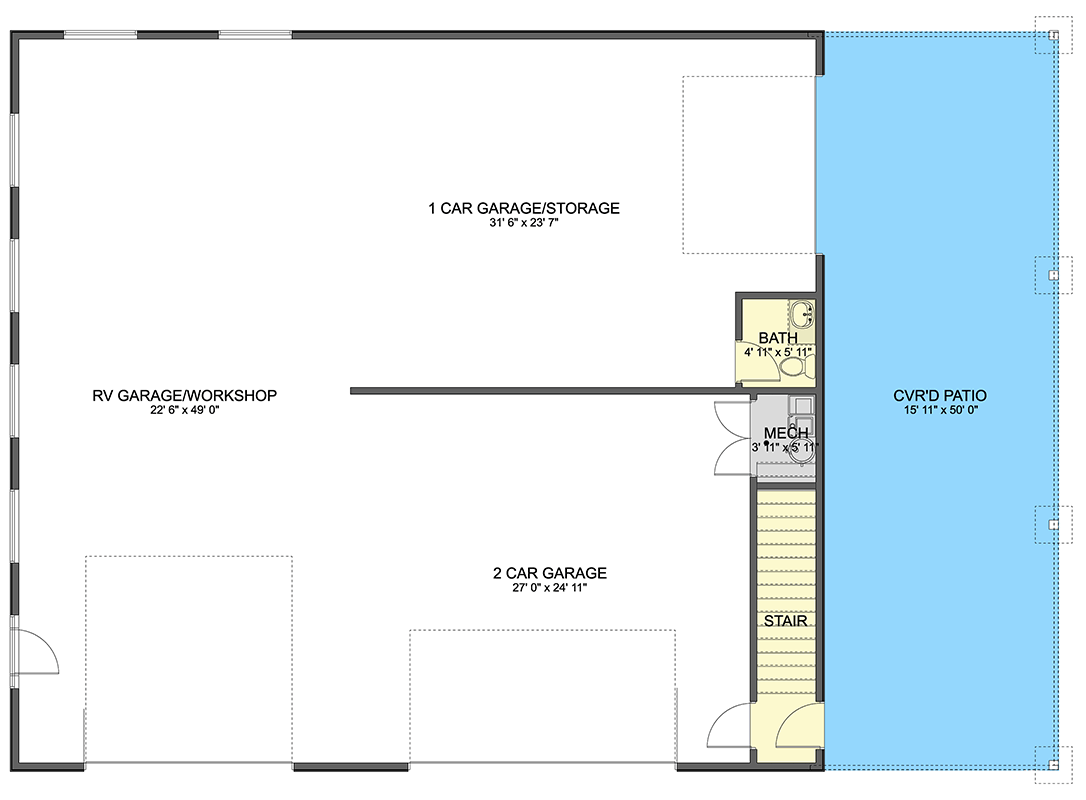

Main Level

Plan 61645UT: Spacious Traditional Home with Workshop and Large Patio - Floor Plan - Main Level - Traditional

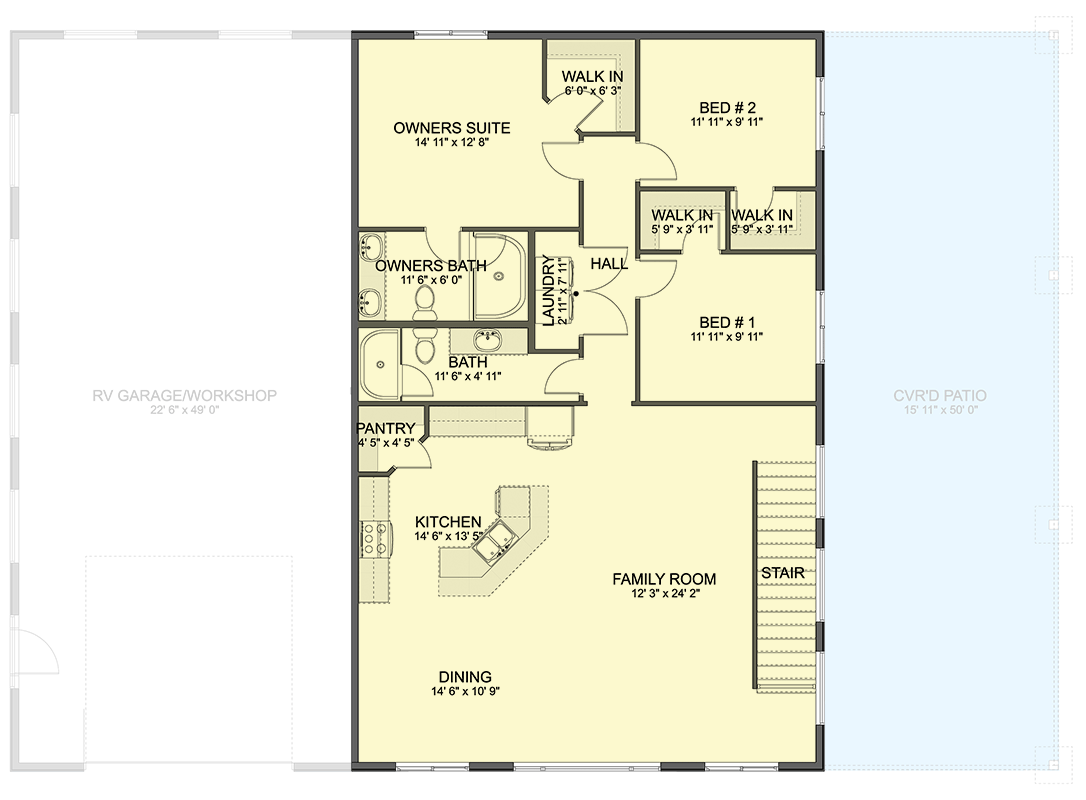

2nd Floor

Plan 61645UT: Spacious Traditional Home with Workshop and Large Patio - Floor Plan - 2nd Floor - Traditional

Plan Details

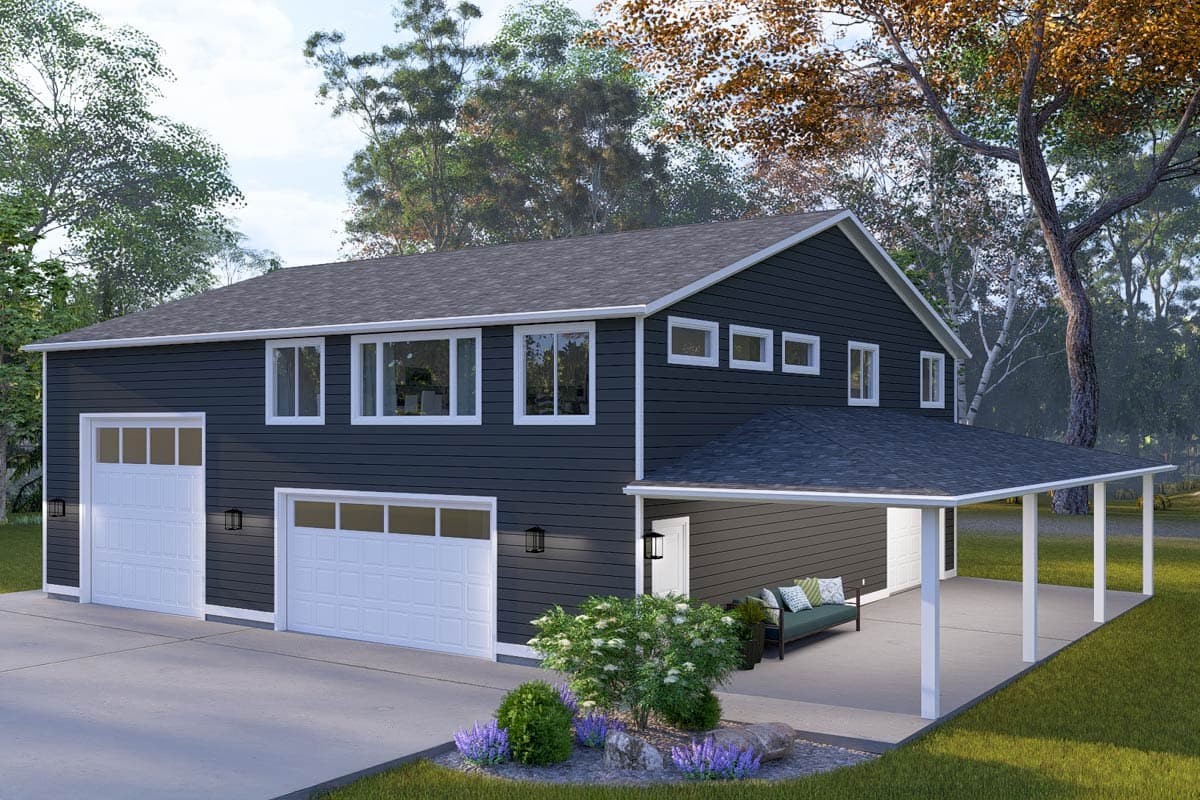

  • This traditional-style home features 1,766 sq. ft. of well-designed living space, offering 3 bedrooms, 2.5 bathrooms, and a large 2,584 sq. ft. attached garage for 4 to 5 cars.

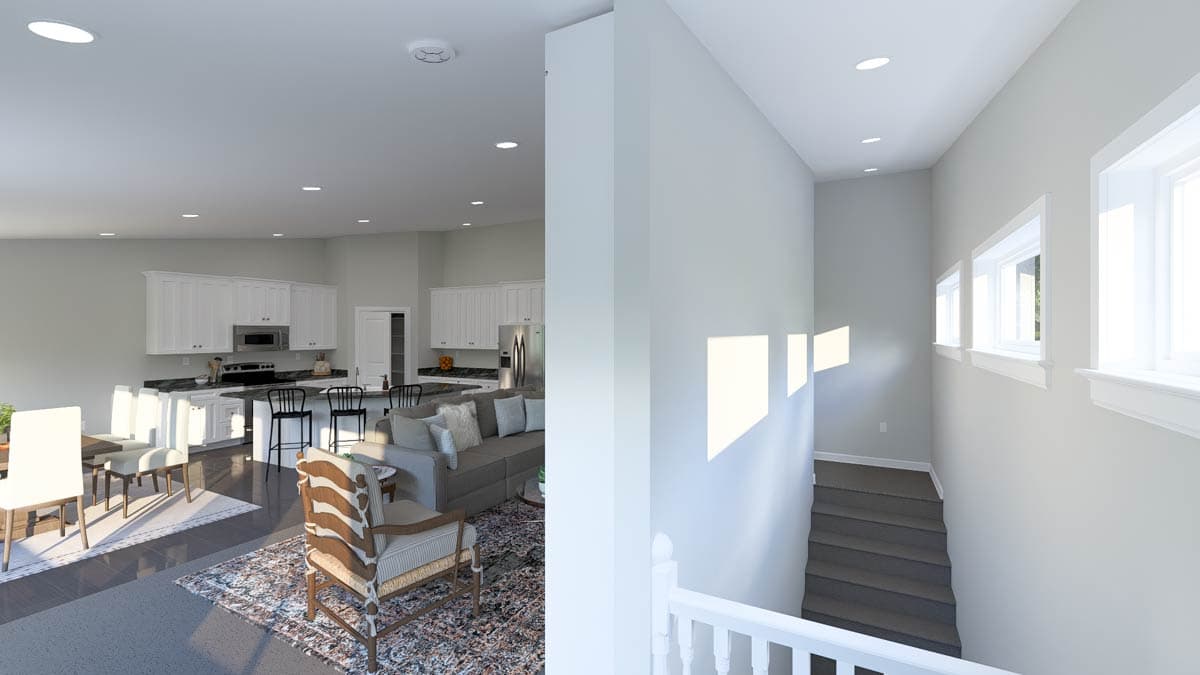

  • Enter into a spacious layout with an open-concept family room adjacent to the dining area and kitchen, highlighted by an inviting island perfect for gathering.

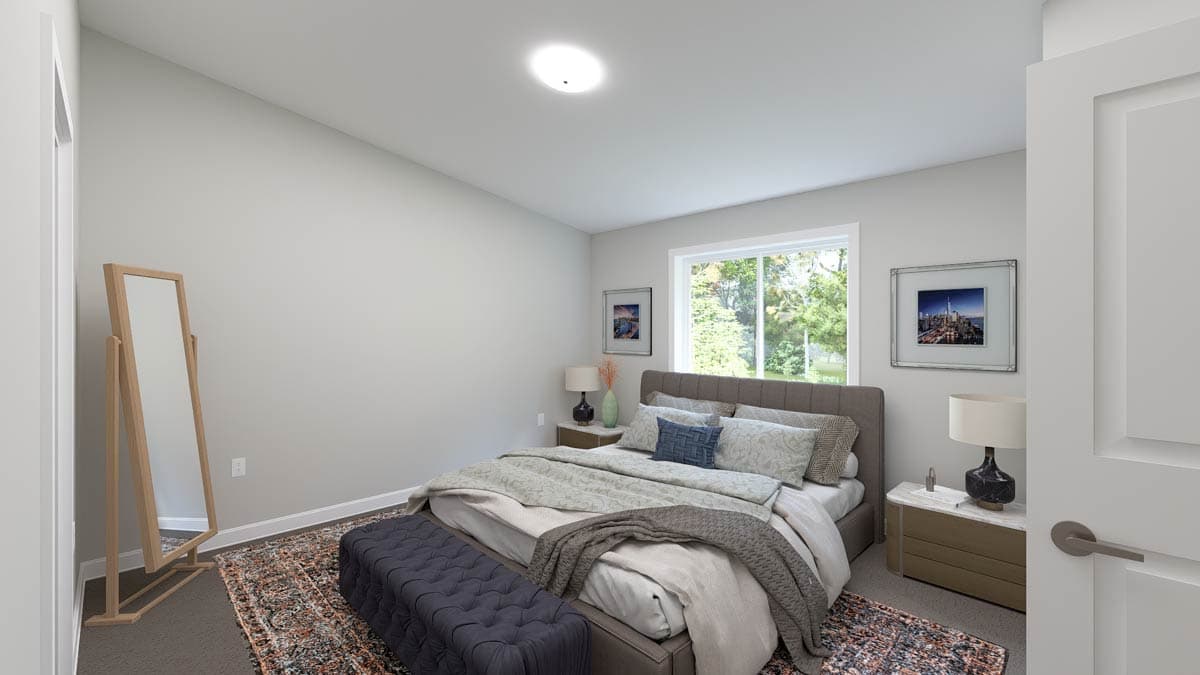

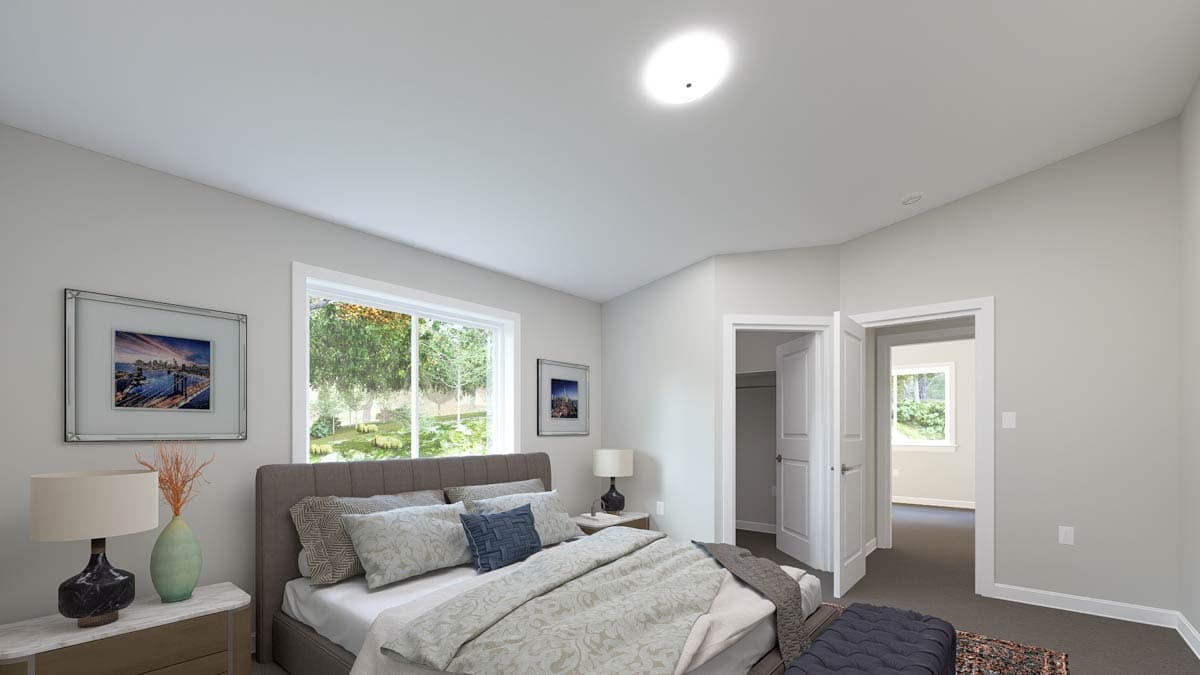

  • Upstairs, all bedrooms are clustered together for convenience, with a luxurious owner’s suite featuring a private bath and walk-in closets. The secondary bedrooms also boast ample closet space.
  • The upstairs laundry room is centrally located among the bedrooms for ultimate convenience, reducing the hassle of laundry day.

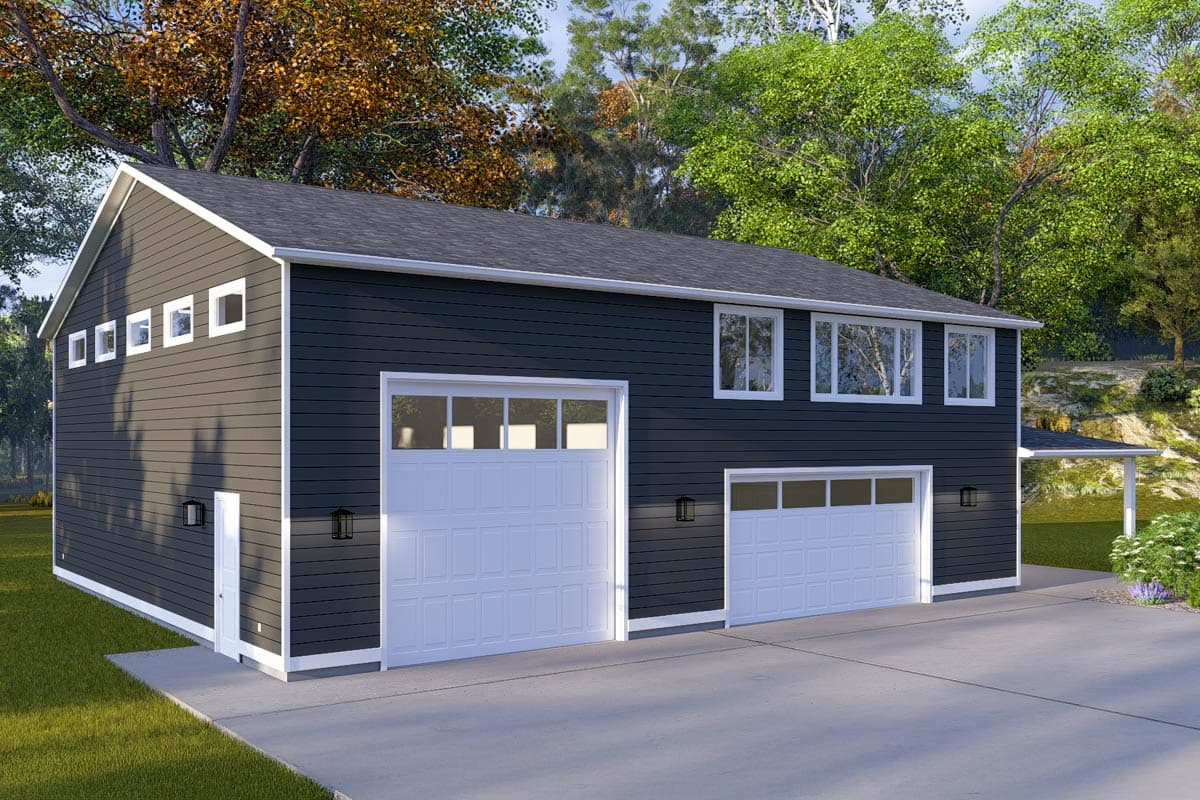

  • Unique features include a large workshop/RV garage, perfect for hobbyists or storage, and a butler walk-in pantry that adds a touch of elegance and functionality.

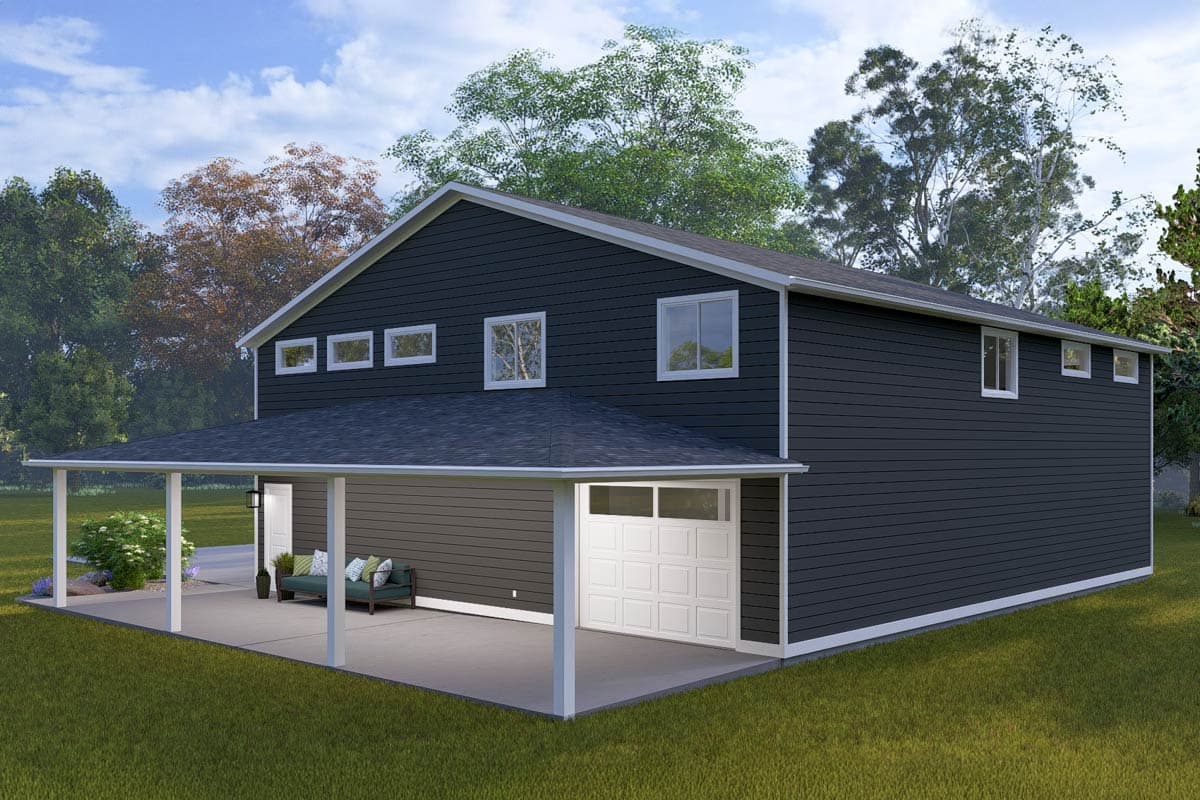

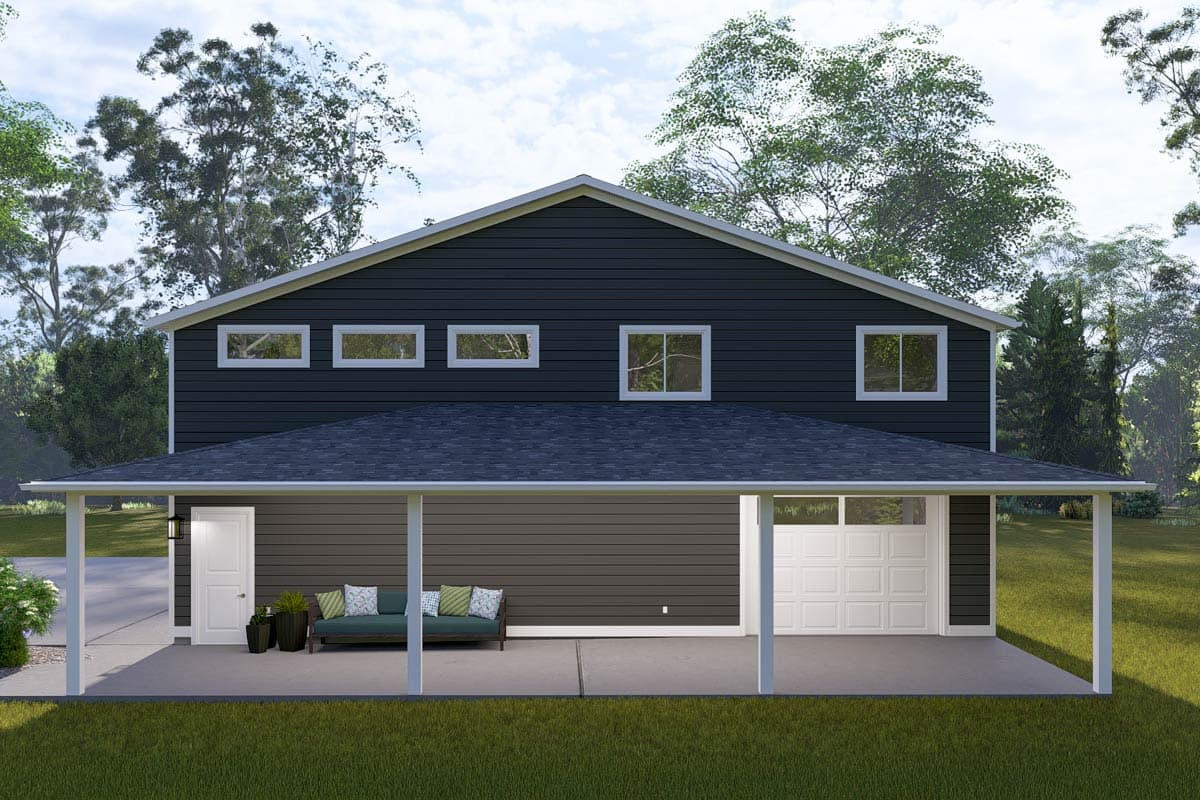

  • Enjoy the expansive 800 sq. ft. covered patio for seamless indoor-outdoor living, ideal for entertaining or relaxing in the fresh air.

What's Included

  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations
  • Cross sections
  • Electrical plans
  • General details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,766 sq. ft.

1st Floor

166 sq. ft.

2nd Floor

1,600 sq. ft.

Covered Patio

800 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

50' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached, RV Garage

Area

2584 sq. ft.

Count

4 or 5 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Second Floor

8'

RV Garage

19' 7''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Workshop
