Spacious Tudor Cottage House Plan with 4-5 Bedrooms and Vaulted Ceilings

Heated S.F.
3,965
Beds
4 - 5
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 330029WLE

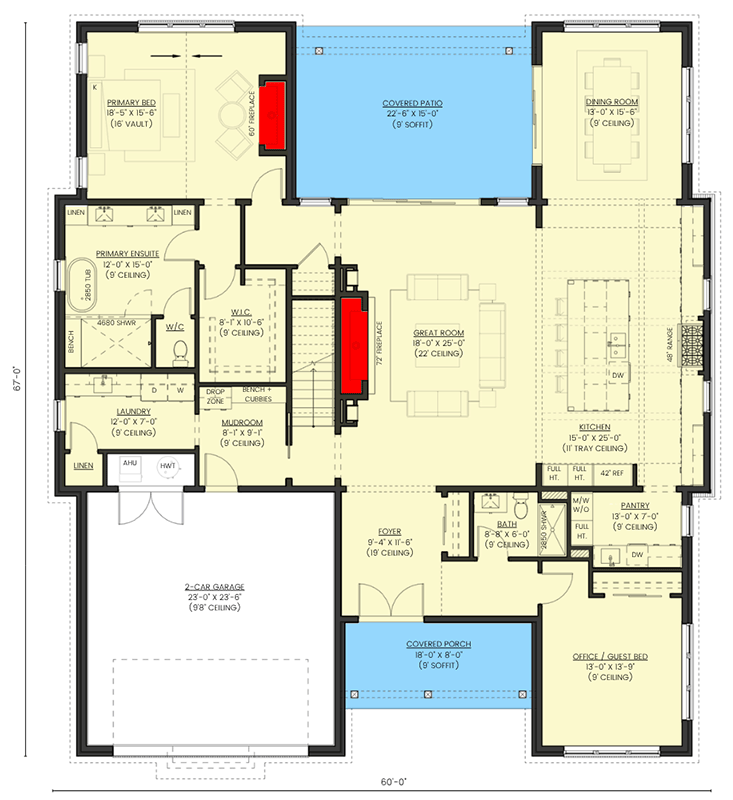

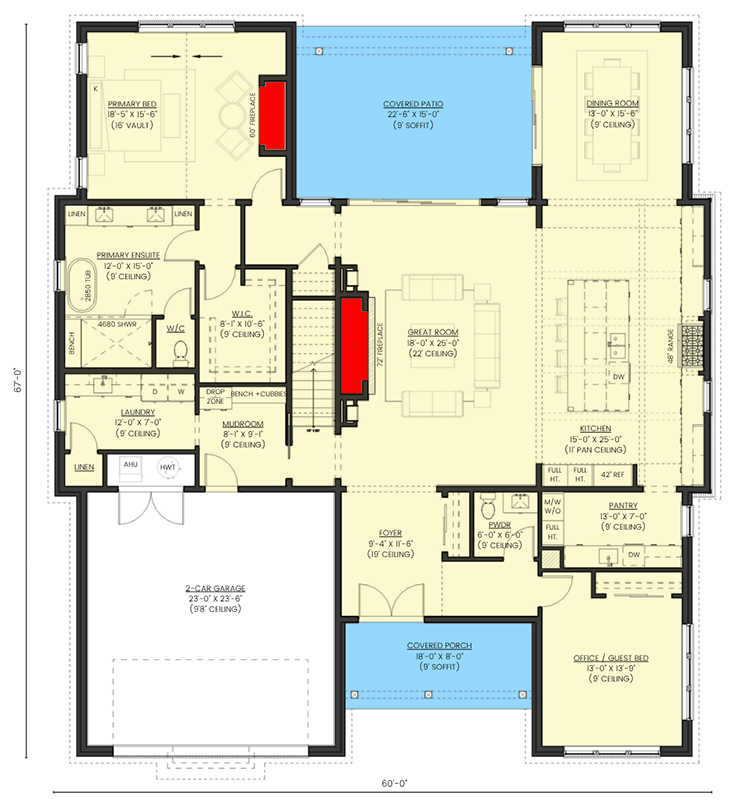

Floor Plan 1

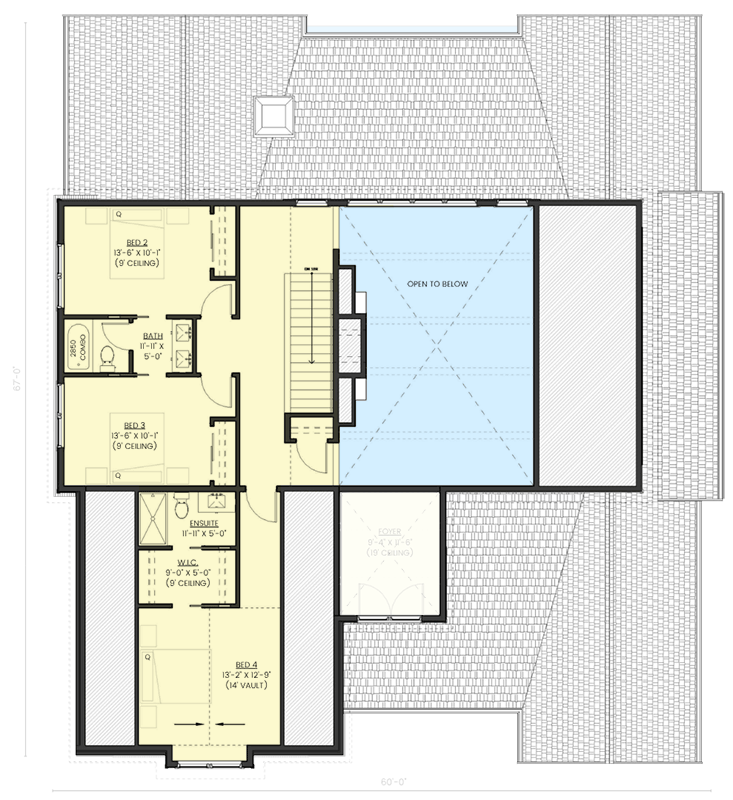

Floor Plan 2

Plan 330029WLE

M-F 9am-5pm EST |

1-203-761-8500

Plan 330029WLE: Spacious Tudor Cottage House Plan with 4-5 Bedrooms and Vaulted Ceilings - Floor Plan - - Cottage, Tudor

Plan 330029WLE: Spacious Tudor Cottage House Plan with 4-5 Bedrooms and Vaulted Ceilings - Floor Plan - - Cottage, Tudor

Plan Details

  • This sophisticated Tudor cottage offers 3,965 finished square feet, 4 to 5 bedrooms, 3.5 baths, and an integrated 579 square foot 2-car garage.
  • The striking exterior features steep roof pitches and classic brickwork, welcoming guests through a charming covered entry that opens into a dramatic 19-foot volume foyer.
  • An expansive 22-foot high great room serves as the heart of the home, flowing seamlessly into a kitchen defined by an 11-foot tray ceiling and a convenient walk-in pantry.
  • The primary suite is thoughtfully positioned on the main level for privacy, boasting a 16-foot vaulted ceiling and a dedicated sitting area, while secondary bedrooms occupy the upper floor with Jack and Jill bath access.
  • A dedicated main-level home office provides a quiet retreat for remote work, complemented by a practical mudroom for organized daily transitions.
  • The unfinished basement provides 2,716 square feet of flexible potential for future expansion, including space for a home theater, workshop, or additional recreational areas.

What's Included

  • Foundation Plan - Foundation wall and footing locations
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

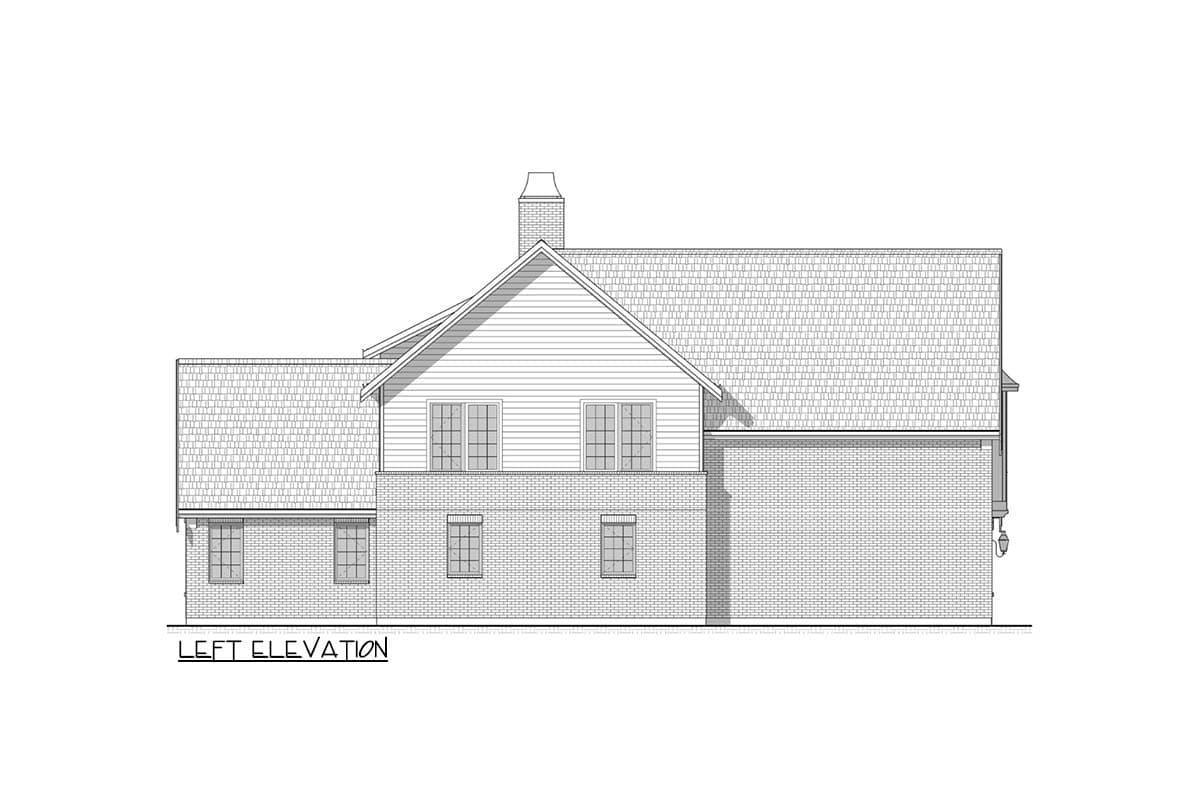

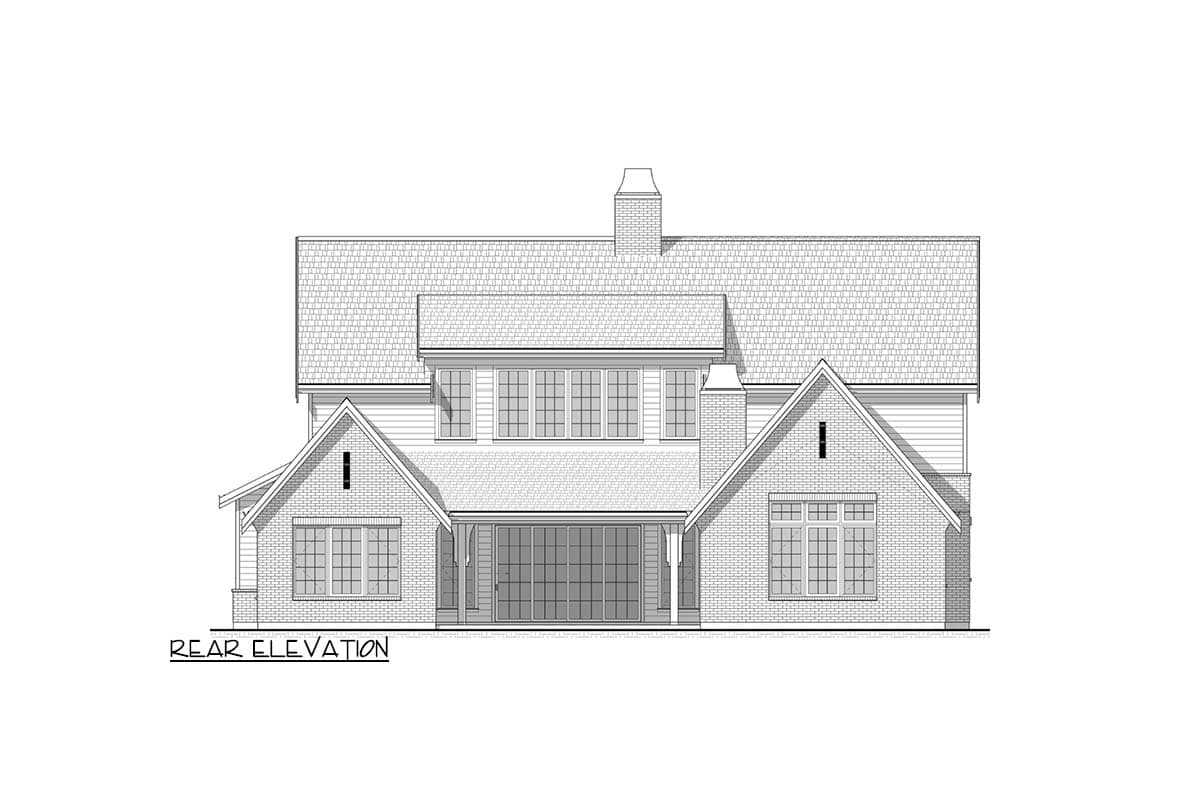

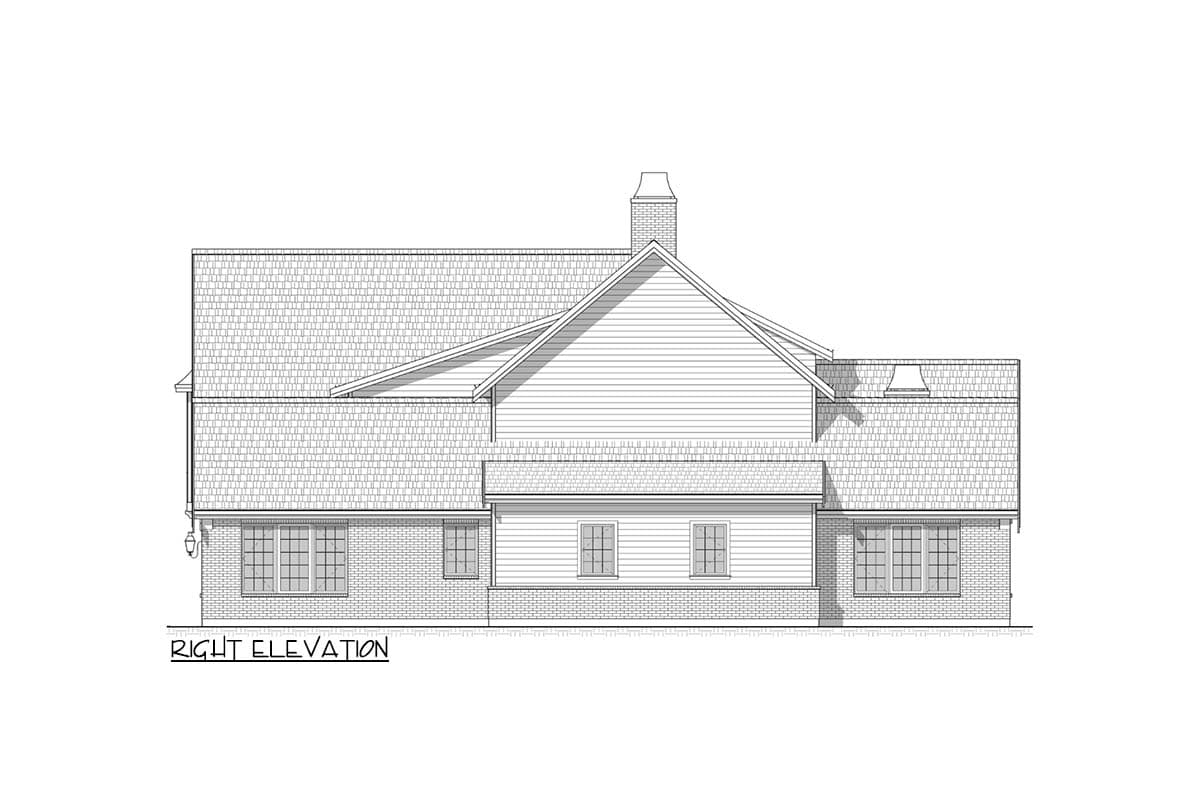

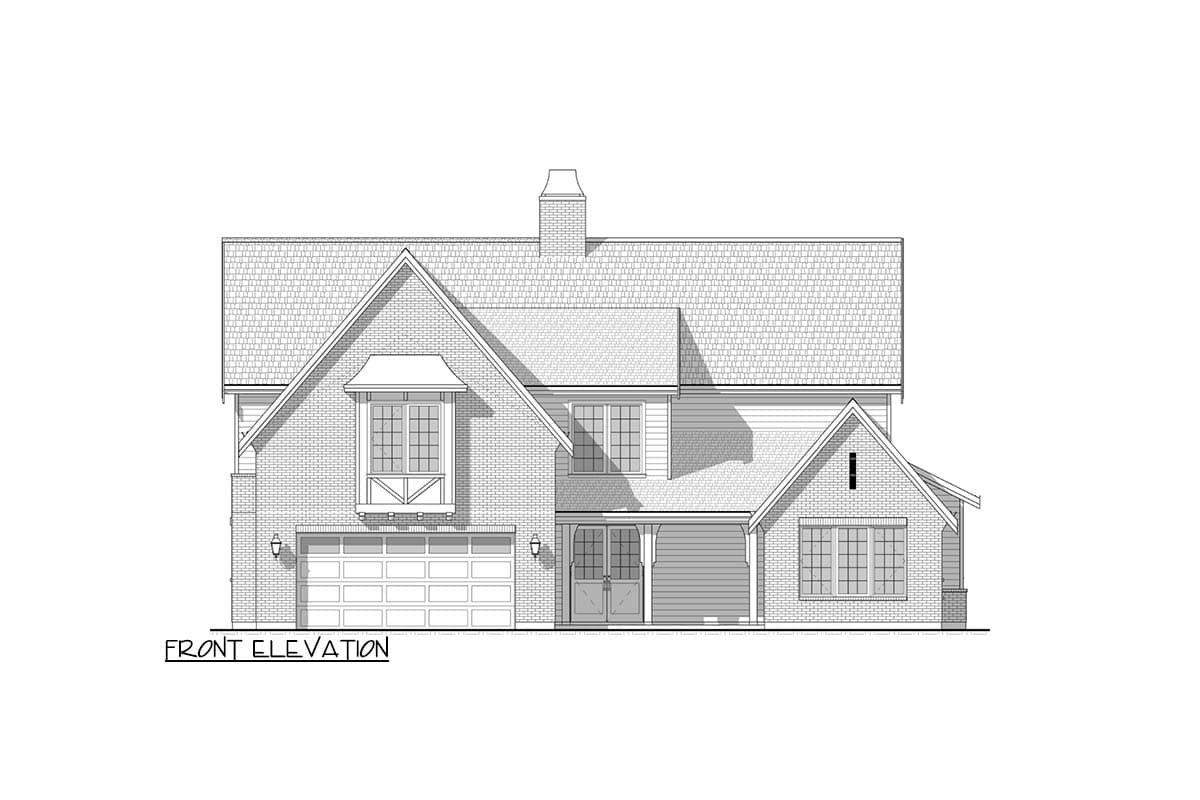

  • Exterior Elevations - Views of the front, rear, and sides of the home. Plus material and color legends that align with the renderings.
  • Sections - Full building cross sections.
  • Details - Typical details for foundation, floor framing, roof and any necessary details for specific Architectural elements.
  • Electrical Plans - Basic locations of lights, outlets, switches, panels and switching diagrams.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  • Plumbing Drawings
  • Framing and roof framing layouts with beam sizes and locations
  • Footing sizing, depths and rebar calculations
  • Material lists
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,965 sq. ft.

1st Floor

2,675 sq. ft.

2nd Floor

1,290 sq. ft.

Basement Unfinished

2,716 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

67' 0"

Max Ridge Height

32' 5"

Garage

Type

Standard

Area

579 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Foyer

Volume

19' 0''

Great Room

Volume

22' 0''

Kitchen

Tray

11' 0''

Master Bedroom

Vaulted

16' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Cottage

Tudor

Special Features

Bedrooms - Split

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Two Story Great Room

Walk-in Pantry

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,965 sq. ft.

1st Floor

2,675 sq. ft.

2nd Floor

1,290 sq. ft.

Basement Unfinished

2,716 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

67' 0"

Max Ridge Height

32' 5"

Garage

Type

Standard

Area

579 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Foyer

Volume

19' 0''

Great Room

Volume

22' 0''

Kitchen

Tray

11' 0''

Master Bedroom

Vaulted

16' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Cottage

Tudor

Special Features

Bedrooms - Split

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Two Story Great Room

Walk-in Pantry

Plan Collections

Canadian House Plans
