Plan 42828MJ

Spanish Courtyard Home Plan

Heated S.F.
4,247
Beds
5
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 42828MJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42828MJ

M-F 9am-5pm EST |

1-203-761-8500

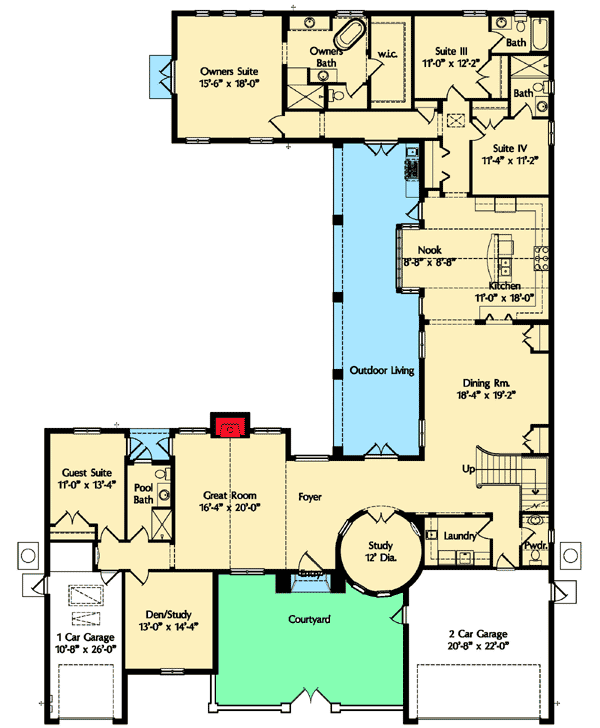

Main Level

Plan 42828MJ: Spanish Courtyard Home Plan - Floor Plan - Main Level - European, Mediterranean, Spanish

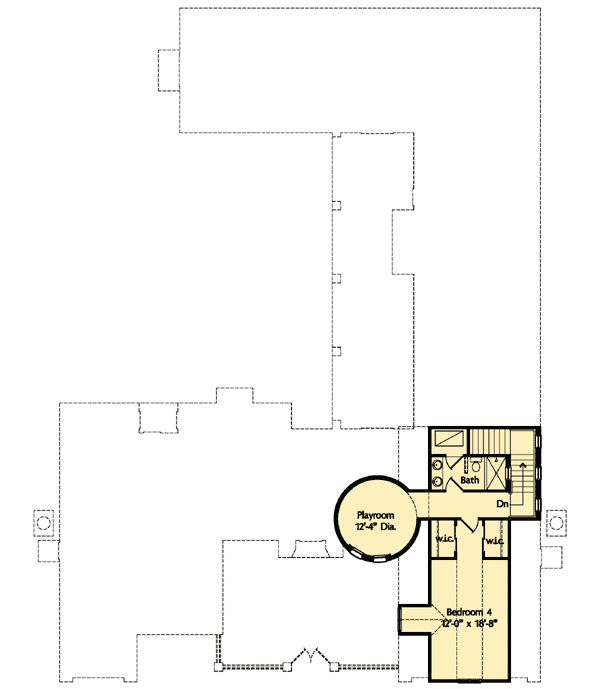

2nd Floor

Plan 42828MJ: Spanish Courtyard Home Plan - Floor Plan - 2nd Floor - European, Mediterranean, Spanish

Plan Details

  • A private front courtyard introduces you to this elegant Spanish style home.
  • A vaulted ceiling raises the great room up and a quiet guest suite is set off by itself.
  • This home has not one, but two studies, one of which is set in a 12' circular shape.
  • The dining room, nook and kitchen face out to a lovely side porch with grilling area.
  • The owner's suite is also set off by itself with a huge soaking tub and grand walk-in closet.
  • A delightful playroom on the second floor mirrors the circular study below.
  • The private bedroom on this level would function well as an in-law suite.
  • The roof is a truss design and has a 4 on 12 pitch.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,247 sq. ft.

1st Floor

3,630 sq. ft.

2nd Floor

617 sq. ft.

Porch, Combined

577 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

74' 8"

Depth

104' 8"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

781 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Spanish

Special Features

Breakfast Nook

Courtyard

In-Law Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Playroom

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

4,247 sq. ft.

1st Floor

3,630 sq. ft.

2nd Floor

617 sq. ft.

Porch, Combined

577 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

74' 8"

Depth

104' 8"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

781 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Spanish

Special Features

Breakfast Nook

Courtyard

In-Law Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Playroom

Plan Collections

Luxury
