Spanish House Plan with Clustered Bedrooms and Screened Porch

Name: Plan 720170DA: Spanish House Plan with Clustered Bedrooms and Screened Porch
Brand: Architectural Designs
SKU: 720170DA
Price: 1150.0 USD
Availability: InStock

Heated S.F.

1,636

Beds

Baths

Stories

Cars

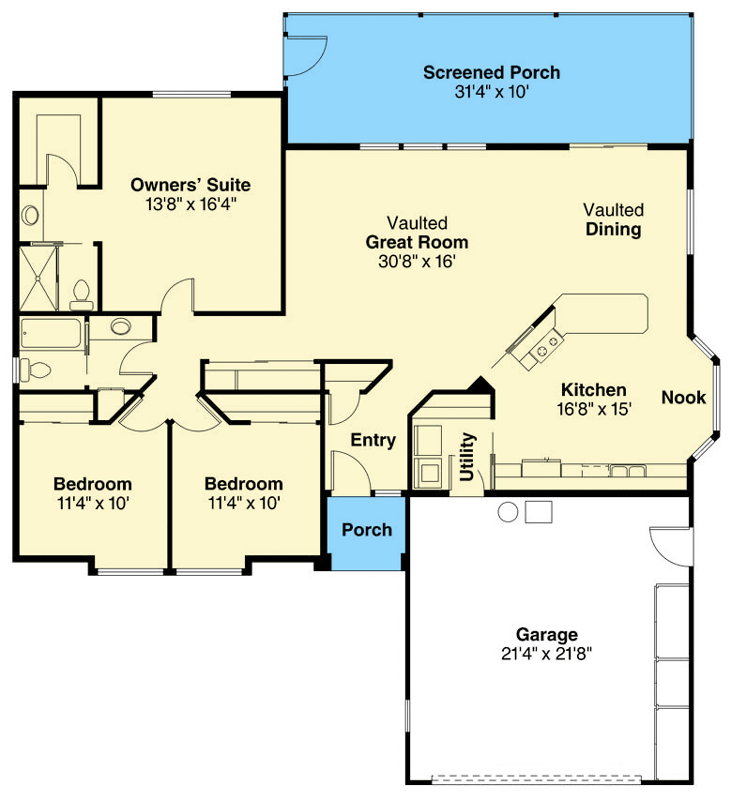

Floor Plan

Main Level

Plan Details

This captivating 1,636 sq. ft. Spanish-style house plan features 3 bedrooms, 2 full bathrooms, and a spacious 484 sq. ft. two-car side-entry garage, all designed for seamless living.
Step inside to discover a thoughtfully designed layout where a welcoming entry hall separates the private sleeping quarters from the expansive, open-concept living spaces.
The heart of the home unfolds into a vaulted great room and vaulted dining area, creating an airy and bright atmosphere, while the gourmet kitchen with its central island and charming breakfast nook serves as a perfect hub for daily meals and entertaining.
Retreat to the luxurious owners' suite, privately situated on one side of the home, offering an en-suite bathroom with dual vanities and a large walk-in closet, while two additional bedrooms that share a full bathroom, ensuring comfort for all.
Enjoy tranquil mornings or evening breezes on the expansive screened porch, seamlessly accessed from the great room, providing a private outdoor oasis perfect for relaxation amidst your natural surroundings.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

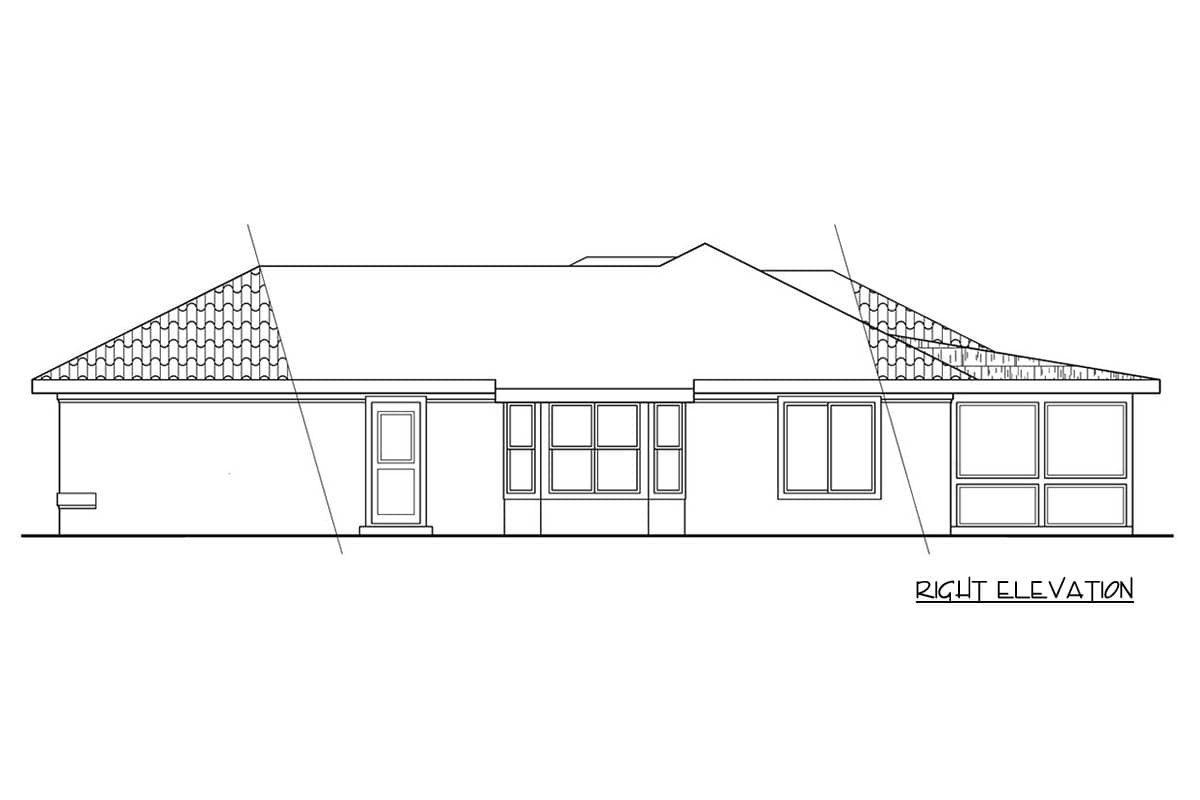

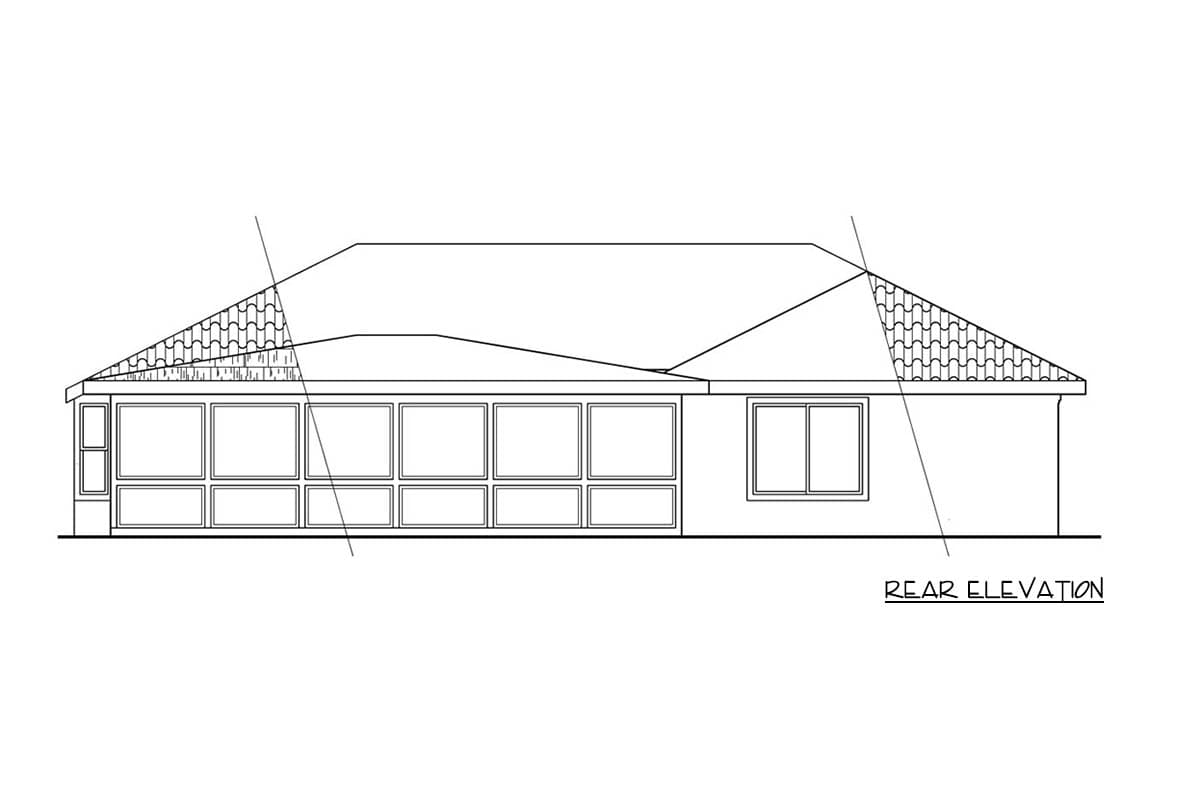

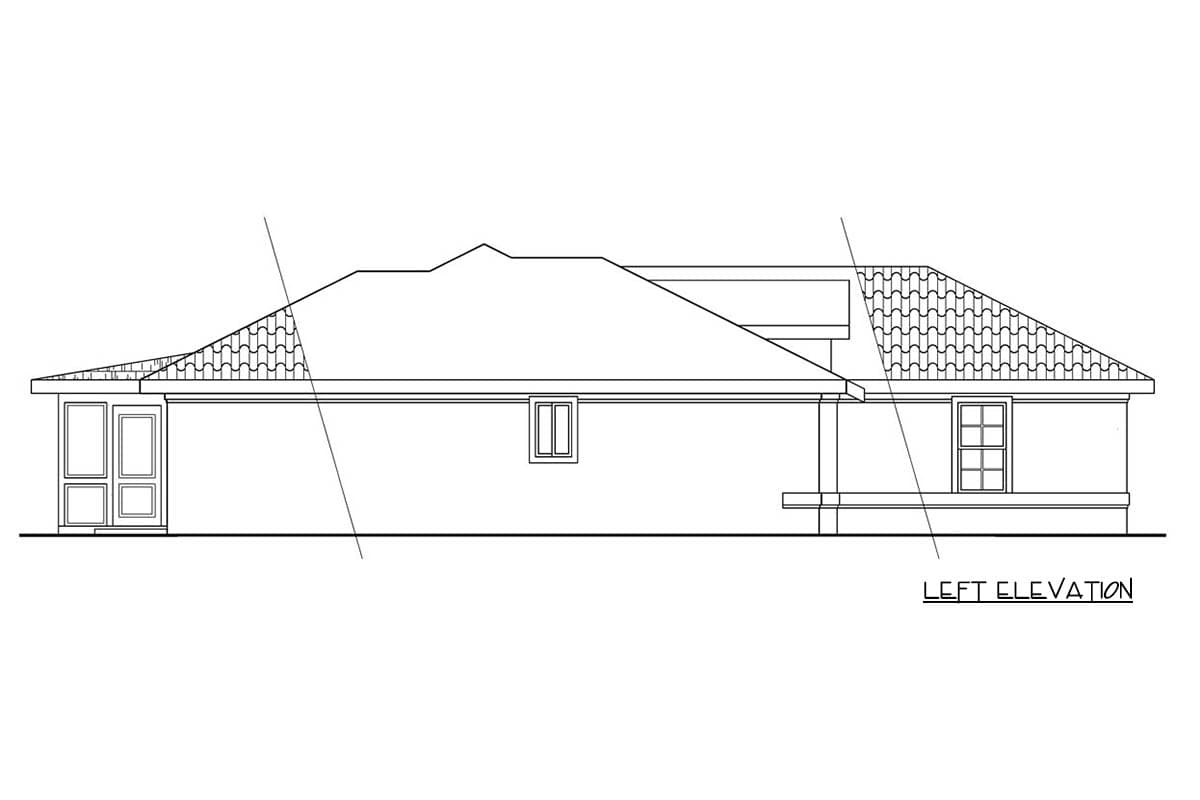

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
