Spectacular 5-Bed Farmhouse with Multiple Porches and 3-Car Garage

Spectacular 5-Bed Farmhouse with Multiple Porches and 3-Car Garage

Plan 83911JW

  • 3,245

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Enjoy Southern living with this beautiful, 5-bedroom farmhouse plan. The front elevation offers a large, covered porch with a french-door, front entry and a cross, gabled roof.

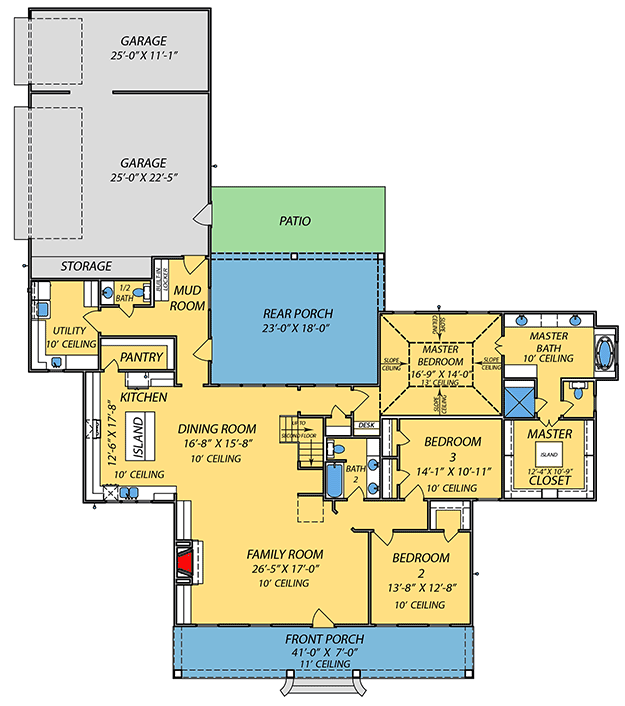

  • The front door leads you into the family room, which includes a fireplace surrounded by built-ins, and opens to the dining room and kitchen. A large island and walk-in pantry provide ample storage and workspace for the modern chef.
  • Your master suite awaits down the hall and features tall, sloped ceilings and a master bath with dual sinks, a separate tub and shower, and a large, master closet with an island. Two additional bedrooms reside on the main level and share the main-level, 4-fixture bathroom.

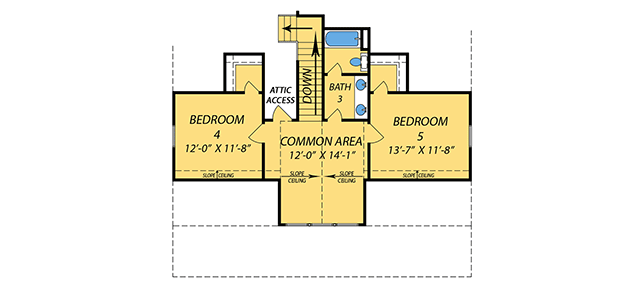

  • Bedrooms four and five reside on the second level on either side of a common area and 4-fixture bathroom.
  • A mud room and laundry room sit just inside the 3-car, side-entry garage.

Elevations

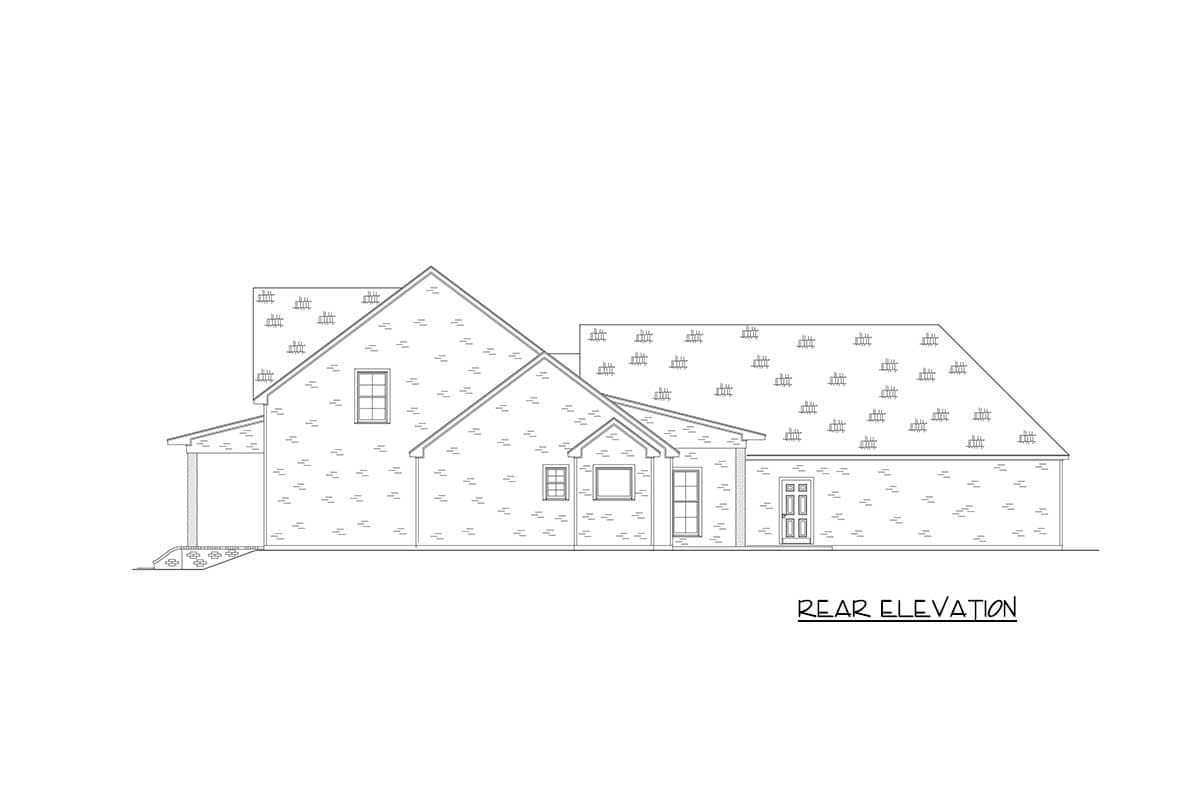

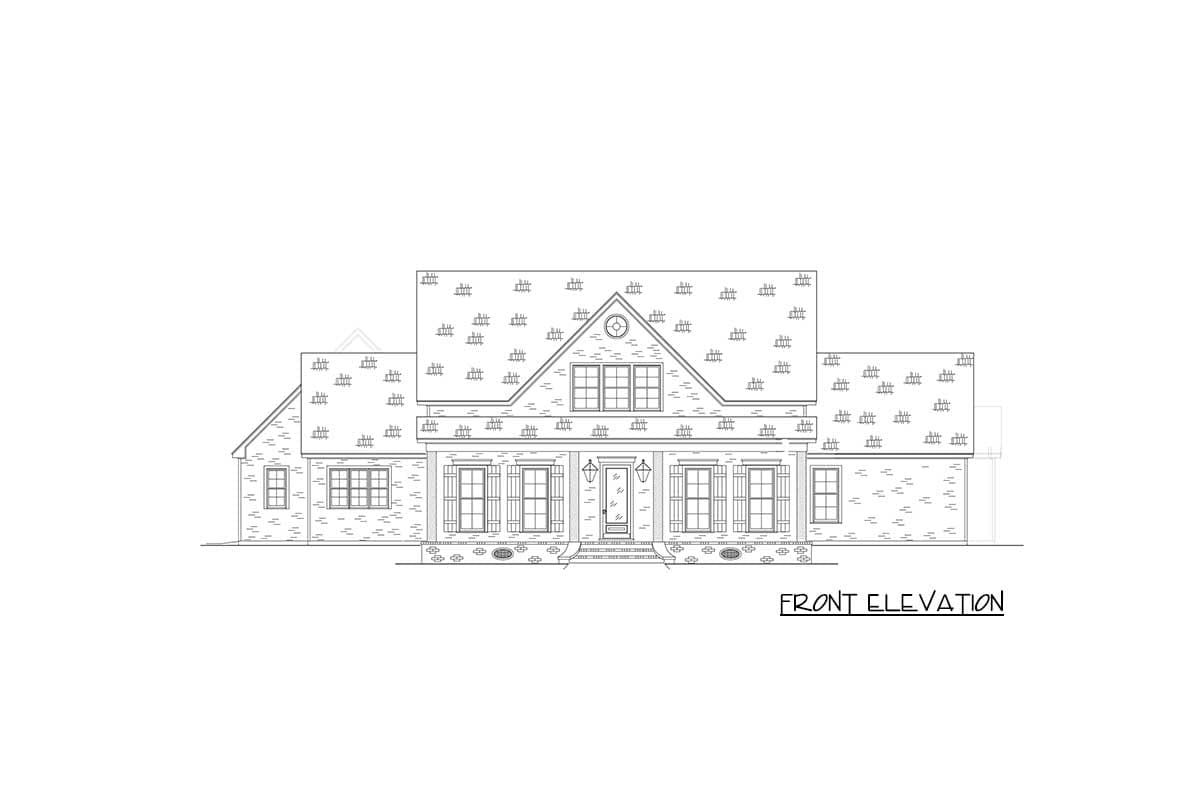

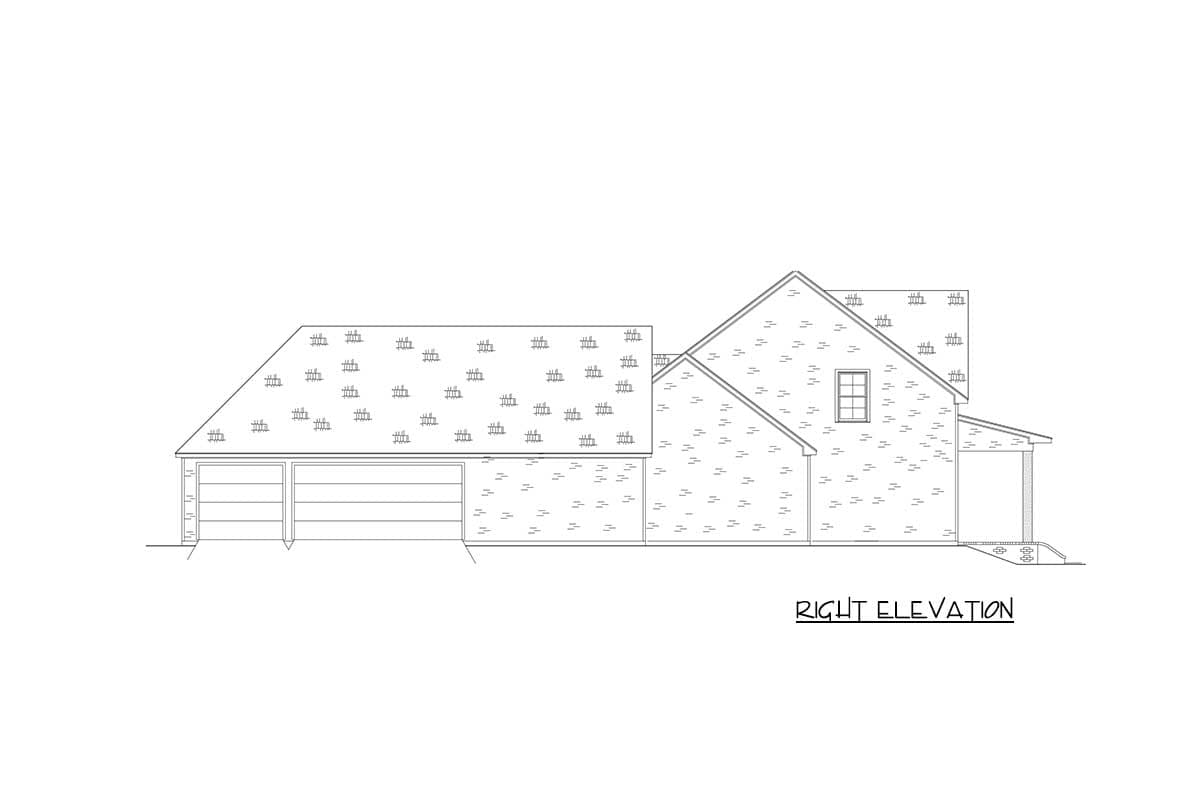

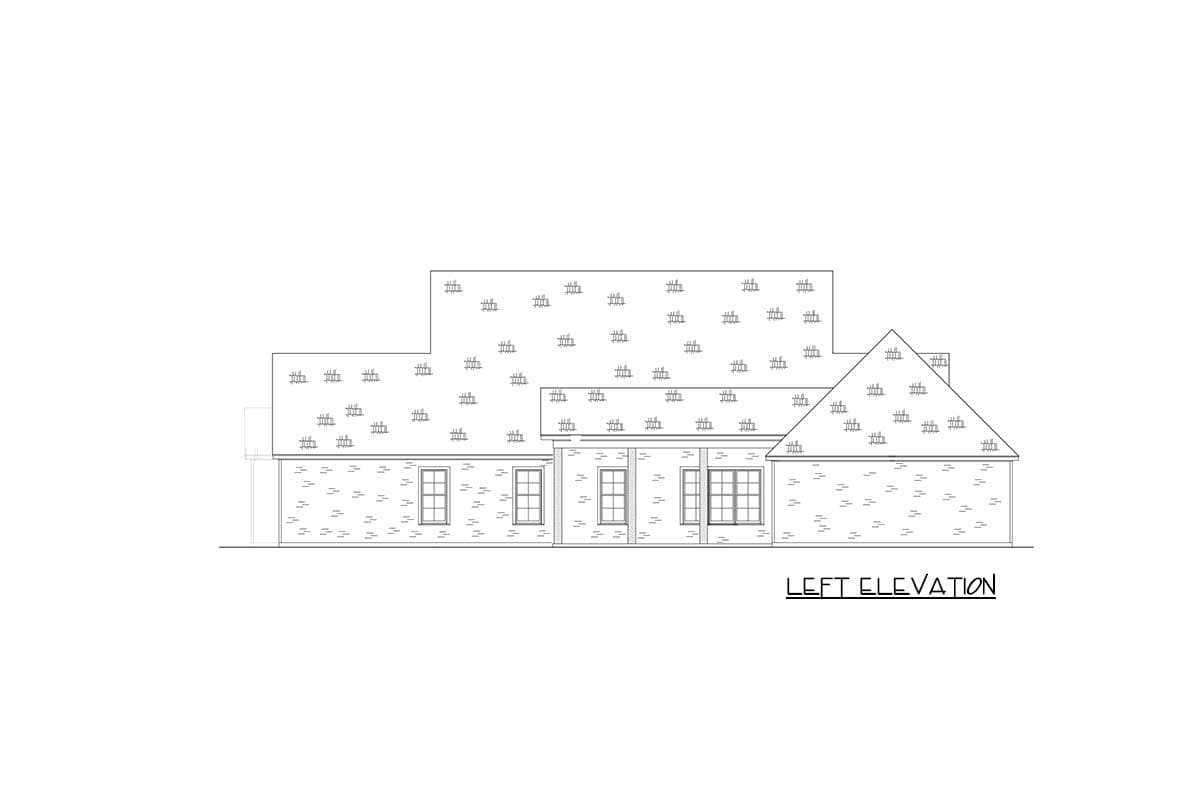

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Spectacular 5-Bed Farmhouse with Multiple Porches and 3-Car Garage

  • 3,245

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $1,045
  • PDF - single-use $1,045
  • 5 Sets $1,095
  • 8 Sets $1,195
  • PDF - multi-use $1,695
  • CAD $1,895
  • CAD - multi-use $2,395
  • View all purchase option online

About This Plan

  • Enjoy Southern living with this beautiful, 5-bedroom farmhouse plan. The front elevation offers a large, covered porch with a french-door, front entry and a cross, gabled roof.
  • The front door leads you into the family room, which includes a fireplace surrounded by built-ins, and opens to the dining room and kitchen. A large island and walk-in pantry provide ample storage and workspace for the modern chef.
  • Your master suite awaits down the hall and features tall, sloped ceilings and a master bath with dual sinks, a separate tub and shower, and a large, master closet with an island. Two additional bedrooms reside on the main level and share the main-level, 4-fixture bathroom.
  • Bedrooms four and five reside on the second level on either side of a common area and 4-fixture bathroom.
  • A mud room and laundry room sit just inside the 3-car, side-entry garage.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,245 sq. ft.
  • 1st Floor: 2,538 sq. ft.
  • 2nd Floor: 707 sq. ft.
  • Porch, Combined: 708 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Basement, Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 92' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 905 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
