Plan 290004IY

Splendid Three Level Craftsman House Plan

Name: Plan 290004IY: Splendid Three Level Craftsman House Plan
Brand: Architectural Designs
SKU: 290004IY
Price: 3700.0 USD
Availability: InStock

Heated S.F.

5,812

Beds

3 - 5

Baths

4.5 - 6.5

Stories

Cars

Floor Plan

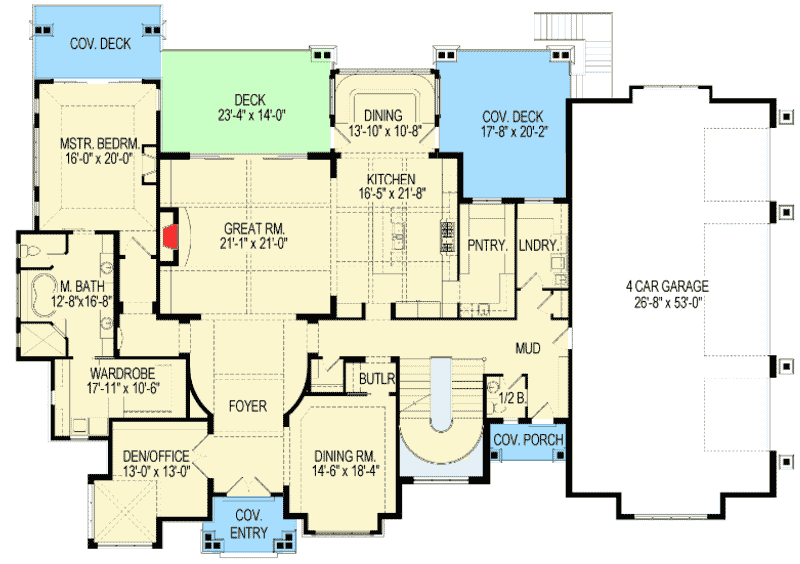

Main Level

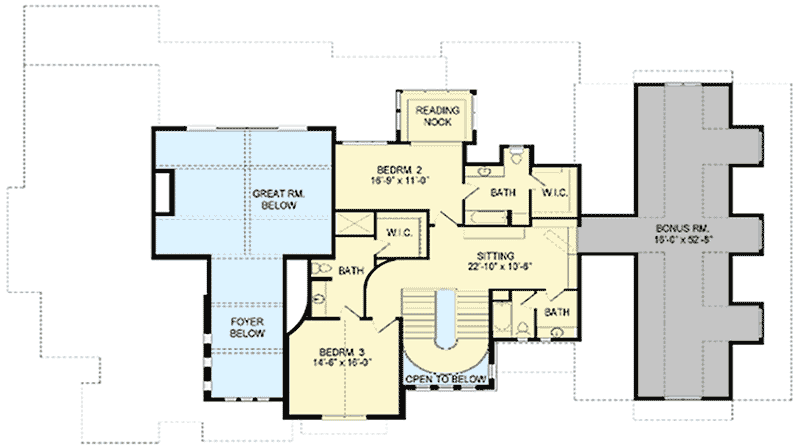

Second Level

Optionally Finished Lower Level

Plan 290004IY: Splendid Three Level Craftsman House Plan - Floor Plan - null - Craftsman, Northwest

Plan Details

With over 8,000 square feet and five bedrooms, this exciting Craftsman house plan was designed for a large family with amenities for all.
Double doors open to a foyer that widens further back with tremendous views of the huge vaulted great room and the open deck beyond.
A built-in banquette with windows on three sides brightens the informal breakfast nook area.
Choose from a covered deck or open deck on either side.
The deluxe master suite gets its own covered deck, a tray ceiling and a romantic fireplace.
Bedroom 2 on the second floor offers a reading nook that mirrors the breakfast nook below.
Bedroom 3 has a vaulted ceiling and both bedrooms share the large second floor sitting area.

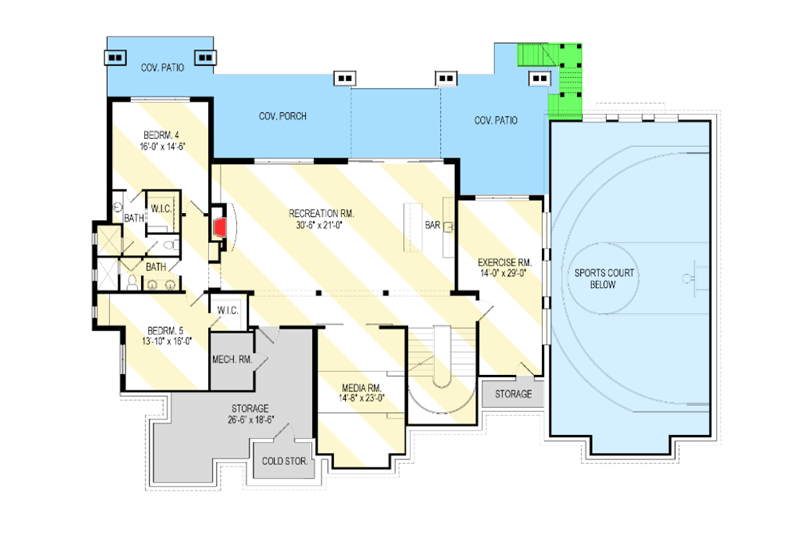

On the optional finished lower level, two more bedrooms each have a huge walk-in closet.
The rec room is enormous and comes with a wet bar.
Work out in the huge exercise room or watch movies at home in the spacious home theater with platform seating.

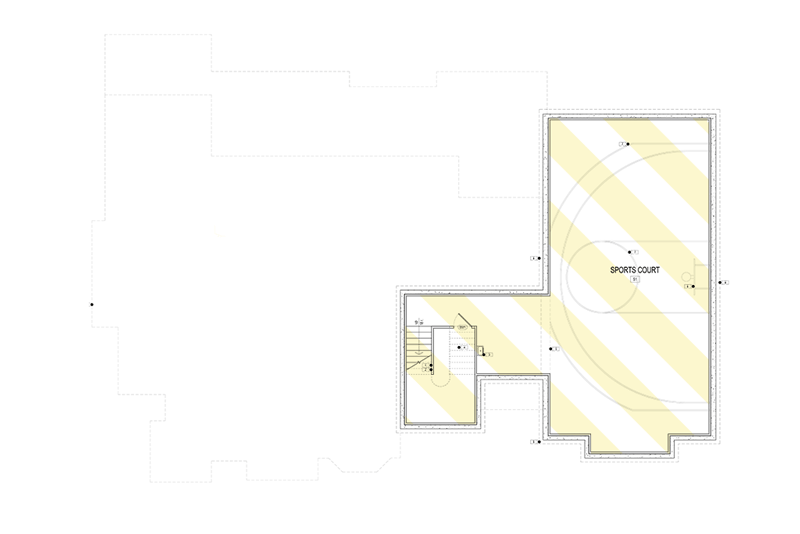

There's even a sports court that adds an extra 1,846 square feet of space.

What's Included

This plan set includes the following:

Cover sheet (with rendering)
Notes page
Complete schedule page
Foundation plan
Floor plans
Dimension plans
Elevations
Sections
Architectural details
3D perspective views (not included with all plans)
Floor finish plans
Roof plan
Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
