Plan 56430SM

Split Bed Acadian House Plan with Optional Bonus Room

Pageloader

Split Bed Acadian House Plan with Optional Bonus Room

Plan 56430SM

  • 2,602

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • An 8'-deep porch with four cedar posts sits in front of this 4-bed Acadian house plan with a brick exterior.
  • The foyer has a 12' ceiling and leads you to the massive family room with fireplace and access to the rear porch with outdoor kitchen and fireplace as well.
  • The sturdy kitchen island has a double sink and dishwasher on the working side and seating for friends on the other. Open to the family room and dining room, and with a walk-in pantry steps away from the garage entrance, this is a well-thought-out kitchen design.
  • The master bedroom has a tray ceiling. The bath gives you dual vanities, two walk-in closet a spa tub and a two-person walk-in shower.
  • A mudroom off the garage has a built-in bench and a roomy utility room.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

Plan details



Split Bed Acadian House Plan with Optional Bonus Room

  • 2,602

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,025
  • 6 Sets $1,125
  • 5 Sets PLUS $1,325
  • CAD $2,025
  • CAD - multi-use $2,420
  • View all purchase option online

About This Plan

  • An 8'-deep porch with four cedar posts sits in front of this 4-bed Acadian house plan with a brick exterior.
  • The foyer has a 12' ceiling and leads you to the massive family room with fireplace and access to the rear porch with outdoor kitchen and fireplace as well.
  • The sturdy kitchen island has a double sink and dishwasher on the working side and seating for friends on the other. Open to the family room and dining room, and with a walk-in pantry steps away from the garage entrance, this is a well-thought-out kitchen design.
  • The master bedroom has a tray ceiling. The bath gives you dual vanities, two walk-in closet a spa tub and a two-person walk-in shower.
  • A mudroom off the garage has a built-in bench and a roomy utility room.

Floor Plans

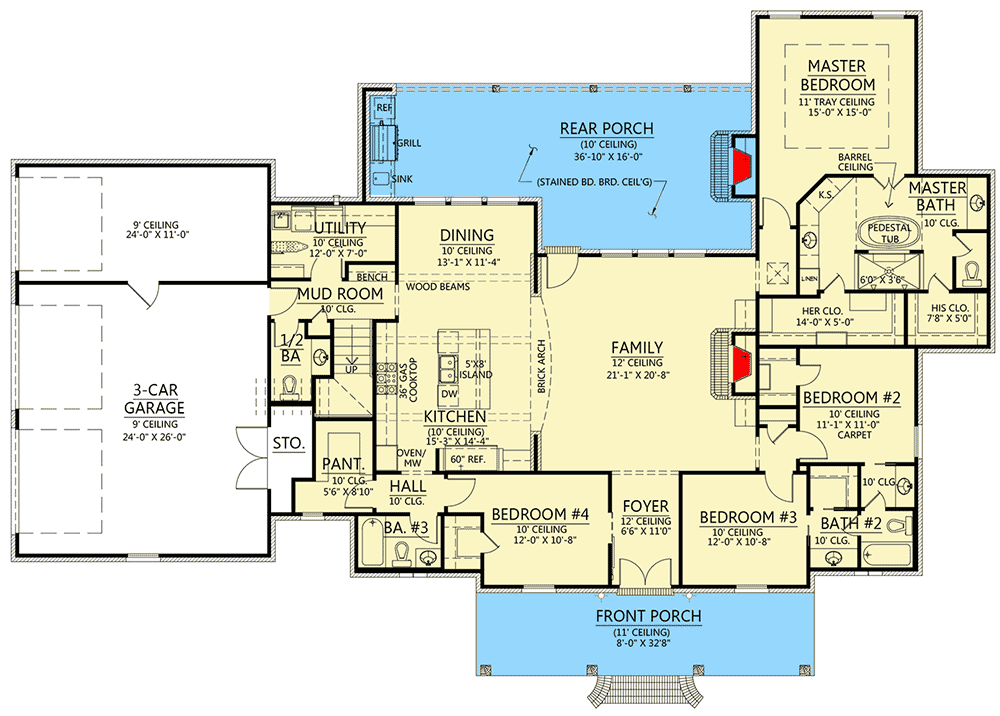

  • Main Level

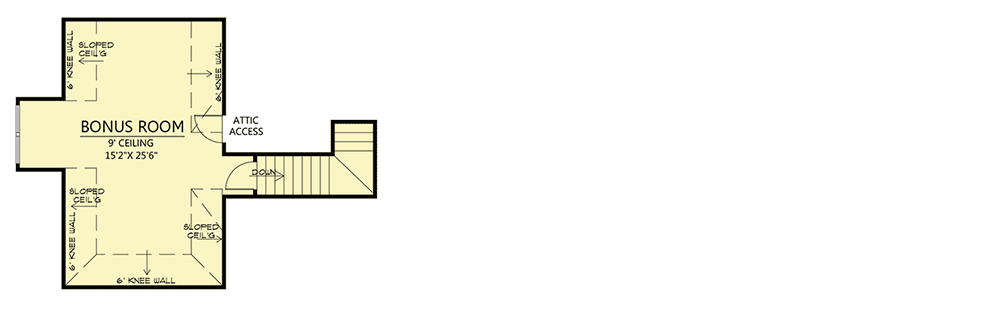

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,602 sq. ft.
  • 1st Floor: 2,602 sq. ft.
  • Porch, Front: 262 sq. ft.
  • Bonus: 459 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 95' 0"
  • Depth: 64' 2"

Garage

  • Type: Attached
  • Area: 888 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
