Plan 51803HZ
Split Bed Country Craftsman House Plan - 2074 Sq Ft
Heated S.F.
2,074
Beds
3 - 4
Baths
2 - 3
Stories
1
Cars
2- 3
Photos
Floor Plan

Plan 51803HZ

Main Level
slide image 0
Bonus
slide image 1
Basement Stair Location
slide image 2

Plan 51803HZ

1-800-854-7852

1-262-521-4596

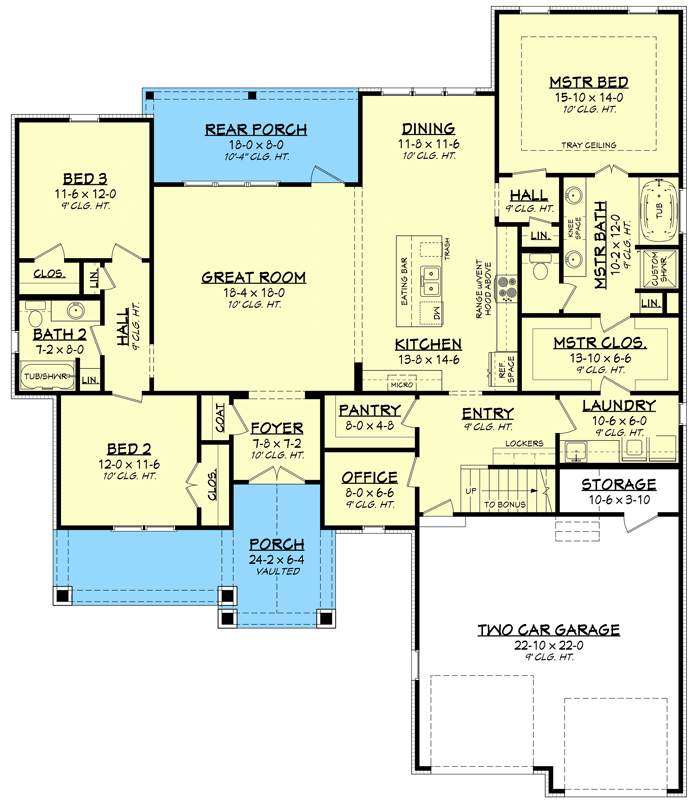

Main Level
floor plan image Main Level

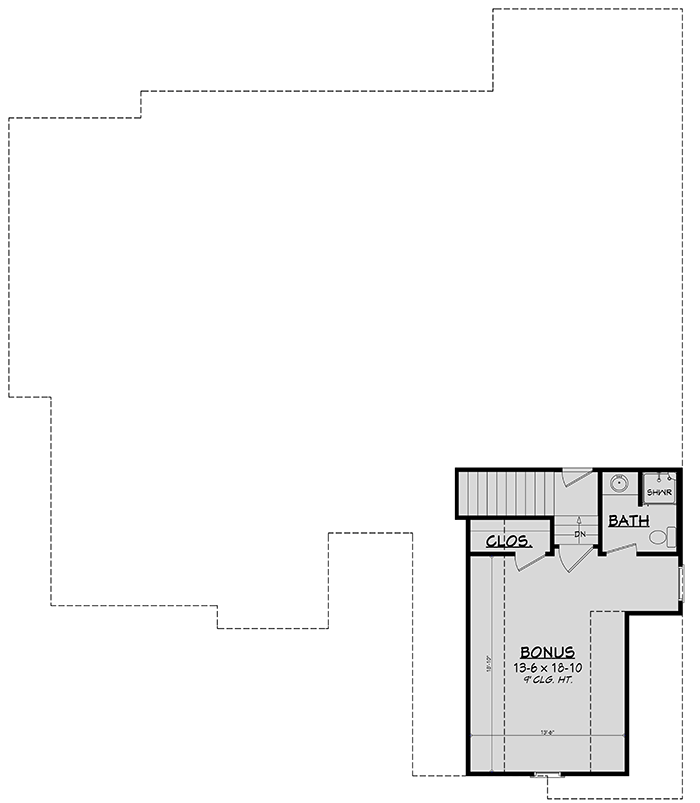

Bonus
floor plan image Bonus

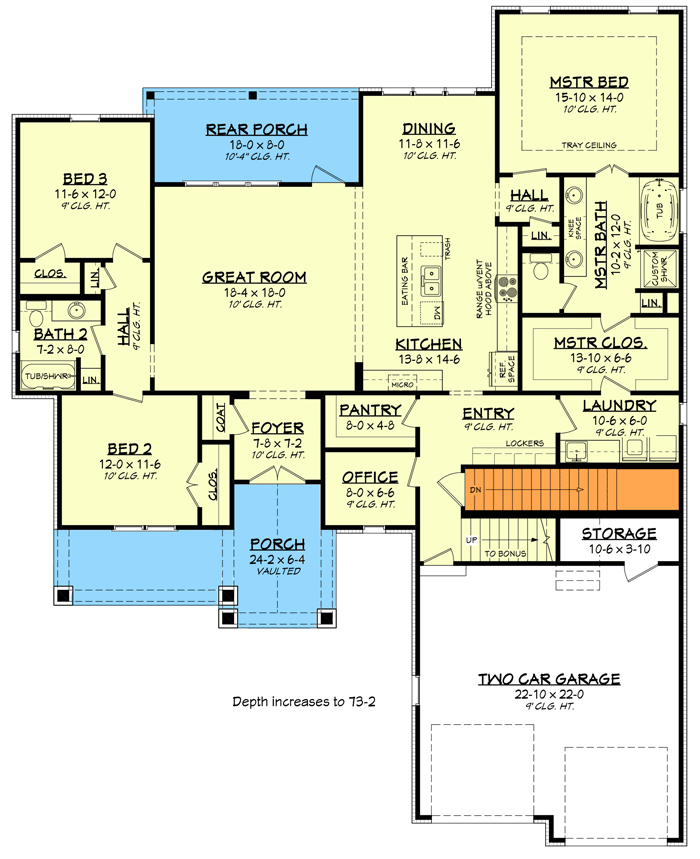

Basement Stair Location
floor plan image Basement Stair Location
Plan Details
  • This split bed country Craftsman house plan gives you three beds - plus a possible fourth with the bonus-with-bath expansion over the garage - with decorative timbers, board and batten siding and clapboard in the gables.
  • An open floor plan gives you great entertaining spaces with the great room open to the kitchen and the dining room. The great room has views across the rear porch with access provided by a single door on the back wall.
  • The kitchen is roomy and has an island with double sinks, dishwasher and casual seating on the great room side. The walk-in pantry is conveniently located to both the kitchen and the garage entrance making unloading groceries a breeze.
  • The spacious master suite has a tray ceiling and a walk-in closet with direct access to the laundry room. Across the home, two bedrooms share a bath.
  • Lockers off the garage entry help contain clutter.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 51803HZ Comes to Life in Texas

House Plan 51803HZ Comes to Life in Texas

10

Photos

What's Included
This house plan has 8 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed first floor plan and bonus plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views and other misc notes/ details
Page 5  Exterior views and other misc notes/ details
Page 6  Cross Sections & Kitchen Cabinet Views
Page 7  Roof Plan & Span Charts
Page 8  Electrical Plans & Notes
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,074 sq. ft.

1st Floor

2,074 sq. ft.

Bonus

392 sq. ft.

Porch, Front

203 sq. ft.

Porch, Rear

146 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 8"

Depth

68' 10"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

548 sq. ft.

Count

2 or 3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Bonus Room

8' 0''

Room

Ceiling Type

Height

Great Room

10' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Square Footage Breakdown

Total Heated Area

2,074 sq. ft.

1st Floor

2,074 sq. ft.

Bonus

392 sq. ft.

Porch, Front

203 sq. ft.

Porch, Rear

146 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 8"

Depth

68' 10"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

548 sq. ft.

Count

2 or 3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Bonus Room

8' 0''

Room

Ceiling Type

Height

Great Room

10' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick
