Split-bed Country Craftsman with Vaulted Family Room
Heated S.F.
2,186
Beds
4
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • Deep overhangs supported by wooden brackets add character to the exterior of this Country Craftsman home plan, complete with metal roof accents and a charming front porch.
  • The formal dining room features oversized openings into the foyer and vaulted family room. A multi-panel glass door brings the outdoors in and provides easy access to the 26'1" by 12' back porch.
  • The kitchen is a chef's dream with a large central island for meal prep surrounded by appliances and additional counter space. A walk-in pantry is located just across from the double garage to help when unloading groceries.
  • The split-bedroom layout offers additional privacy to the primary suite which is crowned by a vaulted ceiling and accompanied by a 5-fixture bath and pass-thru closet that connects to the laundry room.
  • Three bedrooms line the left side of the design; two share a Jack-and-Jill bathroom.
  • Related Plan: Find an alternate exterior with plan 818026JSS.
What's Included
  • Foundation plan

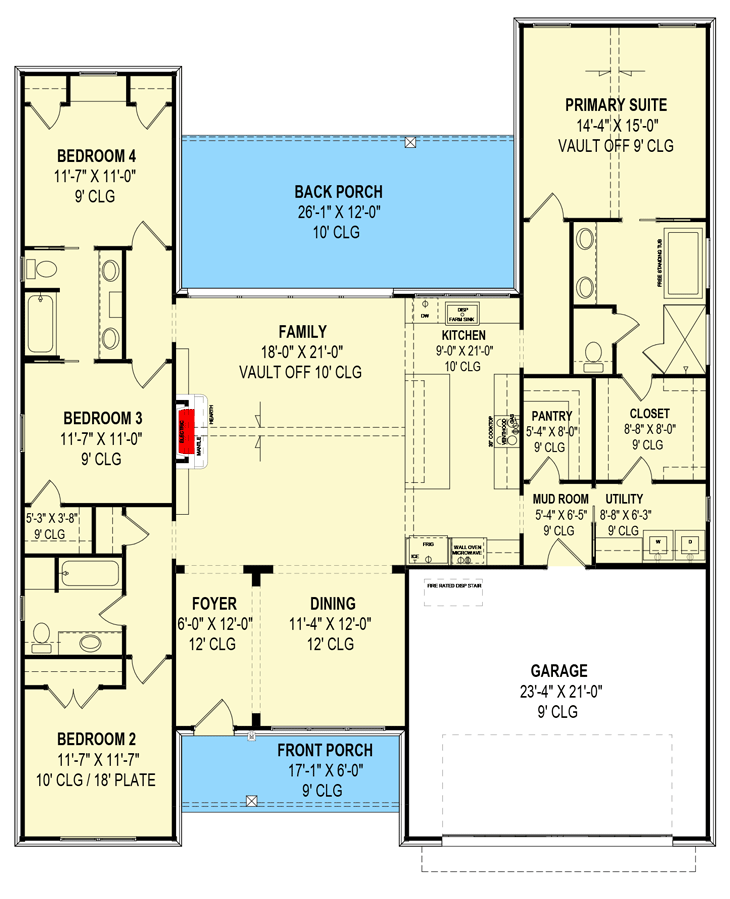

  • Detailed floorplans
  • Roof plan

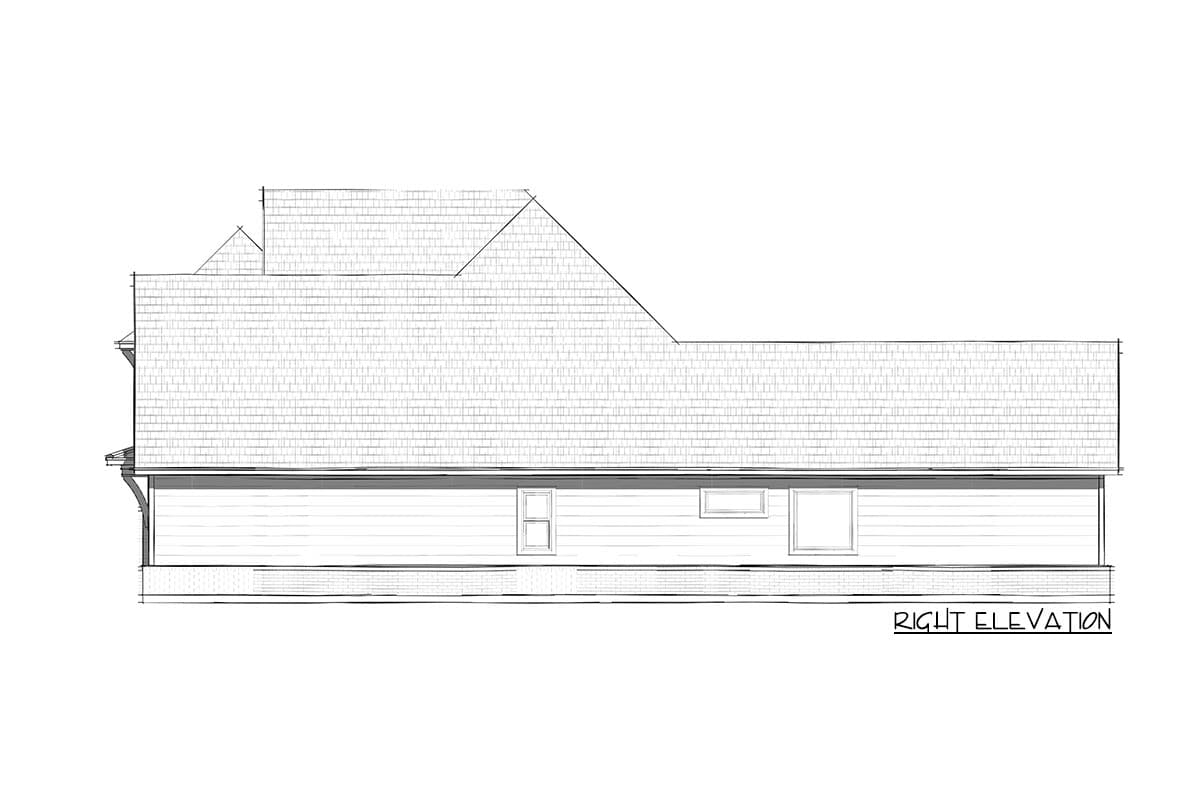

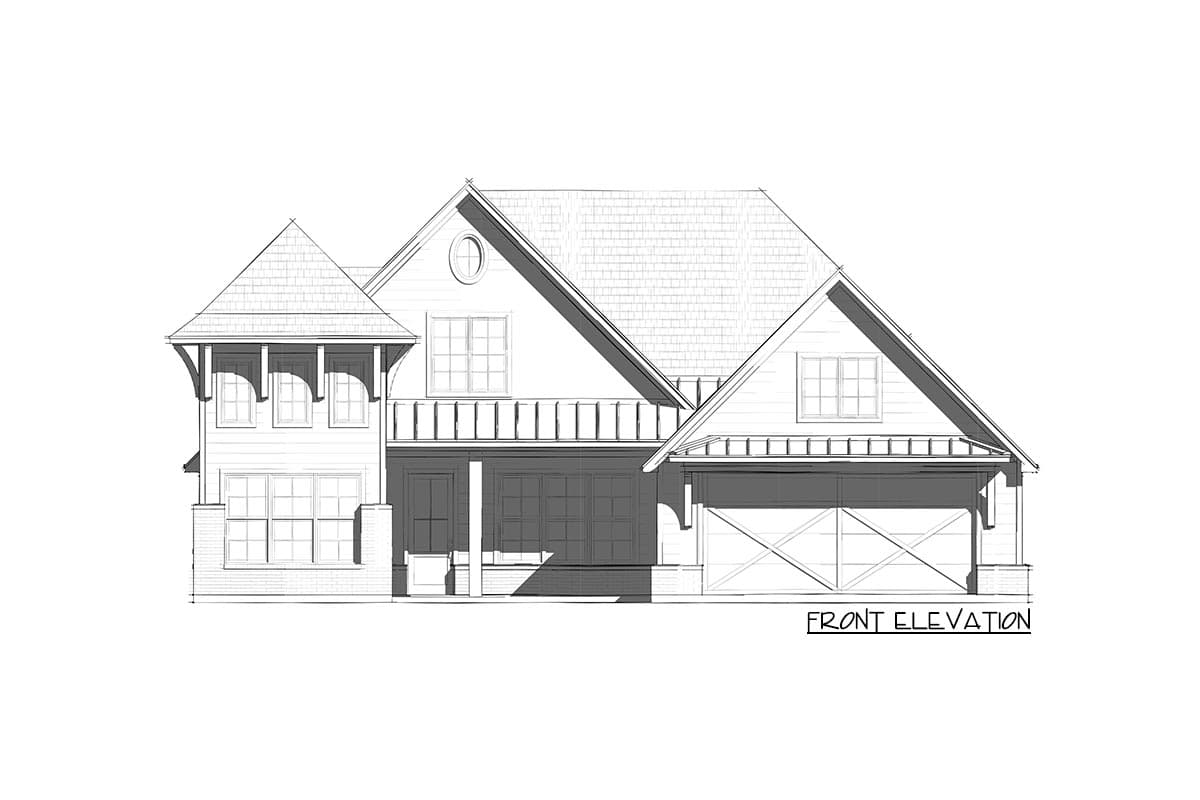

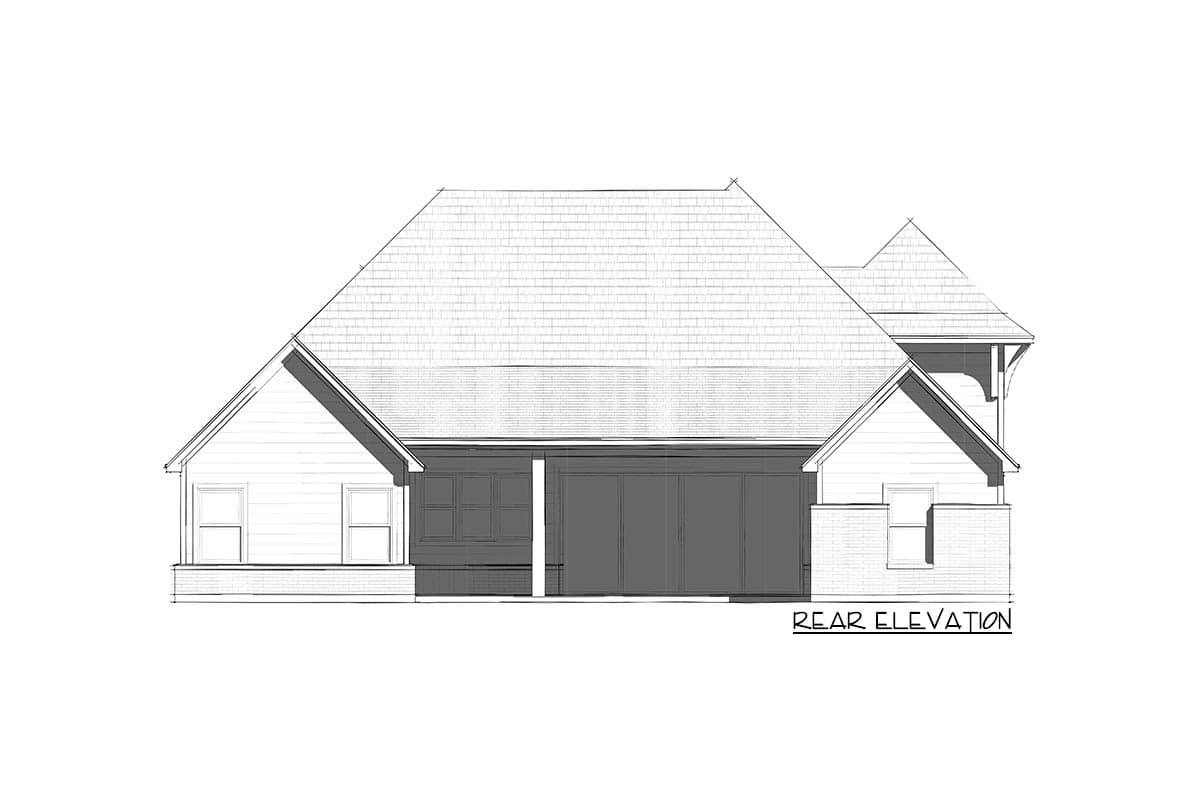

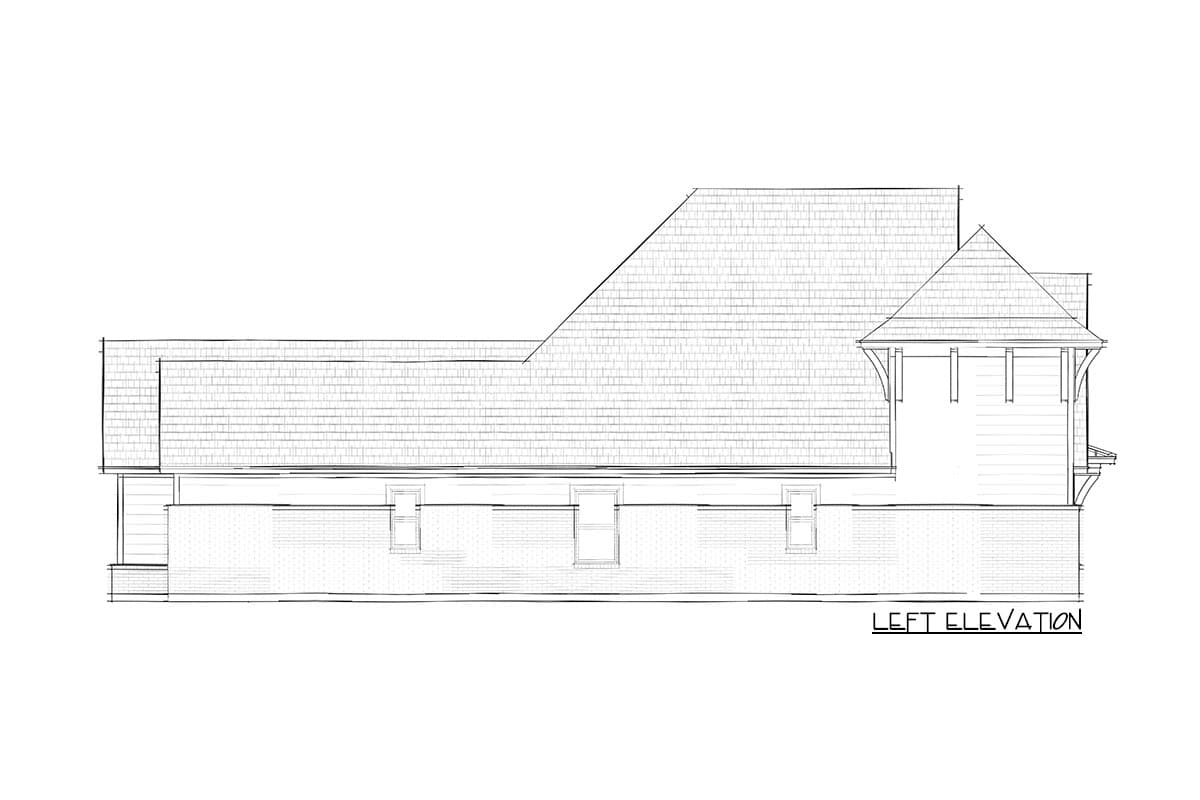

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split-bed Country Craftsman with Vaulted Family Room

  • 2,186

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,186 sq. ft.
  • 1st Floor: 2,186 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 65' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 514 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
