Split-Bed Modern Farmhouse Plan with Open Living Space

Plan 56492SM

  • 2,234

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • A ribbed metal roof tops the elongated front porch of this split-bedroom, modern farmhouse plan, while inside, an open-concept living space greets you upon entering through double doors.
  • To the left of the entry, a barn door reveals a cozy computer room with a forward-facing window. Three windows on the rear wall of the great room overlook the back porch, complete with an outdoor kitchen.
  • Enjoy cooking in this dreamy kitchen, which features a sizable island with four seats, large range, and a walk-in pantry. The nearby mudroom includes a powder bath and access to the oversized, 2-car garage.
  • The master bedroom is set apart from the others for maximum privacy, and includes a 5-fixture bath and massive closet that leads to the laundry room.
  • Across the home, each of the additional bedrooms are a good size and within close proximity to the hall bath with two sinks.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

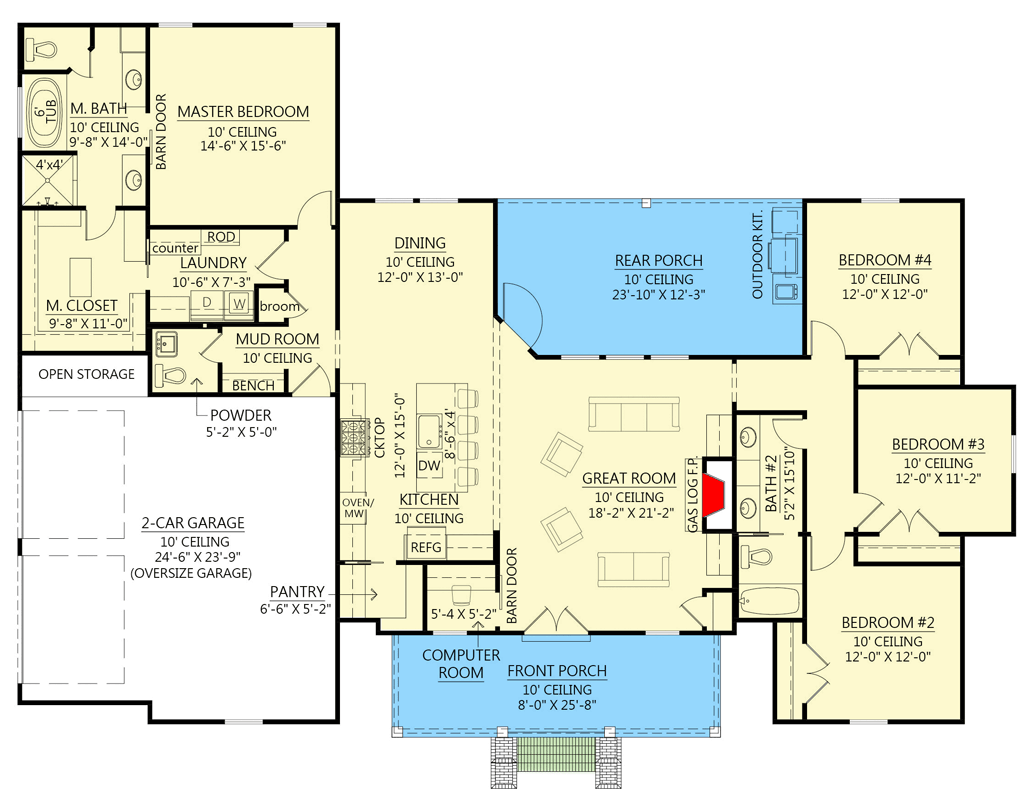

Split-Bed Modern Farmhouse Plan with Open Living Space - 56492SM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,234 sq. ft.
  • 1st Floor: 2,234 sq. ft.
  • Storage: 32 sq. ft.
  • Porch, Combined: 492 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab, Stem Wall

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 0"
  • Depth: 55' 11"
  • Max ridge height: 25' 8"

Garage

  • Type: Attached
  • Area: 624 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Garage 10' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Split-Bed Modern Farmhouse Plan with Open Living Space

  • 2,234

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,145
  • 5 Sets $1,245
  • 5 Sets + PDF $1,445
  • PDF - Unlimited Build $1,845
  • CAD - Unlimited Build $2,145
  • View all purchase option online
