Plan 60672ND
Split Bed Ranch with 3 or 4 Beds
Heated S.F.
2,280
Beds
4
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • This beautiful split bedroom house plan is family friendly and flexible, giving you 3 or 4 beds depending on how you use the front right room.
  • The open foyer welcomes you to a very spacious great room with a 10' ceiling and a fireplace. The dining room invites with its 2 arched openings and four 8" columns and a 13' ceiling.
  • The spacious kitchen has a cook-top island, a 45-degree corner counter space and is open to the breakfast room which features a bay window.
  • Around the corner and down the hall is the magnificent master suite. With its 10' boxed ceiling and sitting area, the bedroom is sure to delight. The master bath offers a whirlpool tub, corner shower, and large walk-in closet.
  • The other side of the home provides bedrooms 2, 3, and 4 (or a den) and a full bathroom.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Bed Ranch with 3 or 4 Beds

  • 2,280

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

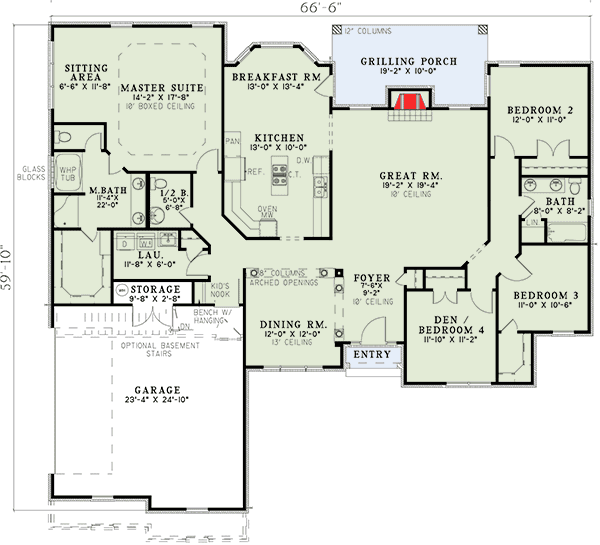

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,280 sq. ft.
  • 1st Floor: 2,280 sq. ft.

Dimensions

  • Width: 66' 6"
  • Depth: 59' 10"
  • Max ridge height: 24' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 612 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
