Plan 56340SM

Split Bedroom Brick-and-stucco House Plan with a Home Office or Fourth Bedroom

Heated S.F.
2,163
Beds
3 - 4
Baths
2.5
Stories
1
Cars
2
Client Photos

Floor Plan

Plan 56340SM

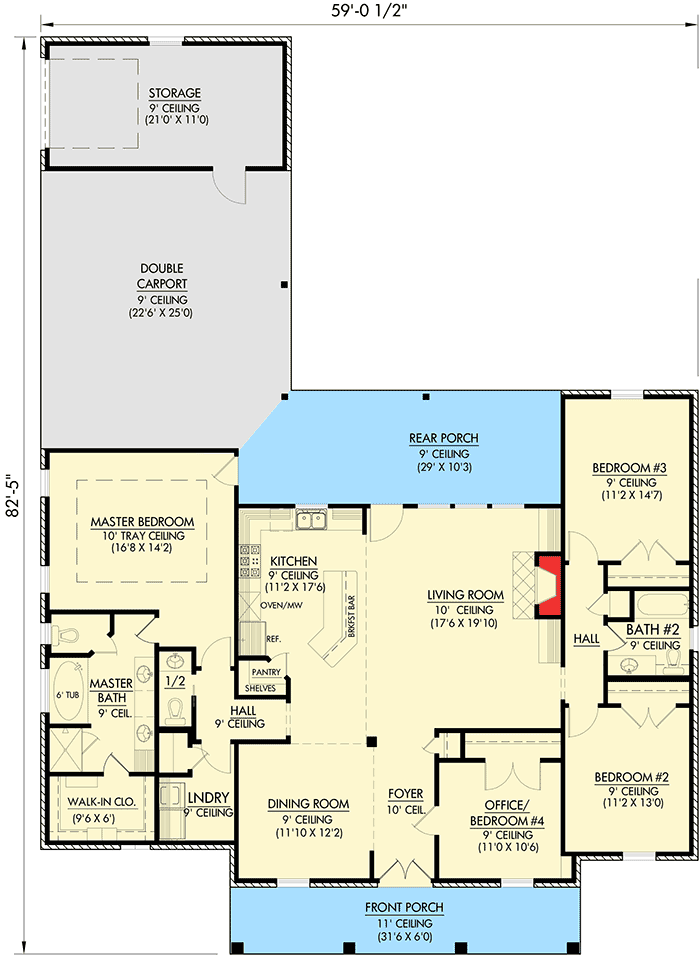

Main Level
Main Level

Plan 56340SM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 56340SM: Split Bedroom Brick-and-stucco House Plan with a Home Office or Fourth Bedroom - Floor Plan - Main Level - Acadian, European, French Country, Louisiana-Style, Southern

Plan Details

  • Owners choose between a fourth bedroom or home office in this one level Southern home plan.
  • A spacious open floor plan is designed for ease of movement between rooms.
  • The kitchen has a walk-in pantry and views of the rear covered porch.
  • Split bedrooms separate the master suite from the family bedrooms.
  • The double carport opens to a large storage room.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

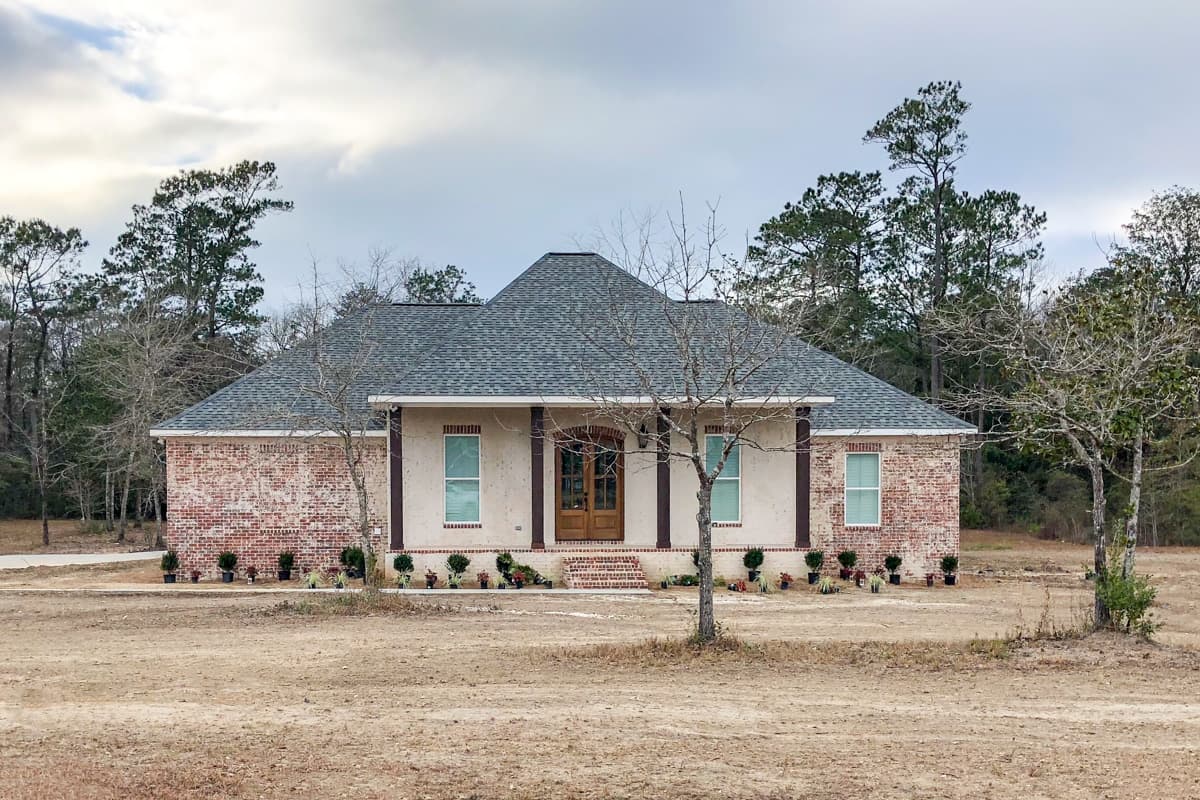

build gallery item - House Plan 56340SM comes to life in Louisiana

House Plan 56340SM comes to life in Louisiana

12

Photos

build gallery item - House Plan 56340SM Comes to Life in Mississippi

House Plan 56340SM Comes to Life in Mississippi

7

Photos

What's Included

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

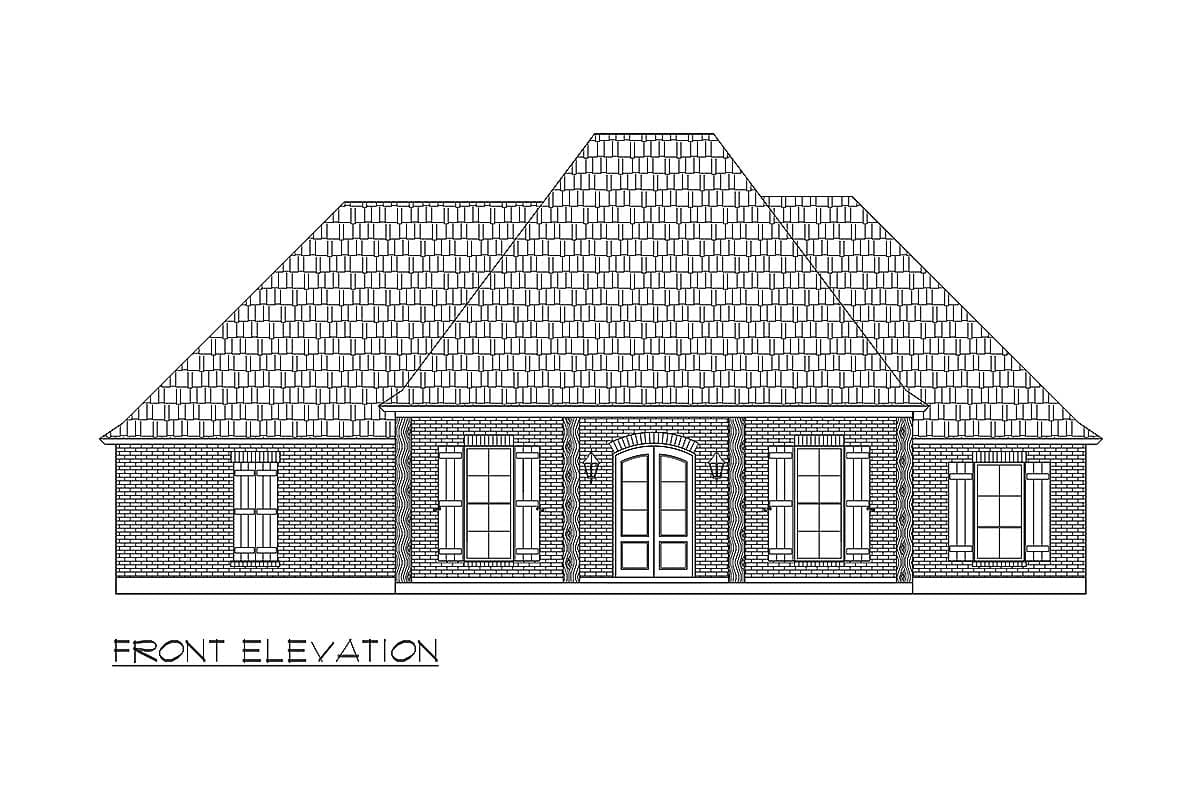

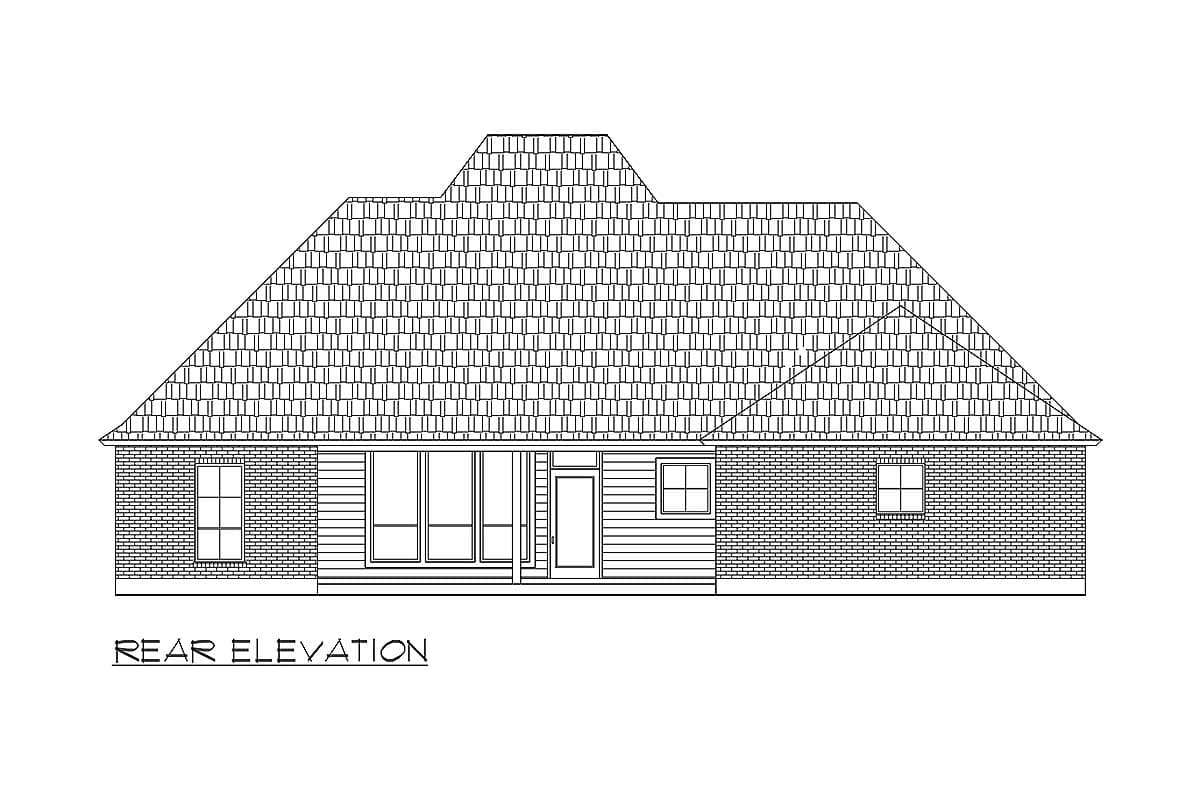

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,163 sq. ft.

1st Floor

2,163 sq. ft.

Porch, Front

189 sq. ft.

Porch, Rear

295 sq. ft.

Storage

231 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 1"

Depth

82' 5"

Garage

Type

Carport

Area

874 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Acadian

European

French Country

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Home Office

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,163 sq. ft.

1st Floor

2,163 sq. ft.

Porch, Front

189 sq. ft.

Porch, Rear

295 sq. ft.

Storage

231 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 1"

Depth

82' 5"

Garage

Type

Carport

Area

874 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Acadian

European

French Country

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Home Office

Photo Gallery
