Split Bedroom Cottage Home Plan

Plan 57145HA

  • 1,202

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • All the necessary ingredients provided in a simple structure that's affordable to build.
  • The vaulted living room features a fireplace, dining area and access to the rear patio.
  • An angled snack bar is the highlight of this well-planned U-shaped kitchen.

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

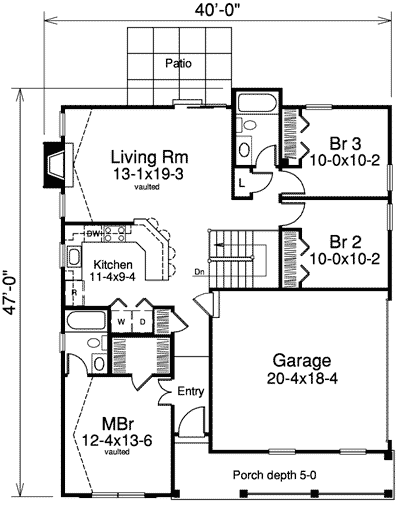

Split Bedroom Cottage Home Plan - 57145HA floor plan - Main Level

Architectural Style

Split Bedroom Cottage Home Plan

  • 1,202

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,202 sq. ft.
  • 1st Floor: 1,202 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 47' 0"
  • Max ridge height: 20' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 373 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
