Split-Bedroom Country Cottage Plan with Outdoor Living

Plan 765008TWN

  • 2,250

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Packed with traditional charm, this country-inspired cottage plan features a clapboard exterior, dramatic metal roof, and an inviting walk-up front porch with double-door entry.
  • Through a bright foyer, a spacious living room with a fireplace awaits. French doors lead to a large screened porch, where you can soak in the outdoors in comfort. A well-appointed kitchen boasts an oversized island with seating for four and a roomy dining area filled with natural light.
  • The tucked-away master suite offers privacy and a generously sized walk-in closet, through which you'll find a 5-piece bath with an oversized walk-in shower. The bathroom comes in two different layouts with the plan purchase.
  • On the opposite side of the home, discover two additional bedrooms, each of which includes a full bath.
  • Related Plans: Build on a crawlspace with house plan 765040TWN and on pilings with house plan 765042TWN.

This designer's plans include the following:

  • Cover sheet with general notes
  • Foundation Plan
  • Floor Plans with Dimensions
  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

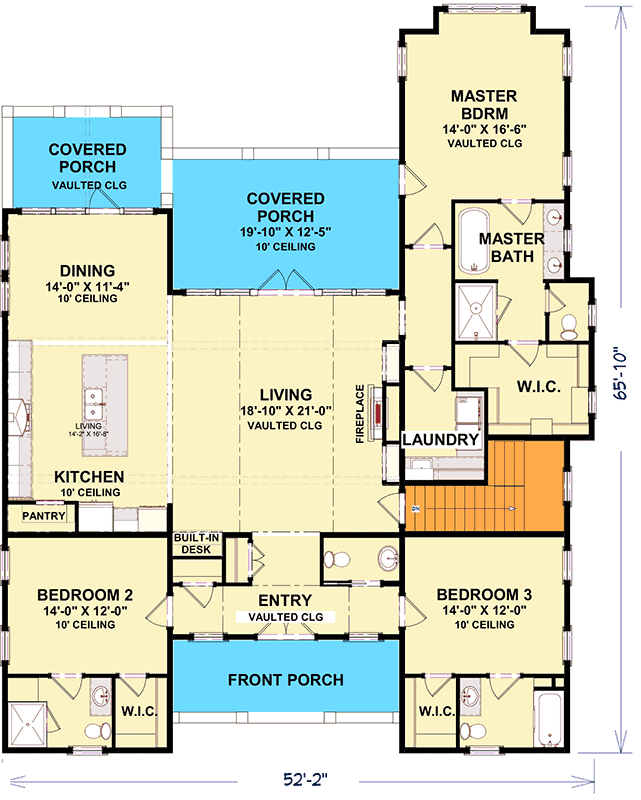

Split-Bedroom Country Cottage Plan with Outdoor Living - 765008TWN floor plan - Main Level

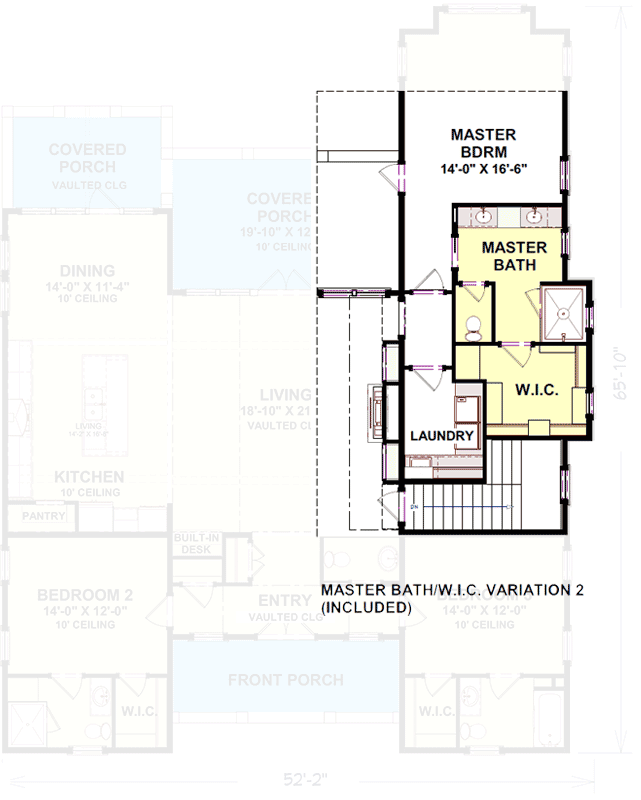

Alternate Master Bath Layout (included)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Split-Bedroom Country Cottage Plan with Outdoor Living - 765008TWN floor plan - Alternate Master Bath Layout (included)

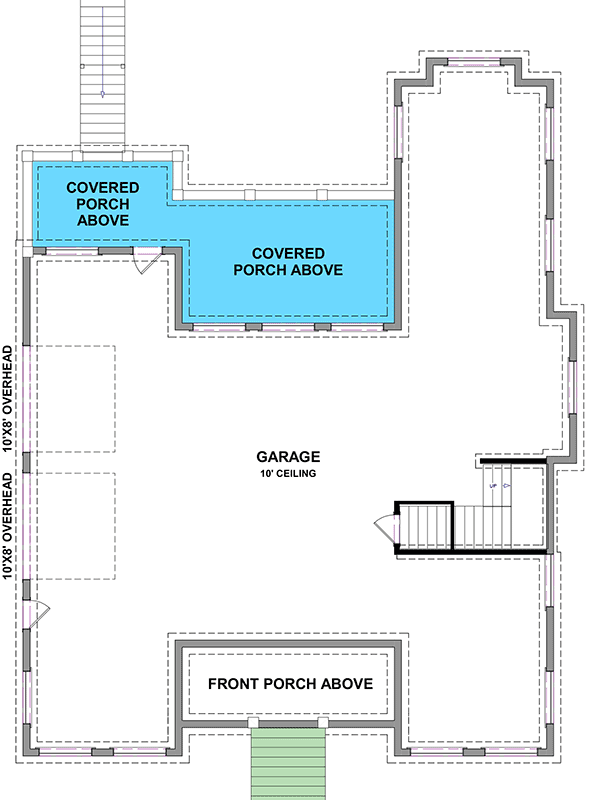

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Split-Bedroom Country Cottage Plan with Outdoor Living - 765008TWN floor plan - Ground Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,250 sq. ft.
  • 1st Floor: 2,250 sq. ft.
  • Screened Porch: 249 sq. ft.
  • Porch, Combined: 280 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Piling, Pier

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 2"
  • Depth: 65' 10"
  • Max ridge height: 37' 5"

Garage

  • Type: Drive Under, Attached
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Split-Bedroom Country Cottage Plan with Outdoor Living

  • 2,250

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • Chief Architect Plan File - Single Build $1,995
  • View all purchase option online

About This Plan

  • Packed with traditional charm, this country-inspired cottage plan features a clapboard exterior, dramatic metal roof, and an inviting walk-up front porch with double-door entry.
  • Through a bright foyer, a spacious living room with a fireplace awaits. French doors lead to a large screened porch, where you can soak in the outdoors in comfort. A well-appointed kitchen boasts an oversized island with seating for four and a roomy dining area filled with natural light.
  • The tucked-away master suite offers privacy and a generously sized walk-in closet, through which you'll find a 5-piece bath with an oversized walk-in shower. The bathroom comes in two different layouts with the plan purchase.
  • On the opposite side of the home, discover two additional bedrooms, each of which includes a full bath.
  • Related Plans: Build on a crawlspace with house plan 765040TWN and on pilings with house plan 765042TWN.

Floor Plans

  • Main Level

  • Alternate Master Bath Layout (included)

  • Ground Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,250 sq. ft.
  • 1st Floor: 2,250 sq. ft.
  • Screened Porch: 249 sq. ft.
  • Porch, Combined: 280 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Piling, Pier

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 2"
  • Depth: 65' 10"
  • Max ridge height: 37' 5"

Garage

  • Type: Drive Under, Attached
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Plan 765008TWN
