Plan 62099V

Split Bedroom Country Ranch

Heated S.F.
1,492
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 62099V

Main Level
Main Level
Basement Option
Basement Option
3D View
3D View

Plan 62099V

M-F 9am-5pm EST |

1-203-761-8500

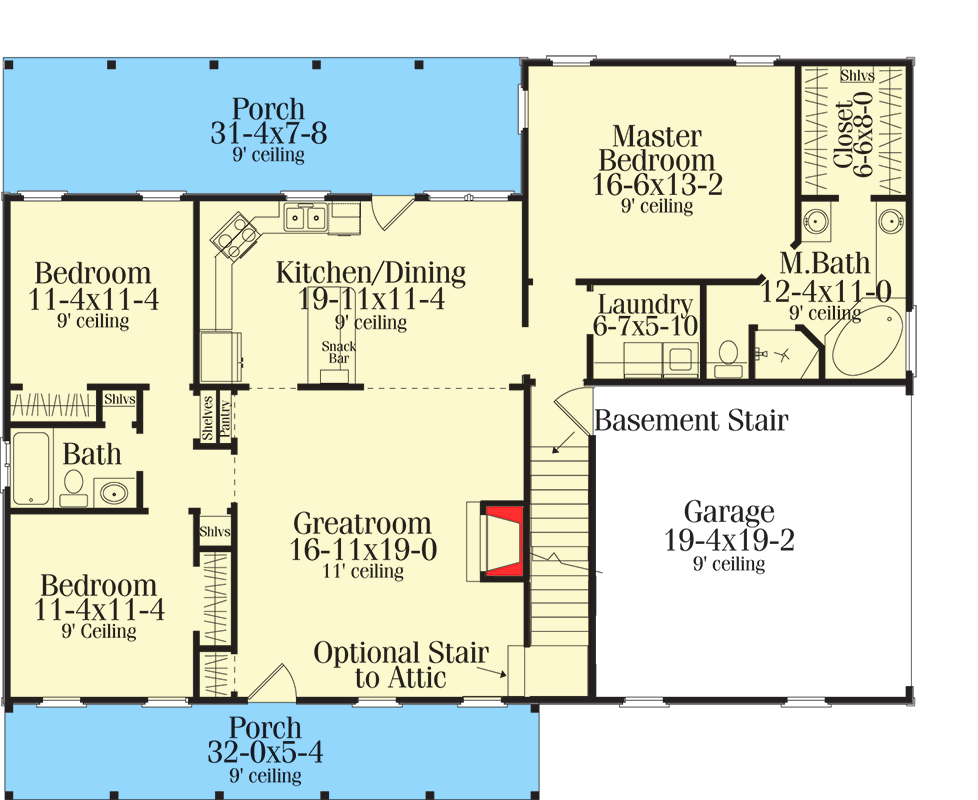

Main Level

Plan 62099V: Split Bedroom Country Ranch - Floor Plan - Main Level - Country, Ranch

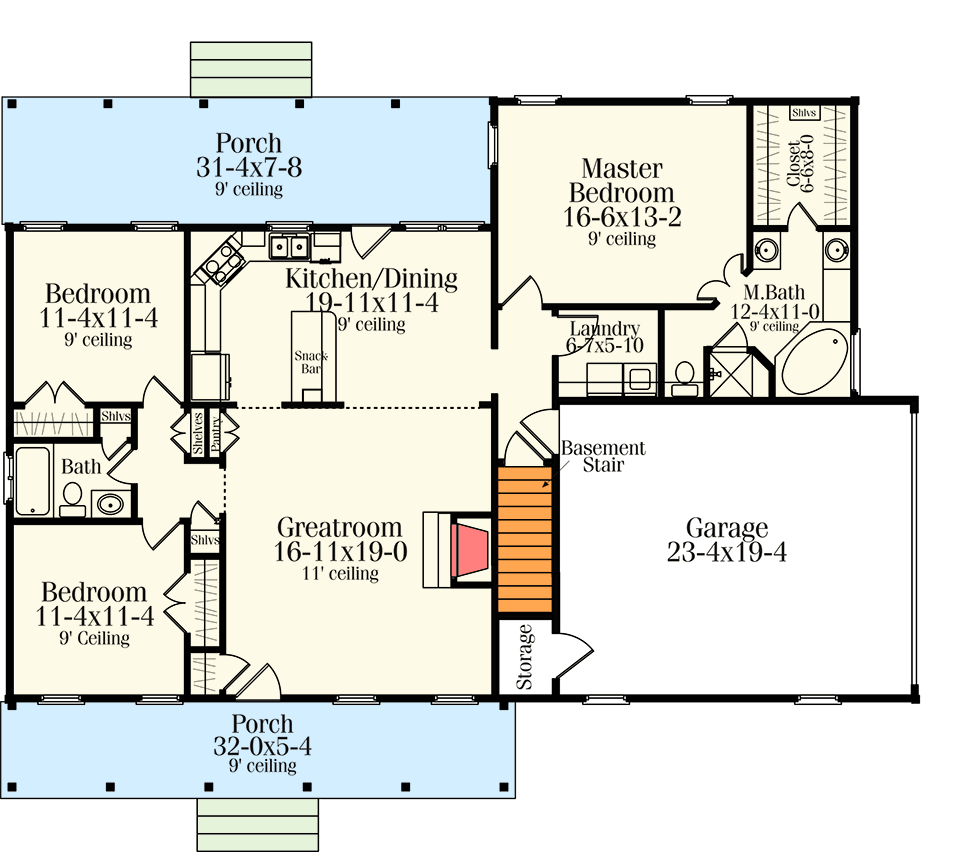

Basement Option

Plan 62099V: Split Bedroom Country Ranch - Floor Plan - Basement Option - Country, Ranch

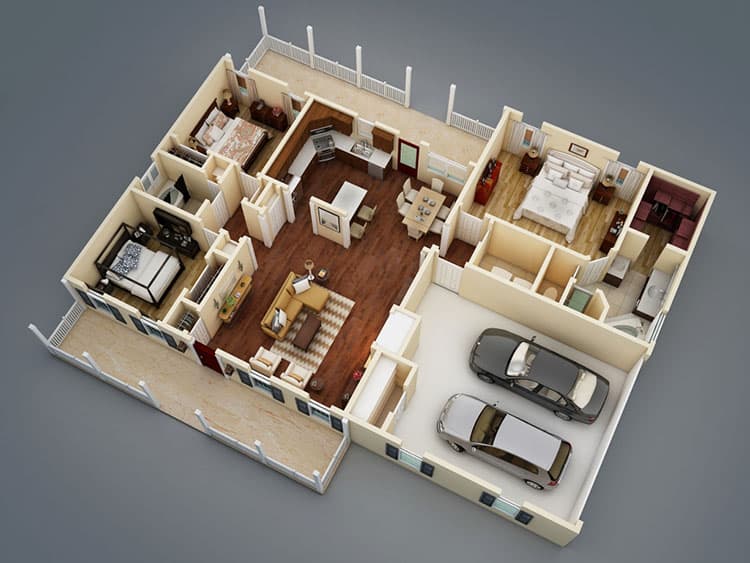

3D View

Plan 62099V: Split Bedroom Country Ranch - Floor Plan - 3D View - Country, Ranch

Plan Details

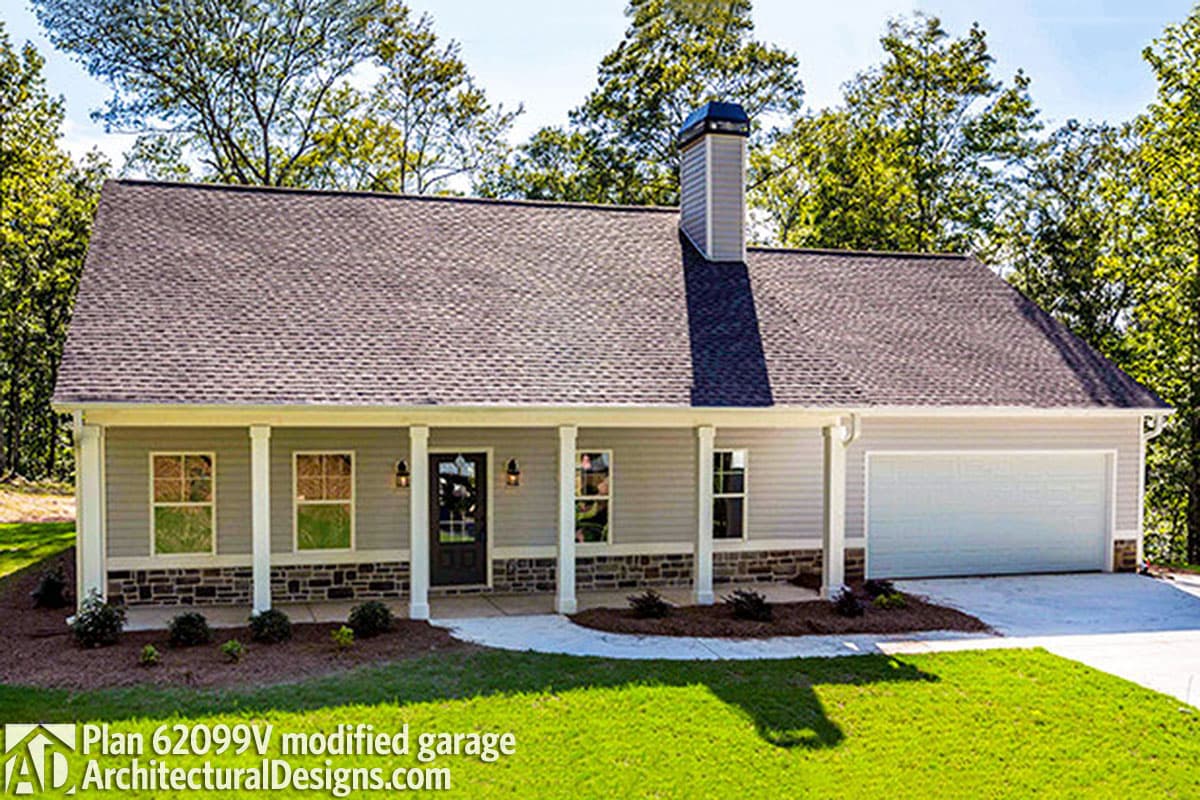

  • This Country Ranch house plan offers 1,492 finished square feet of living space, featuring 3 bedrooms, 2 bathrooms, and a 461 square foot side-entry 2-car garage.

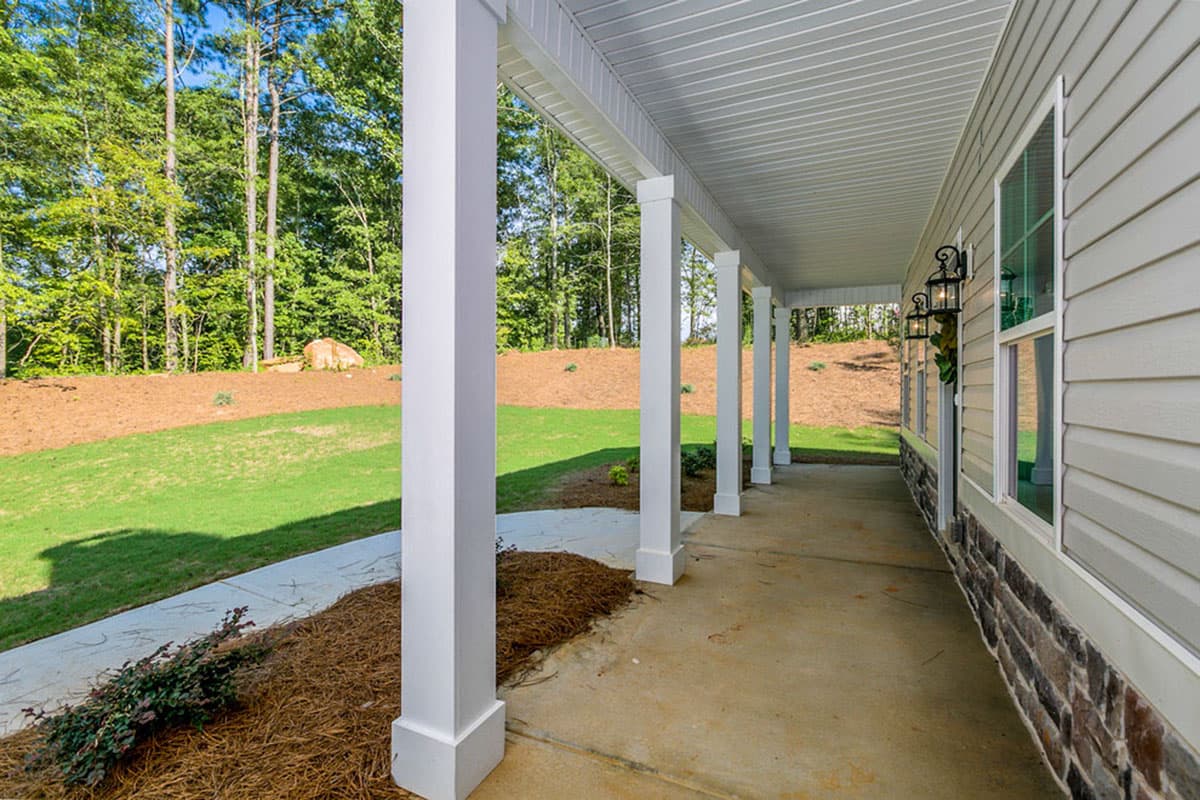

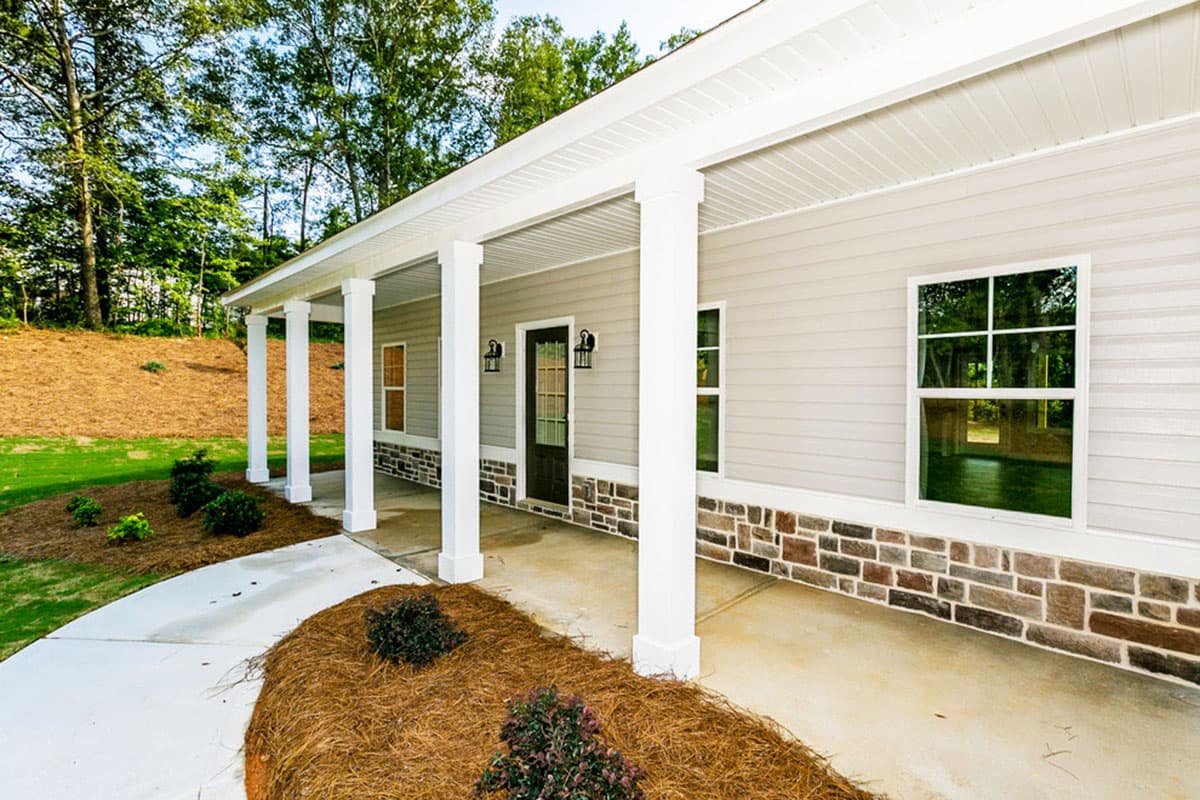

  • The arrival experience begins on a 170-square-foot front porch that leads into a functional layout highlighted by 9-foot ceilings and a dedicated mudroom near the garage entry.

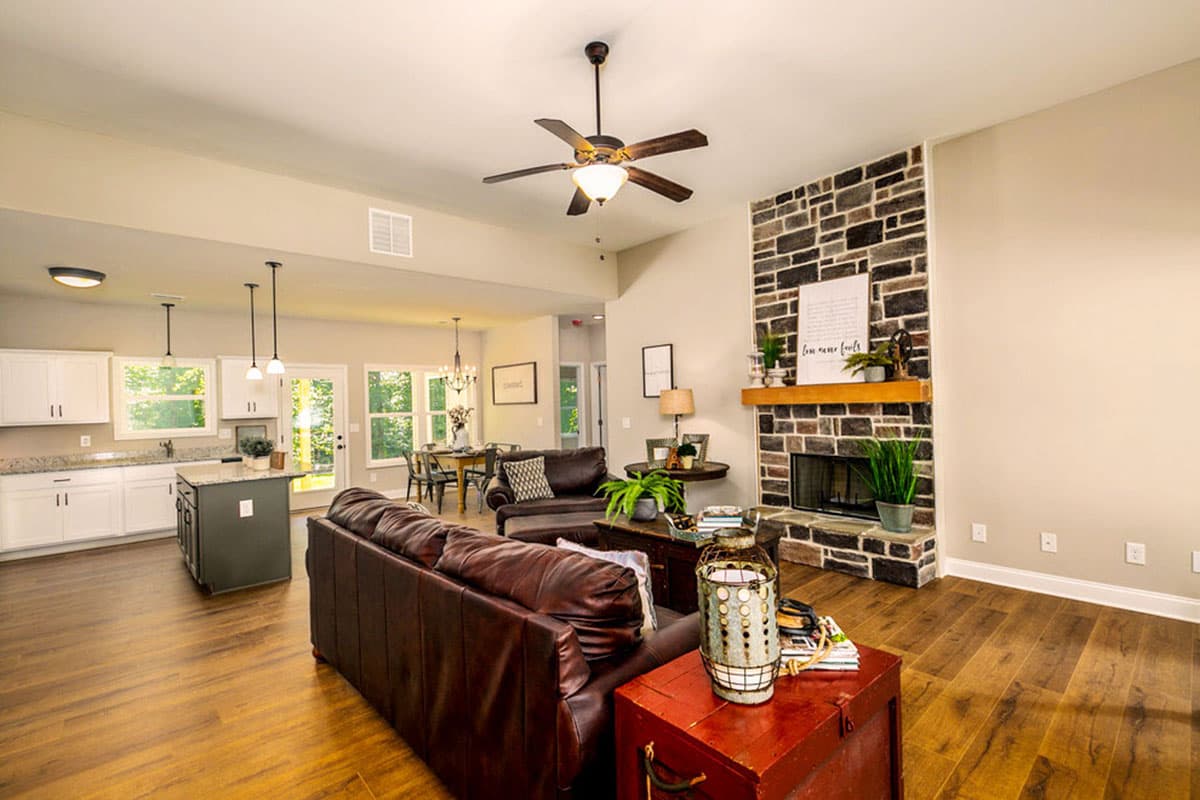

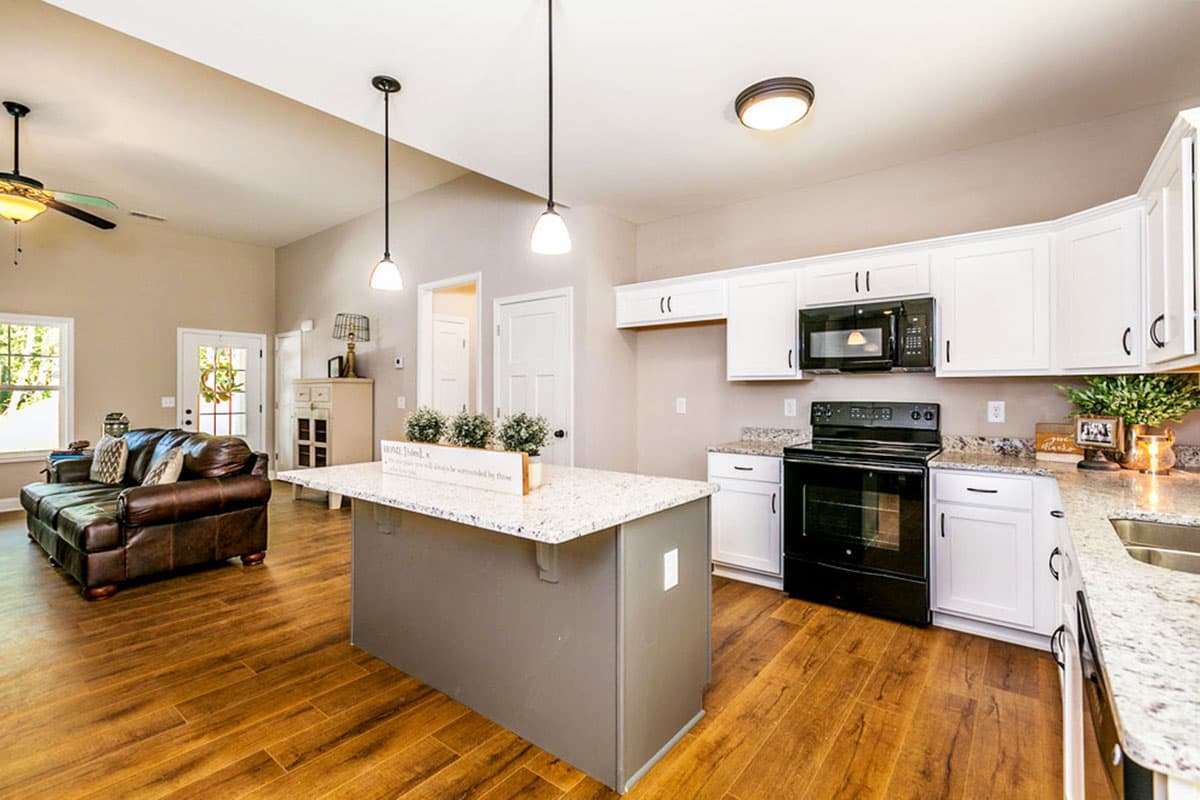

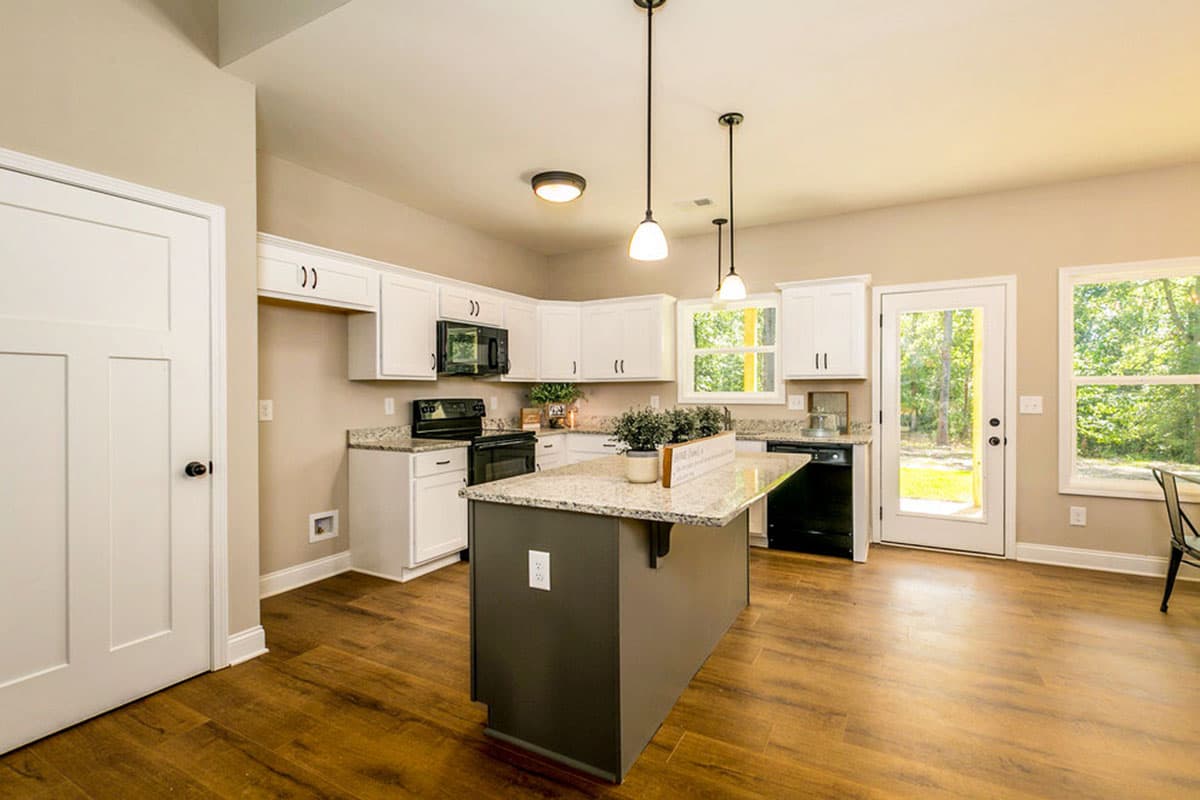

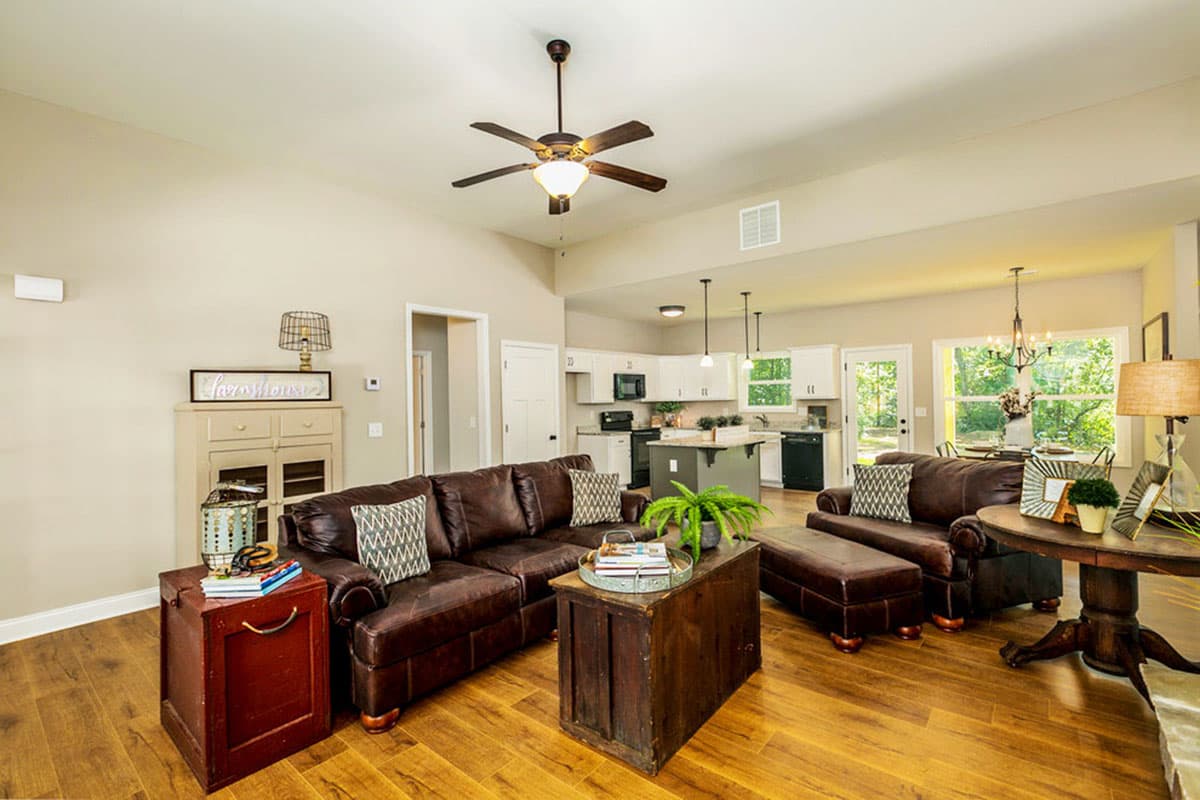

  • The main living area is designed for a seamless flow between common spaces, creating an open and airy environment that maximizes the home's footprint.

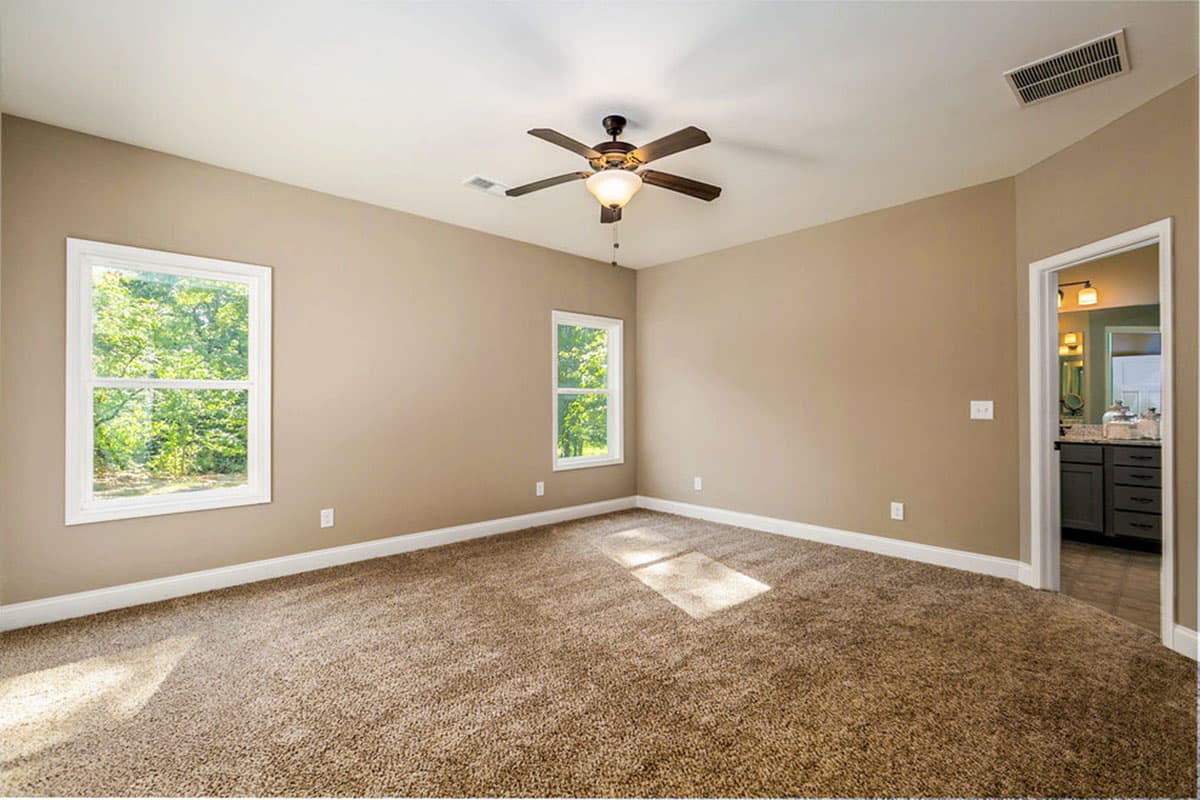

  • The master suite is located on the first floor and utilizes a split bedroom layout to maintain privacy from the two secondary bedrooms across the home.
  • Practicality is prioritized with a main-level laundry room and a mudroom, providing essential transition spaces for a busy lifestyle.

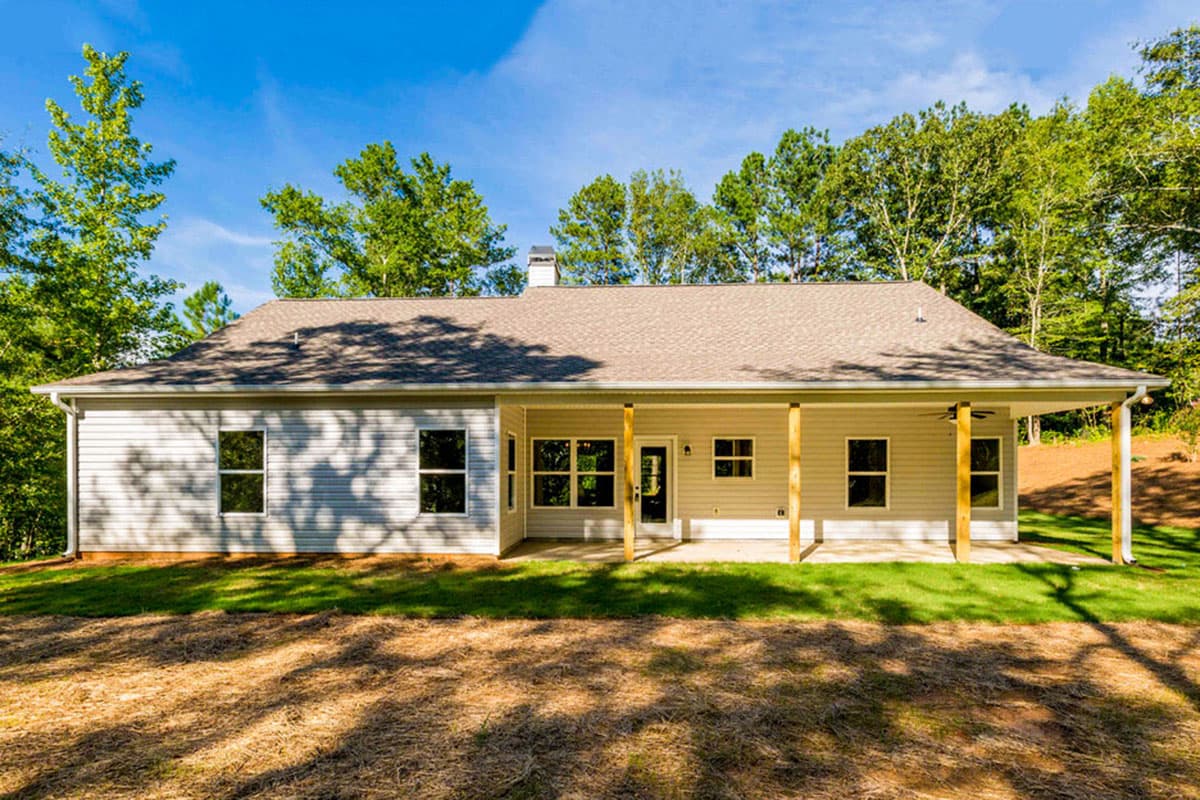

  • Expansive outdoor living is available on the 294-square-foot rear porch, offering a perfect spot for shaded relaxation or outdoor dining.

What's Included

  • Covers sheet with construction notes

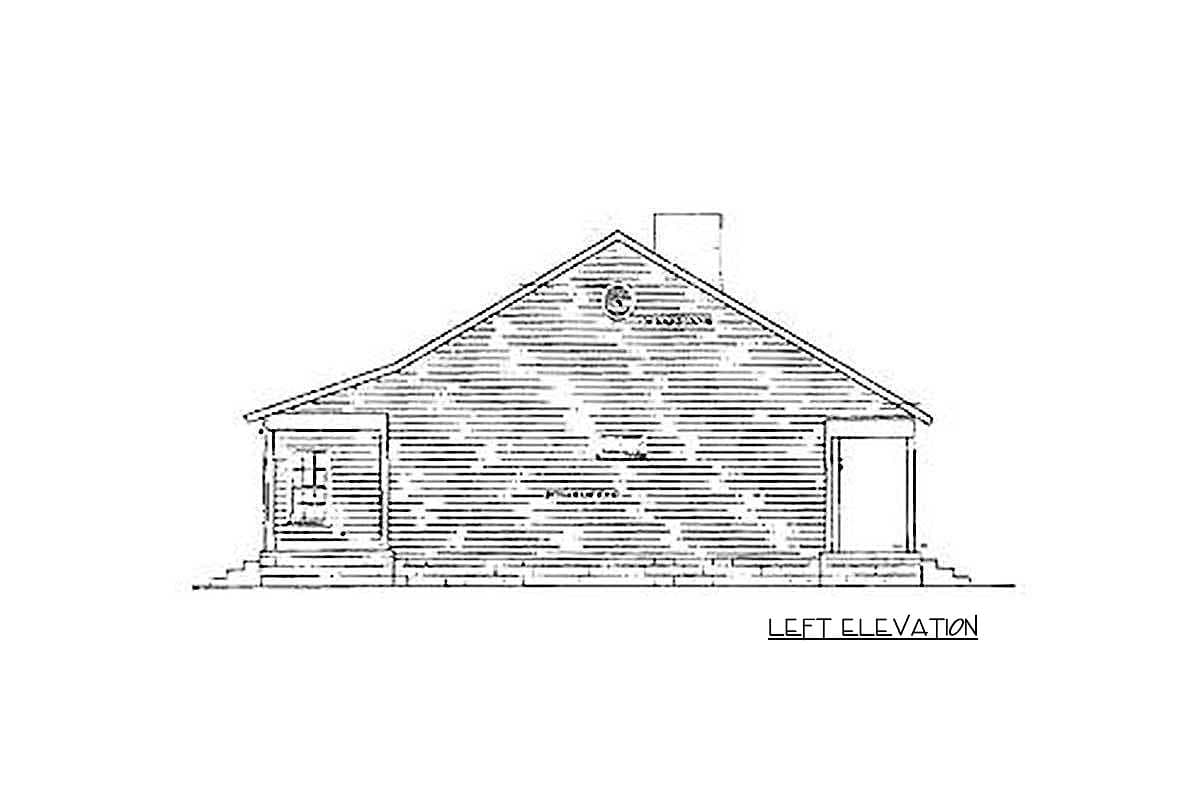

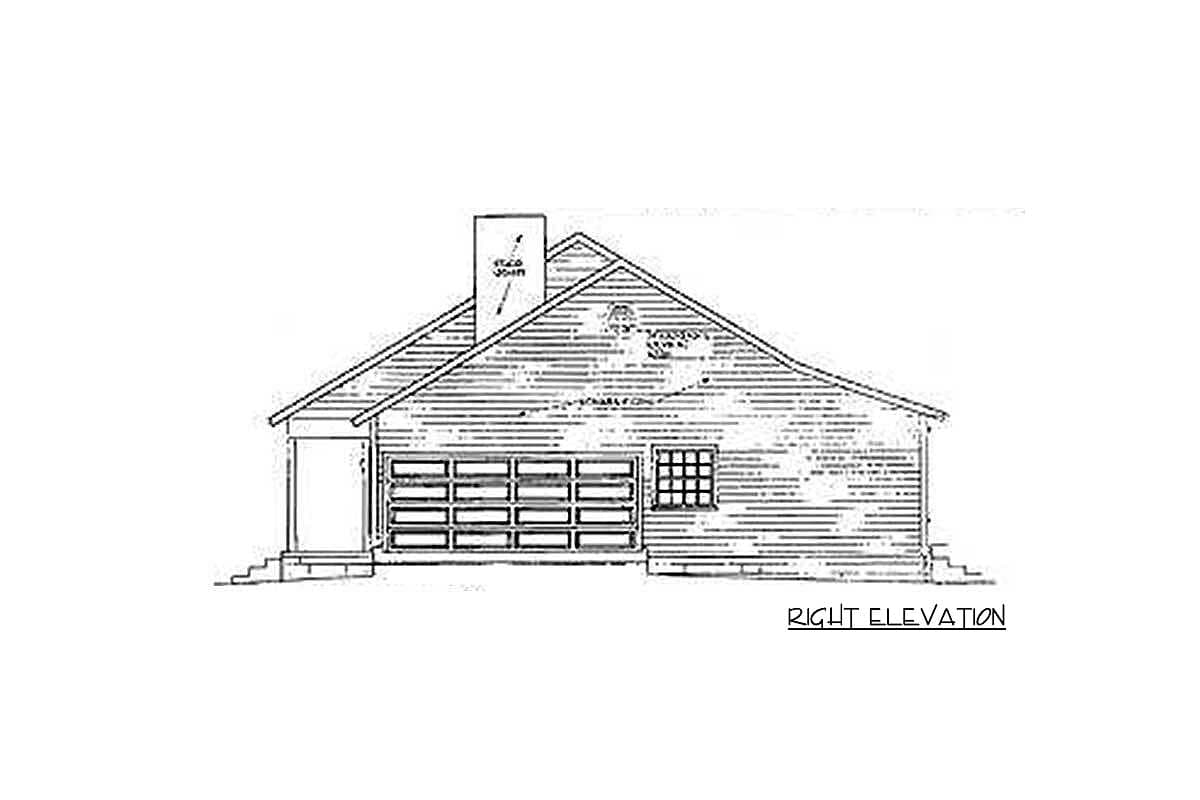

  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,492 sq. ft.

1st Floor

1,492 sq. ft.

Porch, Front

170 sq. ft.

Porch, Rear

294 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

45' 8"

Max Ridge Height

22' 0"

Garage

Type

Attached, Standard

Area

461 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
