Plan 72341DA

Split Bedroom Country Ranch Home Plan with Private Master Deck

Heated S.F.

3,002

Beds

3

Baths

2.5

Stories

2

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

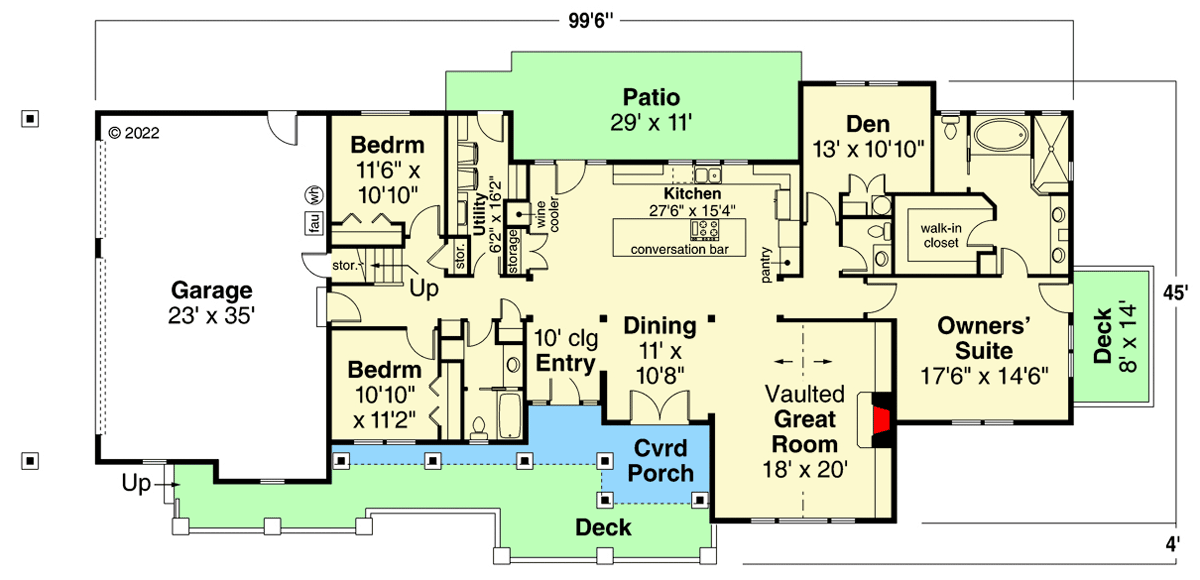

Split Bedroom Country Ranch Home Plan with Private Master Deck - 72341DA floor plan - Main Level

Bonus Room

Reverse Floor Plan

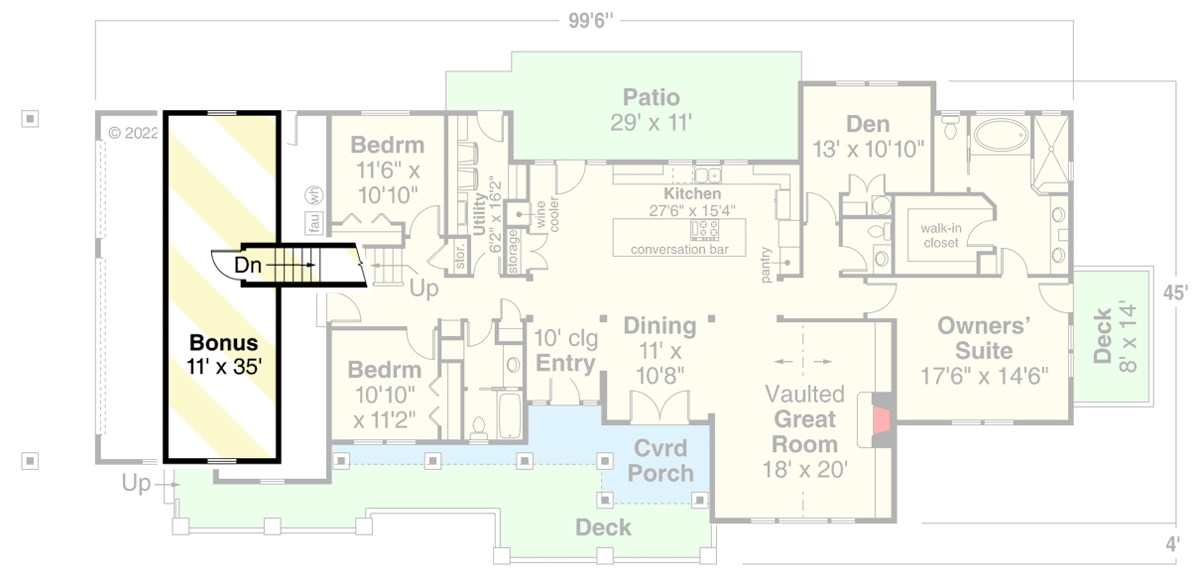

Split Bedroom Country Ranch Home Plan with Private Master Deck - 72341DA floor plan - Bonus Room

Plan Details

Brick veneer, large picture front windows and a sliding glass door leading out to the covered porch of this country ranch home plan. With 3 bedrooms and a den, there is no shortage of living space for your family.
A split bedroom layout has the large owner's suite on the right with a walk-in closet, a bathroom with a separate shower and tub for convenience and variety and a private deck.
The side-entry garage has room for 3 vehicles.
Amenities such as the wine cooler, conversation bar and the upstairs bonus room give this plan a little something extra.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering An artist's drawing of the home, usually viewed from the front, and general construction notes.

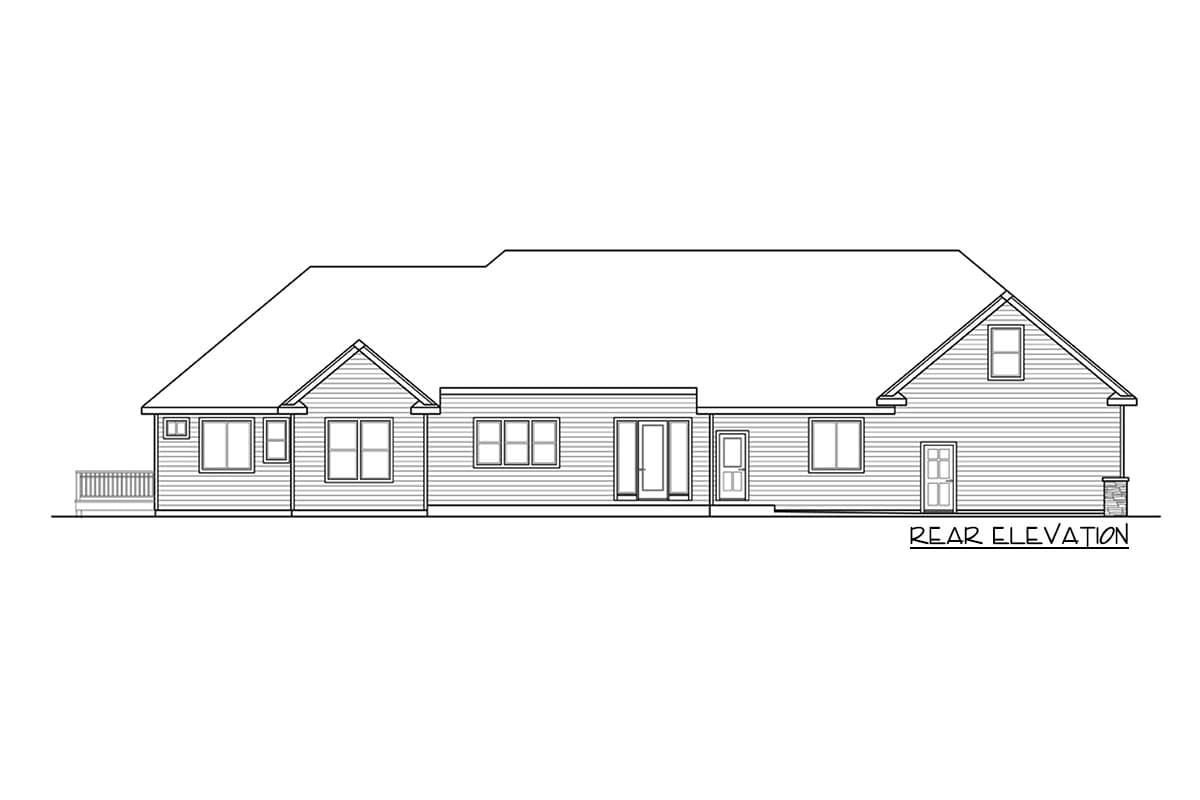

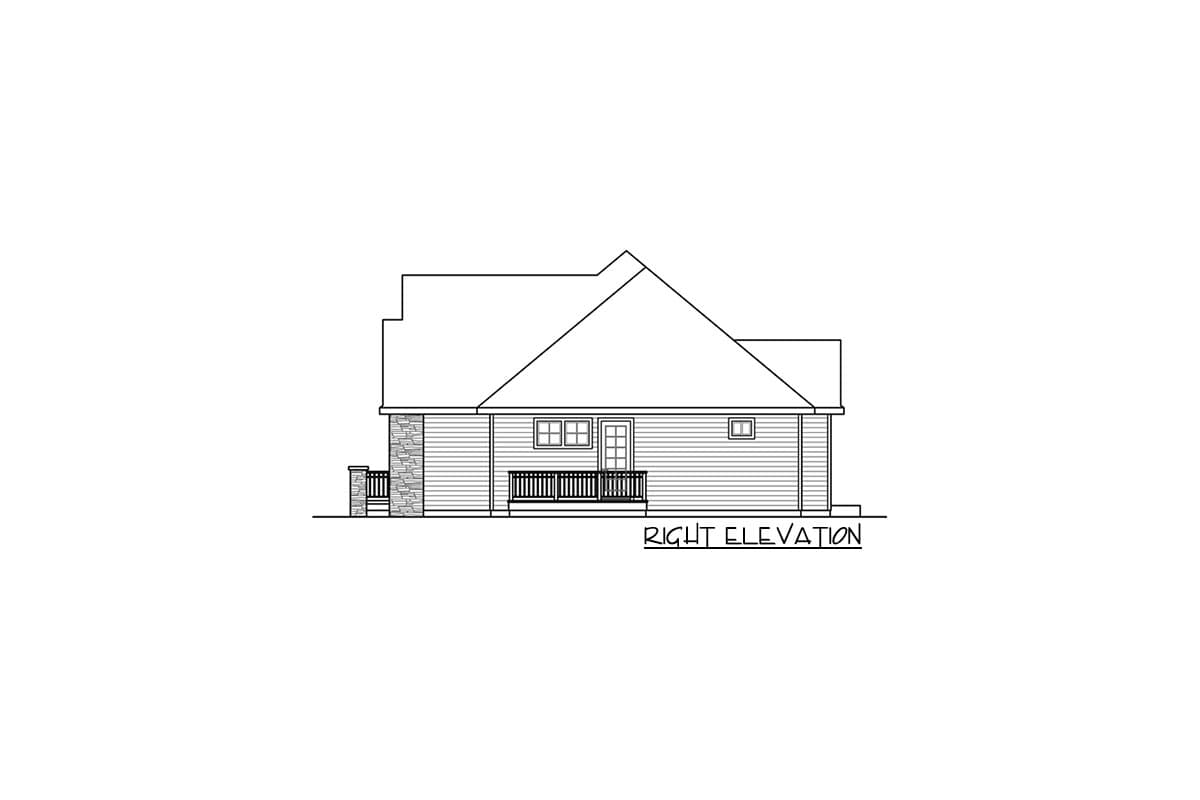

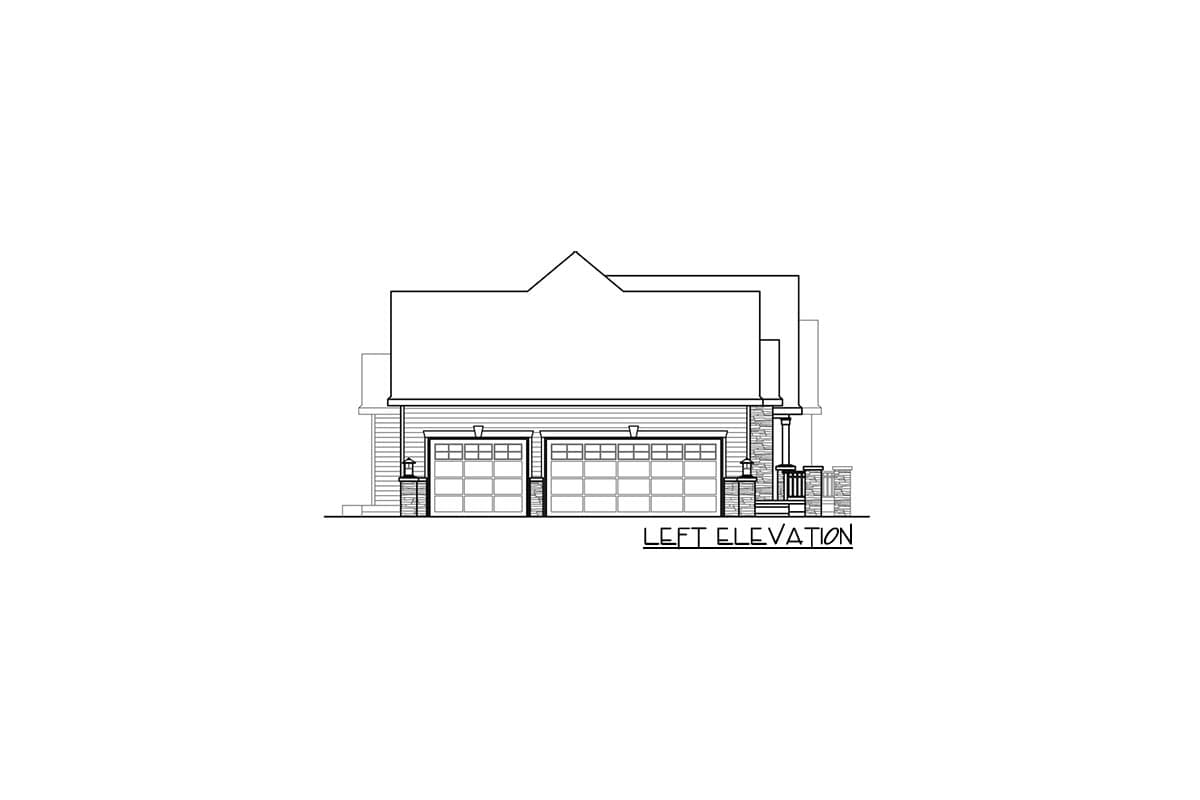

Elevations Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc. Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

3,002 sq. ft.

1st Floor:

2,545 sq. ft.

2nd Floor:

457 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Crawl

Optional Foundations:

Slab, Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

99' 6"

Depth:

45' 0"

Max Ridge Height:

27' 4"

Garage

Type:

Attached

Area:

871 sq. ft.

Count:

3 Cars

Entry Location:

Side

Ceiling Heights

Floor / Height:

First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch:

10 on 12

Framing Type:

Stick And Truss

Architectural Style

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Two Story Great Room
