Split Bedroom Craftsman House Plan
Heated S.F.
2,495
Beds
3
Baths
2.5
Stories
1
Cars
3
Videos
What's Included
Plan Details
  • A great big entry porch accented with wood trim ushers you into this richly detailed Craftsman house plan.
  • The formal dining room faces front and has a lovely tray ceiling.
  • Built-ins flank the great room fireplace adding storage as well as good looks.
  • From the big kitchen island, you can survey family activities while preparing meals, thanks to the open floor plan.
  • A computer nook off the kitchen is a great homework spot or a quiet location for surfing the web or working on recipes.
  • Homeowners get a double tray ceiling and an isolated location on the right side of the home.
  • The three car garage is side load, suitable for a corner lot.
  • Unfinished bonus space can be finished on your own timetable.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Bedroom Craftsman House Plan

  • 2,495

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

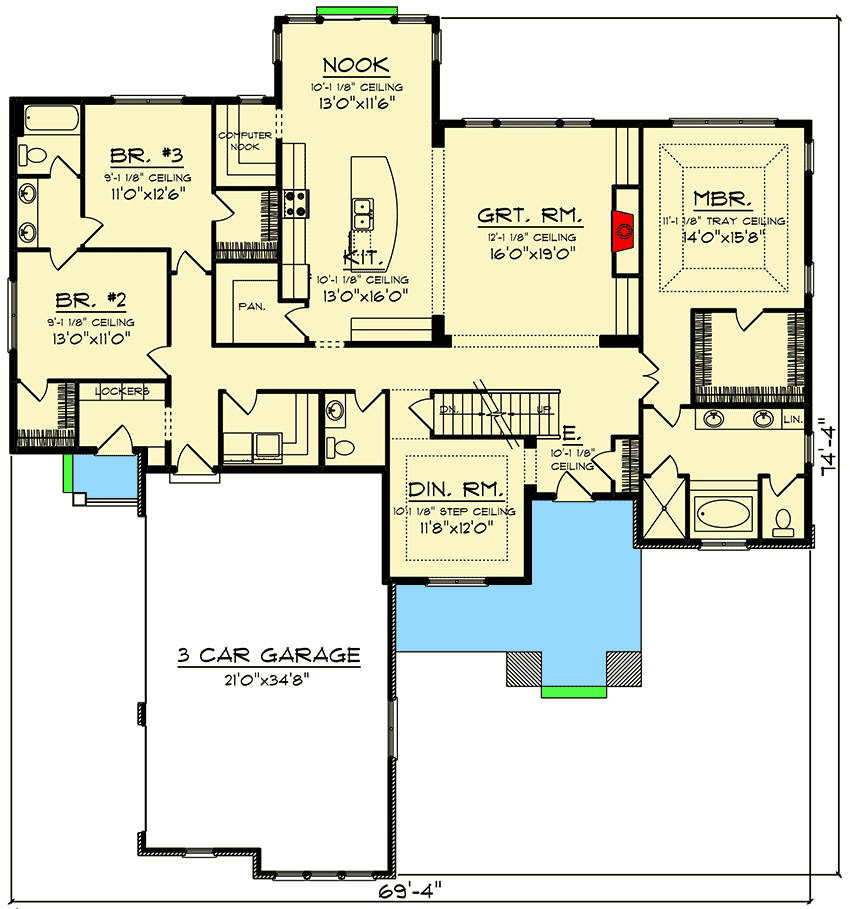

  • Main Level

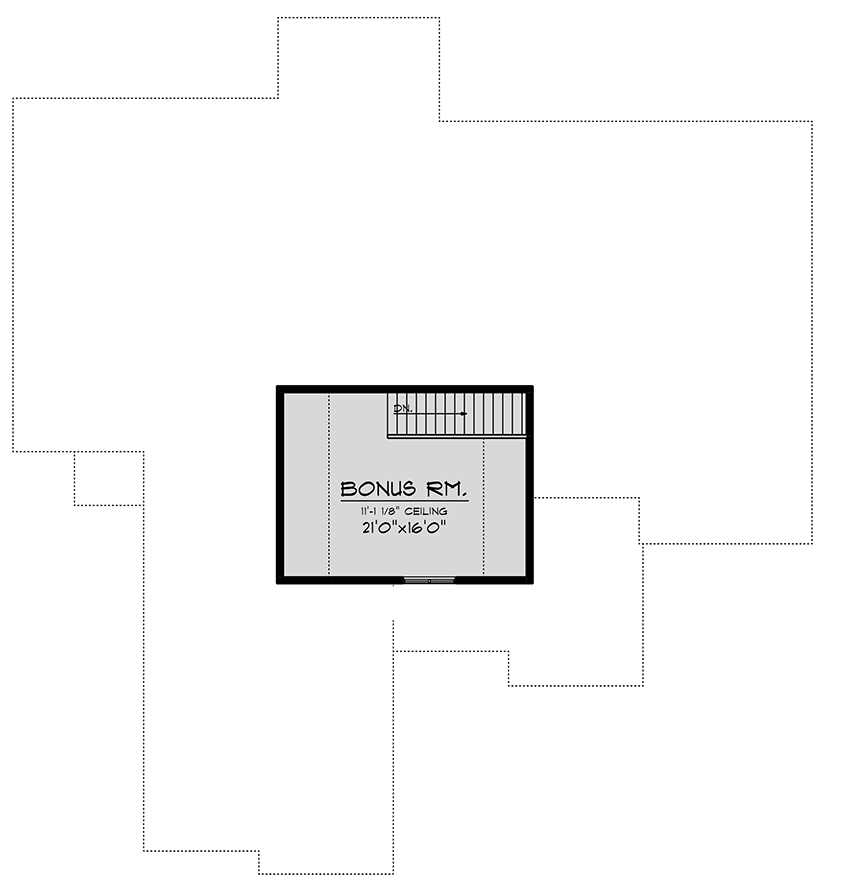

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,495 sq. ft.
  • 1st Floor: 2,495 sq. ft.

Dimensions

  • Width: 69' 4"
  • Depth: 74' 4"
  • Max ridge height: 29' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 732 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 11' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
