Plan 135011GRA

Split Bedroom Craftsman Ranch Home Plan with Optional Finished Lower Level

Heated S.F.
2,106
Beds
4
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 135011GRA

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 135011GRA

M-F 9am-5pm EST |

1-203-761-8500

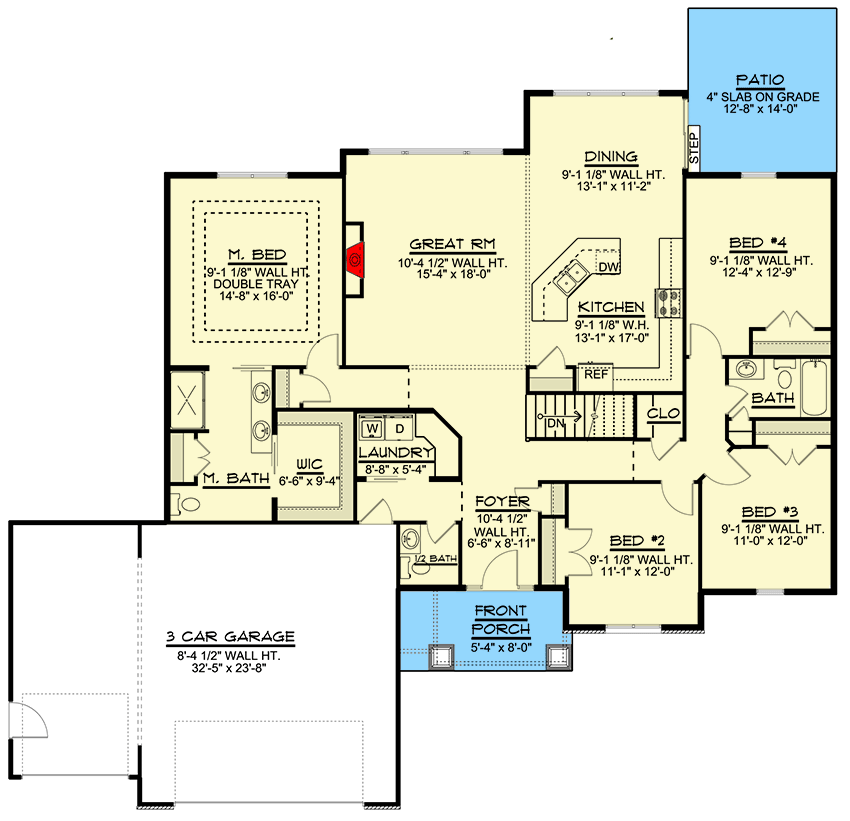

Main Level

Plan 135011GRA: Split Bedroom Craftsman Ranch Home Plan with Optional Finished Lower Level - Floor Plan - Main Level - Craftsman, Ranch

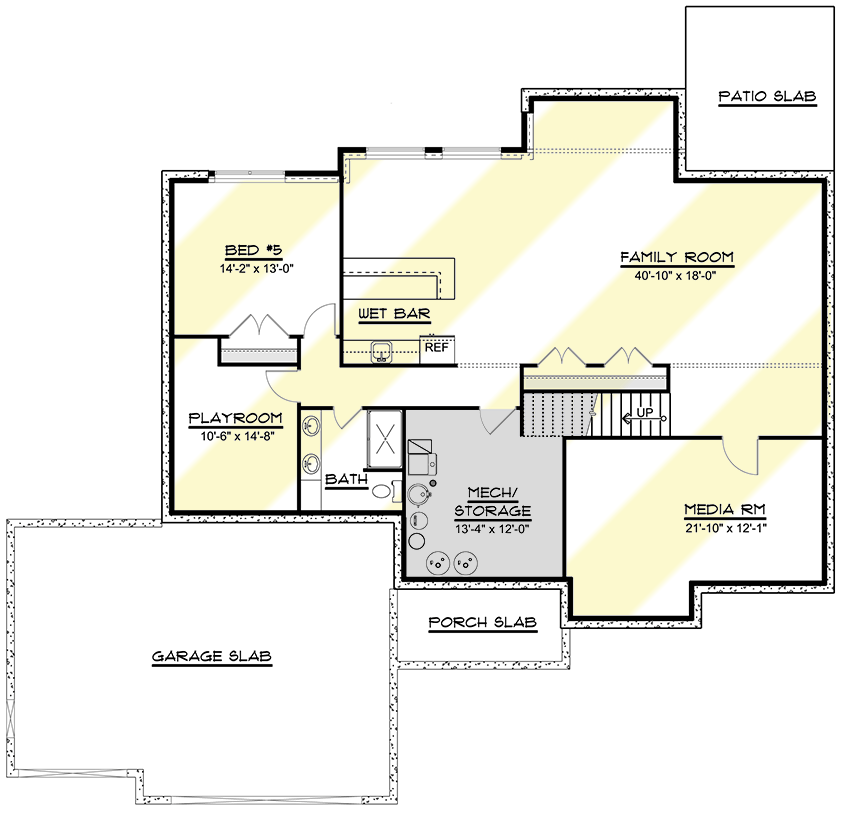

Optional Lower Level

Plan 135011GRA: Split Bedroom Craftsman Ranch Home Plan with Optional Finished Lower Level - Floor Plan - Optional Lower Level - Craftsman, Ranch

Plan Details

  • This split bedroom home mixes Craftsman style with a classic ranch floor plan. The optional lower level gives you an additional 2,106 square feet of living space, including a fifth bedroom, family room with a wet bar, media and play rooms.
  • The formal foyer and garage entry merge to take advantage of the nearby coat closet and powder bath.
  • The open great room, kitchen, and dining area are filled with natural light, and the rear patio is perfect for grilling or dining outdoors.
  • Retreat to the master bedroom, which features an elegant double tray ceiling, 4-fixture bath, and a roomy walk-in closet.
  • Three sizable bedrooms are located on the opposite side of the home, and share the hall bath with a linen closet.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,106 sq. ft.

1st Floor

2,106 sq. ft.

Optional Lower Level

2,106 sq. ft.

Porch, Combined

273 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 7"

Depth

61' 0"

Max Ridge Height

20' 1"

Garage

Type

Attached

Area

779 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9' 2"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Playroom

Wet Bar

Square Footage Breakdown

Total Heated Area

2,106 sq. ft.

1st Floor

2,106 sq. ft.

Optional Lower Level

2,106 sq. ft.

Porch, Combined

273 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 7"

Depth

61' 0"

Max Ridge Height

20' 1"

Garage

Type

Attached

Area

779 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9' 2"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Playroom

Wet Bar
