Split-Bedroom Home Plan

Plan 5969ND

  • 3,108

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Invite the family to your house for the holidays in this impressive split bedroom home.
  • A comfortable great room displays a distinctive fireplace that is shared with the kitchen.
  • You can utilize the side screened porch as a convenient grilling porch.
  • Slip off for the evening to your master suite with a sitting room that opens to the rear covered deck.
  • Enticing French doors open to your private study.
  • On the upper floor, the rooms have spacious closets, and you have the opportunity for a home office and game room with the ample bonus and optional rooms available.
  • Related Plan: For an alternate layout, see house plan 59433ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

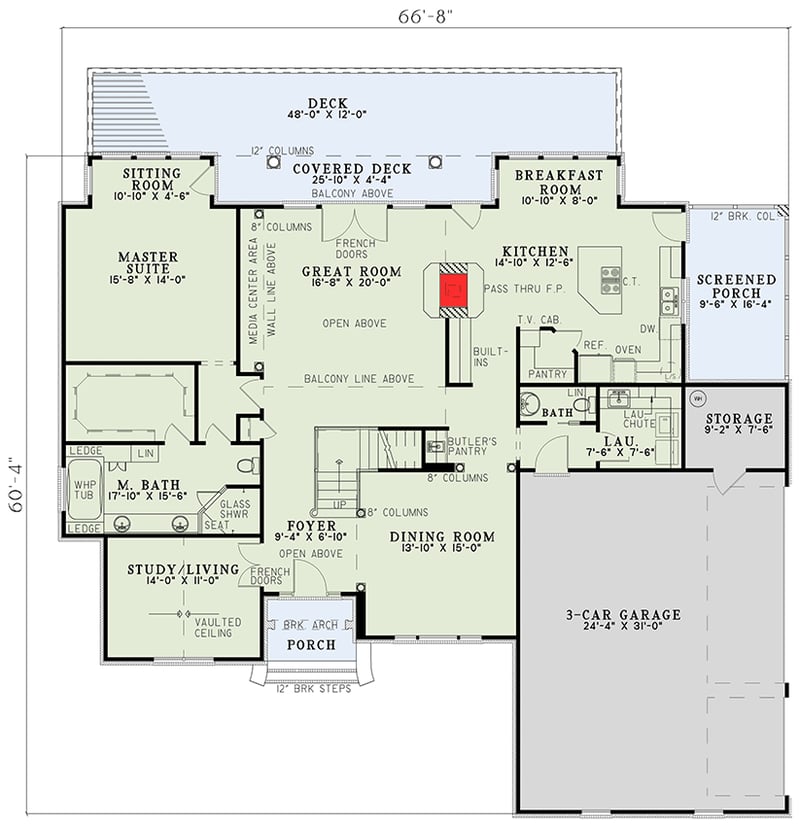

Split-Bedroom Home Plan - 5969ND floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

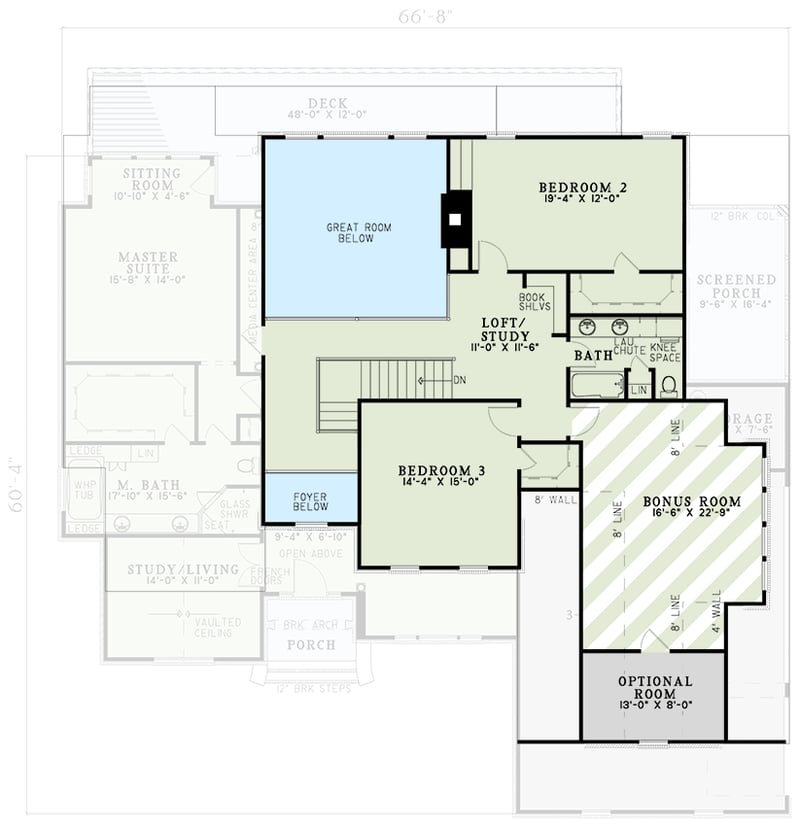

Split-Bedroom Home Plan - 5969ND floor plan - 2nd Floor

Split-Bedroom Home Plan

  • 3,108

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,108 sq. ft.
  • 1st Floor: 2,107 sq. ft.
  • 2nd Floor: 1,001 sq. ft.

Dimensions

  • Width: 66' 8"
  • Depth: 60' 4"
  • Max ridge height: 35' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 754 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
