Plan 510062WDY
EXCLUSIVE
Split Bedroom House Plan with Large Walk-Through Pantry
Heated S.F.
2,160
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details

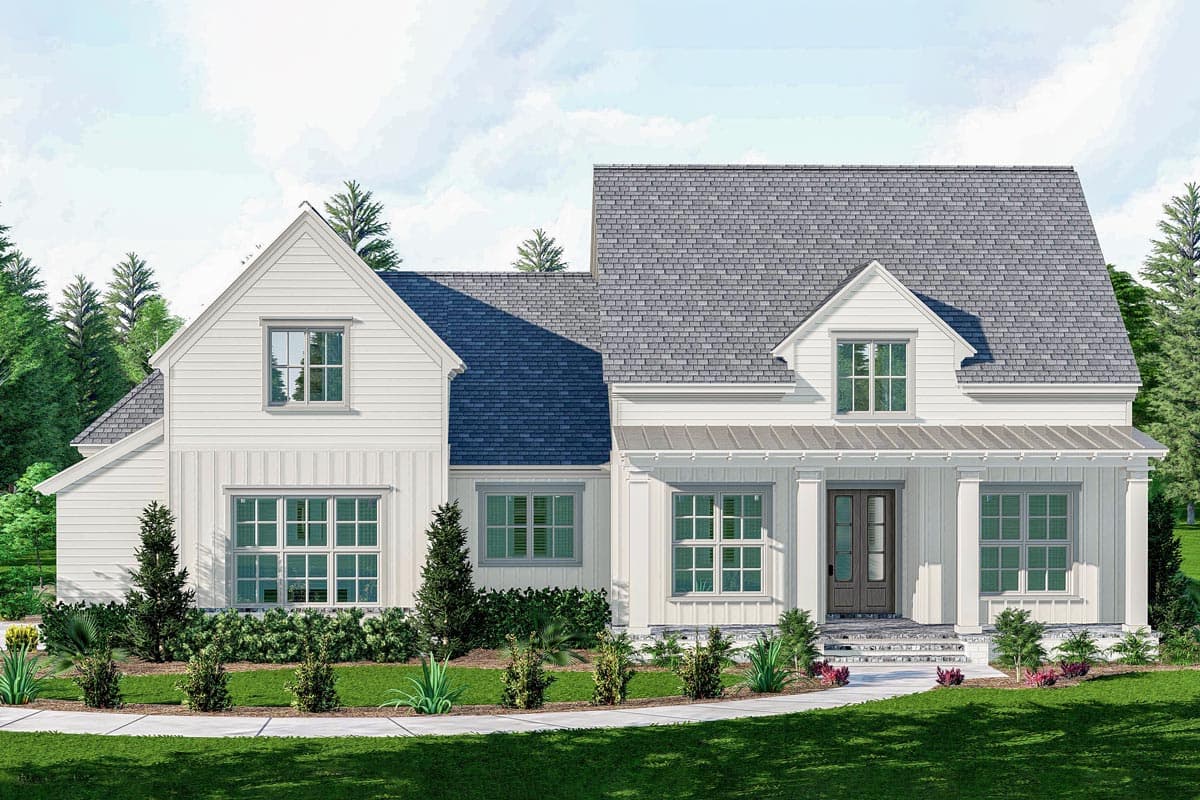

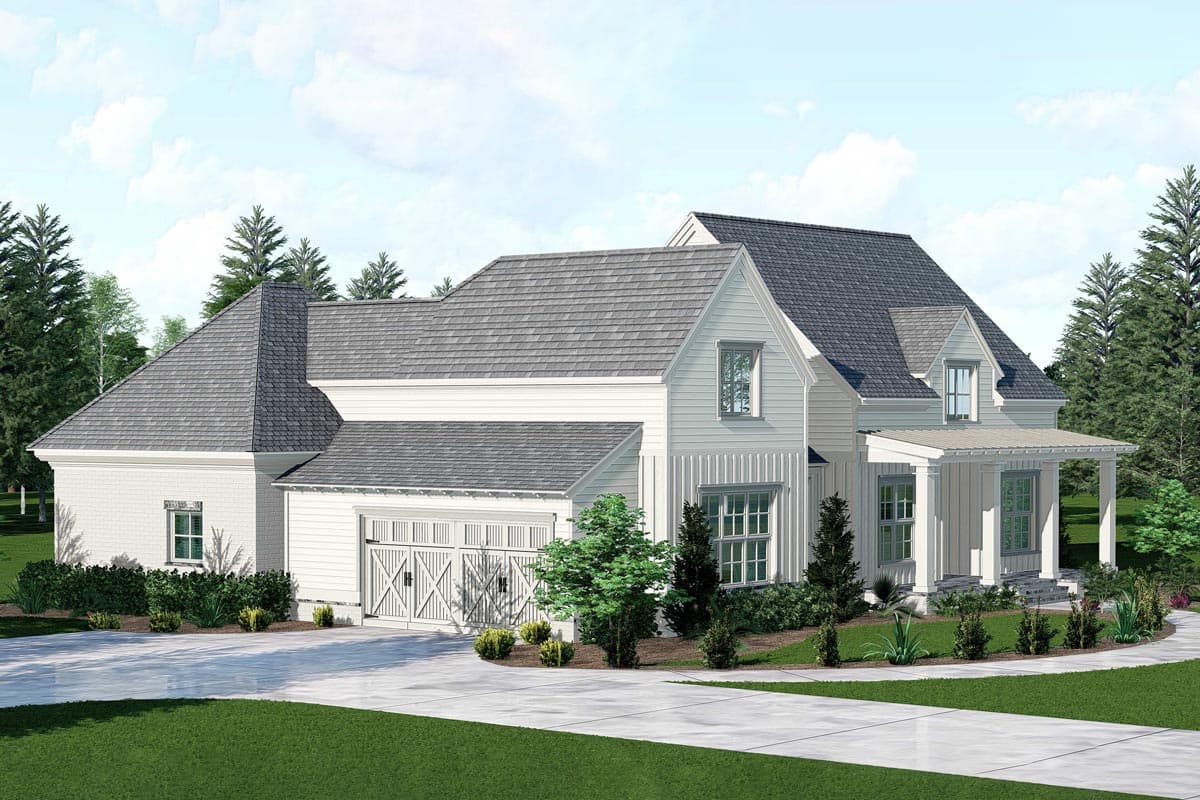

  • A standing seam shed roof sits above the front porch of this one-story split bedroom house plan with a 2-car side-entry garage.
  • Middle portion of the home is an open concept design. The fireplace in the living room is visible from both the kitchen and the dining room.
  • Enjoy casual meals in the breakfast room or at the kitchen island. Serve guests in your dining room which is accessible from the kitchen through the walk-through pantry (and separated from it by a pocket door once the meal is served.

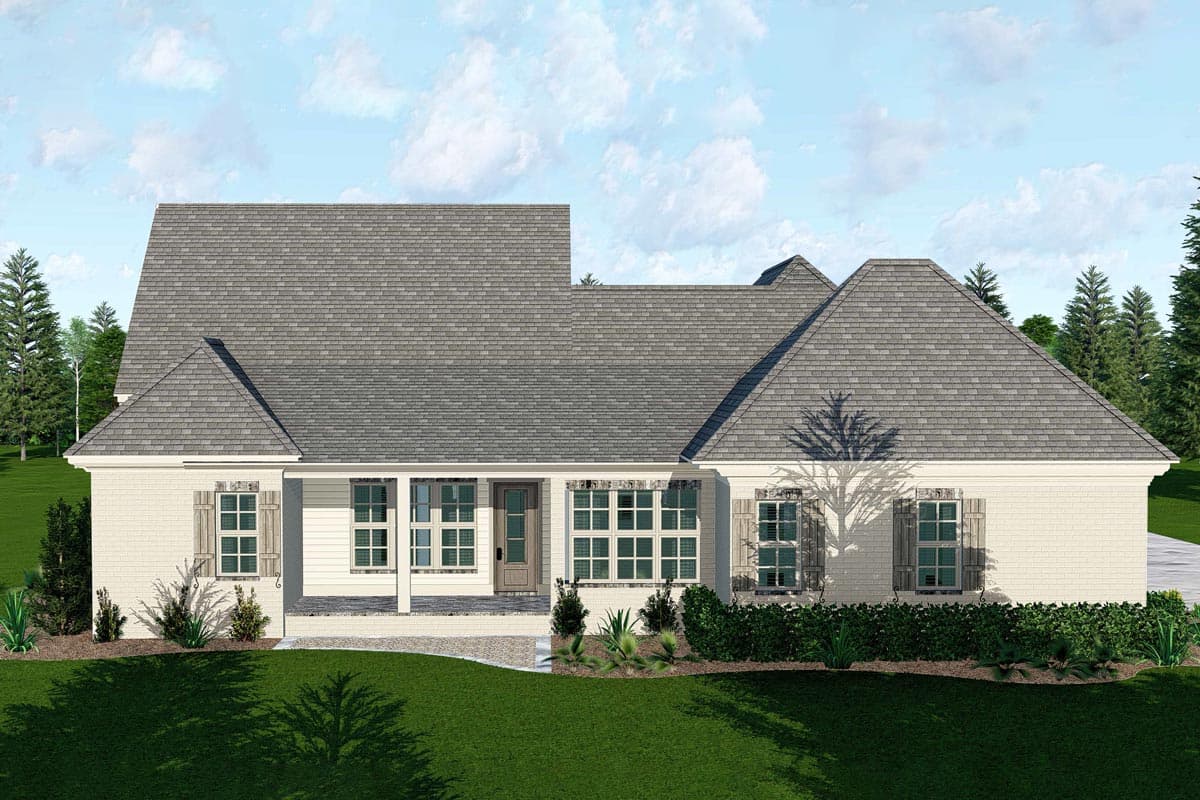

  • A large screen porch in back is 10'1"-deep and can serve as an outdoor living room if the climate is right.
  • The master bedroom is privately located on the left and has a large walk-in closet and a five-fixture bath. Two more bedrooms share a bathroom across the home.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

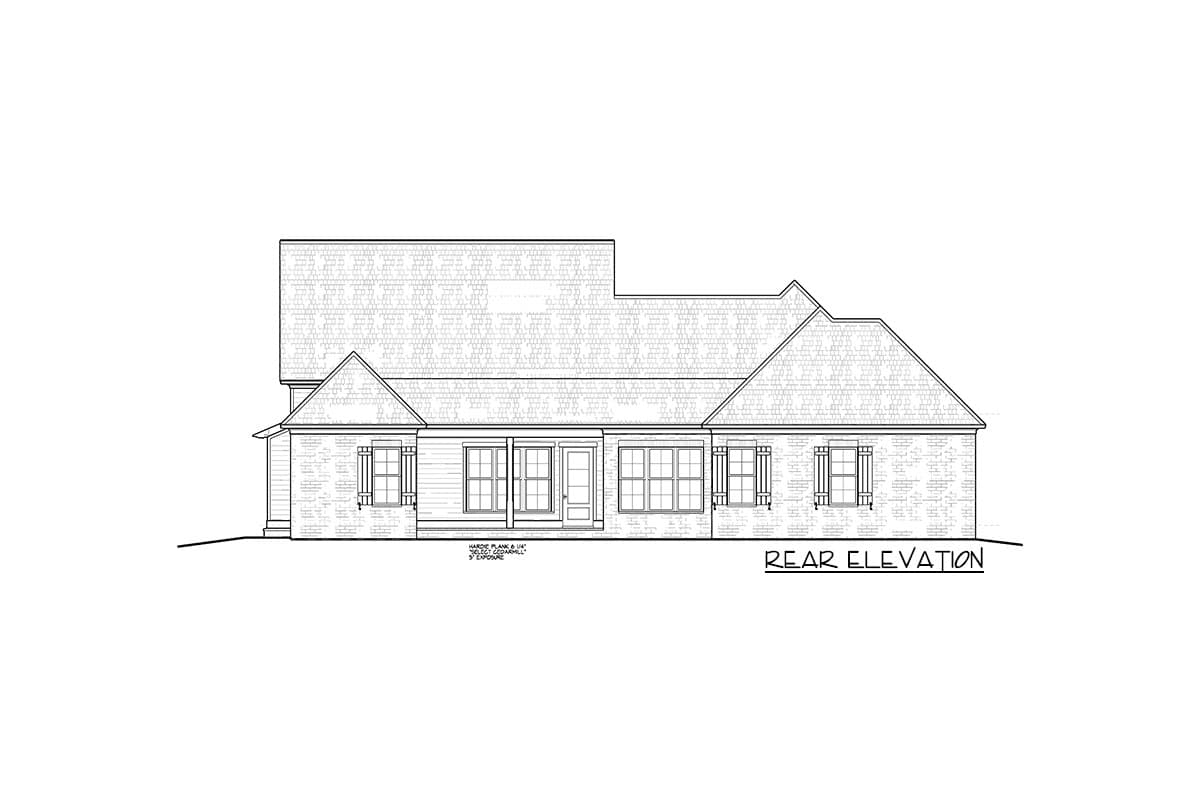

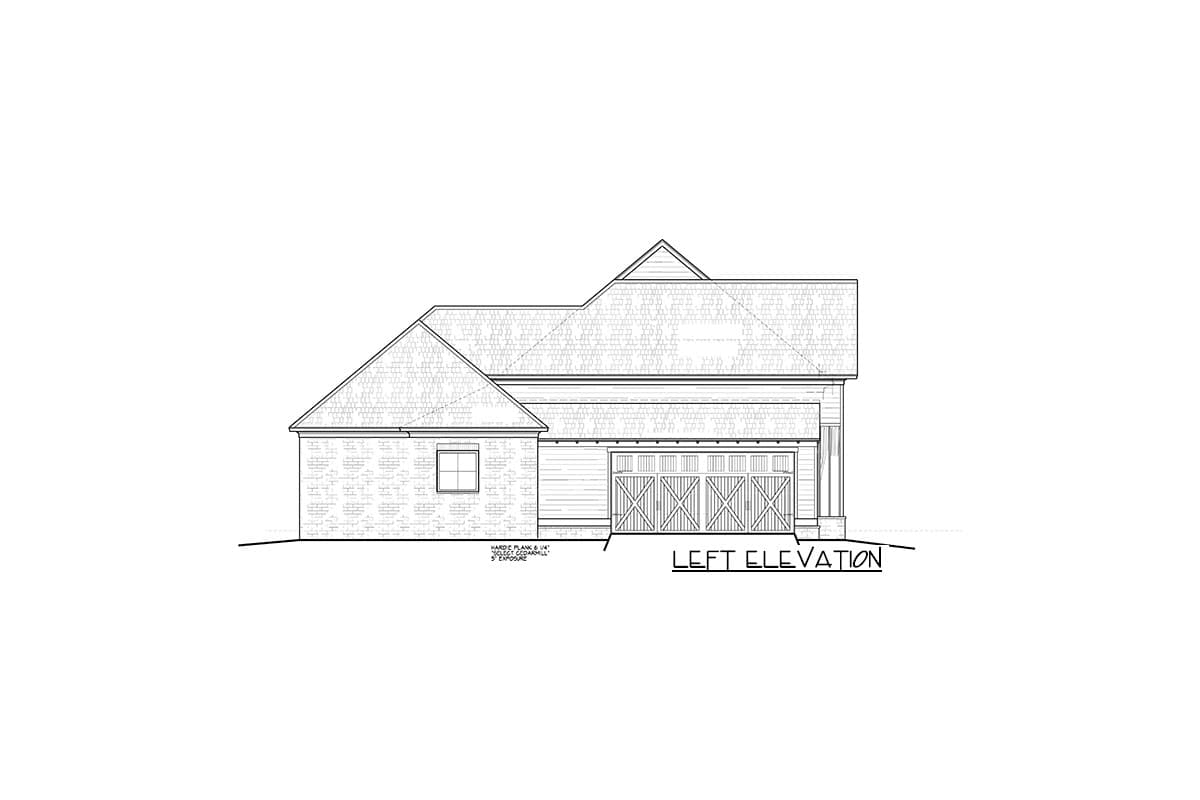

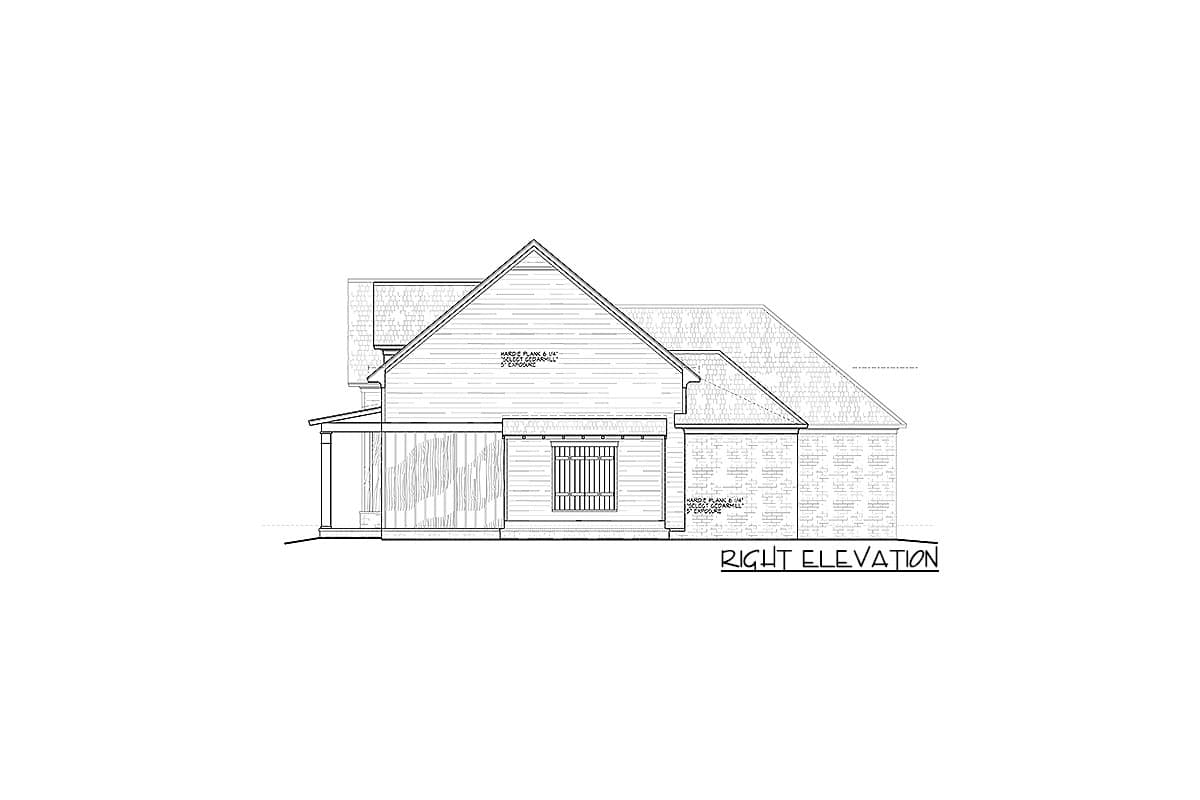

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Bedroom House Plan with Large Walk-Through Pantry

  • 2,160

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

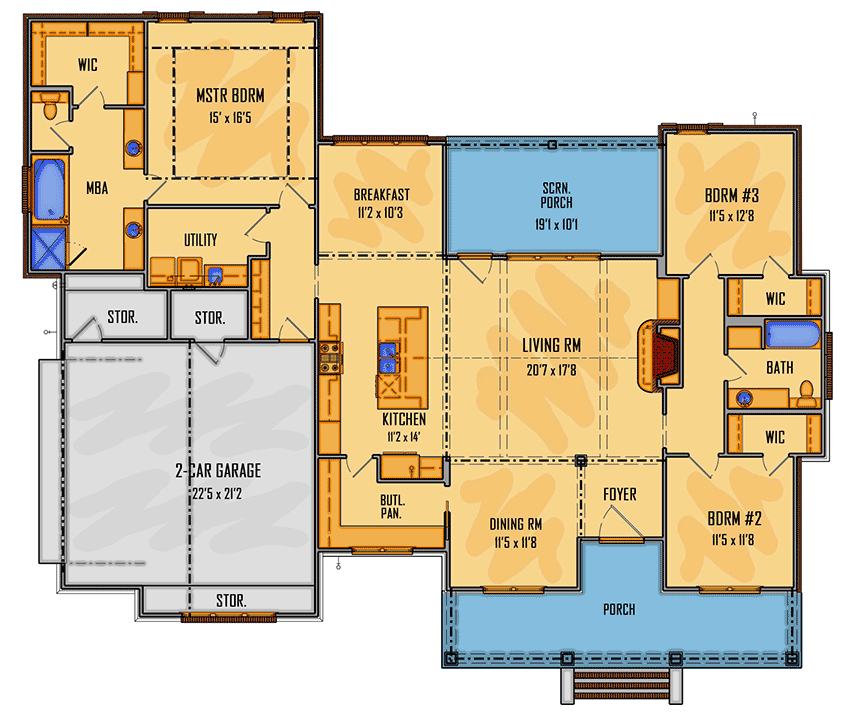

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,160 sq. ft.
  • 1st Floor: 2,160 sq. ft.

Dimensions

  • Width: 72' 2"
  • Depth: 58' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 632 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Split Bedroom House Plan with Large Walk-Through Pantry

  • 2,160

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Split Bedroom House Plan with Large Walk-Through Pantry

  • 2,160

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,160 sq. ft.
  • 1st Floor: 2,160 sq. ft.

Dimensions

  • Width: 72' 2"
  • Depth: 58' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 632 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

    Main Level
