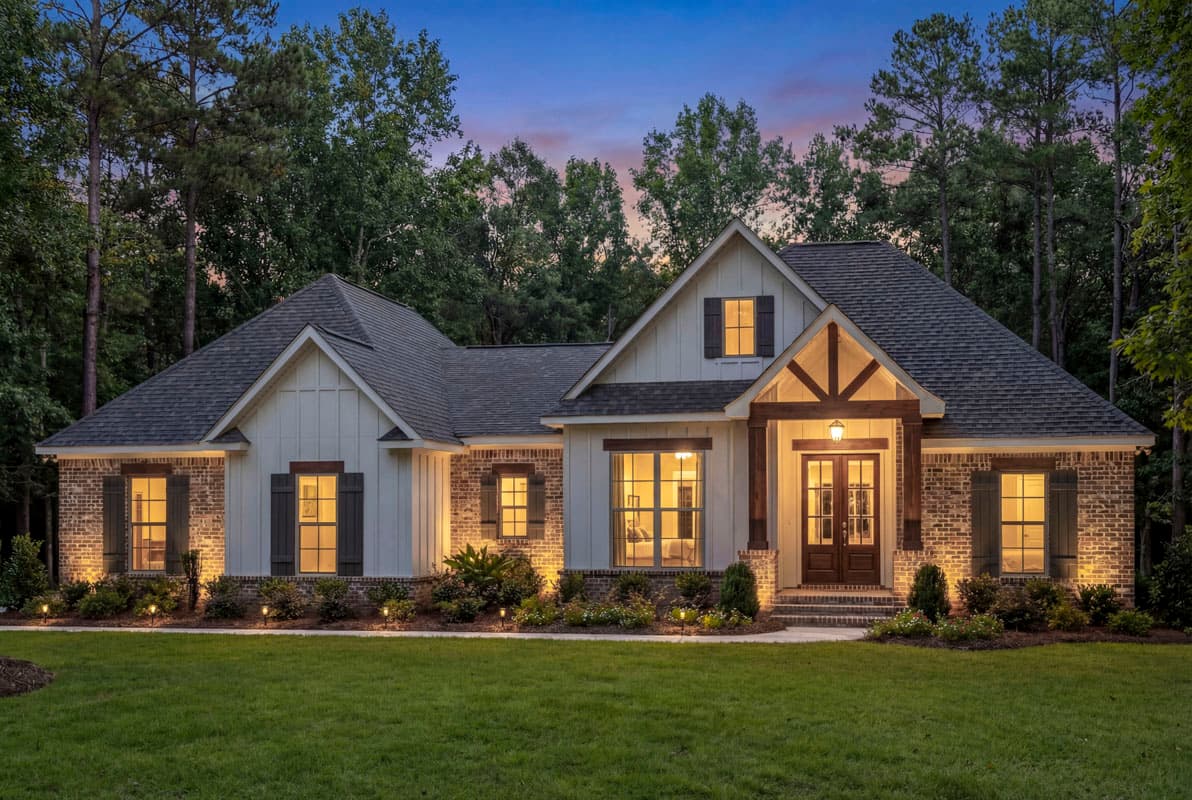

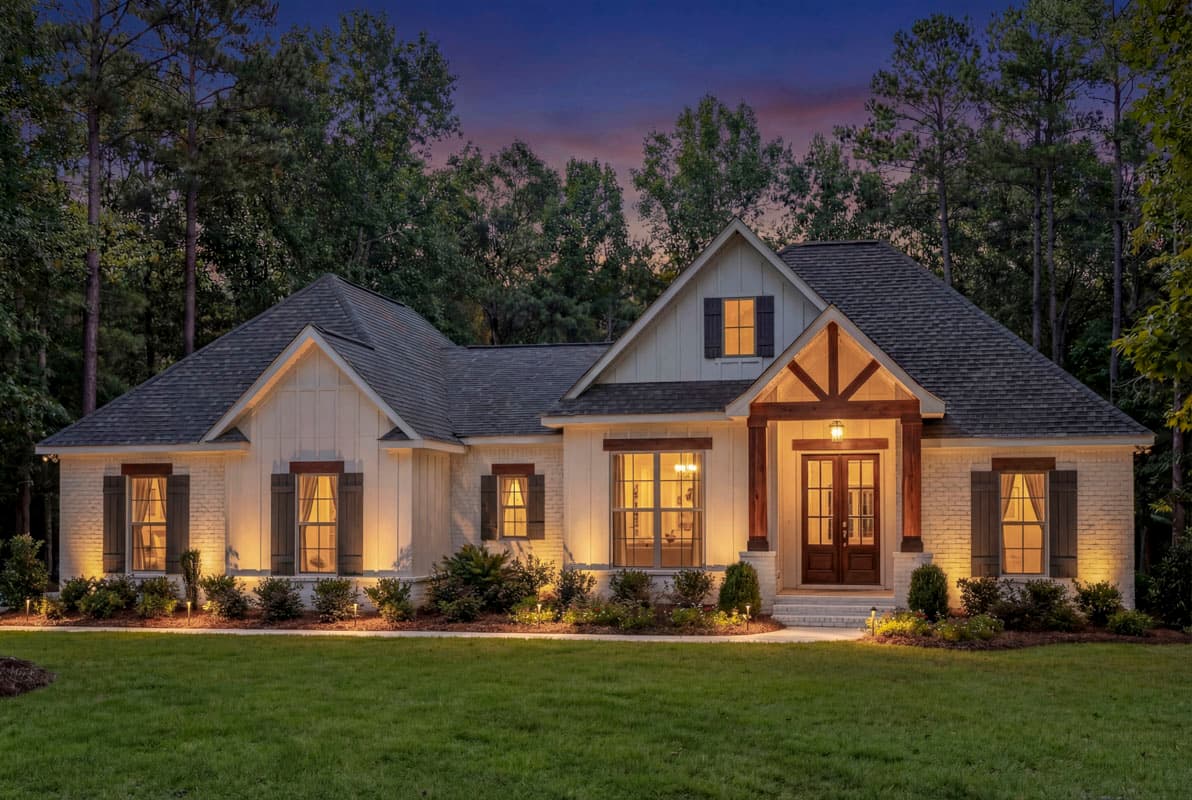

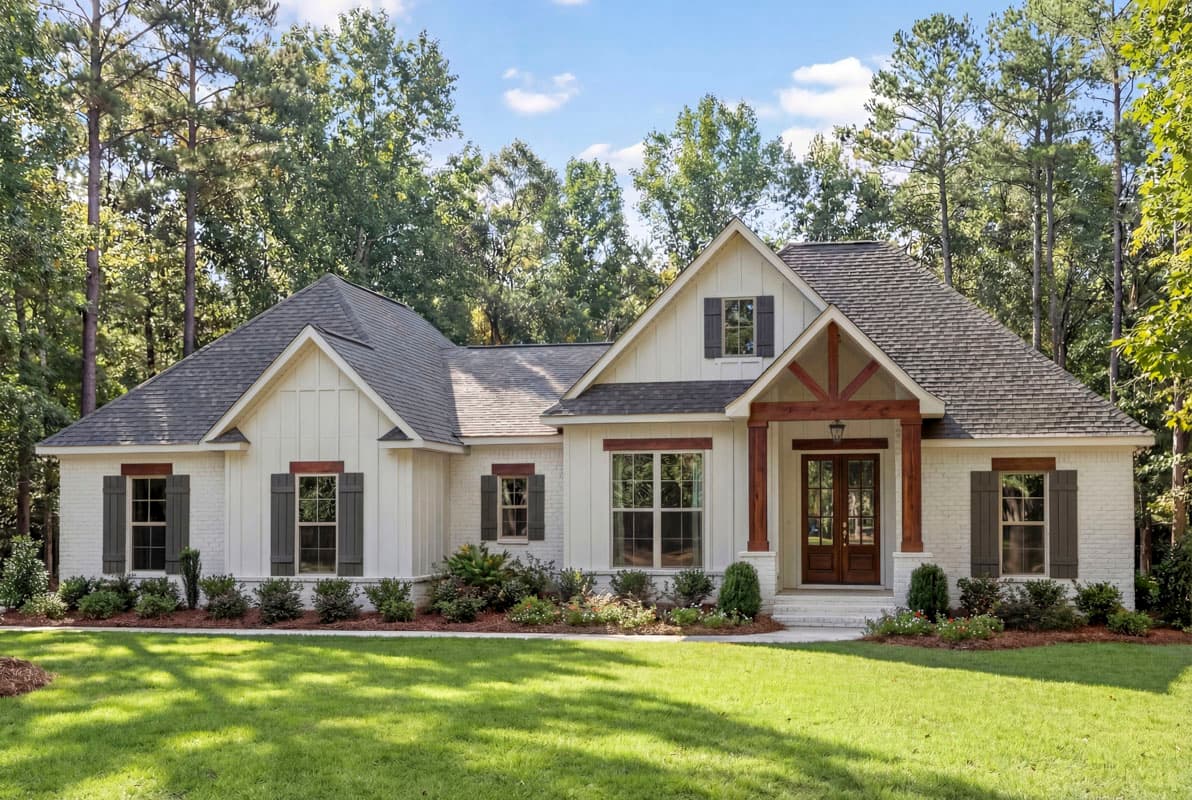

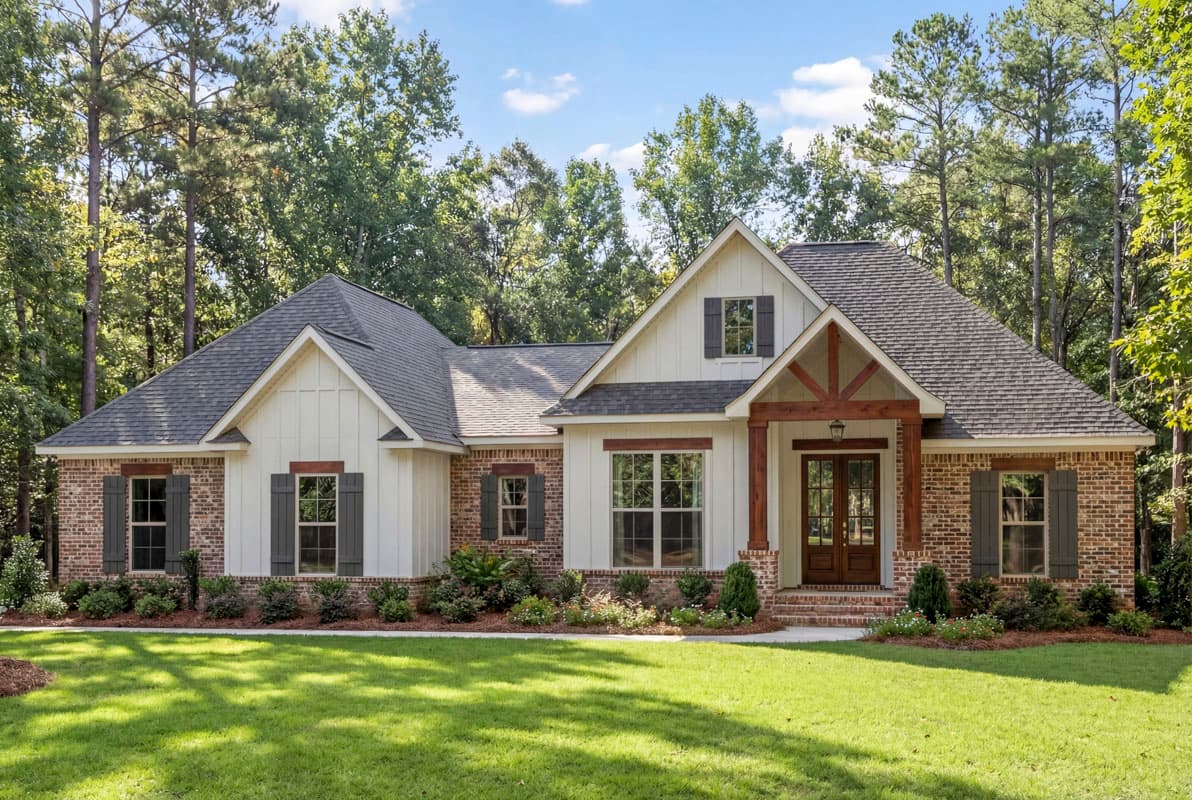

Split Bedroom House Plan With Open Floor Plan - 1769 Sq Ft

Heated S.F.
1,769
Beds
3
Baths
2
Stories
1
Cars
2
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

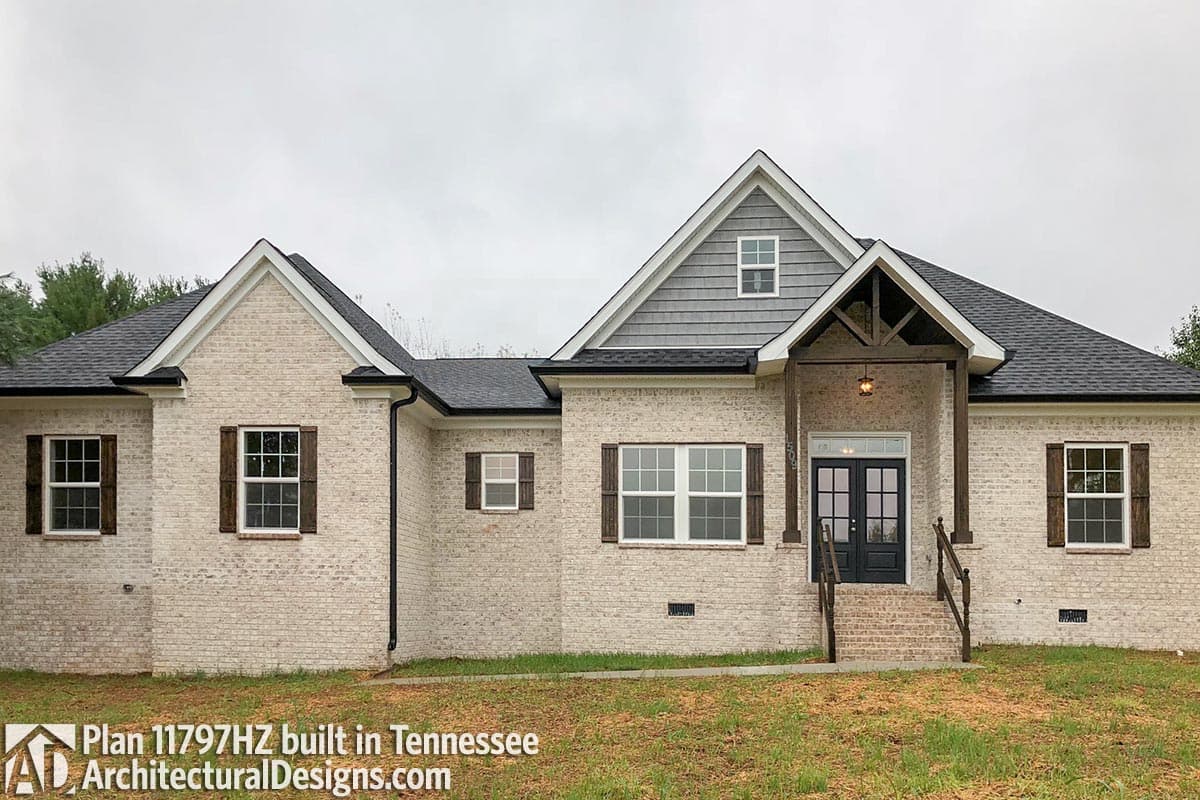

build gallery item - House Plan 11797HZ Comes To Life In Kentucky

House Plan 11797HZ Comes To Life In Kentucky

10

Photos

build gallery item - House Plan 11797HZ comes to life in Tennessee

House Plan 11797HZ comes to life in Tennessee

5

Photos

build gallery item - House Plan 11797HZ comes to life in Tennessee

House Plan 11797HZ comes to life in Tennessee

17

Photos

build gallery item - House Plan 11797HZ Comes to Life in Virginia

House Plan 11797HZ Comes to Life in Virginia

24

Photos

build gallery item - House Plan 11797HZ Comes to Life in Tennessee

House Plan 11797HZ Comes to Life in Tennessee

11

Photos

build gallery item - House Plan 11797HZ Comes to Life in Wyoming

House Plan 11797HZ Comes to Life in Wyoming

18

Photos

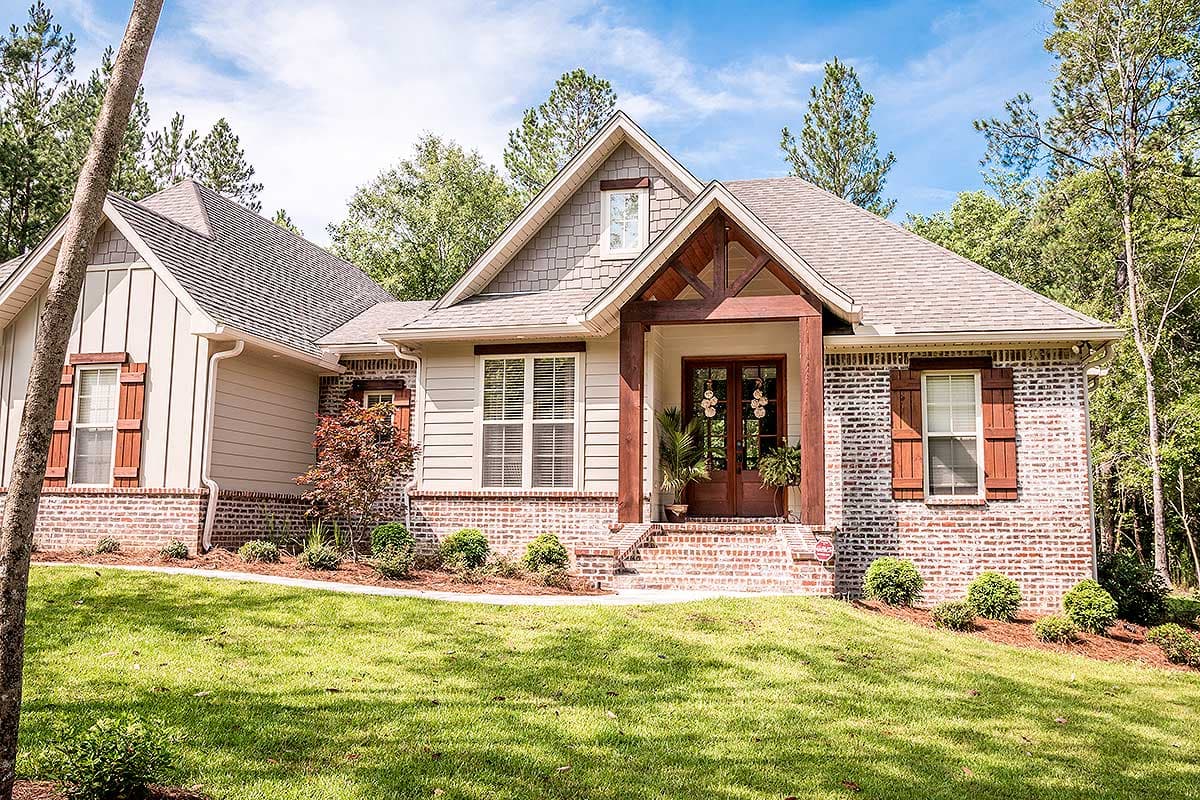

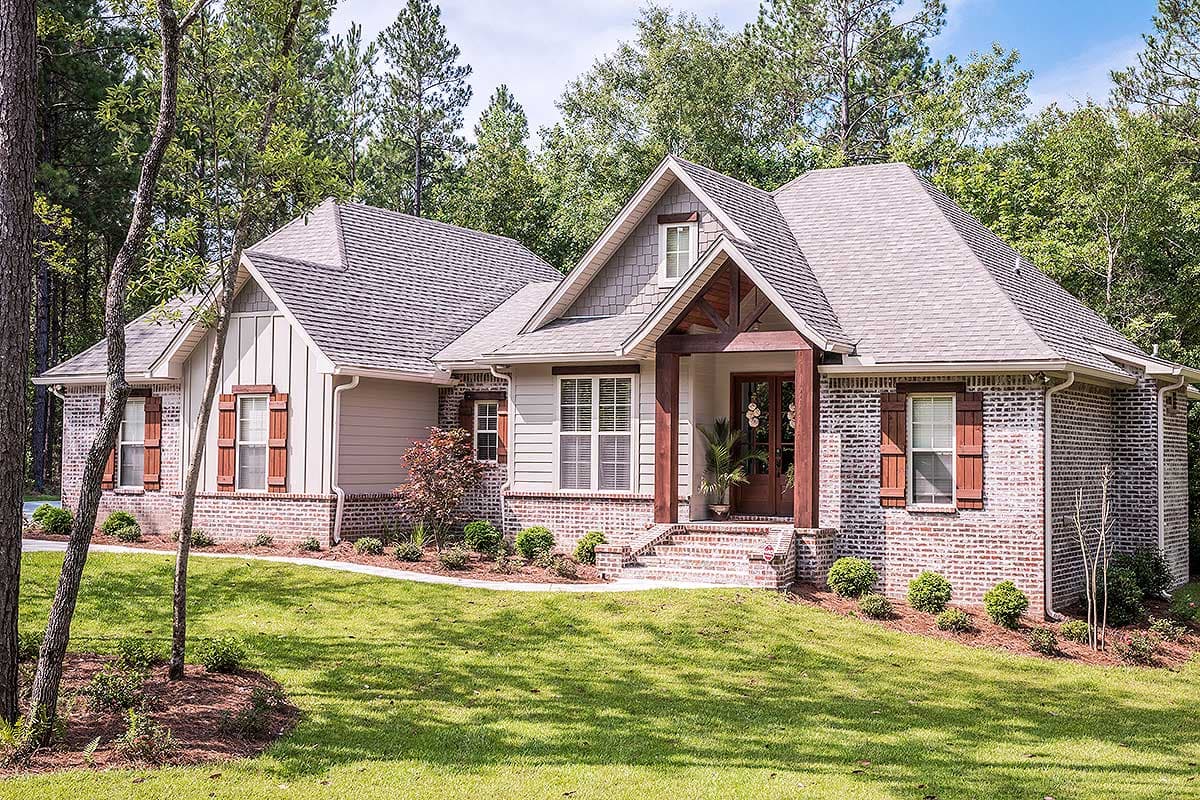

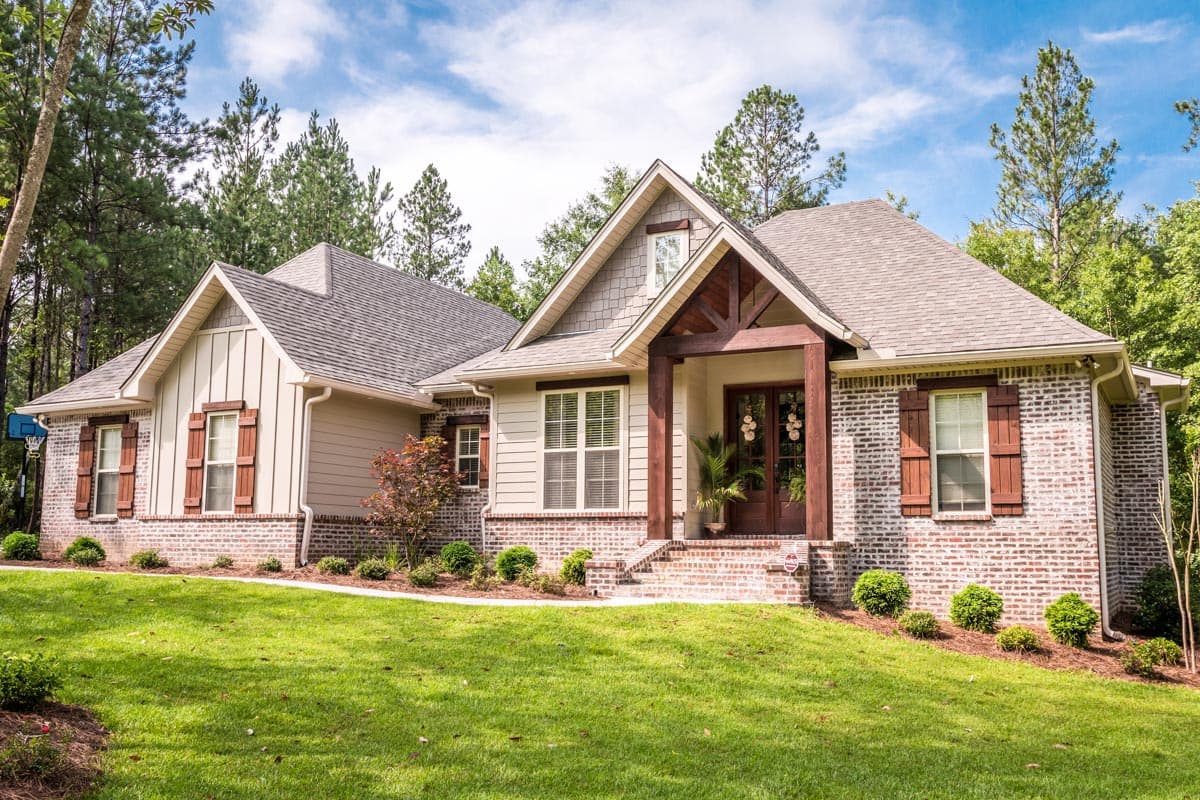

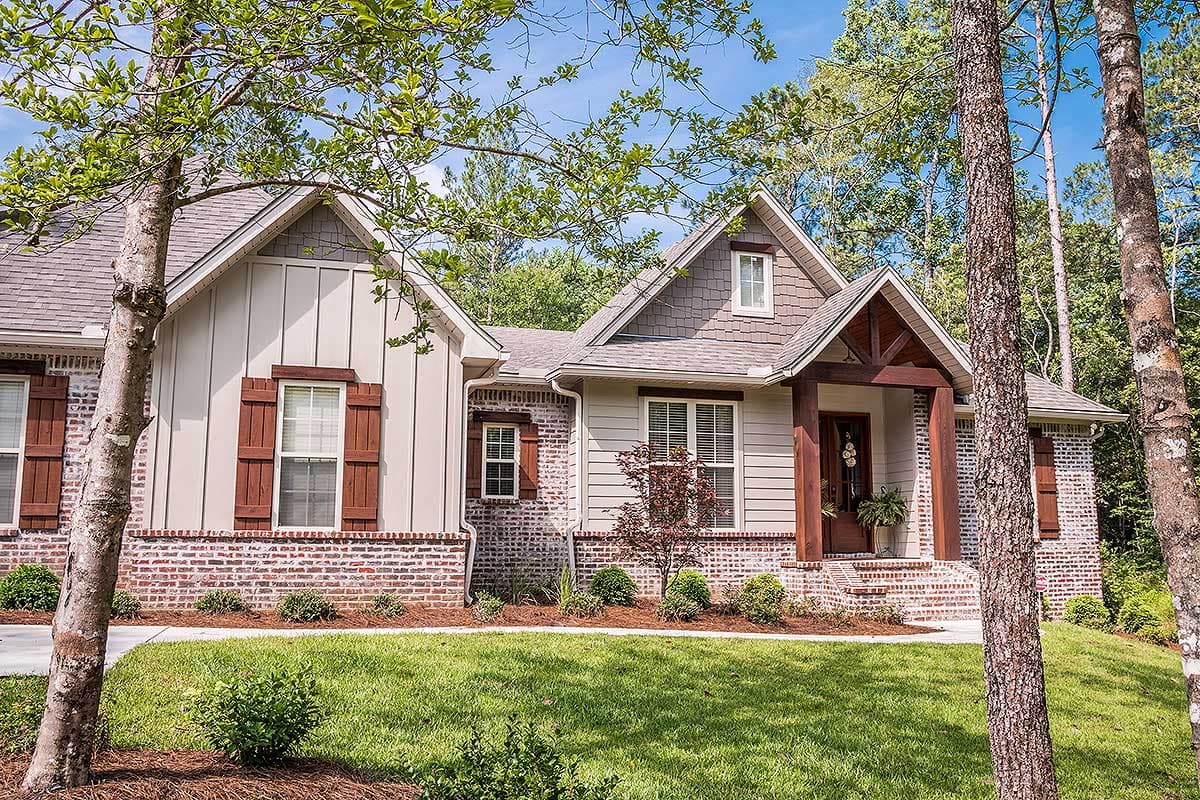

Client Photos

Floor Plan

Plan 11797HZ

Main Level
Main Level
Optional
Optional

Plan 11797HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

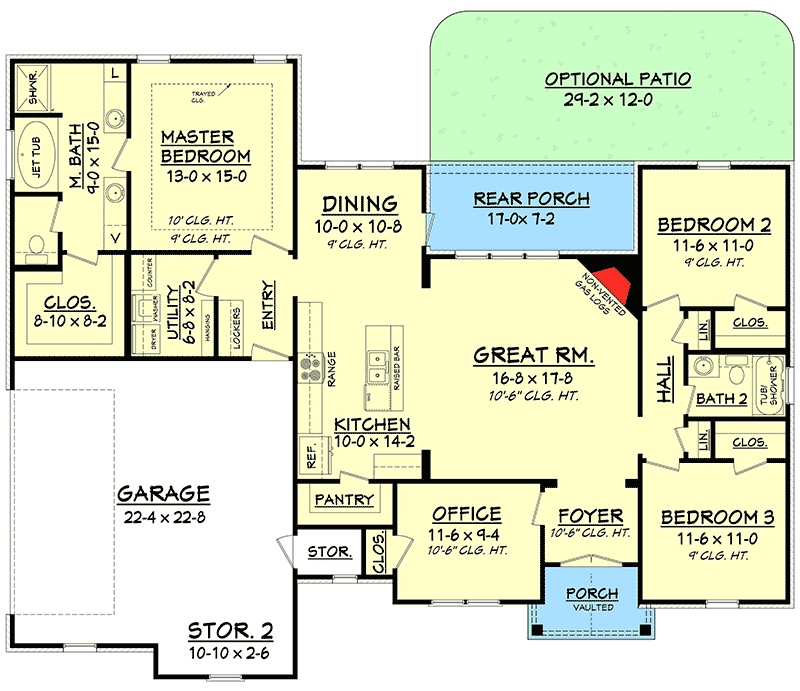

Plan 11797HZ: Split Bedroom House Plan With Open Floor Plan - 1769 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Ranch, Traditional

Optional

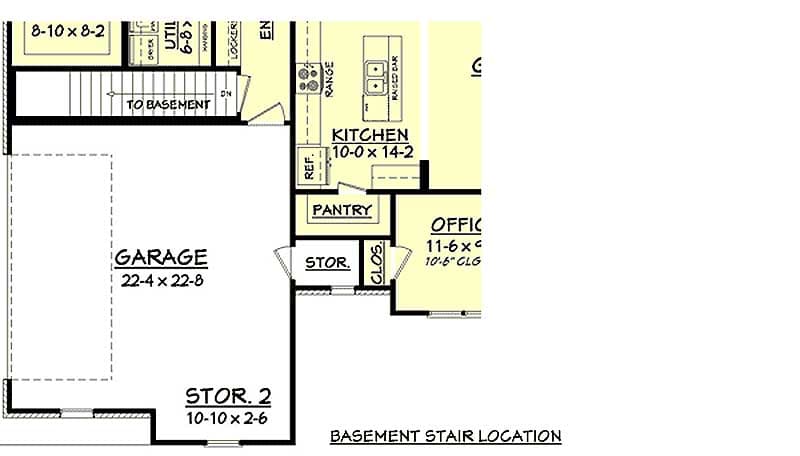

Plan 11797HZ: Split Bedroom House Plan With Open Floor Plan - 1769 Sq Ft - Floor Plan - Optional - Country, Craftsman, Ranch, Traditional

Plan Details

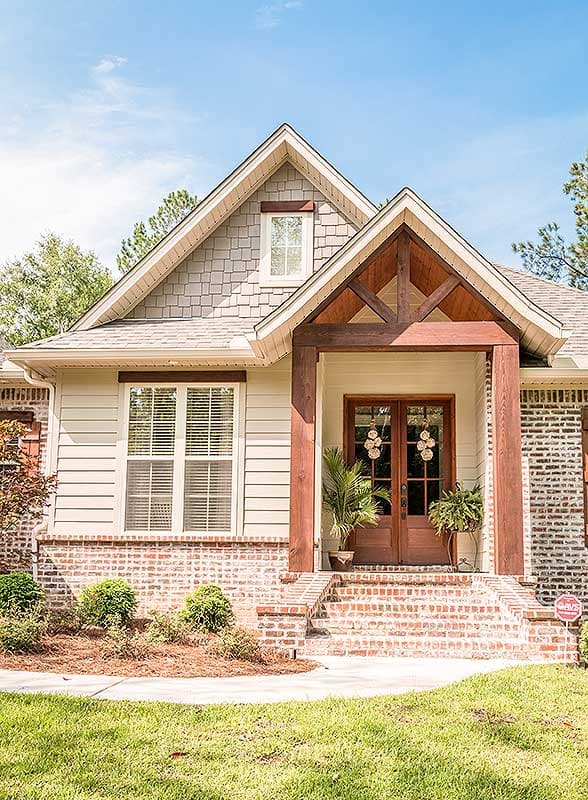

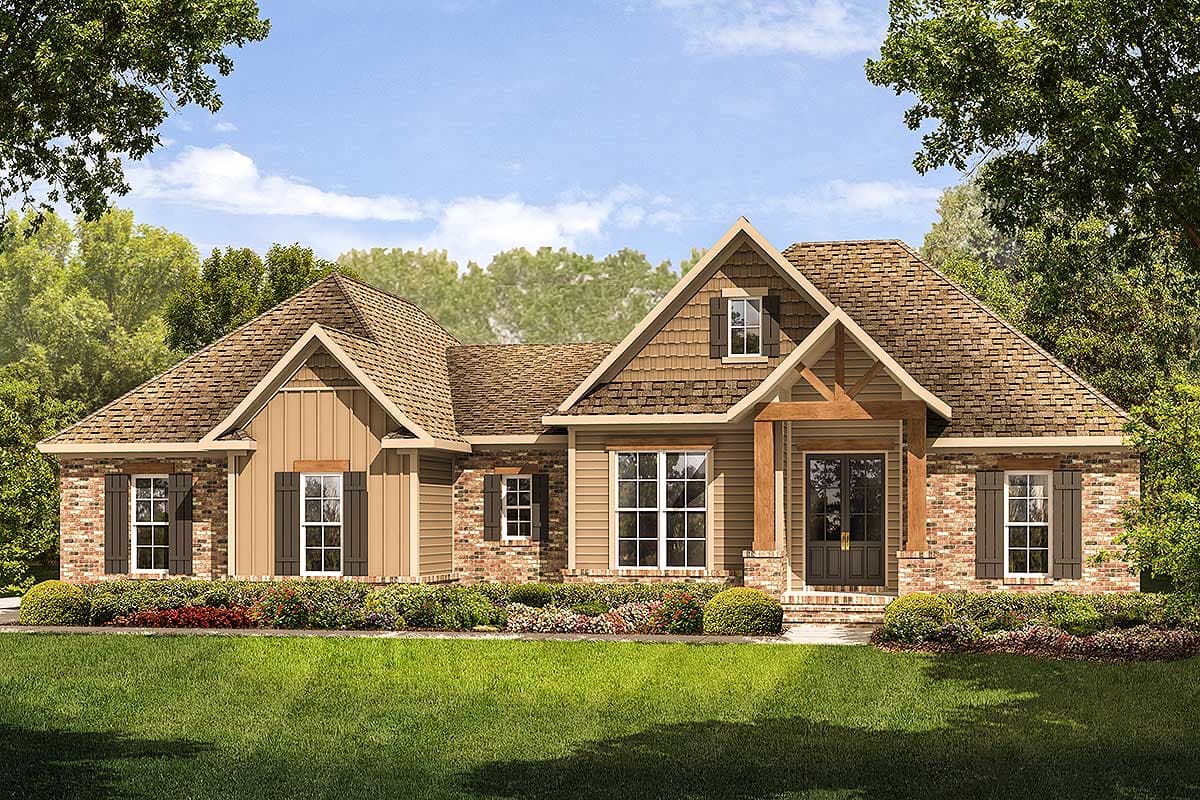

  • This 3 bedroom house plan gives you a beautiful mix of brick, shingles and siding on the exterior and an attractive covered entry with beautiful timber supports.
  • The foyer leads you into the spacious great room which is open to the kitchen and dining room. A fireplace is angled in the corner and windows look out to the rear porch and optional patio beyond.
  • The kitchen has a large pantry and there is an island giving you counterspace and casual seating.
  • The master has raised ceilings, walk-in closet and a five fixture bath. Two more bedrooms share a bath across the home.
  • The roof is stick framed with a 12:12 main pitch and a 9:12 secondary pitch.
  • Related Plan: Get more space with house plan 51775HZ (2,239 sq. ft.).

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

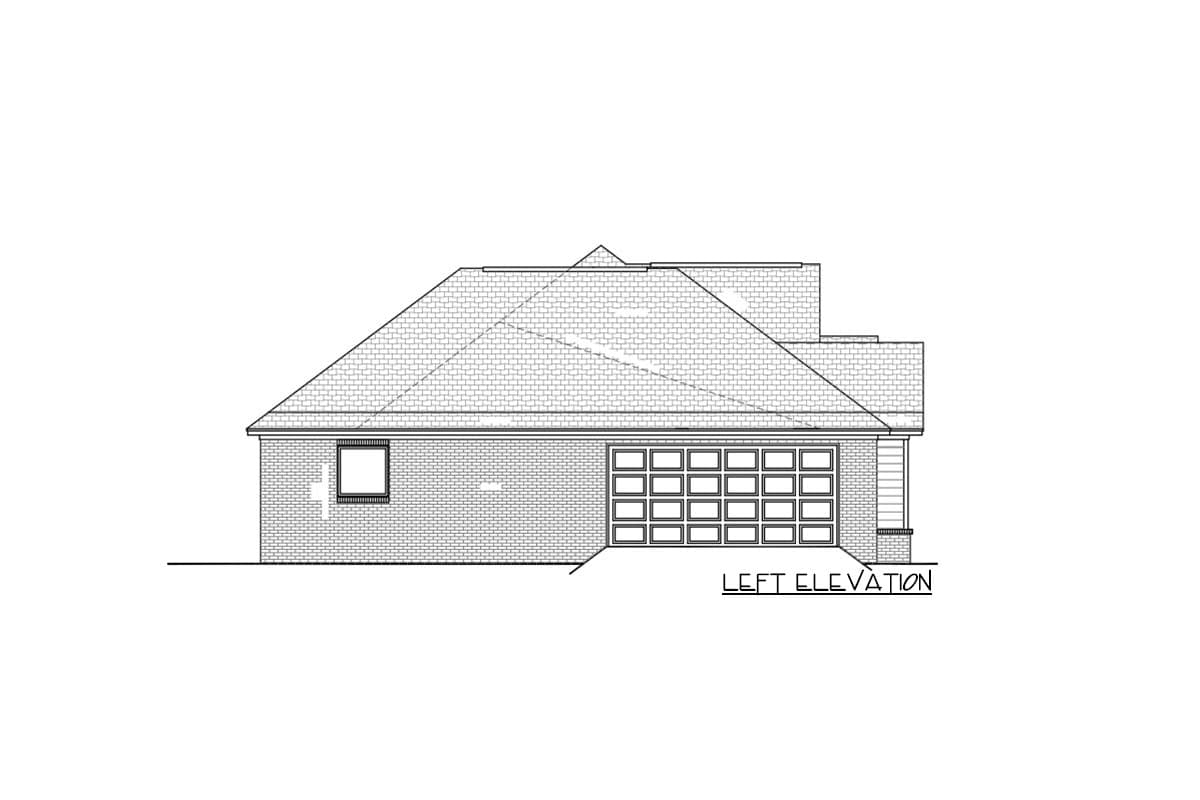

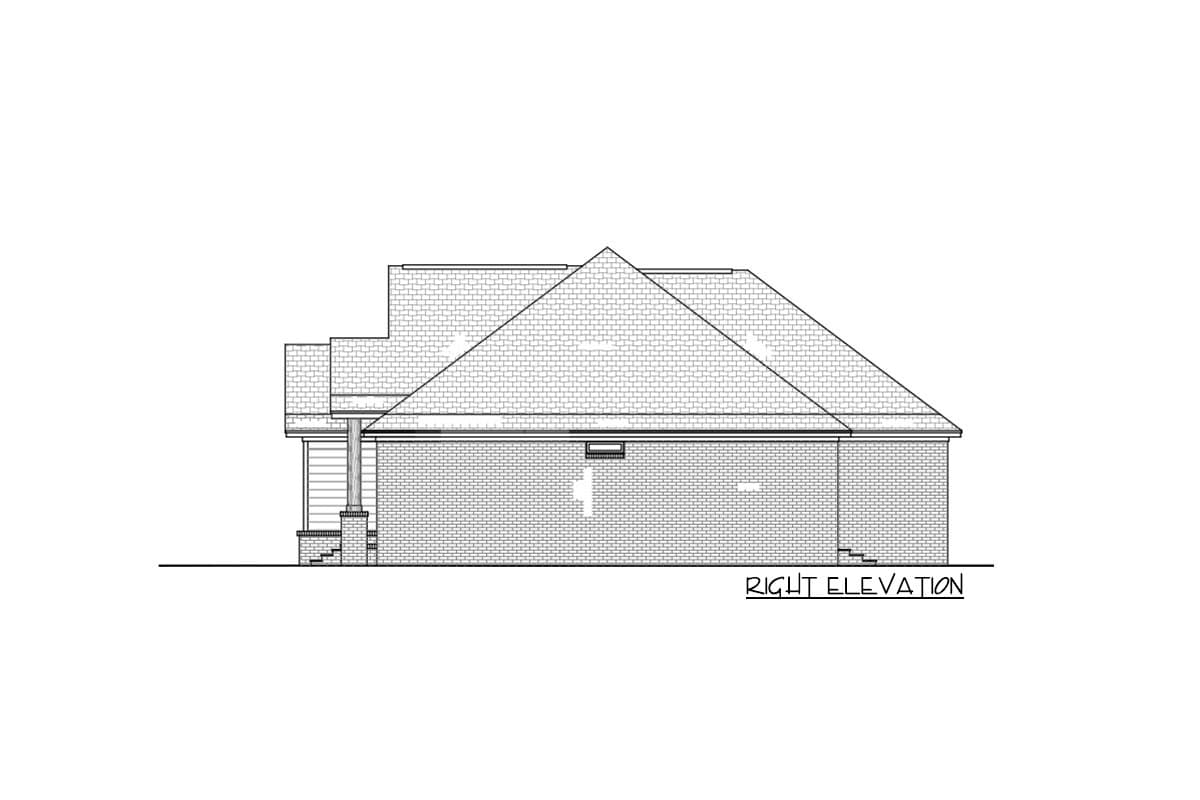

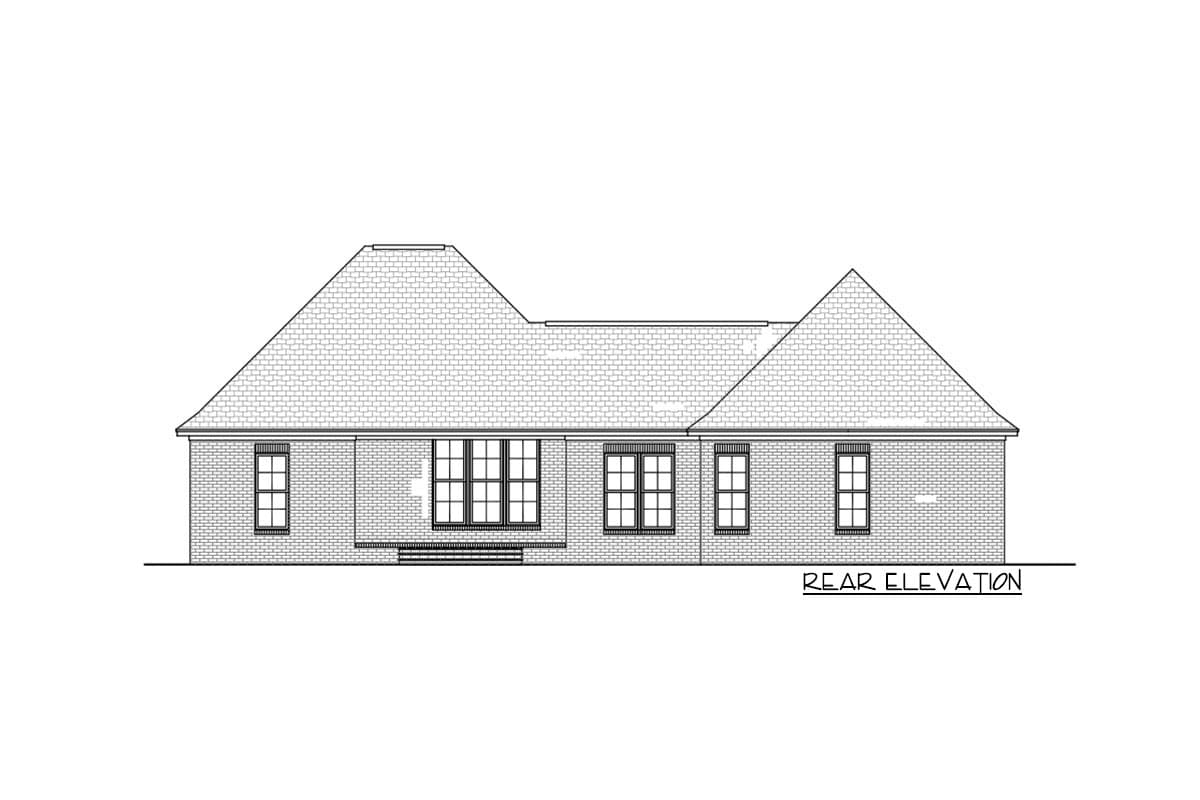

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,769 sq. ft.

1st Floor

1,769 sq. ft.

Porch, Front

46 sq. ft.

Porch, Rear

122 sq. ft.

Storage

50 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 6"

Depth

49' 8"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

525 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,769 sq. ft.

1st Floor

1,769 sq. ft.

Porch, Front

46 sq. ft.

Porch, Rear

122 sq. ft.

Storage

50 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 6"

Depth

49' 8"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

525 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Photo Gallery

USDA Approved
