Plan 56308SM

  • 2,350

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • A courtyard-style garage suits this delightful French Country home plan to a corner lot.
  • Inside, an open floor plan is laid out thoughtfully so you can see from room to room.
  • Guests will enjoy the privacy of a separate bedroom and bath off the garage entrance.
  • The master suite is isolated in the rear with its huge walk-in closet and spacious bathroom with a corner soaking tub.
  • The rear covered porch keeps the hot sun off and provides an outdoor oasis.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

Floor Plan

Plan details



Split-Bedroom Layout

  • 2,350

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $725
  • 6 Sets $825
  • 5 Sets PLUS $1,025
  • CAD $1,725
  • CAD - multi-use $2,120
  • View all purchase option online

About This Plan

  • A courtyard-style garage suits this delightful French Country home plan to a corner lot.
  • Inside, an open floor plan is laid out thoughtfully so you can see from room to room.
  • Guests will enjoy the privacy of a separate bedroom and bath off the garage entrance.
  • The master suite is isolated in the rear with its huge walk-in closet and spacious bathroom with a corner soaking tub.
  • The rear covered porch keeps the hot sun off and provides an outdoor oasis.

Floor Plans

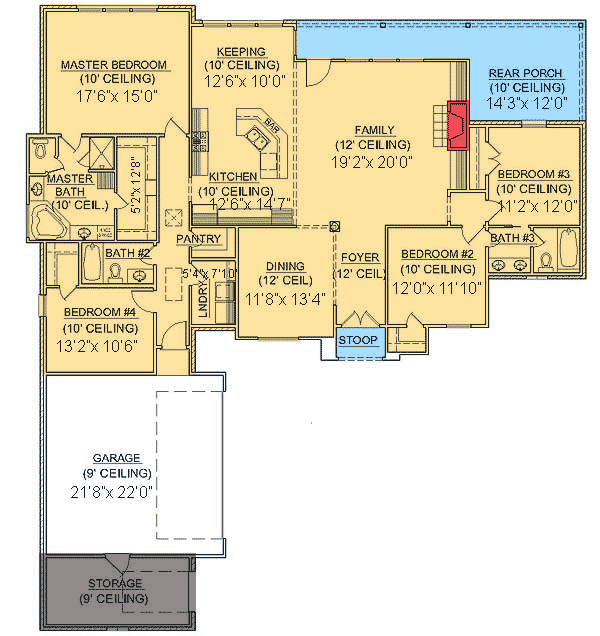

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,350 sq. ft.
  • 1st Floor: 2,350 sq. ft.
  • Porch, Combined: 309 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 68' 8"
  • Depth: 76' 6"

Garage

  • Type: Attached
  • Area: 695 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
