Split Bedroom Modern Farmhouse Plan with Side-Loading Carport - 1676 Sq Ft

Name: Plan 56503SM: Split Bedroom Modern Farmhouse Plan with Side-Loading Carport - 1676 Sq Ft
Brand: Architectural Designs
SKU: 56503SM
Price: 899.51 USD
Availability: InStock

Heated S.F.

1,676

Beds

Baths

Stories

Cars

Client Photos

Floor Plan

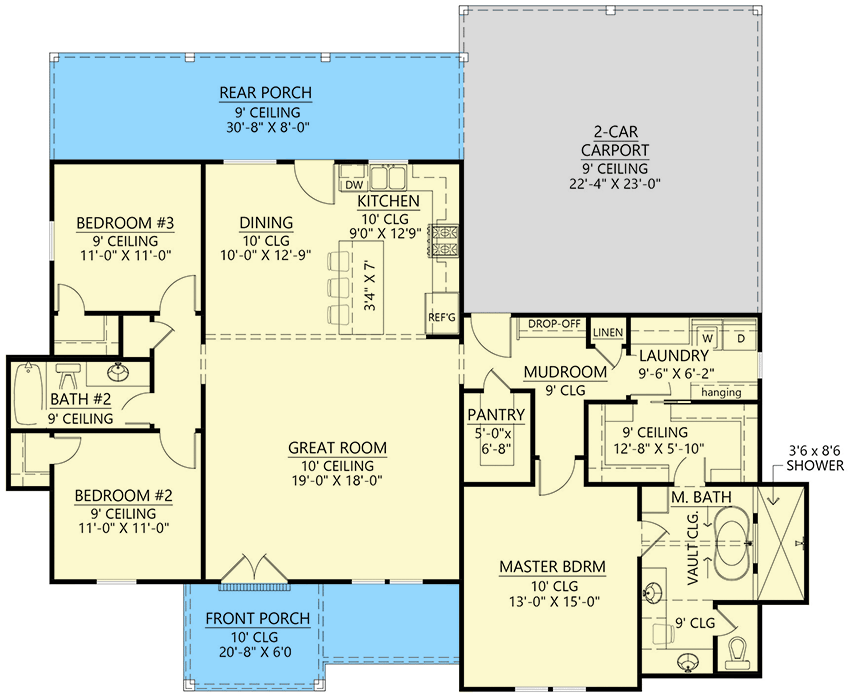

Main Level

2-Car Side Garage (Paid Option $)

Plan Details

A decorative shed dormer above the entry porch - complete with a vaulted gable - adds to the curb appeal of this one-story modern farmhouse plan with a split bedroom layout. A carport on the back-right corner (submit a modification request if you want it turned into a proper garage) helps preserve the attractive front of the home.
The great rom is open to the dining room and kitchen with the home's open floor plan. A door on the back wall opens to the back porch.
The master suite is isolated on the right of the home. The master bath has a vaulted ceiling and has direct access to the laundry room. How convenient!
Across the home, two bedrooms share a bath. Each bedroom has a walk-in closet.

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

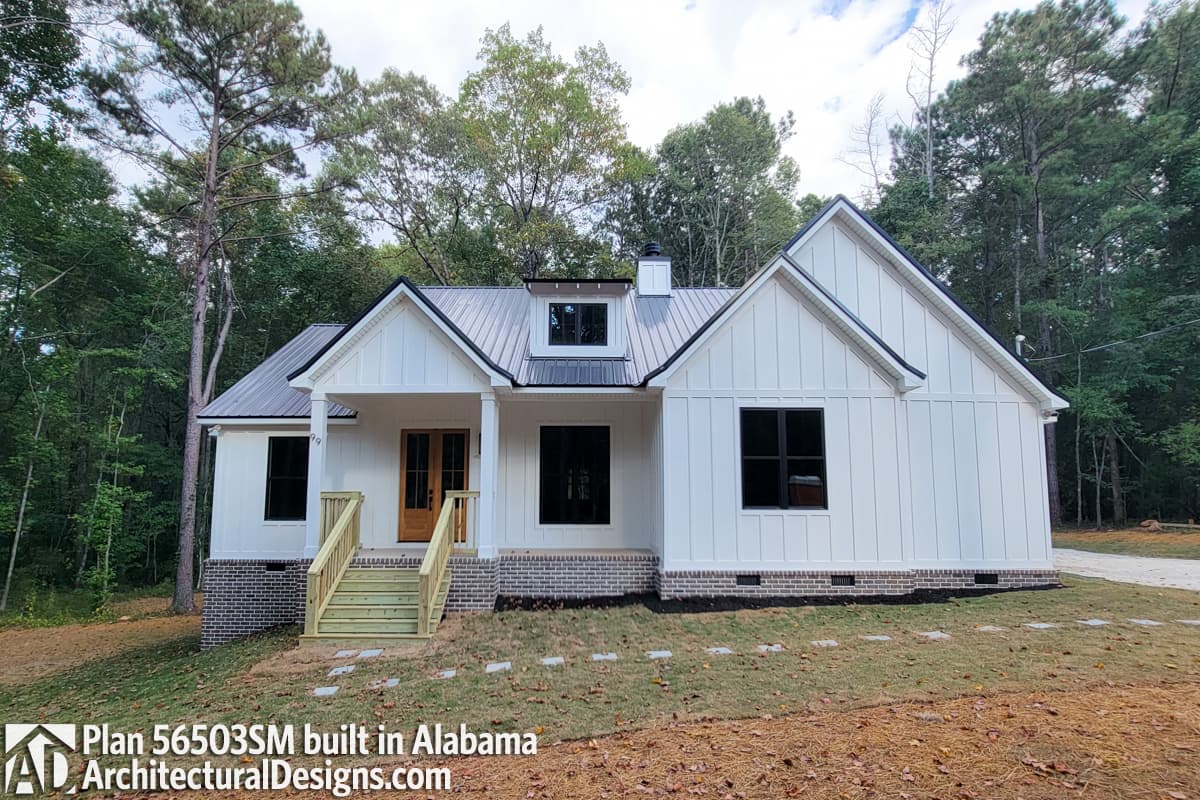

Modern Farmhouse Plan 56503SM Comes to Life in Florida

Photos

Modern Farmhouse Plan 56503SM Comes to Life in Alabama

Photos

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

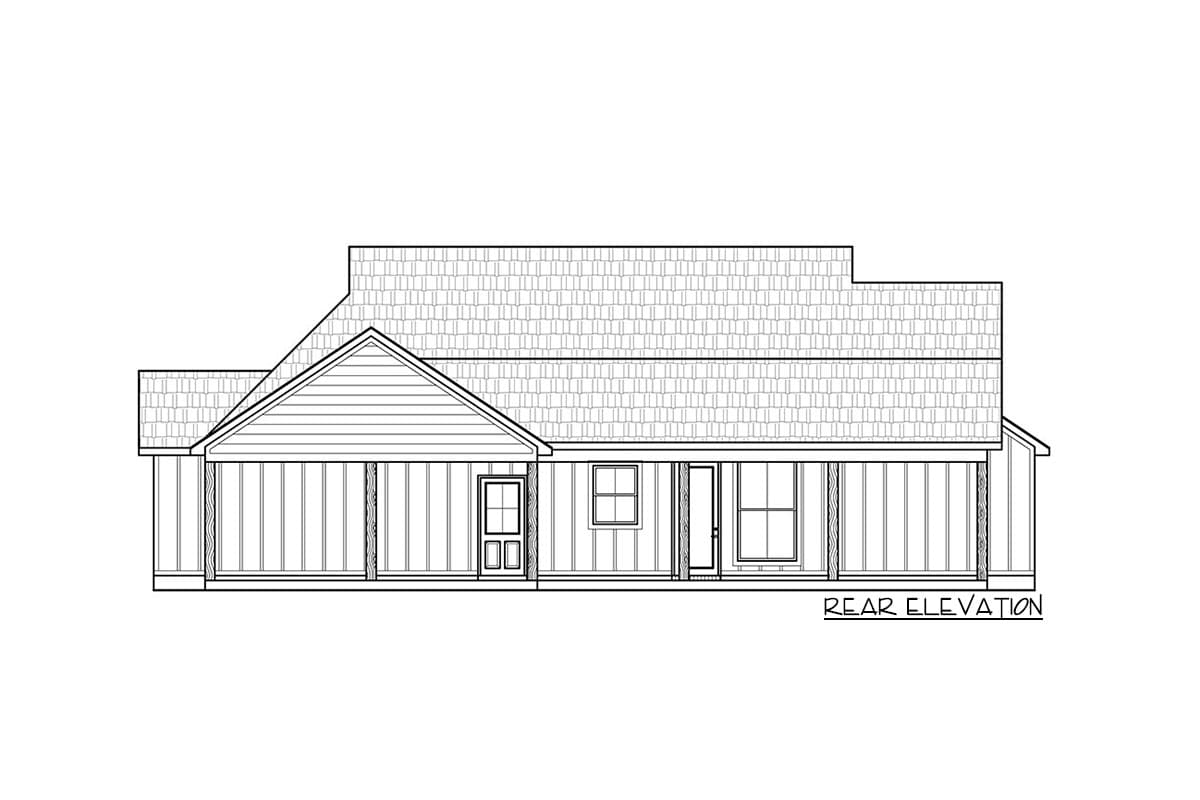

FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
