Split Bedroom Ranch Home Plan

Plan 4021DB

  • 1,911

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

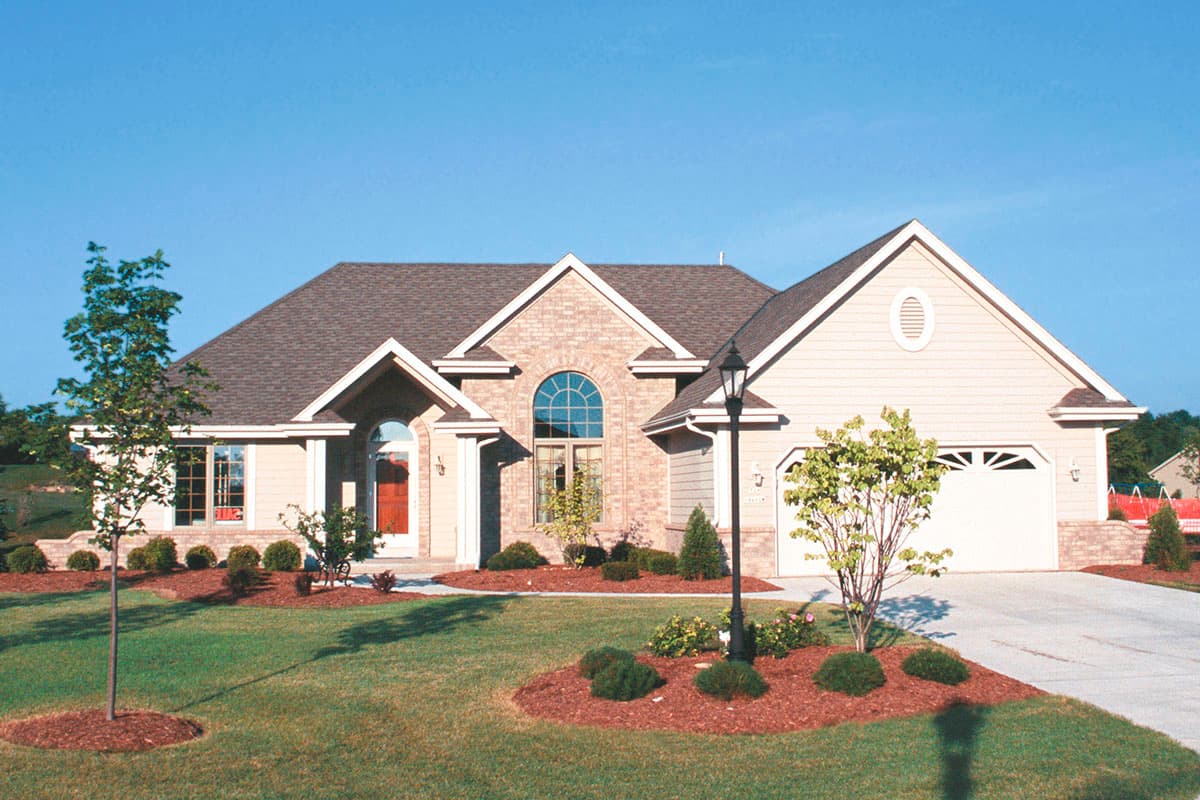

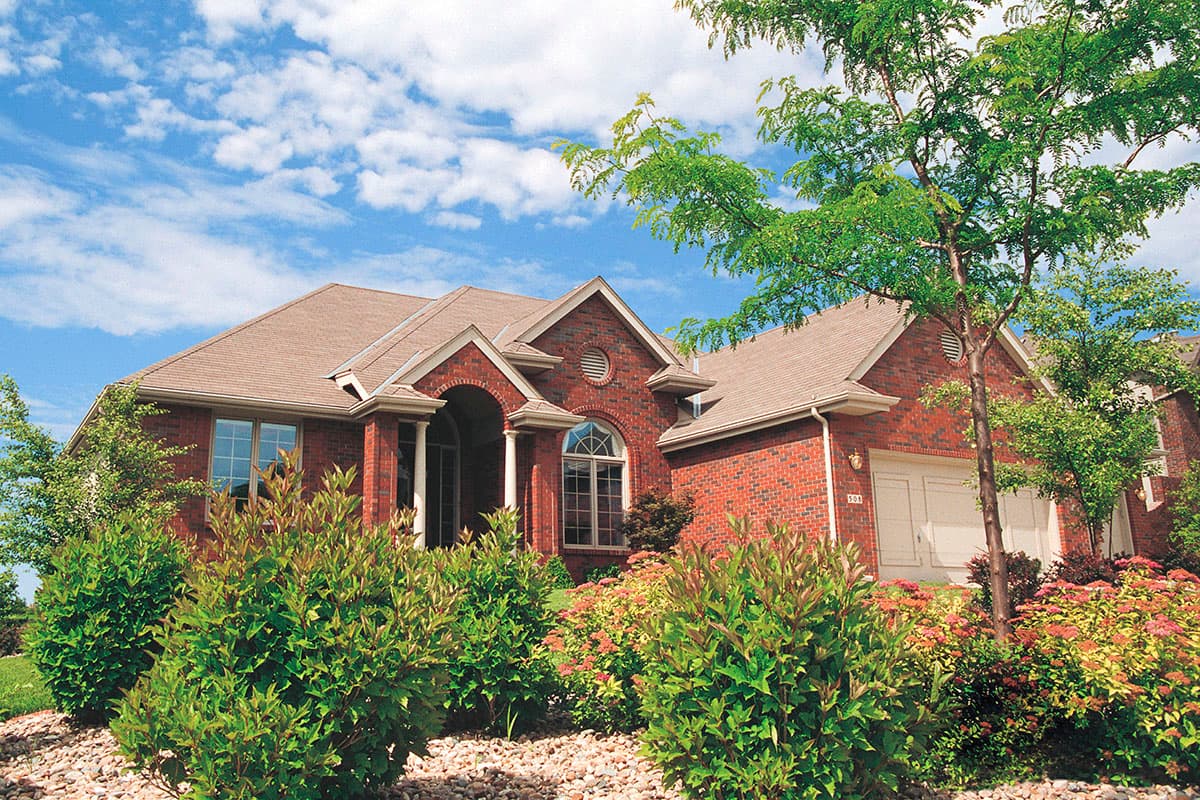

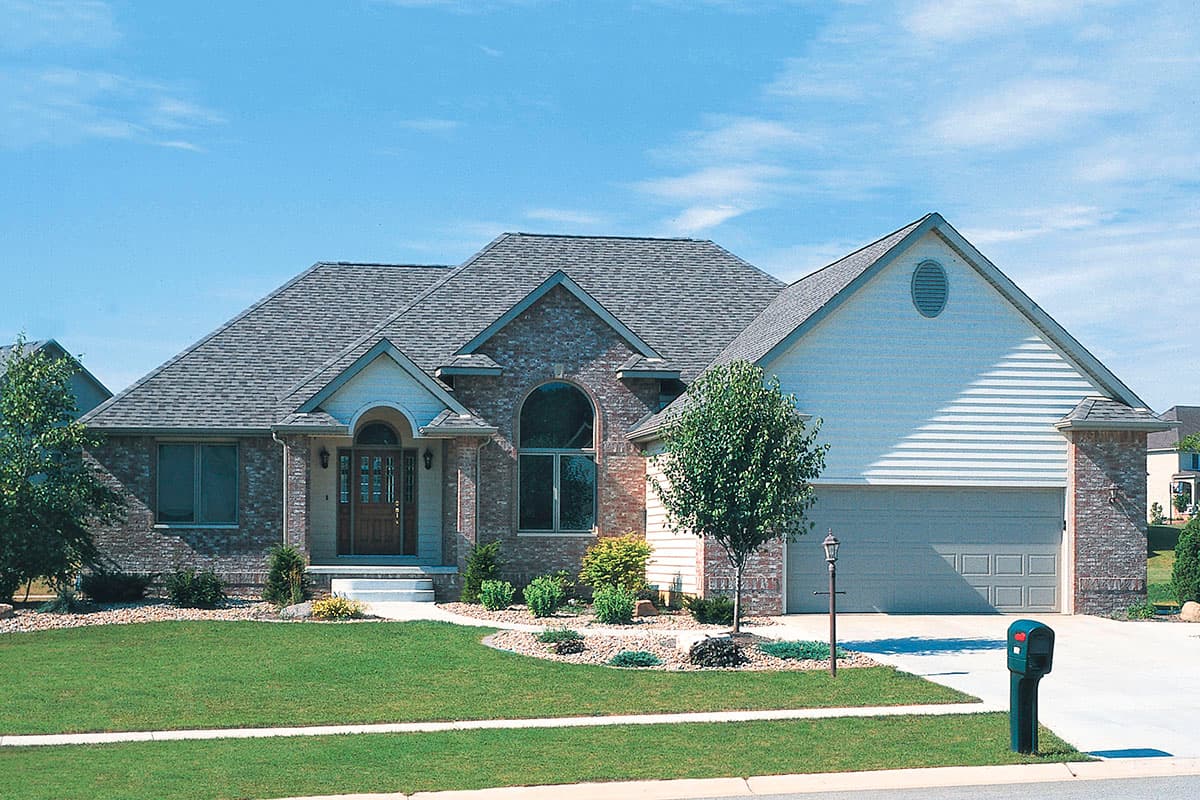

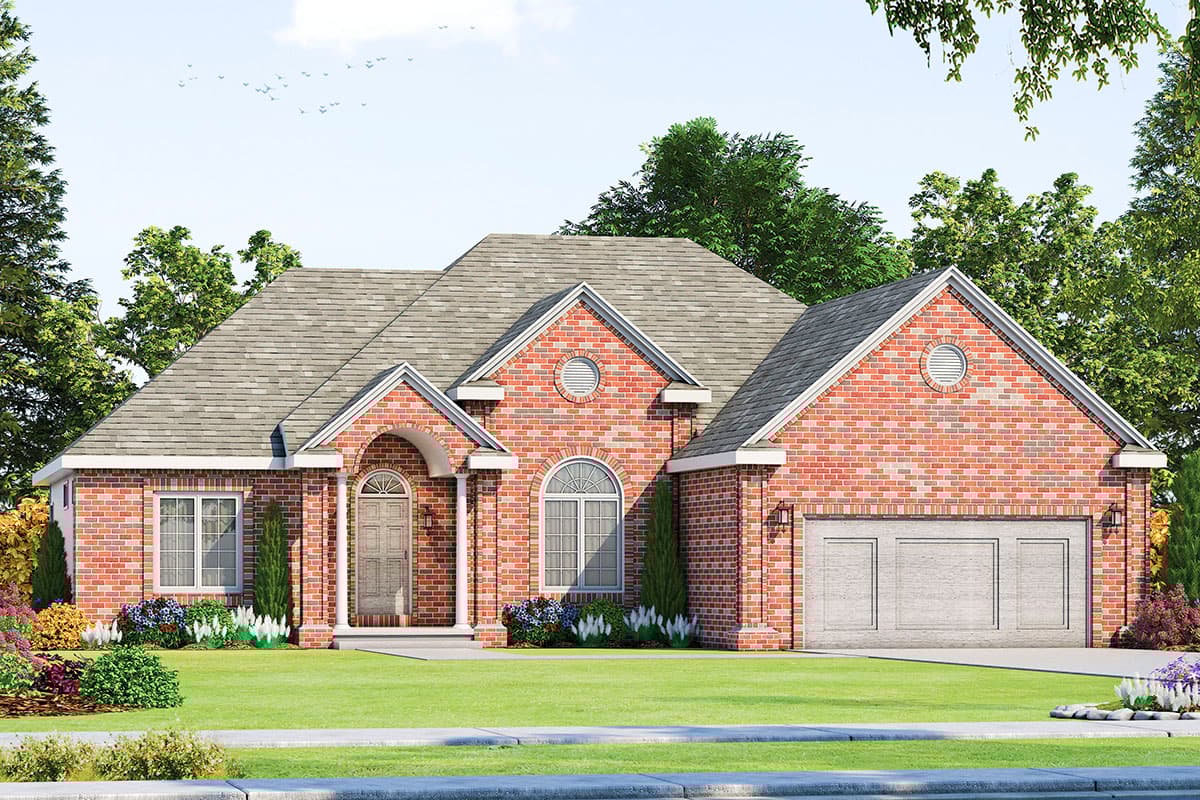

  • An arched entry welcomes visitors into the foyer of this split bedroom ranch.
  • Open to the 10-foot-high entry, the formal dining room features a beautifully arched window and a detailed ceiling that rises to 12 feet.

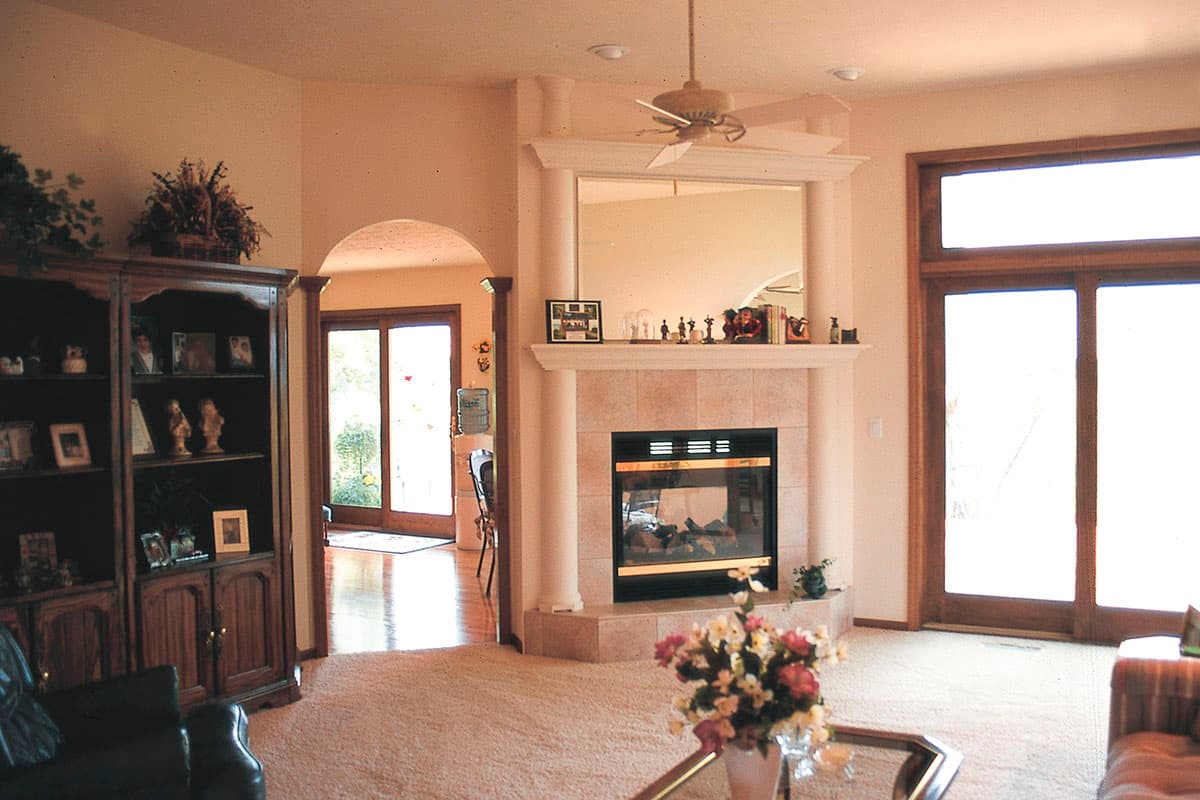

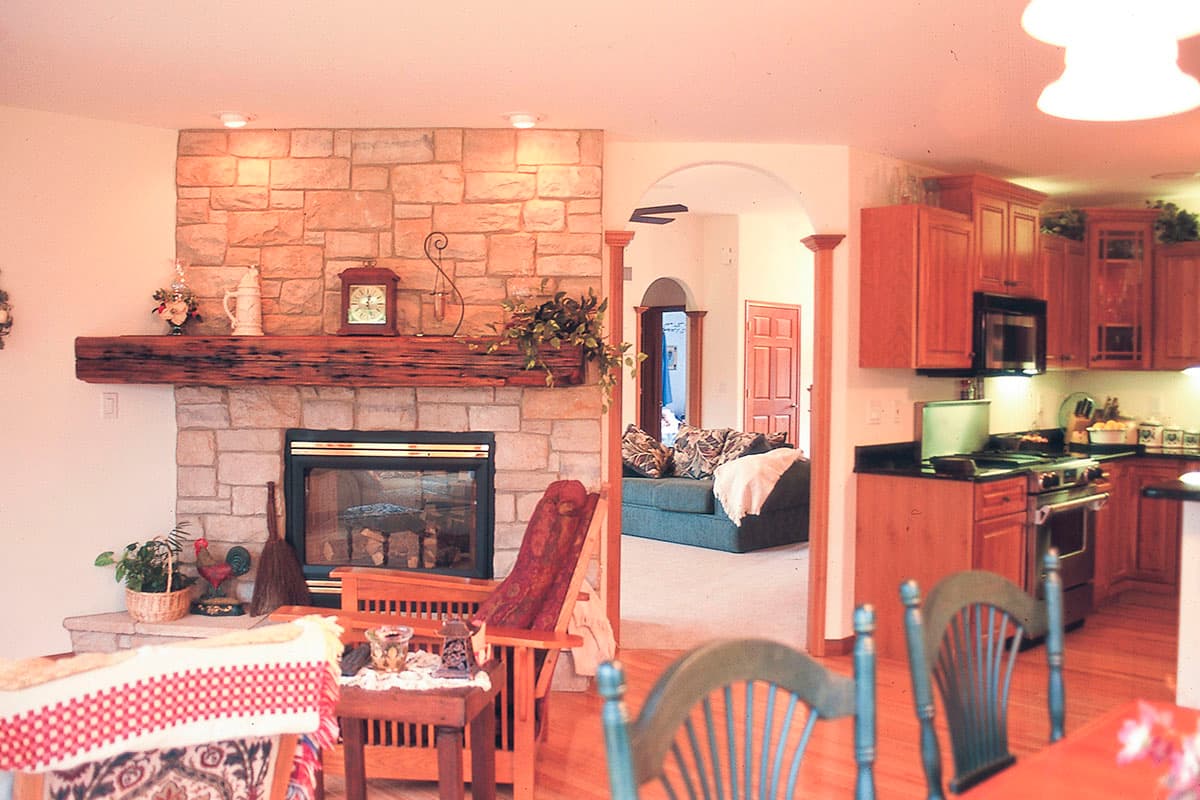

  • A see-through fireplace shared by the great room and the bayed hearth room is visible from the entry. The hearth room flows into the breakfast area and kitchen. With its pantry closet and abundance of counter space, the kitchen caters to the serious cook.
  • By adding French doors to the bedroom adjacent to the great room, and removing its closet in favor of bookcases, you can turn it into a den.
  • Skylights flood both baths with natural light. In the upscale master bath, you find a huge walk-in closet, a whirlpool tub and separate shower. The master bedroom features a vaulted ceiling and corner windows.
  • Related Plans: Get alternate versions with house plans 42555DB42556DB42361DB and 42358DB.

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations:
Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

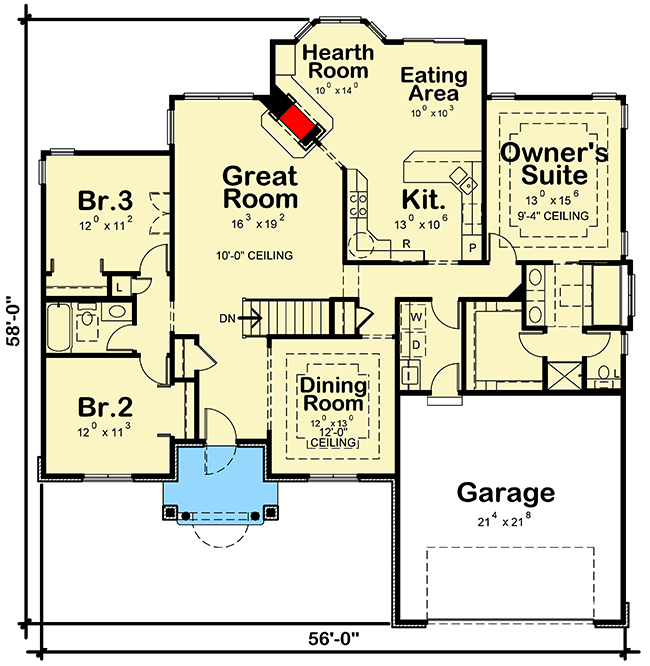

Split Bedroom Ranch Home Plan - 4021DB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

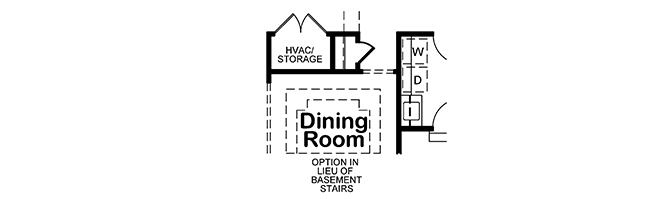

Split Bedroom Ranch Home Plan - 4021DB floor plan - 2nd Floor

Plan details

Architectural Style

Plan Collections

Split Bedroom Ranch Home Plan

  • 1,911

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $650
  • PDF - Single-Build $1,005
  • PDF - Unlimited Build $1,505
  • CAD - Single-Build $1,740
  • CAD - Unlimited Build $2,240
  • View all purchase option online

About This Plan

  • An arched entry welcomes visitors into the foyer of this split bedroom ranch.
  • Open to the 10-foot-high entry, the formal dining room features a beautifully arched window and a detailed ceiling that rises to 12 feet.
  • A see-through fireplace shared by the great room and the bayed hearth room is visible from the entry. The hearth room flows into the breakfast area and kitchen. With its pantry closet and abundance of counter space, the kitchen caters to the serious cook.
  • By adding French doors to the bedroom adjacent to the great room, and removing its closet in favor of bookcases, you can turn it into a den.
  • Skylights flood both baths with natural light. In the upscale master bath, you find a huge walk-in closet, a whirlpool tub and separate shower. The master bedroom features a vaulted ceiling and corner windows.
  • Related Plans: Get alternate versions with house plans 42555DB42556DB42361DB and 42358DB.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,911 sq. ft.
  • 1st Floor: 1,911 sq. ft.
  • Deck: 462 sq. ft.
  • Basement Unfinished: 1,911 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 58' 0"
  • Max ridge height: 22' 7"

Garage

  • Type: Attached
  • Area: 481 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
